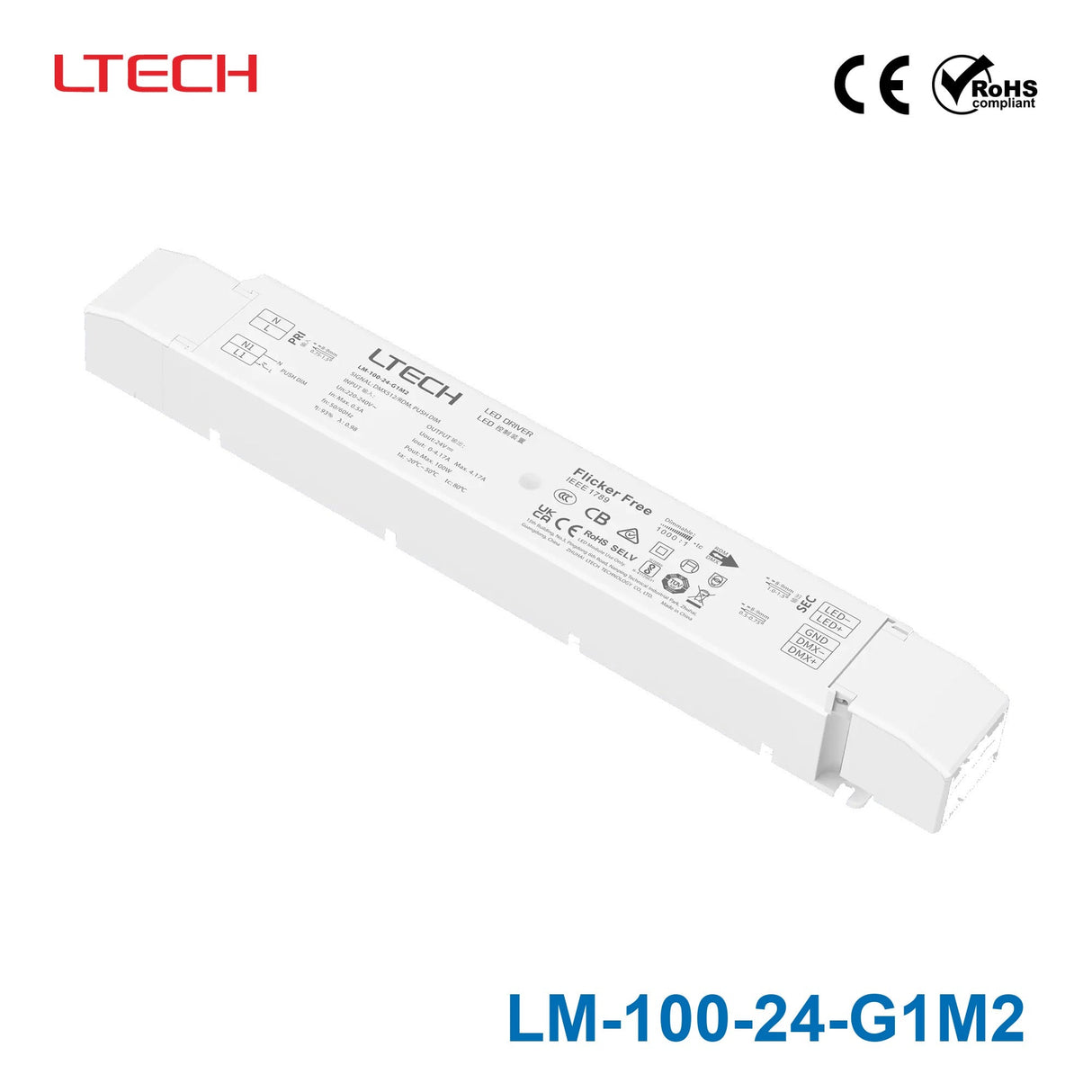

LTECH LM-100-24-G1M2 100W 24VDC CV DMX LED Driver - DMX dimmable

$75.32 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: DMX512/RDM
  • Push DIM.
  • Supports RDM remote device management protocol.
  • Withsoft-onandfadeinfunction
  • visualmorecomfortable
  • 0-100% flicker-free
  • High Frequency Exemption
  • In line with the EU energy efficiency ERP directive
  • standby power consumption < 0.5W
  • Innovative thermal management technology
  • intelligent power life protection.
  • Short circuit / Over-heat / Over load protection
  • short circuit protection
  • recover automatically
  • Full protective plastic housing.
  • Suitable for indoor I/II/IIItype lamps application
  • 5 years warranty (Rubycon capacitor).

Specifications

  • Brand
    Ltech
  • Series
    Ltech DMX Series
  • Power Rating
    100 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    4.17 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    DMX
  • Standards Met
    CE,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    11.54 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.66 lb
