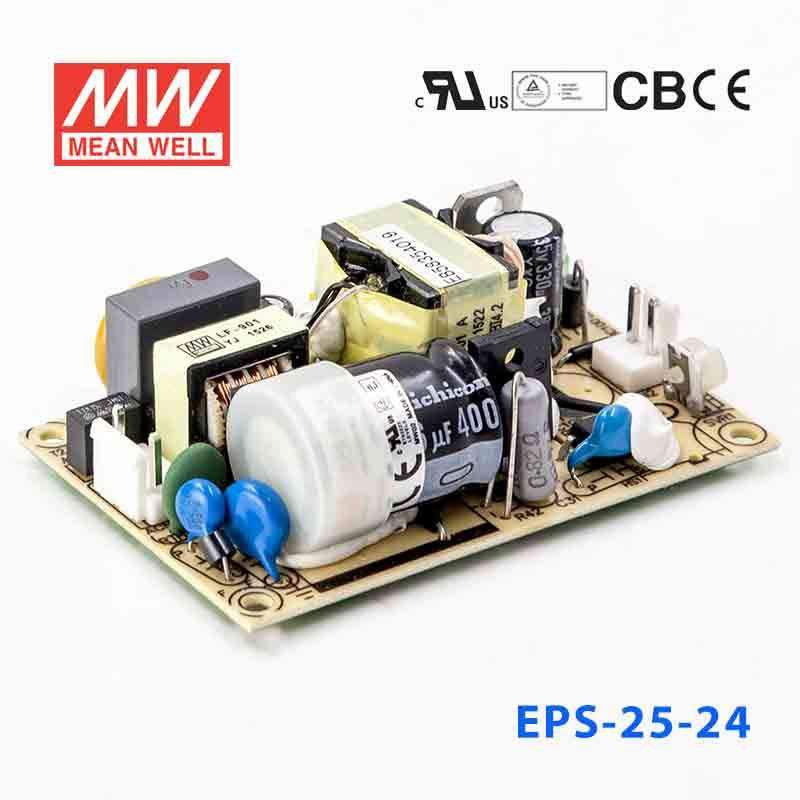

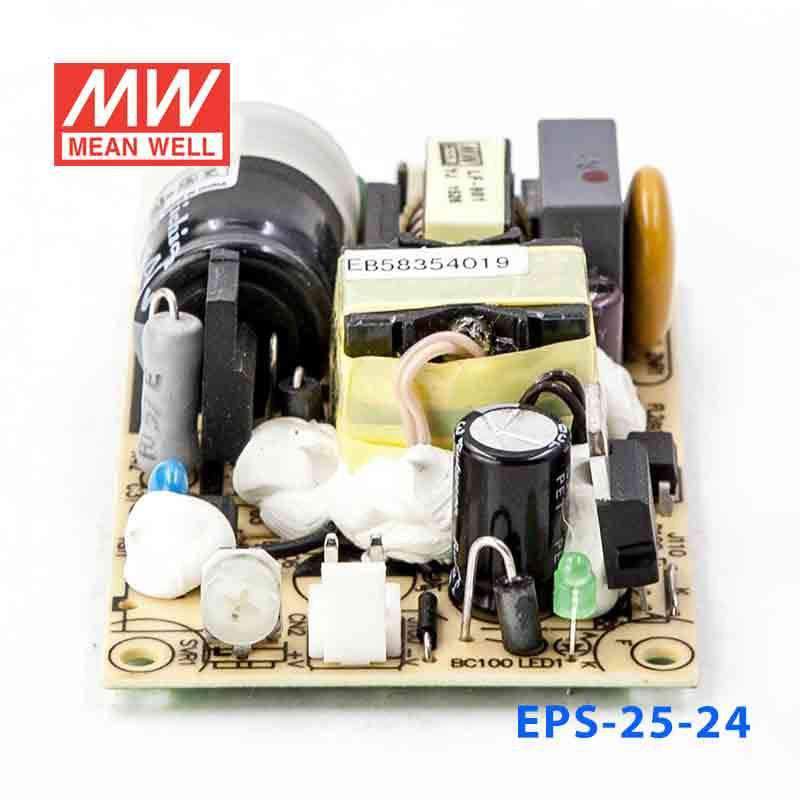

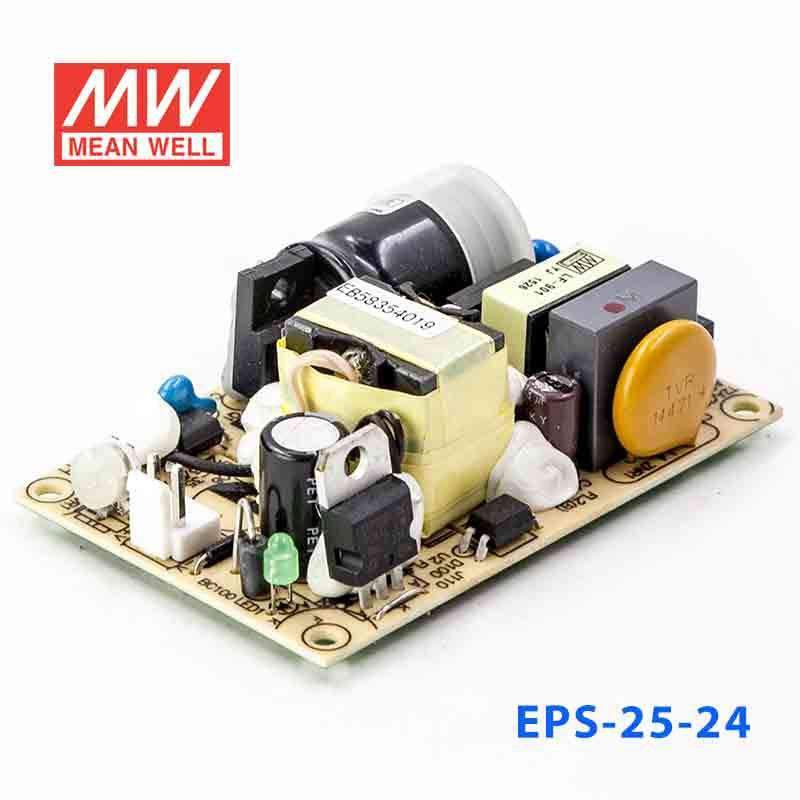

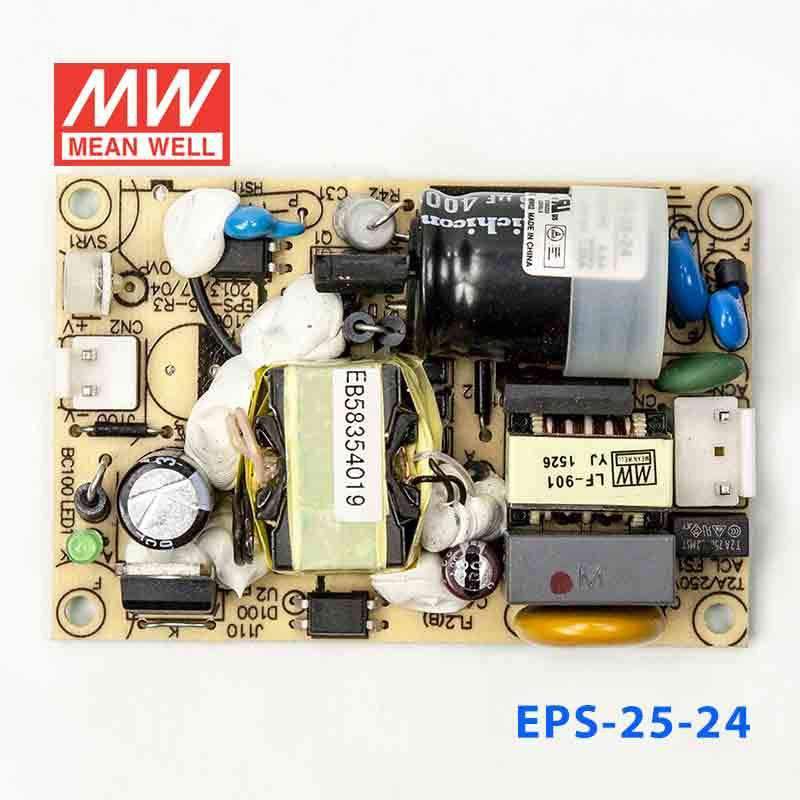

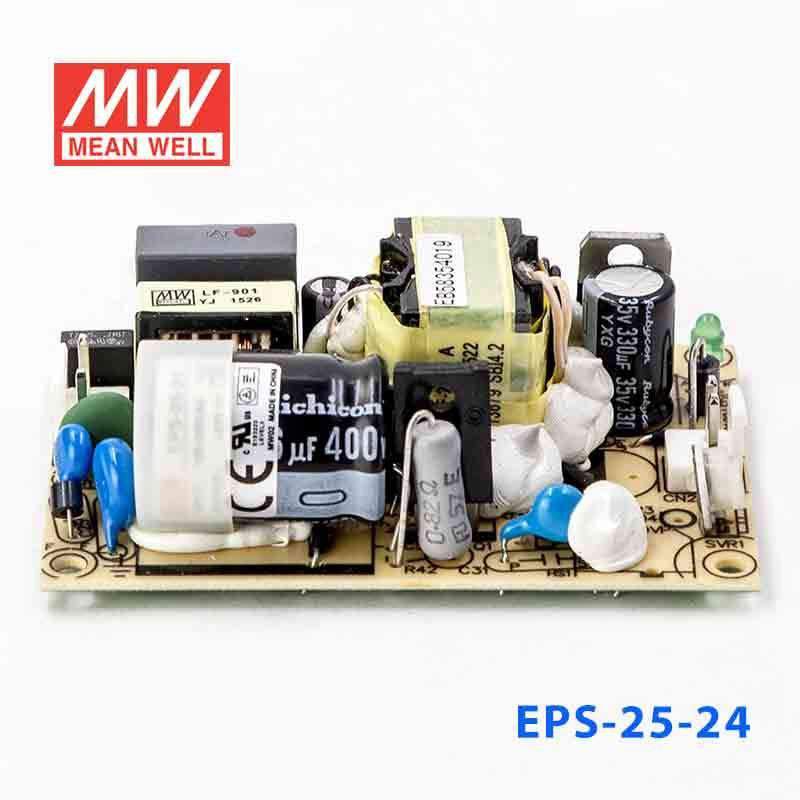

Mean Well EPS-25-24 Power Supply 25W 24V
The EPS-25 is a 25W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
Can I use the EPS-25-24 for a small 24V PLC, I/O module, or control panel load?
It can fit low-power 24V automation loads if the total demand stays within 25.2W and 1.05A. Since it is a constant voltage model, it is intended for equipment that expects a fixed 24V DC supply.
Is the EPS-25-24 suitable for 24V sensors, relays, and industrial interface modules?
Yes, it can be used for 24V sensors, relays, indicators, or interface modules when the combined current stays at or below 1.05A. For larger 24V loads, the current limit is the main constraint to review.
Can this 24V power supply be used in compact factory or machine-control electronics?
It is suitable for compact machine or factory electronics that need 24V constant voltage and remain inside the 25.2W output rating. Its 76.2 x 50.8 x 24.0 mm dimensions are also useful where internal space is limited.
Does the EPS-25-24 work in cold or warm indoor equipment environments?
The rated operating temperature range is -30°C to +70°C, so the temperature specification itself covers both cold and warm controlled environments. The provided specs do not list an IP rating, so it should still be used where the equipment enclosure handles dust and moisture protection.
How does the EPS-25-24 compare with the rest of the EPS-25 series?
The EPS-25 range includes EPS-25-3.3 at 16.5W, 3.3V, 5A; EPS-25-5 at 25W, 5V, 5A; EPS-25-7.5 at 25.5W, 7.5V, 3.4A; EPS-25-12 at 25.2W, 12V, 2.1A; EPS-25-15 at 25.5W, 15V, 1.7A; EPS-25-24 at 25.2W, 24V, 1.05A; EPS-25-27 at 25.65W, 27V, 0.95A; EPS-25-36 at 25.2W, 36V, 0.7A; and EPS-25-48 at 25.44W, 48V, 0.53A. The family keeps a similar power class while changing output voltage and maximum current.
