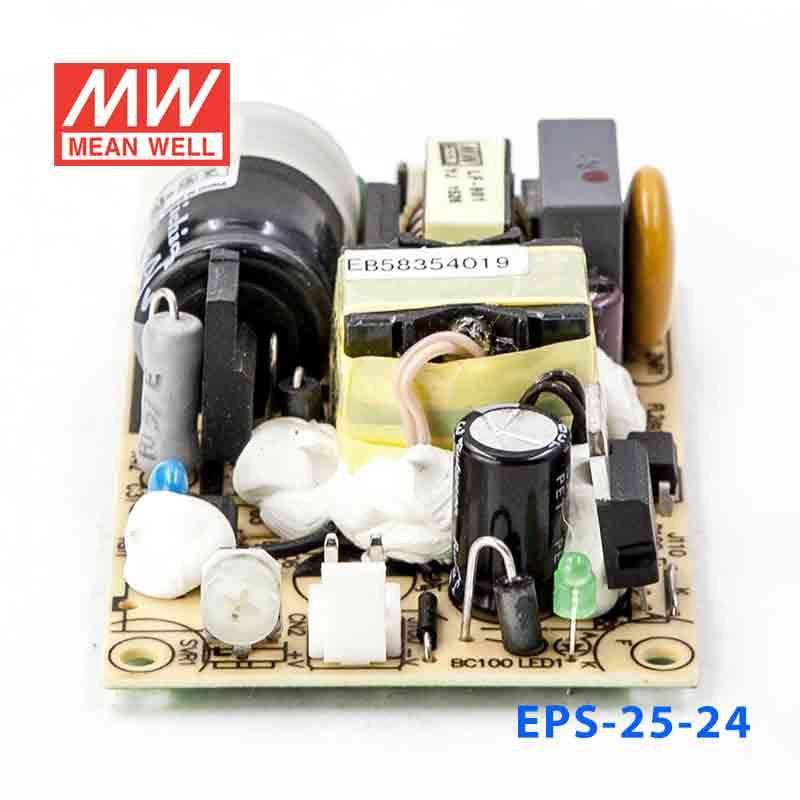

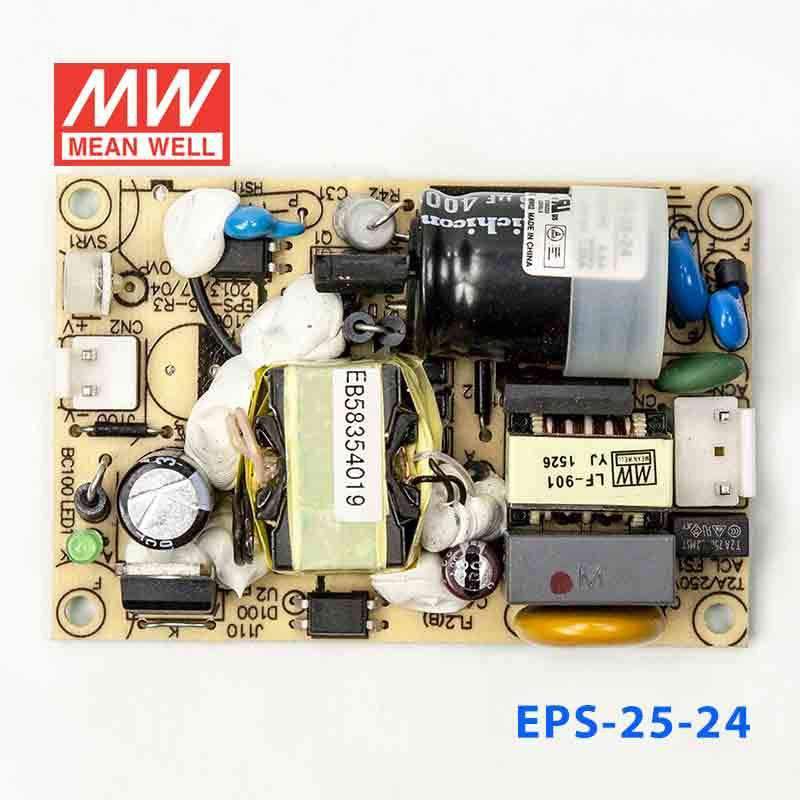

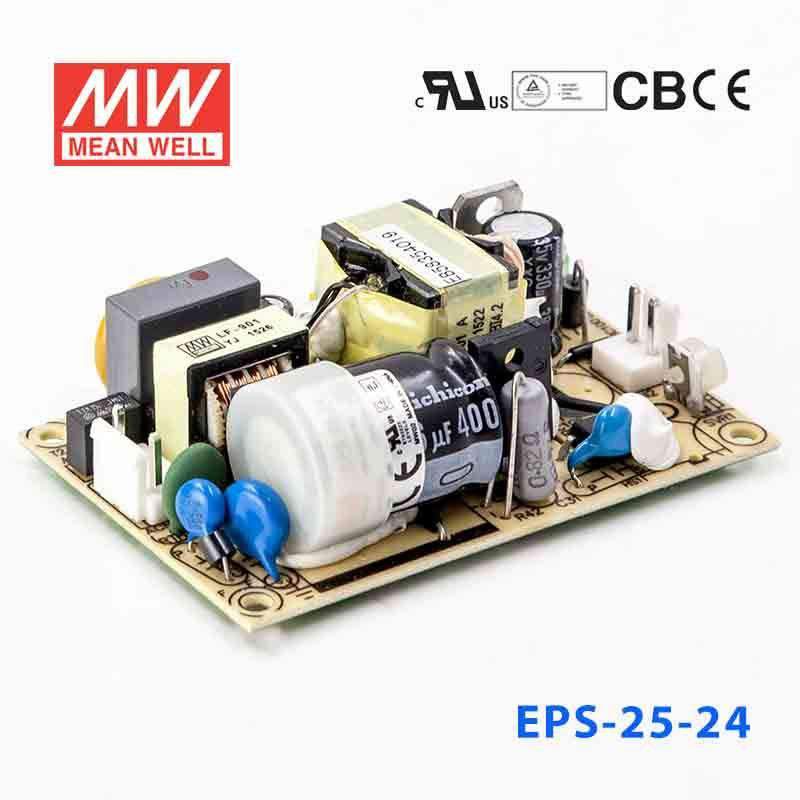

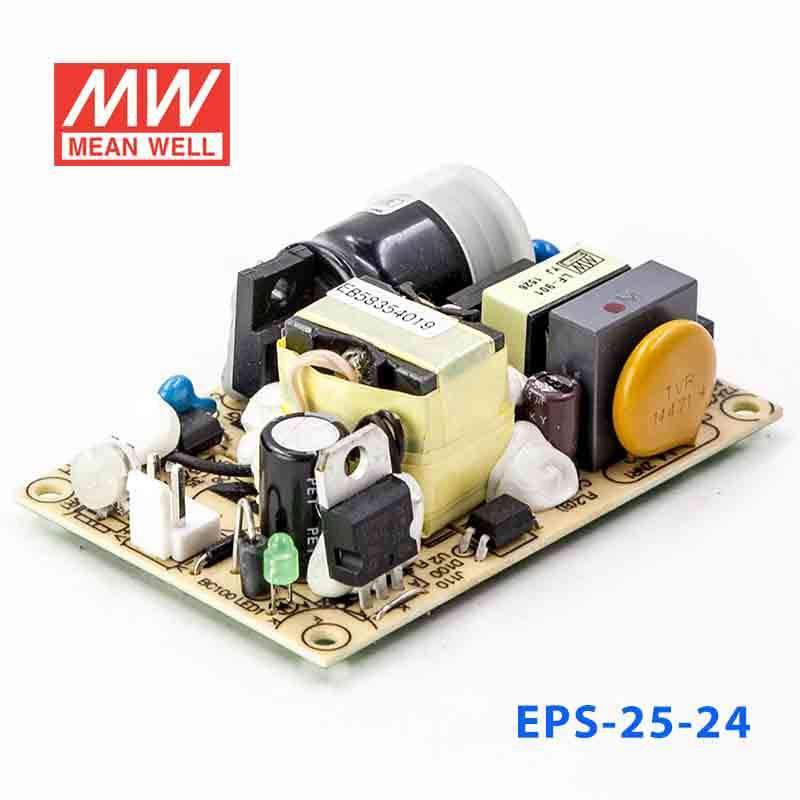

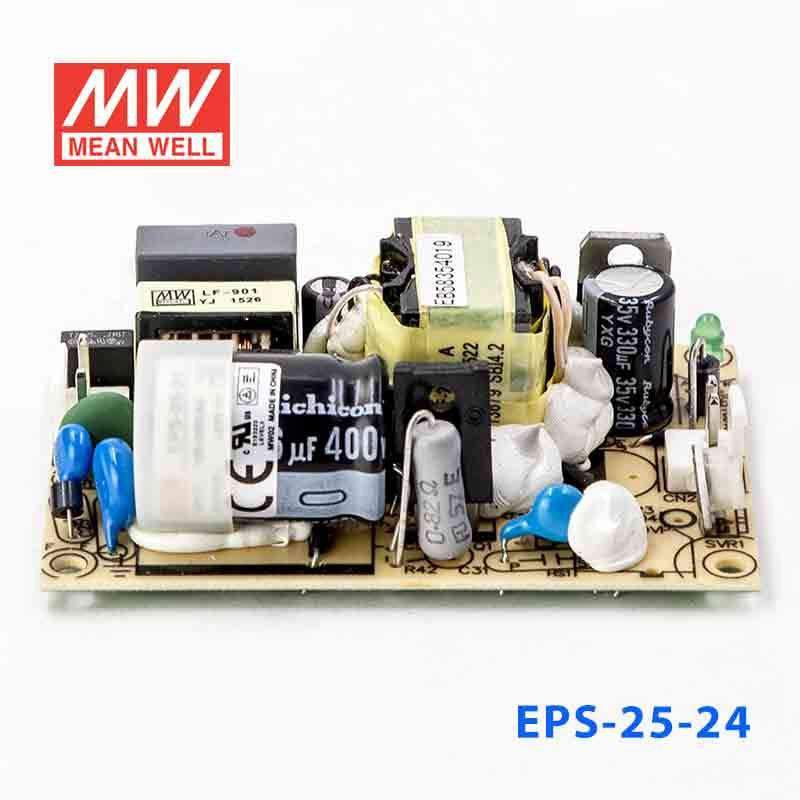

Mean Well EPS-25-24 Power Supply 25W 24V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~170% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~140% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+2P/3.96mm pitch, JST B3P/B2P-VH |
| Dimension (LxWxH) | 76.2x50.8x24 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-25-24 for a small 24V PLC, I/O module, or control panel load?
It can fit low-power 24V automation loads if the total demand stays within 25.2W and 1.05A. Since it is a constant voltage model, it is intended for equipment that expects a fixed 24V DC supply.
Is the EPS-25-24 suitable for 24V sensors, relays, and industrial interface modules?
Yes, it can be used for 24V sensors, relays, indicators, or interface modules when the combined current stays at or below 1.05A. For larger 24V loads, the current limit is the main constraint to review.
Can this 24V power supply be used in compact factory or machine-control electronics?
It is suitable for compact machine or factory electronics that need 24V constant voltage and remain inside the 25.2W output rating. Its 76.2 x 50.8 x 24.0 mm dimensions are also useful where internal space is limited.
Does the EPS-25-24 work in cold or warm indoor equipment environments?
The rated operating temperature range is -30°C to +70°C, so the temperature specification itself covers both cold and warm controlled environments. The provided specs do not list an IP rating, so it should still be used where the equipment enclosure handles dust and moisture protection.
How does the EPS-25-24 compare with the rest of the EPS-25 series?
The EPS-25 range includes EPS-25-3.3 at 16.5W, 3.3V, 5A; EPS-25-5 at 25W, 5V, 5A; EPS-25-7.5 at 25.5W, 7.5V, 3.4A; EPS-25-12 at 25.2W, 12V, 2.1A; EPS-25-15 at 25.5W, 15V, 1.7A; EPS-25-24 at 25.2W, 24V, 1.05A; EPS-25-27 at 25.65W, 27V, 0.95A; EPS-25-36 at 25.2W, 36V, 0.7A; and EPS-25-48 at 25.44W, 48V, 0.53A. The family keeps a similar power class while changing output voltage and maximum current.
