Mean Well HLG-185H-C1400A Power Supply 200.2W 1400mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours

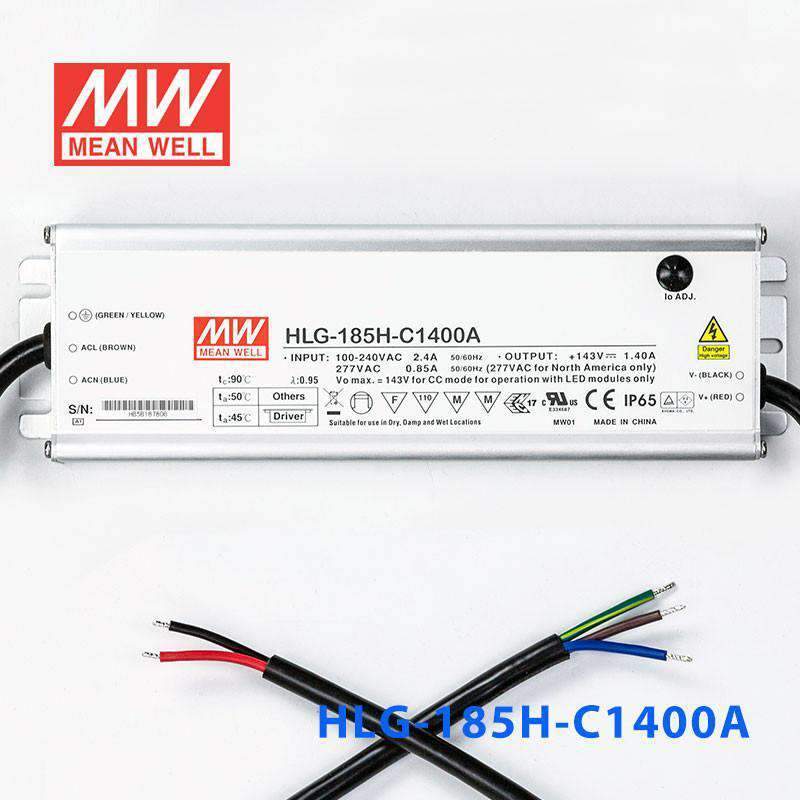

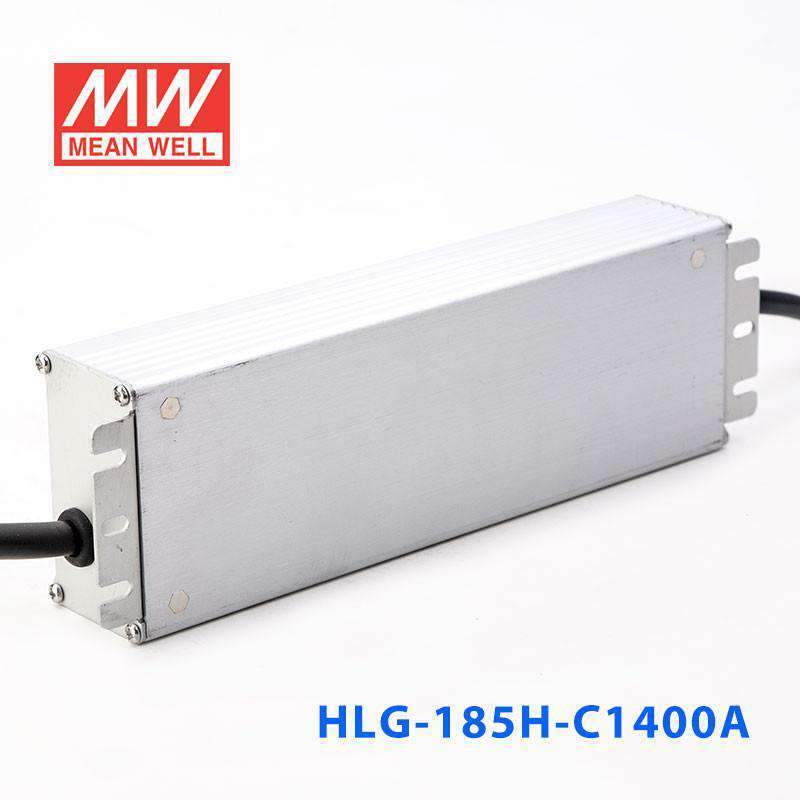

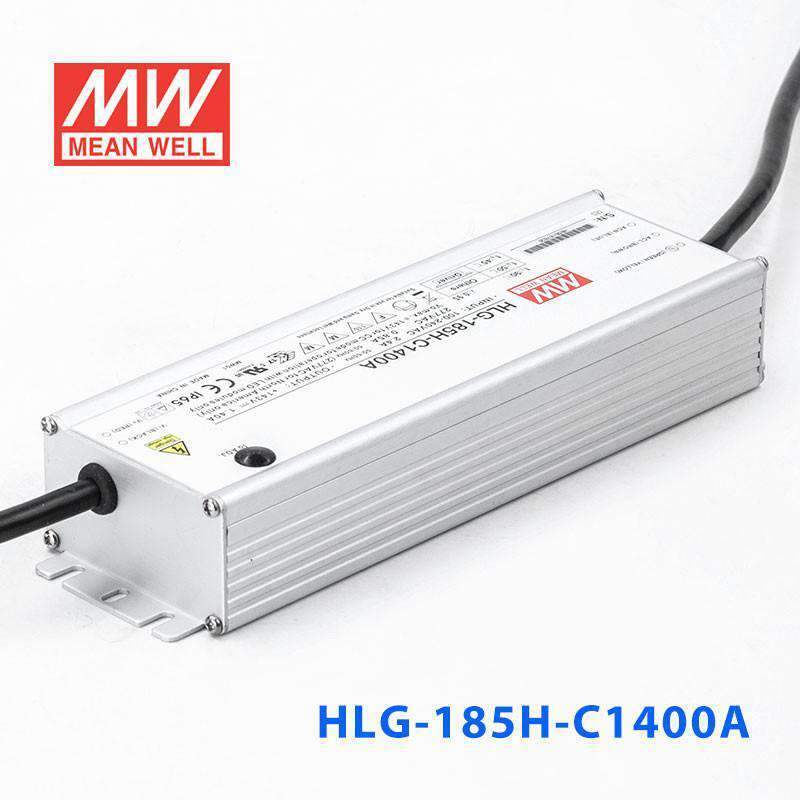

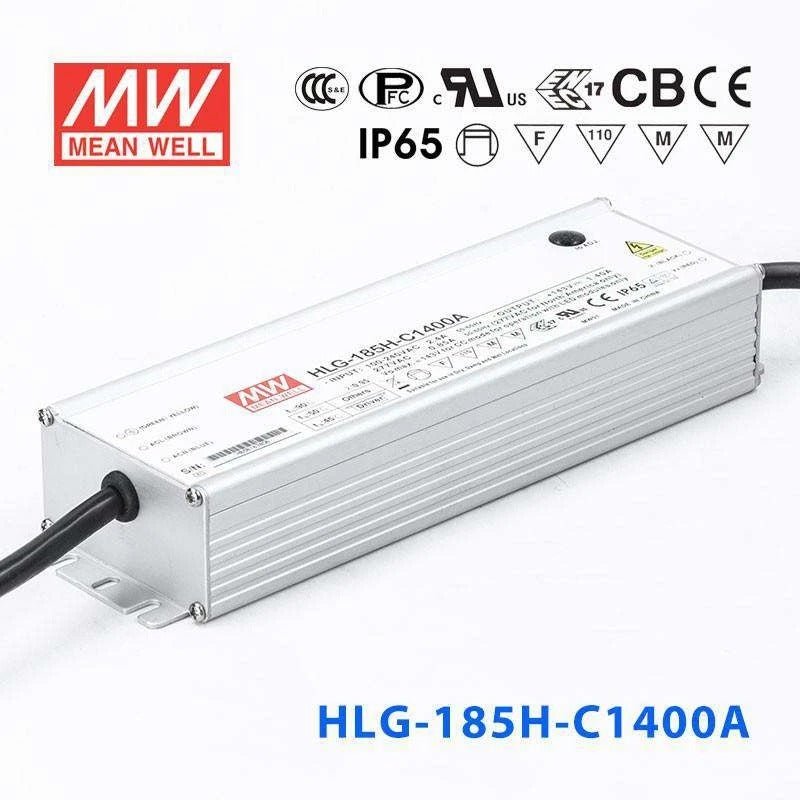

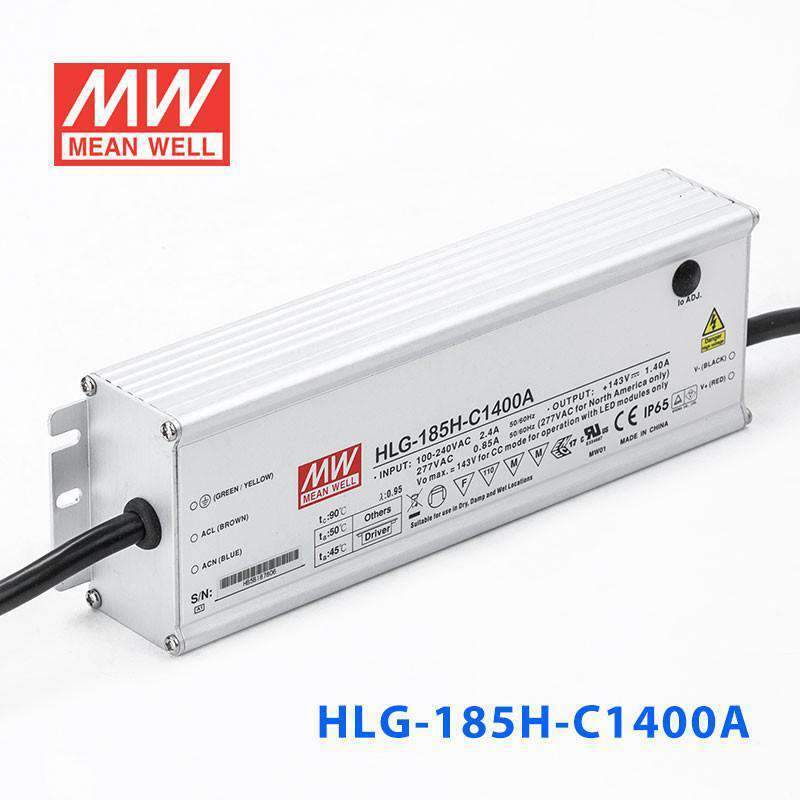

Mean Well HLG-185H-C1400A Power Supply 200.2W 1400mA - Adjustable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating200.2 Watt
-
Output Voltage143 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,PSE,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-C1400A to drive high-power LED downlights in a commercial ceiling?
Yes. The HLG-185H-C1400A delivers 1400mA constant current with a 71-143V compliance range, providing up to 200.2W. It can power series-connected high-power LED downlights that require 1400mA drive current. The built-in adjustment potentiometer lets you fine-tune current to optimize light output and efficiency.
Is the HLG-185H-C1400A suitable for driving LED grow light arrays?
Yes. At 1400mA and 200.2W, it can drive high-power LED arrays commonly used in horticultural lighting. The 71-143V compliance range accommodates various series string configurations, and the adjustable output lets you dial in the optimal current for your specific LED modules. The IP65 rating handles the humid conditions common in grow rooms.
Can this driver power a series string of LED COB modules for high-bay industrial lighting?
Yes, provided each COB module is rated for 1400mA and the total forward voltage of the series string falls between 71V and 143V. The number of COBs depends on each module's forward voltage. At 200.2W, it delivers substantial power for high-bay fixtures in warehouses or factories.
Is the HLG-185H-C1400A appropriate for outdoor LED floodlight installations?
Yes, when installed in a sheltered location. The IP65 water-resistant rating protects against dust and low-pressure water jets, so it can be mounted in covered outdoor areas or ventilated enclosures. The -40°C to +90°C operating range handles most outdoor climates. Ensure the floodlight LEDs are rated for 1400mA and the total forward voltage is within 71-143V.
How does the 1400mA C1400A model differ from other constant-current HLG-185H variants?
The HLG-185H constant-current range includes C500 (500mA, 200-400V), C700 (700mA, 143-286V), C1050 (1050mA, 95-190V), and C1400 (1400mA, 71-143V), all rated around 200W. The C1400A has the highest current and lowest voltage range, ideal for fewer high-current LEDs in series. The A suffix means adjustable output only, with no dimming input.
Can I install the HLG-185H-C1400A in an enclosed, non-ventilated space?
The driver is rated for operation up to +90°C, but it generates heat under full load. In an enclosed space with poor airflow, the internal temperature may rise and trigger thermal derating. It is recommended to allow some ventilation or use a heat-sinking mounting surface to keep the case temperature within the rated range.
