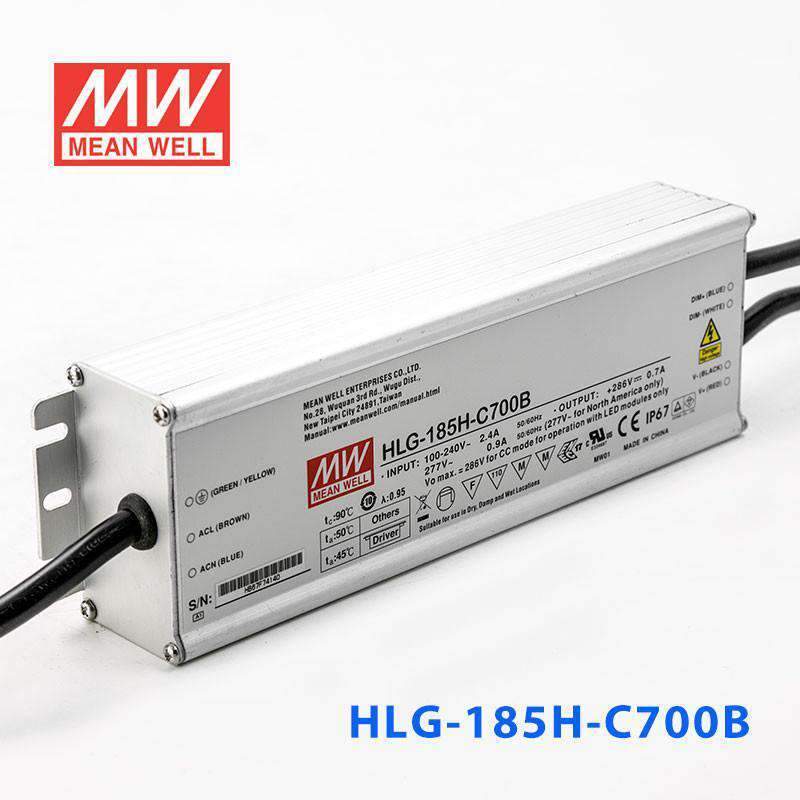

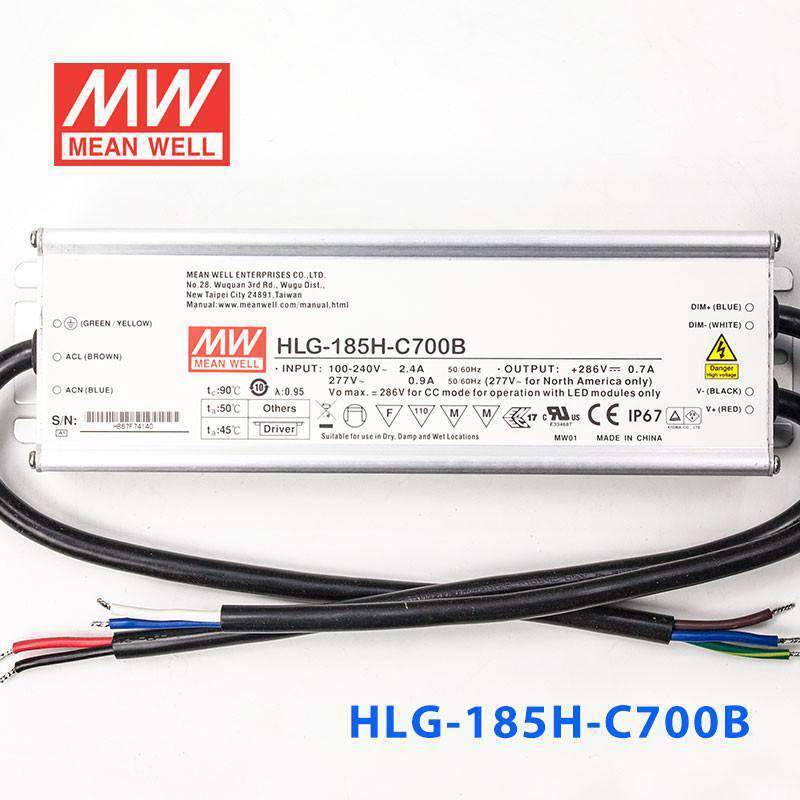

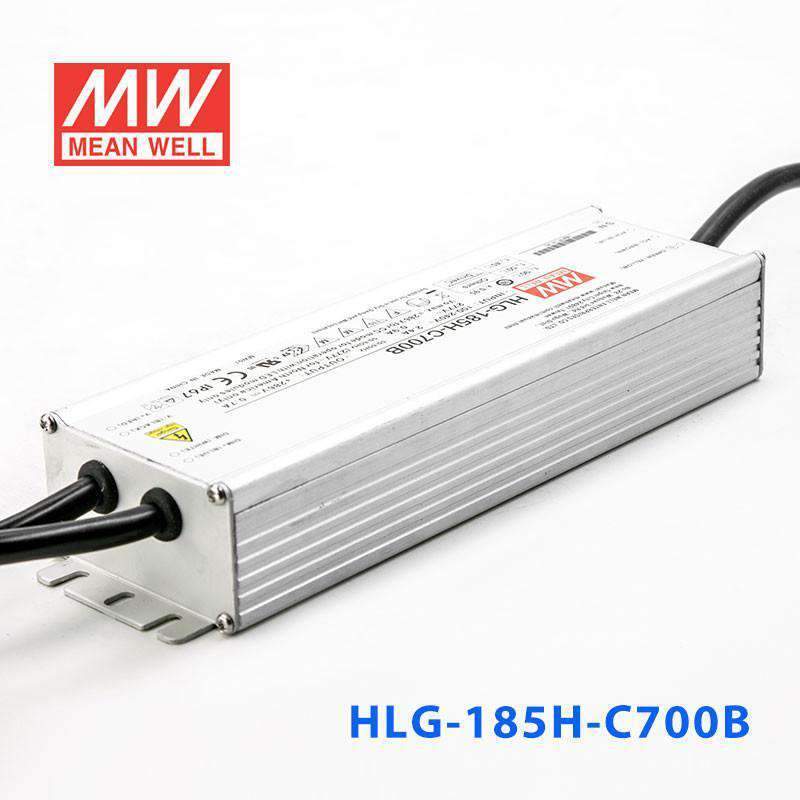

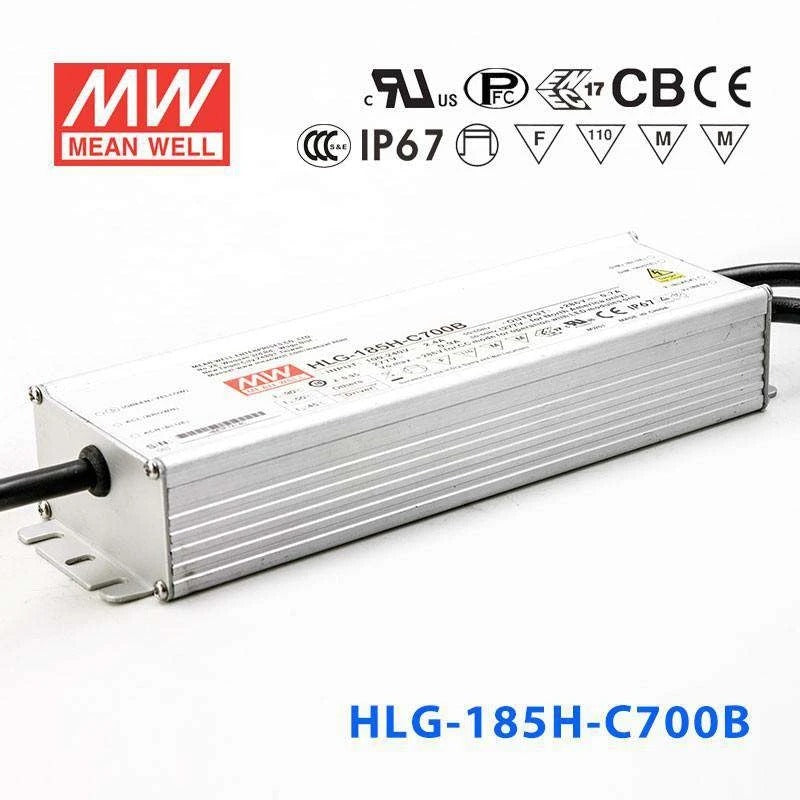

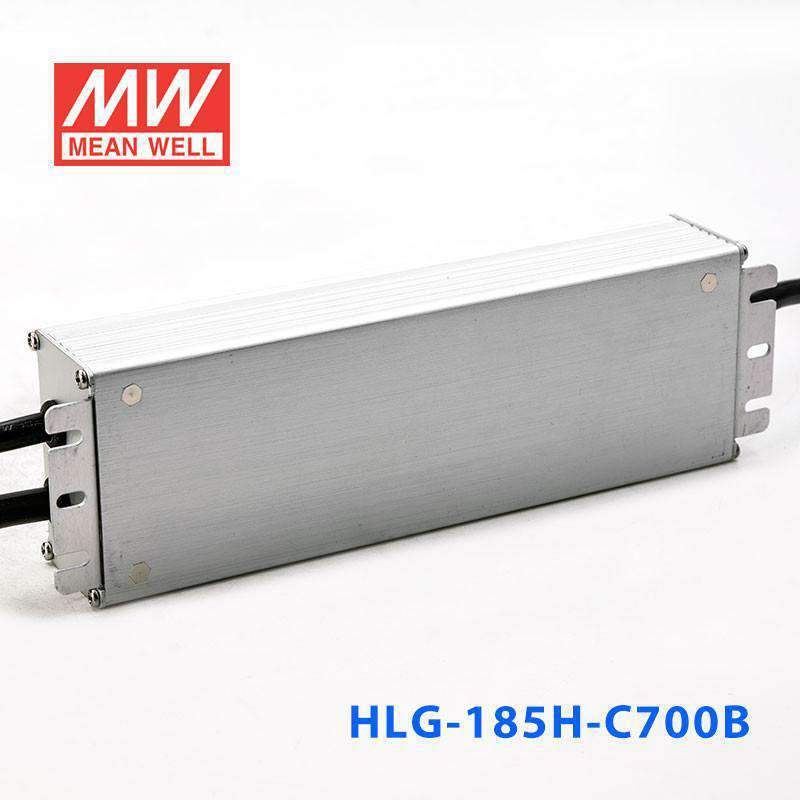

Mean Well HLG-185H-C700B Power Supply 200.2W 700mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-C700B Power Supply 200.2W 700mA - Dimmable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating200.2 Watt
-
Output Voltage286 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,PSE,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-C700B to drive dimmable LED floodlights in an outdoor setting?
Yes. The HLG-185H-C700B provides 700mA constant current at up to 200.2W with a built-in 1-10V/PWM dimming input for brightness control. Its IP65 water-resistant rating suits sheltered outdoor locations such as building facades, canopies, and covered parking areas where the fixture's forward voltage falls within 143-286V.
Is the HLG-185H-C700B suitable for powering LED street light or area light fixtures?
Yes, provided the fixture's total forward voltage falls within the 143-286V CC range. At 200.2W and 700mA, the driver handles medium-power street lights and area lights. The dimming input allows integration with smart lighting controllers for scheduled dimming or motion-based brightness adjustment.
Can the HLG-185H-C700B power LED modules in backlit channel letter signs with dimming?
Yes. The 700mA constant current output drives series LED module strings whose combined forward voltage falls between 143V and 286V. The dimming input lets you program day and night brightness levels. However, this model does not include an output adjustment potentiometer; if you need that, use the HLG-185H-C700AB instead.
What LED configurations are compatible with the HLG-185H-C700B?
The driver supplies a constant 700mA with a CC voltage range of 143-286V. Your LED string's total forward voltage must fall within that range. The exact number of LEDs depends on each LED's individual forward voltage. The driver automatically adjusts its output voltage to match the load within the rated range.
Does the HLG-185H-C700B handle dust and moisture in an industrial environment?
Yes. The IP65 enclosure is fully dust-tight and protected against low-pressure water jets from any direction. This makes it suitable for factories, warehouses, and covered industrial areas. The aluminium casing aids heat dissipation, and the operating temperature range of -40°C to +90°C covers most industrial conditions.
