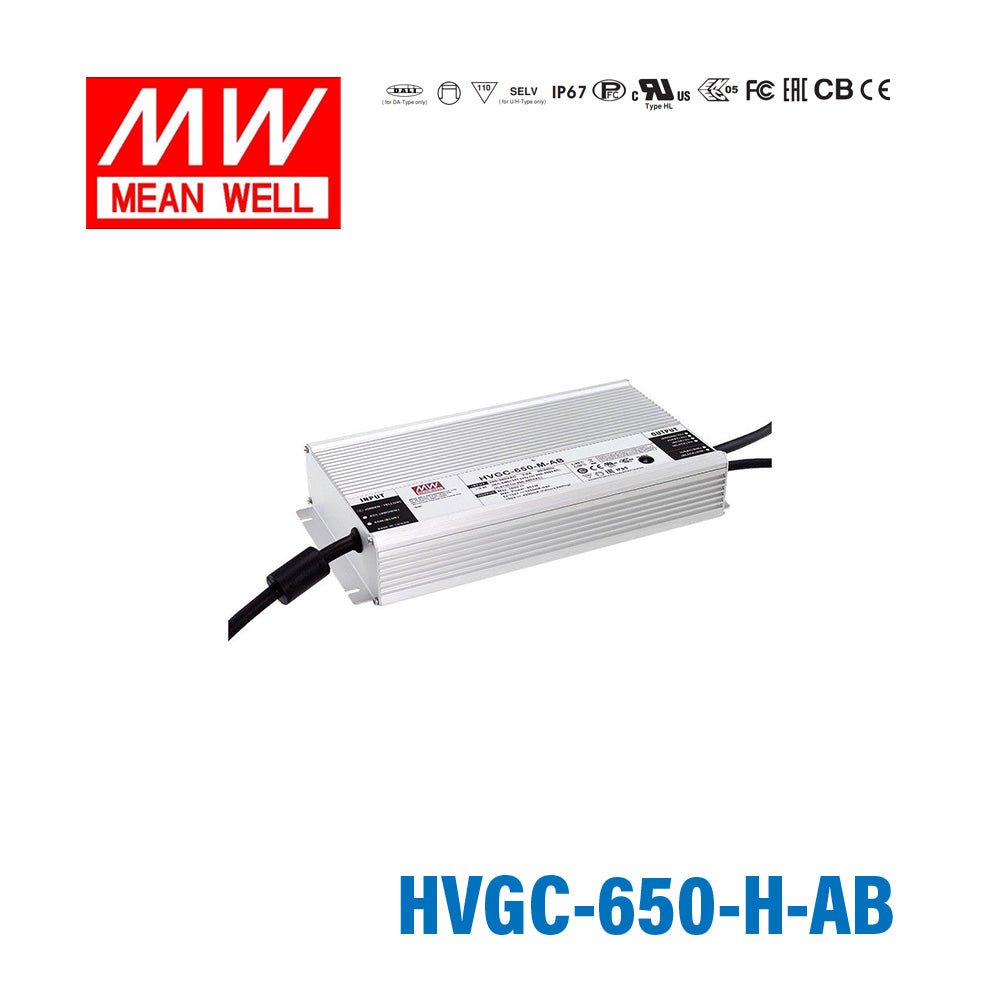

Mean Well HVGC-650-H-AB Power Supply 650W 5600mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-650-H-AB Power Supply 650W 5600mA - Adjustable and D...
The HVGC-650-H is a 650W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 4.2KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IP67, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating649.6 Watt
-
Output Voltage120 Volt
-
Rated Current5.6 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HVGC-650-H-AB for high-power LED downlights?
Yes, if the LED downlight system is designed for constant current operation at 5600mA and the total forward voltage stays within 46-116V. This is a 649.6W constant current driver, so it is intended for high-power LED loads rather than constant voltage fixtures.
Will this work for a large signage module assembly?
It can work for a signage assembly only if the modules are constant current types that require 5600mA and operate within the 46-116V CC range. If the signage modules are constant voltage products, this is not the correct type of power supply.
Is the HVGC-650-H-AB suitable for a small LED array with high drive current?
Yes, if the array is built for 5600mA constant current operation and the total LED forward voltage is between 46V and 116V. The exact number of LEDs depends on the forward voltage of each LED, so it should not be selected by LED count alone.
How do I check LED compatibility with this driver?
The LED load must require constant current at 5600mA, and the combined forward voltage has to stay inside the 46-116V constant current range. The number of LEDs depends on each LED's forward voltage, not on a preset quantity.
Can this driver be used outdoors or in difficult environments?
Yes, it carries an IP67 waterproof rating and an operating temperature range of -40°C to +85°C. That makes it suitable for indoor or outdoor locations where the driver may face dust, water, or wide temperature swings.
What is the difference between the 650W HVGC H, M, L, and U versions?
In the 650W HVGC adjustable family, HVGC-650-H-AB is 5600mA with a 46-116V CC range at 649.6W, HVGC-650-M-AB is 4200mA with a 62-155V CC range at 651W, HVGC-650-L-AB is 2800mA with a 92-232V CC range at 649.6W, and HVGC-650-U-AB is listed as 11.2A with a 24-58V CC range at 649.6W. The versions mainly differ by output current and the constant current voltage range they support.
