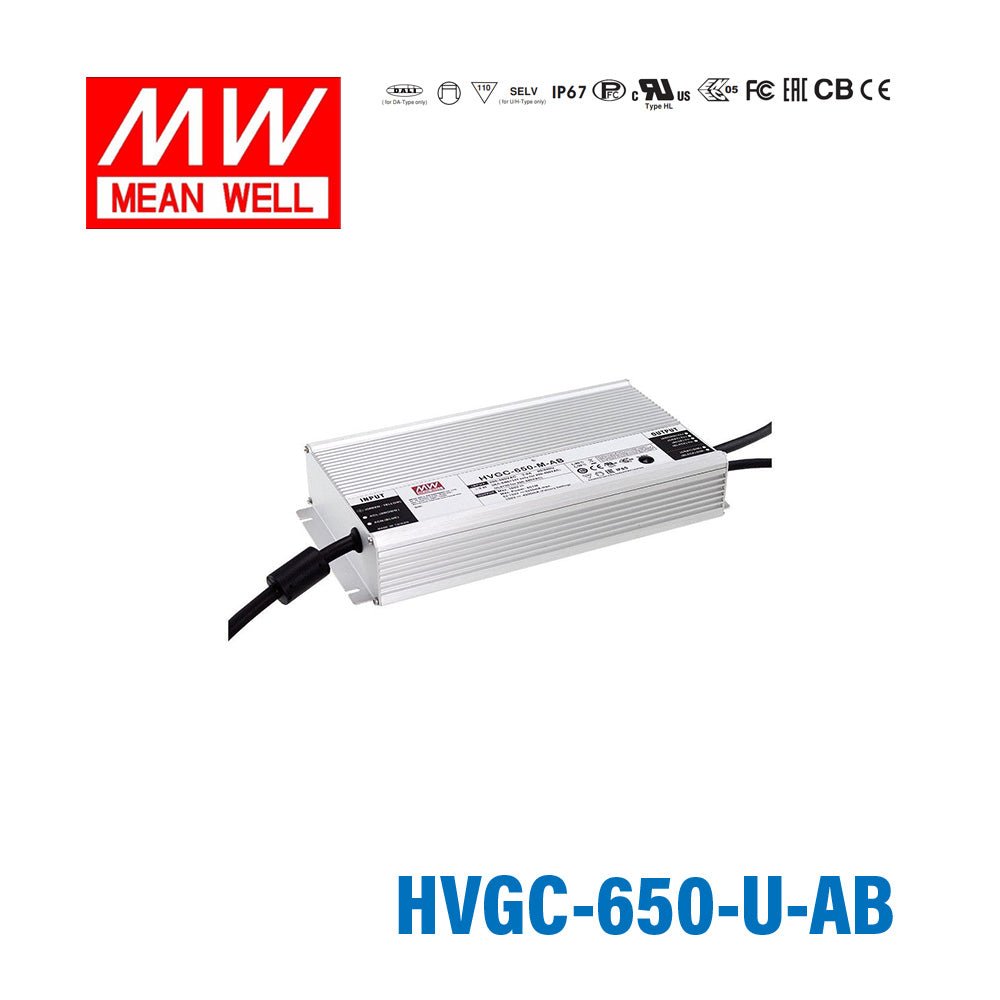

Mean Well HVGC-650-U-AB Power Supply 650W 11200mA - Adjustable and Dimmable

Name: Mean Well HVGC-650-U-AB Power Supply 650W 11200mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HVGC-650-U-AB
Price: 242.87 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-650-U-AB

$242.87 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-650-U-AB is the model of this series: rated current 11200mA, rated power 649.6W, typical efficiency 95.5%.

HVGC-650 series is a 650W LED AC/DC driver featuring the constant power mode with wide output voltage range. HVGC-650 operates from 180~528VAC and offers models with different rated current ranging between 2800mA and 14000mA. Thanks to the high efficiency up to 95.5%, with the fanless design, all models are able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture lighting and stadium light HVGC-650 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant power mode output
Metal housing with ClassⅠdesign
Surge protection with 8KV/4KV
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Auxiliary DC output optional
Typical lifetime>50000 hours
5 years warranty

Specifications

HVGC-650-U-ABSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 11200mA
RATED POWER: 649.6W
CONSTANT CURRENT REGION^Note.2: 24 ~ 58V
FULL POWER CURRENT RANGE: 11200~14000mA
OPEN CIRCUIT VOLTAGE (max.): 70V
CURRENT ADJ. RANGE: 5600~14000mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY POWER: Nominal 12V (Tolerance: ±10%, R&N:150mVp-p)@200mA for HVGC-650A only
SET UP TIME^Note.4: 500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98 / 230VAC, PF≧0.98 / 277VAC, PF≧0.97 / 347VAC, PF≧0.96 / 400VAC, PF≧0.95 / 480VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/400VAC/480VAC input (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 95.5%
AC CURRENT (Typ.): 2.1A / 347VAC 1.5A / 480VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=1250μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 62 ~ 78V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750 (type"HL"), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-2-13, BS EN/EN60384, IP67, EAC TP TC 004, GB/T19510.1,GB/T19510.213(for AB-Type only) approved
WITHSTAND VOLTAGE: I/P-O/P:4.2KVAC I/P-FG:2.1KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3, FCC Part 15 class B, GB/T 17743 , GB17625.1(for AB-Type only),EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 8KV, Line-Line 4KV), EAC TP TC 020

OTHERS

MTBF: 728.1K hrs min. Telcordia SR-332(Bellcore) ; 60.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg;4pcs/16.6Kg/0.98CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HVGC-650-U-AB BLOCK DIAGRAM — BLOCK DIAGRAM

HVGC-650-U-AB DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

HVGC-650-U-AB DIMMING OPERATION — DIMMING OPERATION

HVGC-650-U-AB H V G C - 6 5 0 series — H V G C - 6 5 0 series

HVGC-650-U-AB OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HVGC-650-U-AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-650-U-AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-650-U-AB Case No. 228 — Case No. 228

HVGC-650-U-AB ※HVGC-650- - — ※HVGC-650- -

HVGC-650-U-AB ※HVGC-650A- - — ※HVGC-650A- -

Typical applications

Harbor lighting
LED high-bay lighting
Parking lot lighting
LED fishing lamp
Horticulture lighting
Stadium lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates8

Mean Well HVGC-650-ENEC Certificate PDF Download

Mean Well HVGC-650-FCC Certificate PDF Download

Mean Well HVGC-650-CB Certificate PDF Download

Mean Well HVGC-650-EMC Certificate PDF Download

Mean Well HVGC-650-UK-dec Certificate PDF Download

Mean Well HVGC-650-CCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVGC-650-U Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the HVGC-650-U-AB be used for low-voltage, high-current LED downlights?

Yes, if the downlight assembly is a constant current load and its total forward voltage stays within the 24-58V CC range. This model is a constant current driver, so it should not be used for constant voltage LED products.

Is this driver suitable for signage modules that need a lower voltage range?

It can be suitable when the signage modules are constant current types and the full load voltage stays between 24V and 58V. Constant voltage signage modules would require a different power supply type.

Can I use the HVGC-650-U-AB for a small LED array with a short series string?

Yes, if the array is designed for constant current operation and the total LED forward voltage falls inside the 24-58V range. The exact number of LEDs depends on the forward voltage of each LED, so LED count should not be assumed from the driver alone.

How do I verify compatibility with this constant current driver?

Check that the LED load is a constant current design and that its total forward voltage is within the 24-58V CC output range. The number of LEDs depends on the forward voltage of each LED, not on a fixed driver rule.

Can this driver be installed in outdoor or wet locations?

It is rated IP67 and operates from -40°C to +85°C, so it is built for demanding indoor or outdoor environments. The metal housing is also suited to more exposed locations.

How does the HVGC-650-U-AB differ from the other 650W HVGC adjustable models?

In this family, HVGC-650-U-AB is listed as 11.2A with a 24-58V CC range at 649.6W, HVGC-650-H-AB is 5600mA with a 46.4-116V CC range at 649.6W, HVGC-650-M-AB is 4200mA with a 62-155V CC range at 651W, and HVGC-650-L-AB is 2800mA with a 92.8-232V CC range at 649.6W. The main difference is the output current and the supported constant current voltage window.
