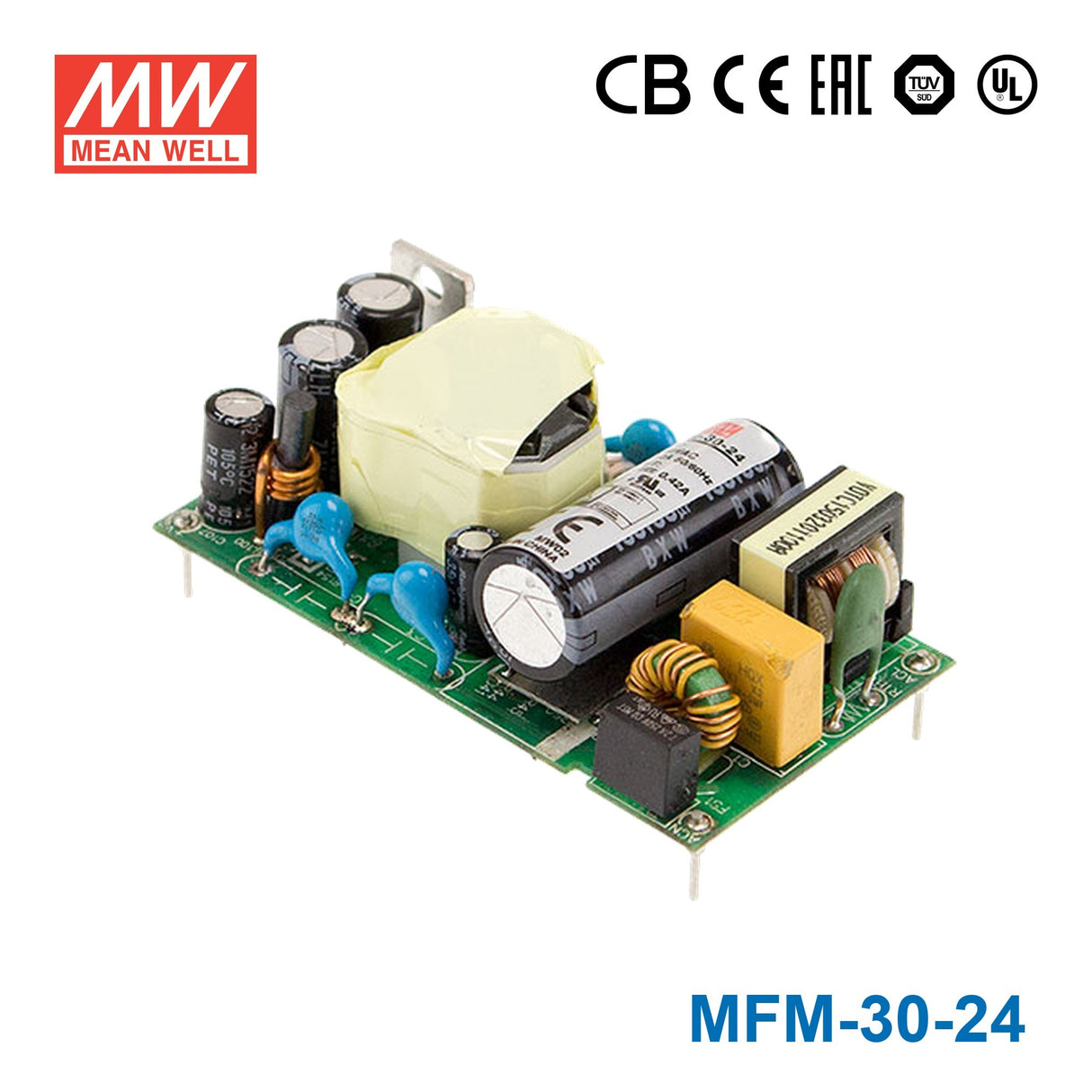

Mean Well MFM-30-24 Power Supply 30W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-30-24 Power Supply 30W 24V
Touch current <80 μA/264VAC
Key Features
- ✓2.58"x1.38" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating31.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.58 in
-
Width1.38 in
-
Height0.91 in
-
Weight0.12 lb
::specification::
Frequently Asked Questions
Can I use the MFM-30-24 to power a 24V PLC I/O card or small control board?
Yes, this model is a constant-voltage 24V supply rated for 31.2W and 1.3A. It fits 24V industrial control electronics as long as the total load stays within those output limits.
Is the MFM-30-24 suitable for embedded 24V monitoring or sensor systems inside equipment?
It can fit embedded 24V electronics that need a compact PCB-type power supply and draw no more than 31.2W or 1.3A. The 65.5 x 35.0 x 23.0 mm size is useful where board space is limited.
Can this 24V model be used in medical or laboratory devices?
It is described as medical safety approved and carries CB, CE, EAC, TUV, and UL certifications. For low-power 24V sections of medical or lab equipment, the output is limited to 31.2W at 1.3A.
How does the MFM-30-24 compare with the other 30W MFM models?
Within the 30W MFM group, the 24V version is rated at 31.2W and 1.3A. The sibling models are MFM-30-12 at 30W, 12V, 2.5A; MFM-30-15 at 30W, 15V, 2A; MFM-30-3.3 at 19.8W, 3.3V, 6A; MFM-30-48 at 30.2W, 48V, 0.63A; and MFM-30-5 at 30W, 5V, 6A.
Is the MFM-30-24 appropriate for outdoor or harsh-temperature use?
The specified operating temperature is -40C to +85C, so it covers a wide temperature range. No IP rating is listed, so it is better suited to protected indoor equipment or an enclosure rather than exposed outdoor use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-30-5 Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $17.51 | View |
| Mean Well MFM-30-24 Power Supply 30W 48V | 30.2W | 48V | 0.63A | Indoor | $17.51 | View |
| Mean Well MFM-30-3.3 Power Supply 30W 3.3V | 19.8W | 3.3V | 6A | Indoor | $17.51 | View |
| Mean Well MFM-30-15 Power Supply 30W 15V | 30W | 15V | 2A | Indoor | $17.51 | View |
| Mean Well MFM-30-12 Power Supply 30W 12V | 30W | 12V | 2.5A | Indoor | $17.53 | View |
