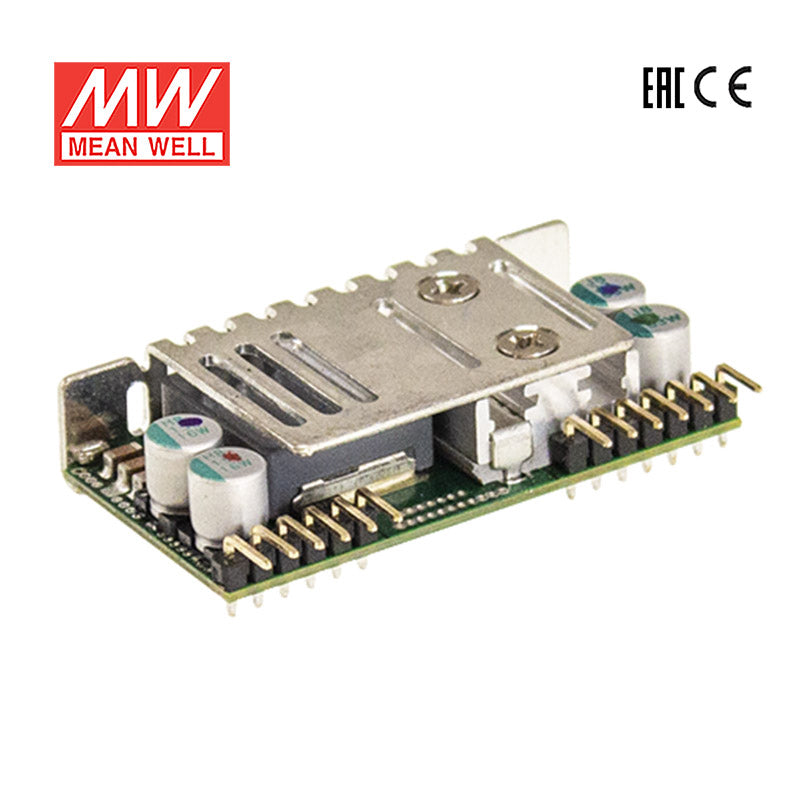

Mean Well NID100-12 DC-DC Converter - 90W - 20~53V in 12V out
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.082"x0.472"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating90 Watt
-
Output Voltage12 Volt
-
Rated Current7.5 Ampere
-
Input Voltage20V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.08 in
-
Height0.47 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the NID100-12 to supply 12V PLC or automation control loads from a higher-voltage source?
Yes, it is a constant-voltage 12V converter with a 20-53V input range. If the connected 12V load stays within 7.5A and 90W, it matches that type of industrial control use.
Is the NID100-12 suitable for 12V embedded systems in mobile or industrial equipment?
It can be a fit where the source is within 20-53V and the electronics require regulated 12V output. The available output is 7.5A up to 90W, which gives more capacity than lighter-duty 12V converters.
Can this converter run 12V relays, small fans, or control accessories in a machine enclosure?
It is intended for constant 12V loads, so it can serve that role when the total demand remains under 7.5A and 90W. The compact 50.8 × 27.5 × 12.0 mm size also suits space-limited equipment designs.
Would the NID100-12 work for a 12V industrial communication or monitoring device?
Yes, provided the device needs 12V constant voltage and the source feeding the converter is within 20-53V. Output capacity is limited to 7.5A and 90W, so the end load needs to stay inside those figures.
What is the difference between NID100-12 and the other NID100 models?
This version is 12V, 7.5A, and 90W with a 20-53V input range. The sibling models are NID100-15 at 15V, 6.5A, and 97.5W with 20-53V input, NID100-24 at 24V, 4.2A, and 100.8W with 30-53V input, and NID100-5 at 5V, 11A, and 55W.
Can the NID100-12 be used in harsh-temperature environments?
Its operating temperature range is -30°C to +85°C, which is broader than many enclosed indoor-only supplies. No IP rating is listed, so temperature capability is specified, but exposure protection is not.
