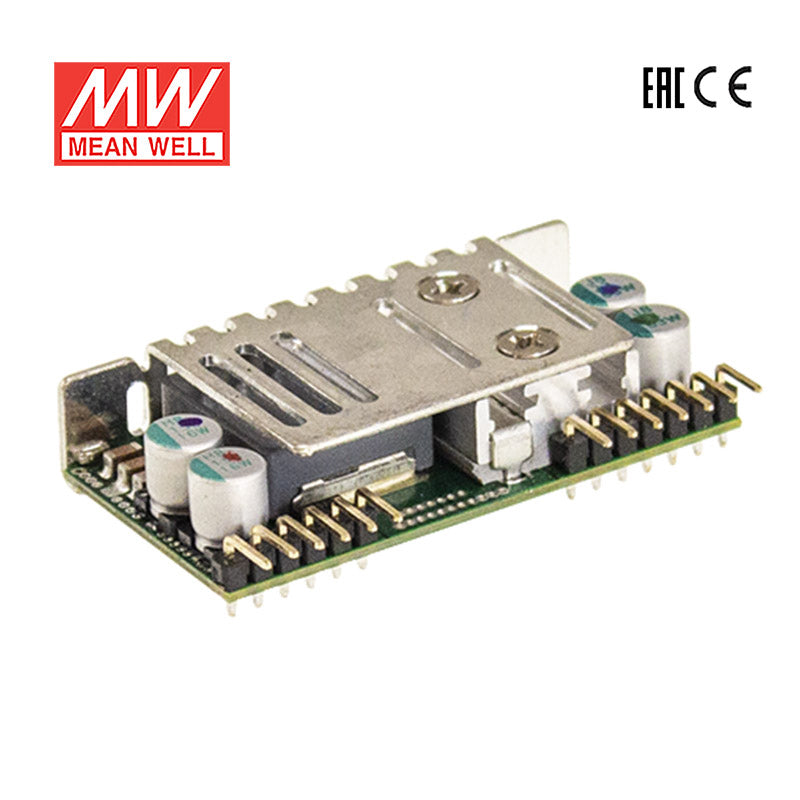

Mean Well NID100-5 DC-DC Converter - 55W - 10.5~53V in 5V out
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.082"x0.472"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating55 Watt
-
Output Voltage5 Volt
-
Rated Current11 Ampere
-
Input Voltage10.5V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.08 in
-
Height0.47 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the NID100-5 to power a 5V industrial controller or embedded computer from a wide DC bus?
Yes, this model is a constant-voltage 5V converter with up to 55W and 11A output capacity. Its 10.5 to 53V input range fits systems that need a regulated 5V rail from a variable input source. It is best suited to 5V control, logic, or embedded loads that stay within 55W and 11A.
Is the NID100-5 suitable for 5V automation I/O, sensors, or communication modules?
It can be a fit for 5V automation electronics when the combined load remains within 55W and 11A. The constant-voltage output is appropriate for equipment that requires a stable 5V supply rather than a constant-current driver. This makes it relevant for low-voltage control subsystems, interface boards, and similar 5V devices.
Can this converter run multiple 5V embedded devices from one supply rail?
It can support multiple 5V devices if their total demand does not exceed 55W or 11A. That gives more headroom than smaller 5V converters in the same family for grouped logic or embedded loads. Load budgeting still needs to stay inside the rated 5V, 55W, and 11A limits.
How does the NID100-5 compare with the other NID100 models?
In the NID100 series, the NID100-5 is rated 55W at 5V and 11A. The sibling models are NID100-12 at 90W, 12V, 7.5A; NID100-15 at 97.5W, 15V, 6.5A; and NID100-24 at 100.8W, 24V, 4.2A. The main differences are output voltage, current, and total wattage.
Is the NID100-5 appropriate for harsh indoor temperature conditions or exposed outdoor use?
Its specified operating temperature range is -30°C to +85°C, which supports demanding temperature conditions. The provided specs do not list an IP rating or enclosure protection level. Based on the listed data, temperature capability is defined, but outdoor or washdown suitability is not.
