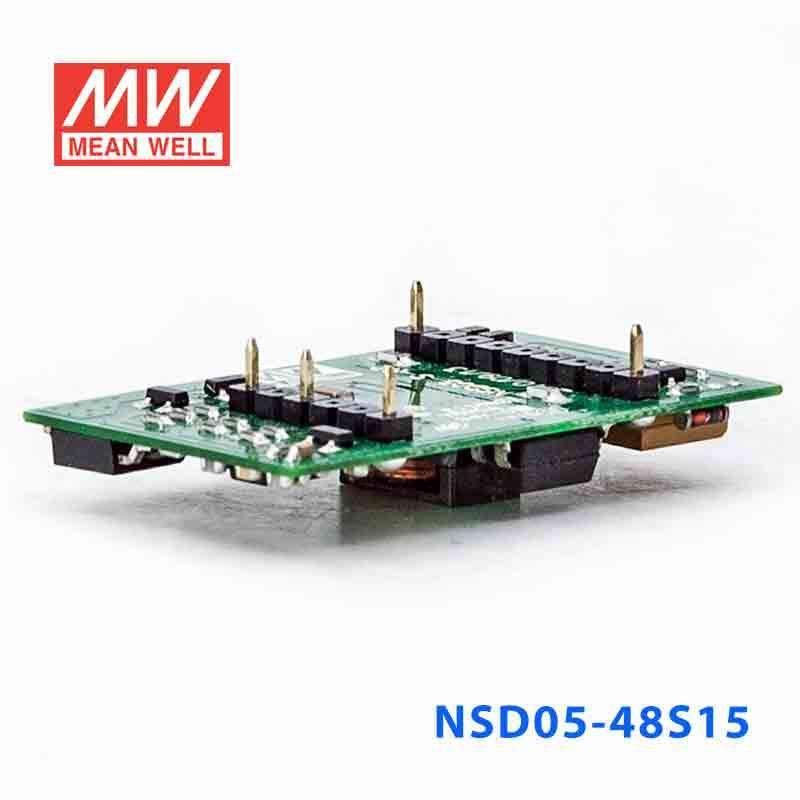

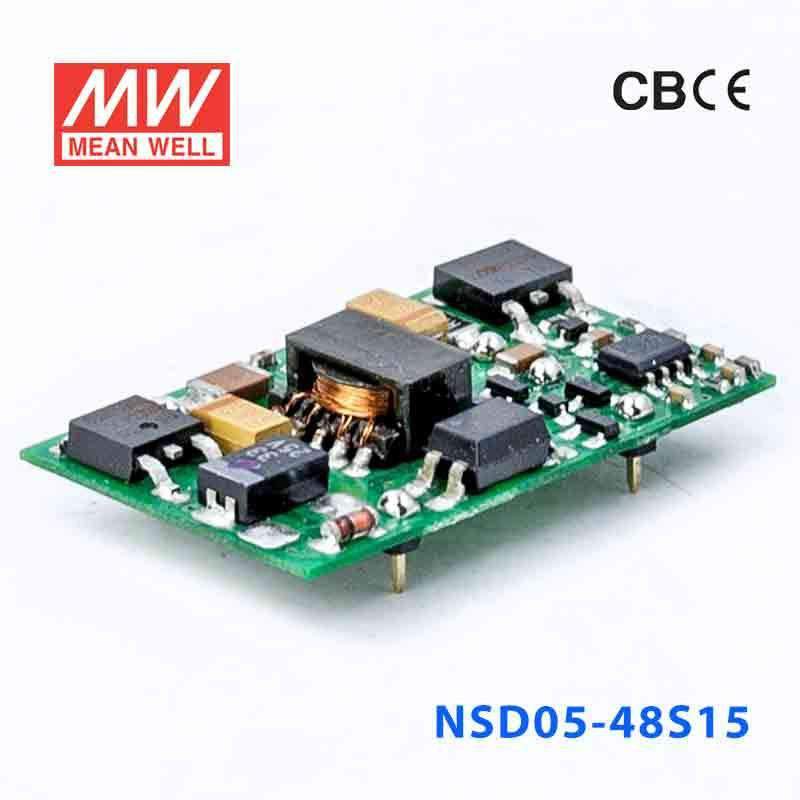

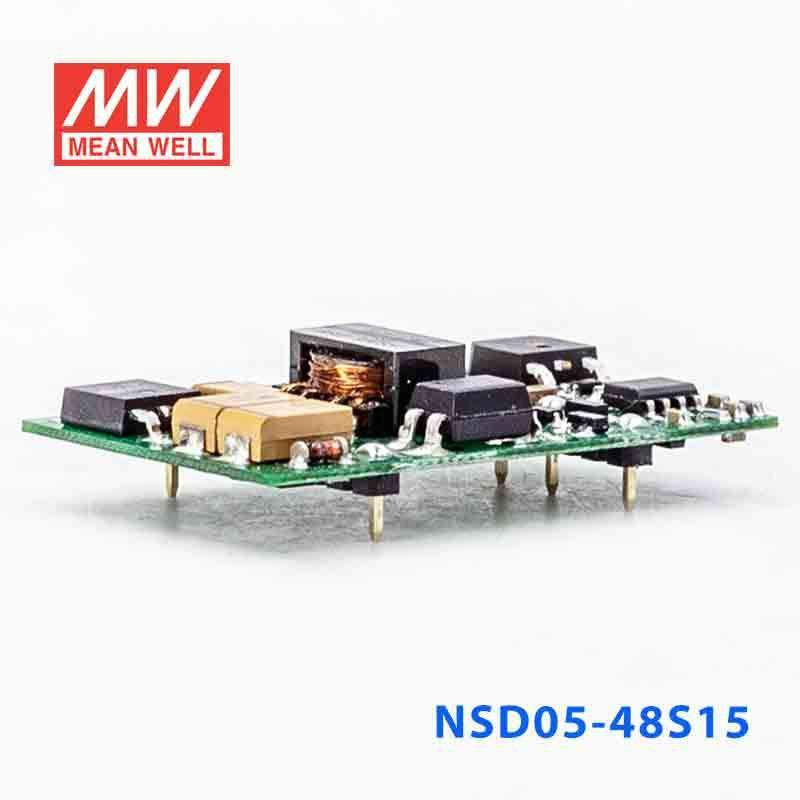

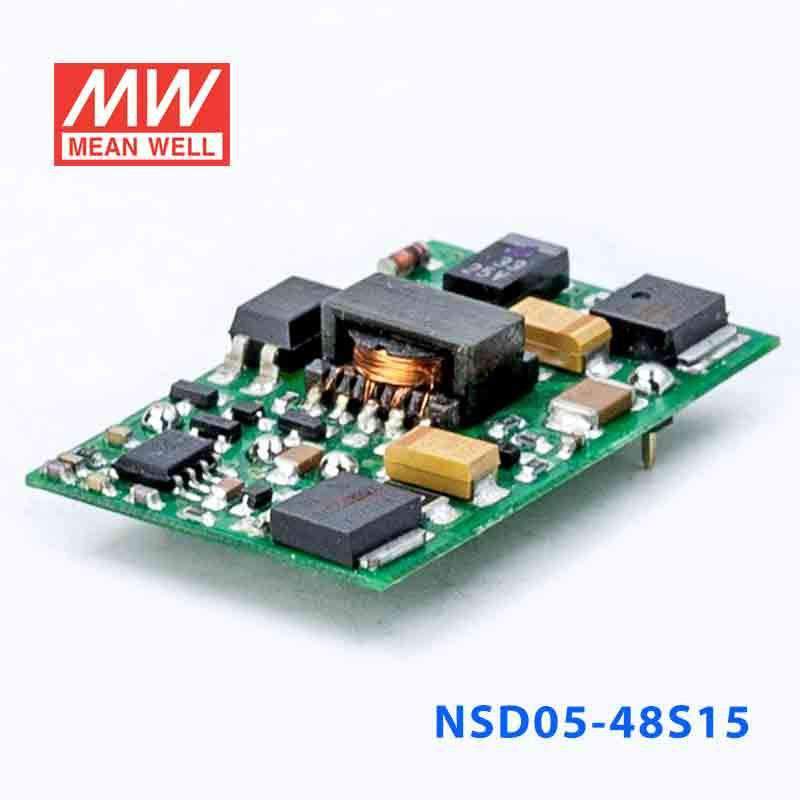

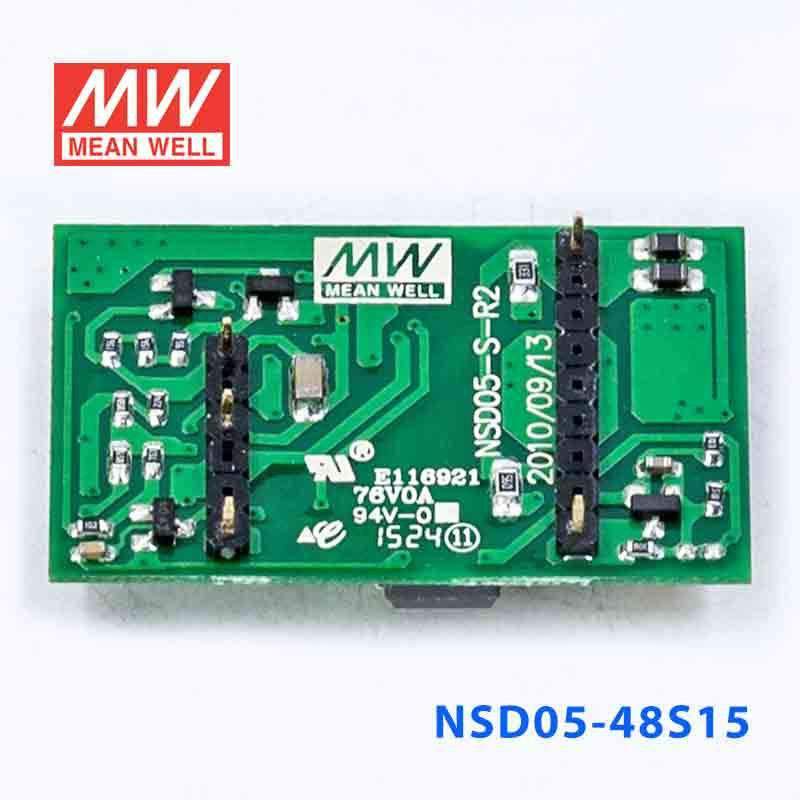

Mean Well NSD05-48S15 DC-DC Converter - 4.95W - 18~72V in 15V out
The NSD05 is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1,IEC62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating4.95 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage18V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length1.6 in
-
Width1 in
-
Height0.33 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
Can I use the NSD05-48S15 to supply a 15V analog or signal-conditioning circuit in industrial equipment?
Yes, this model provides a constant 15V output and is intended for low-power loads within its 4.95W rating. It is a practical choice when the available source falls within the listed 18~72VAC input range.
Is the NSD05-48S15 suitable for compact 15V electronics inside automation or test systems?
It can be used for compact 15V electronics that need regulated constant voltage and stay within the specified output capability. Its dimensions are 40.6 x 25.4 x 8.3 mm, which helps in dense control or test assemblies.
Can this converter power a small 15V module in an embedded OEM enclosure?
Yes, provided the module requires a constant 15V supply and does not exceed the unit's 4.95W output rating. The operating temperature range of -25C to +70C supports use in enclosed equipment operating within that range.
Is the NSD05-48S15 rated for outdoor or exposed industrial environments?
No IP rating is shown in the provided specifications, so exposed outdoor suitability is not defined. The environmental data that is provided is the -25C to +70C operating temperature range.
How does the NSD05-48S15 differ from other converters in the same series?
For 18~72VAC input, the series includes NSD05-48S3 at 3.96W, 3.3V, 1.2A; NSD05-48S5 at 5W, 5V, 1A; NSD05-48S12 at 5.04W, 12V, 420A; and NSD05-48S15 at 4.95W, 15V, 333A. For 9.2~36VAC input, the matching models are NSD05-12S3 at 3.96W, 3.3V, 1.2A; NSD05-12S5 at 5W, 5V, 1A; NSD05-12S12 at 5.04W, 12V, 420A; and NSD05-12S15 at 4.95W, 15V, 333A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NSD05 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NSD05-48S5 DC-DC Converter - 5W - 18~72V in 5V out | 5W | 5V | 1A | Indoor | $9.44 | View |
| Mean Well NSD05-48S3 DC-DC Converter - 3.96W - 18~72V in 3.3V out | 3.96W | 3.3V | 1.2A | Indoor | $9.45 | View |
| Mean Well NSD05-48S12 DC-DC Converter - 5.04W - 18~72V in 12V out | 5.04W | 12V | 0.42A | Indoor | $9.45 | View |
| Mean Well NSD05-12S5 DC-DC Converter - 5W - 9.2~36V in 5V out | 5W | 5V | 1A | Indoor | $9.45 | View |
| Mean Well NSD05-12S3 DC-DC Converter - 3.96W - 9.2~36V in 3.3V out | 3.96W | 3.3V | 1.2A | Indoor | $9.44 | View |
| Mean Well NSD05-12S15 DC-DC Converter - 4.95W - 9.2~36V in 15V out | 4.95W | 15V | 0.33A | Indoor | $9.45 | View |
| Mean Well NSD05-12S12 DC-DC Converter - 5.04W - 9.2~36V in 12V out | 5.04W | 12V | 0.42A | Indoor | $9.44 | View |
