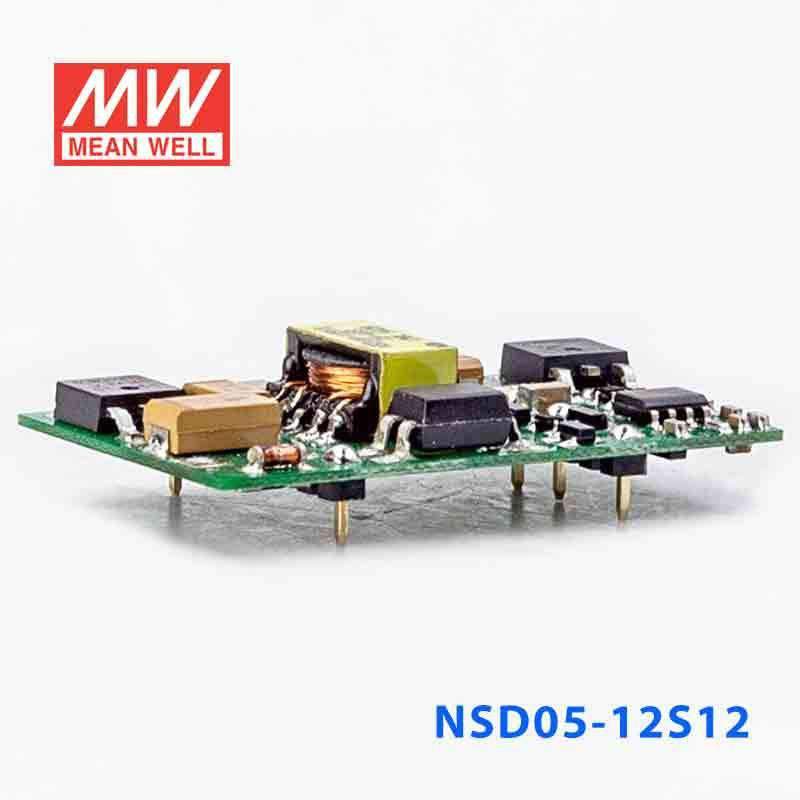

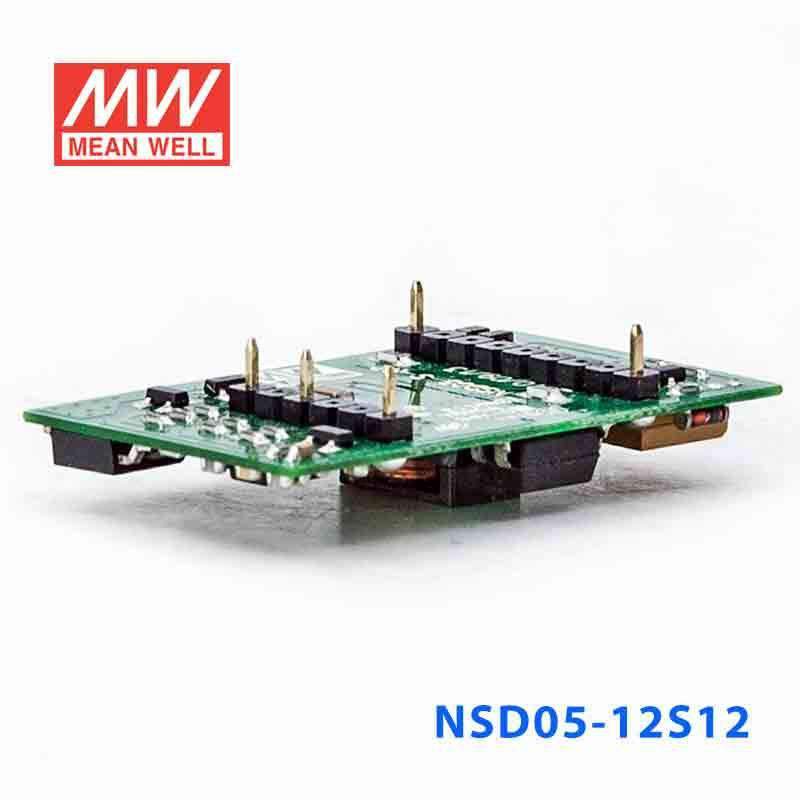

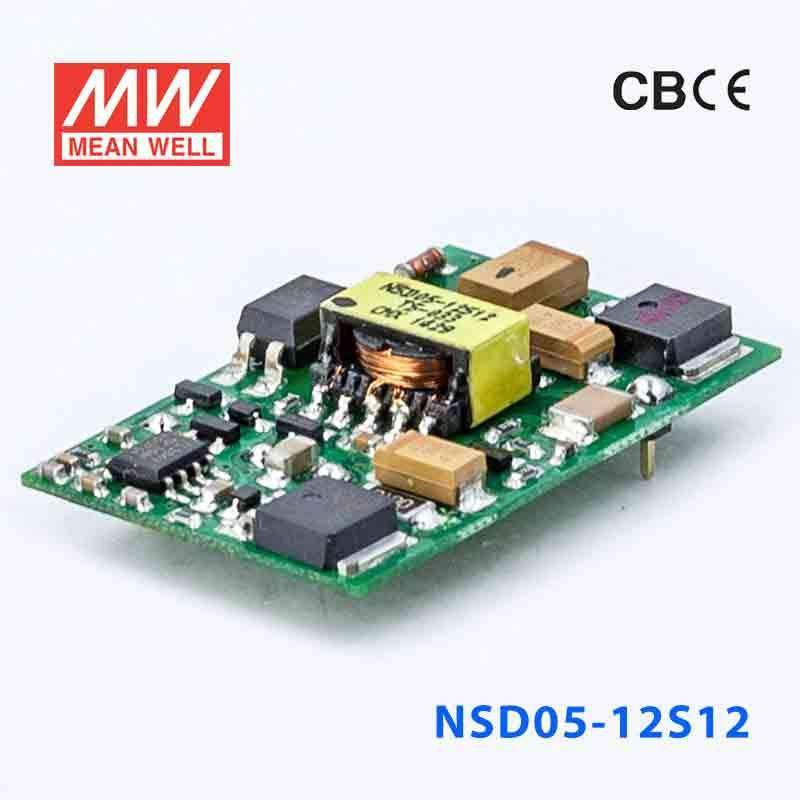

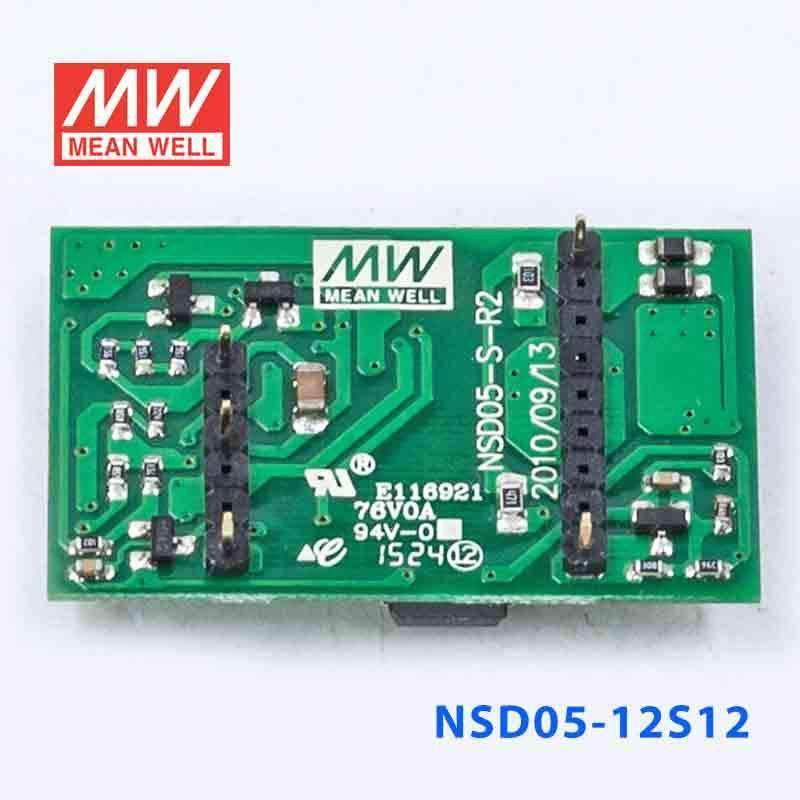

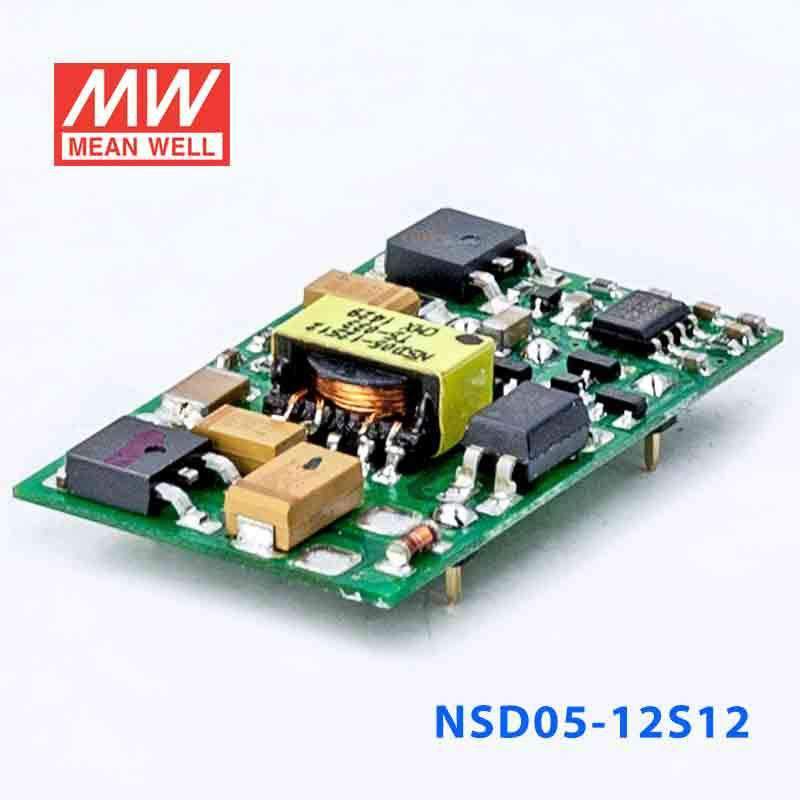

Mean Well NSD05-12S12 DC-DC Converter - 5.04W - 9.2~36V in 12V out
The NSD05 is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1,IEC62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating5.04 Watt
-
Output Voltage12 Volt
-
Rated Current0.42 Ampere
-
Input Voltage9.2V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length1.6 in
-
Width1 in
-
Height0.33 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
Can I use the NSD05-12S12 in a 12V industrial control panel?
It is a constant-voltage DC-DC converter with a 12V output and 5.04W power, which fits low-power 12V control electronics. The 9.2~36V input range also suits systems that need to accept a wide DC supply window in industrial and automation equipment.
Is this converter suitable for embedded 12V auxiliary circuits inside automation equipment?
Yes, it is sized for low-power 12V auxiliary rails where a constant 12V output is required. Its compact 40.6 × 25.4 × 8.3 mm package and 0.007 kg weight make it easier to place in dense embedded or control assemblies.
Can this model be used for low-power 12V instrumentation or sensor power in a machine enclosure?
This model can fit low-power 12V instrumentation loads because it provides a regulated 12V constant-voltage output at 5.04W. It is better aligned with small electronics and interface circuits than with higher-power 12V loads.
How does the NSD05-12S12 compare with the other NSD05 series output options?
In the listed sibling range, NSD05-12S3 is 3.96W at 3.3V and 1.2A, NSD05-12S5 is 5W at 5V and 1A, and NSD05-12S15 is 4.95W at 15V and 333A. The related 48-series siblings are NSD05-48S3 at 3.96W and 3.3V/1.2A, NSD05-48S5 at 5W and 5V/1A, NSD05-48S12 at 5.04W and 12V/420A, and NSD05-48S15 at 4.95W and 15V/333A.
Is the NSD05-12S12 suitable for outdoor or harsh-environment use?
The published specs show an operating temperature range of -25°C to +70°C, so the temperature range supports use in a broad indoor equipment environment. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability is not specified by this data.
