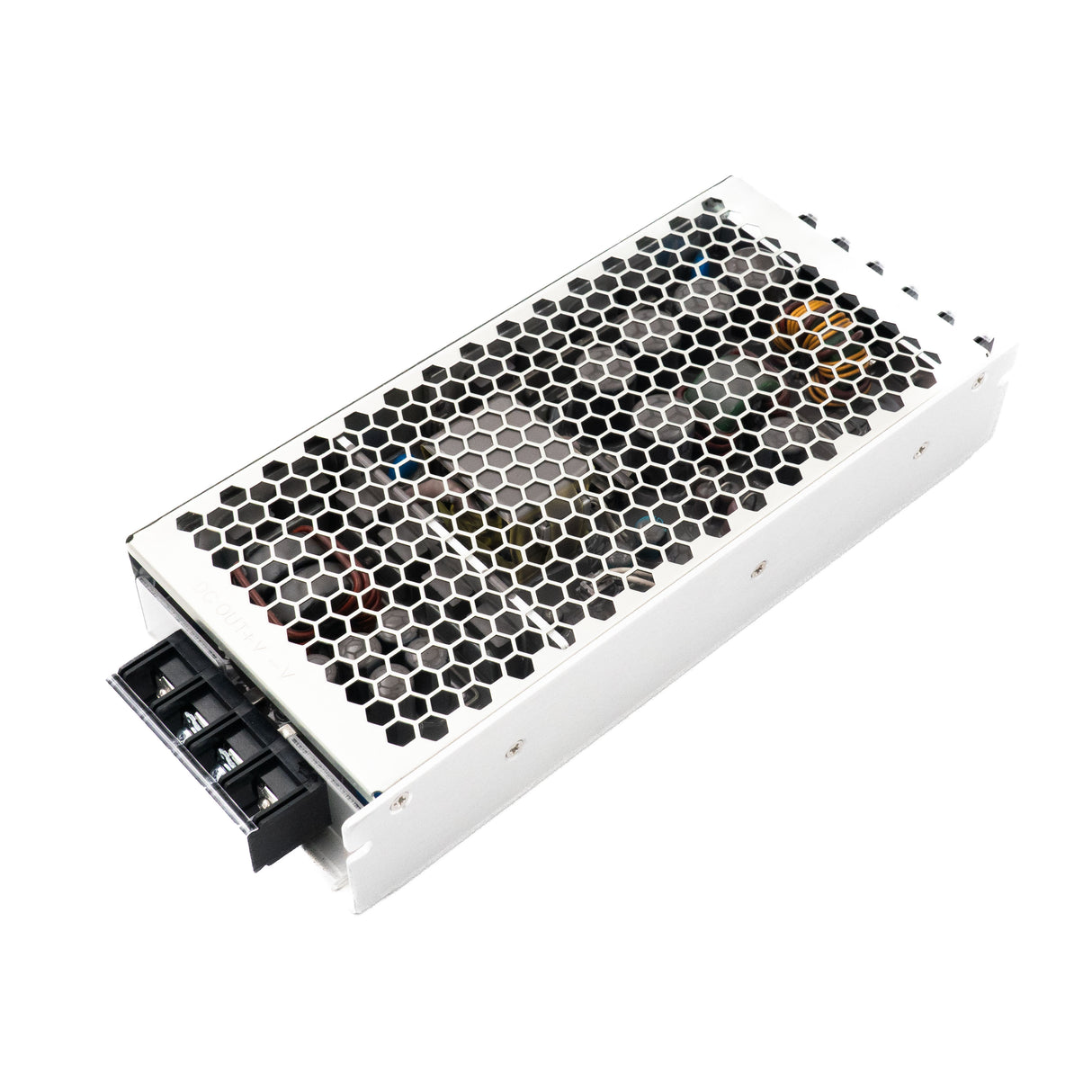

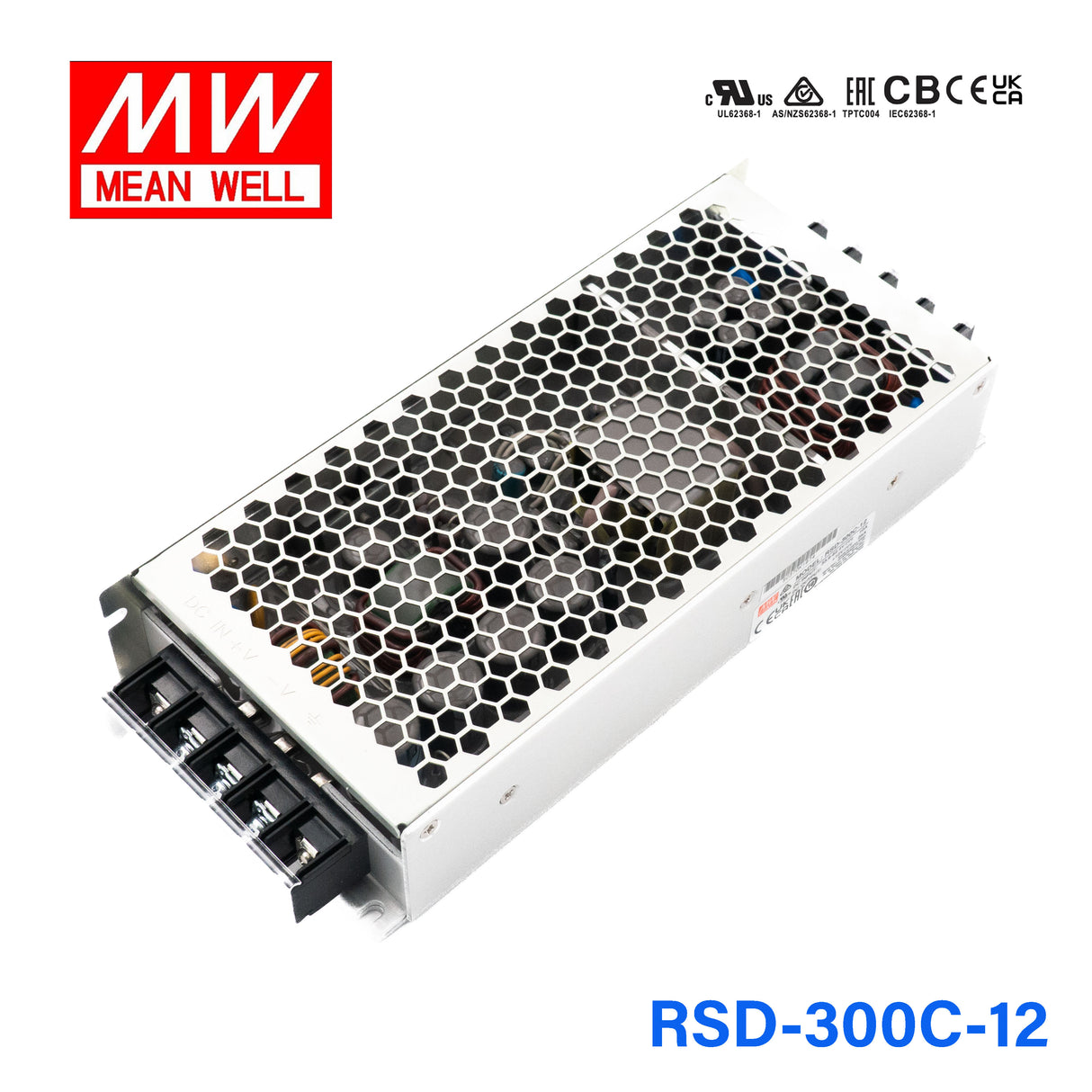

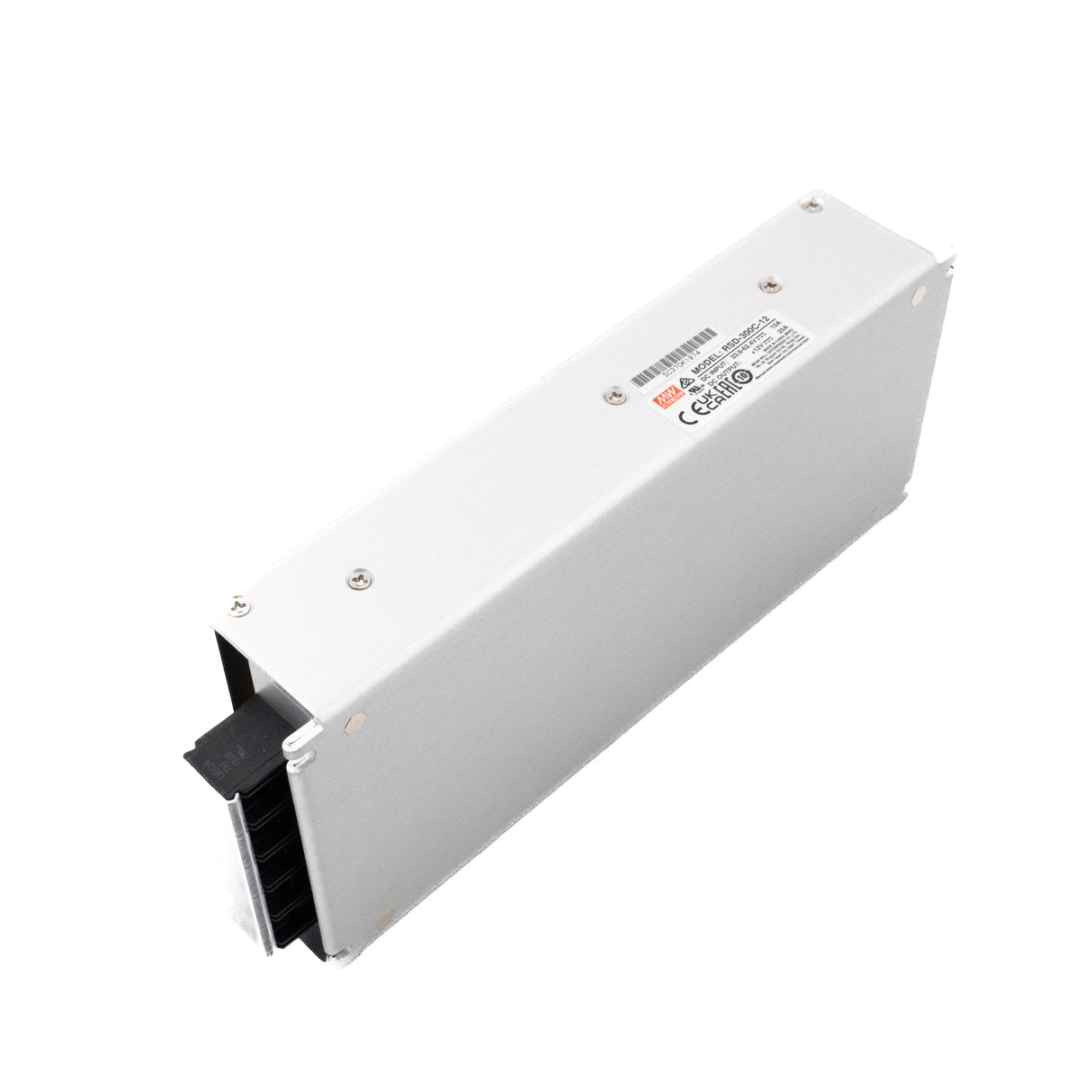

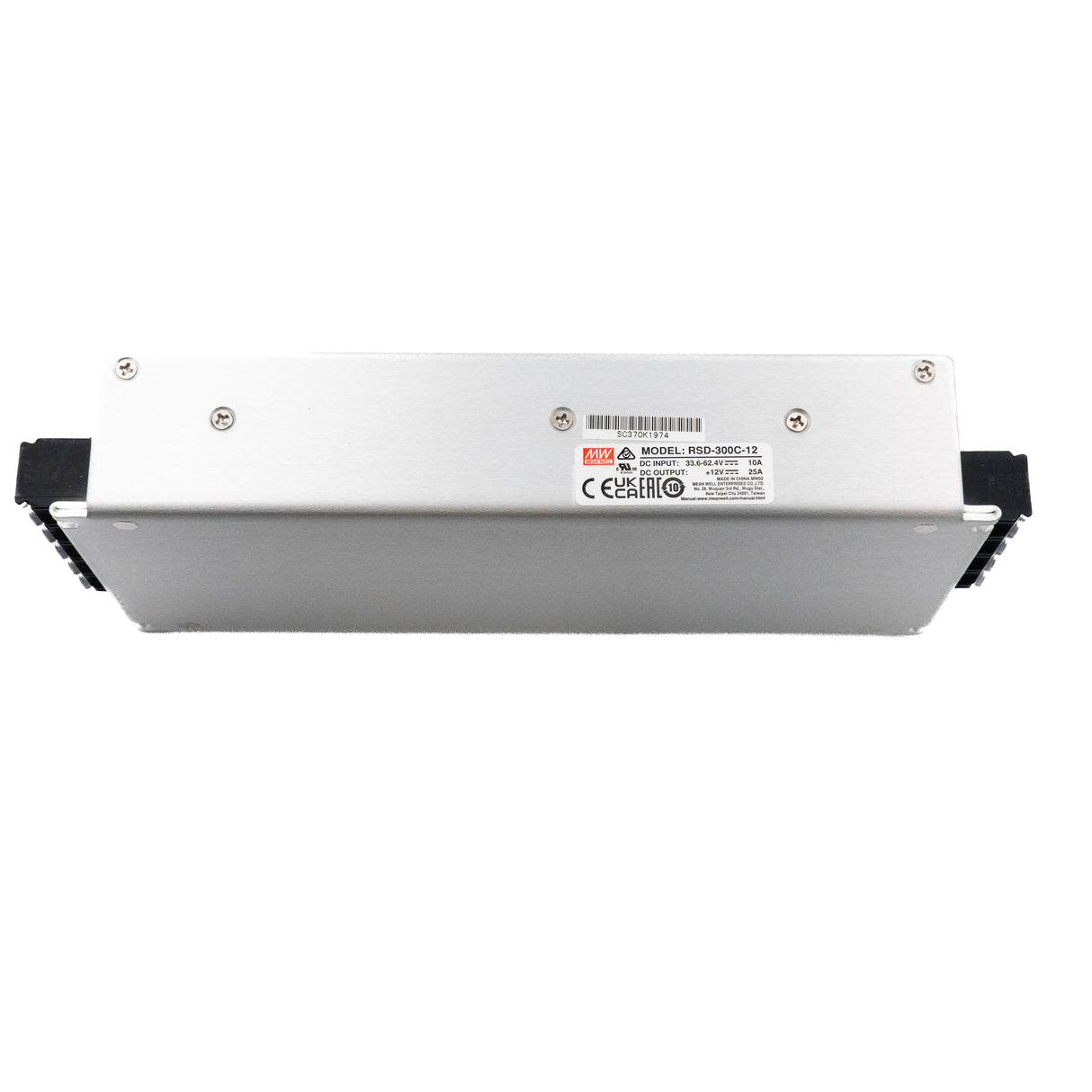

Mean Well RSD-300C-12 DC-DC Converter - 201.6W - 33.6~62.4V in 12V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-300C-12 DC-DC Converter - 201.6W - 33.6~62.4V in 12V out
The RSD-300C is a 300W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating201.6 Watt
-
Output Voltage12 Volt
-
Rated Current22.5 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length8.5 in
-
Width3.8 in
-
Height1.57 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the RSD-300C-12 to step down a nominal 48V DC bus for 12V accessories?
Yes, this model accepts 33.6~62.4V input and provides a constant-voltage 12V output. It can supply up to 22.5A and 201.6W for 12V accessory and control loads.
Is the RSD-300C-12 suitable for 12V routers, HMIs, or control hardware on higher-voltage DC systems?
Yes, if the source is within 33.6~62.4V and the connected 12V load stays within 22.5A and 201.6W. Its output is regulated 12V constant voltage for equipment that expects a fixed 12V rail.
Can this converter be used on industrial vehicles or automation platforms with a higher DC bus?
It is intended for higher-input DC systems that need regulated 12V output, with an input range of 33.6~62.4V. The listed features include 5G vibration resistance and 70C operation, and the operating temperature range is -40C to +85C.
Can one RSD-300C-12 power several 12V devices from the same higher-voltage source?
Yes, as long as the total 12V load remains within 22.5A and 201.6W. That allows multiple 12V devices to share one converter on a 33.6~62.4V DC system.
Is this model rated for outdoor or temperature-extreme conditions?
The operating temperature is specified as -40C to +85C, which covers a wide temperature range. No IP rating is listed in the provided specs, so outdoor sealing and moisture protection are not specified.
