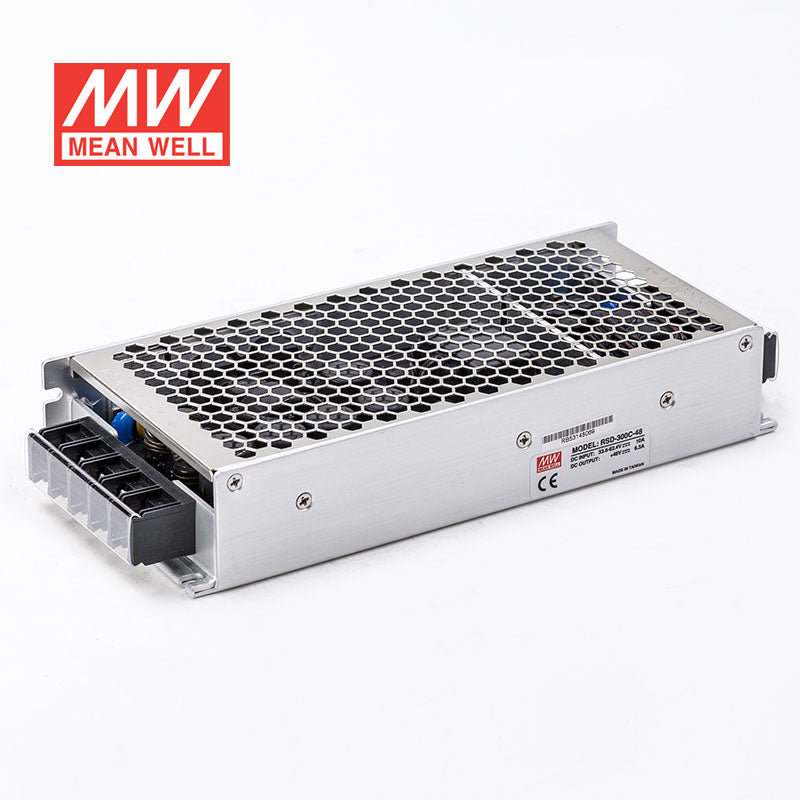

Mean Well RSD-300C-48 DC-DC Converter - 201.6W - 33.6~62.4V in 48V out

miniature size, economical, withstand 5G vibration and 70°C operation
SKU:
RSD-300C-48

$128.50 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.
4000VDC I / O isolation
Cooling by free air convection
Half encapsulated
The built-in constant current limiting circuit
1U low profile
All using 105°C long life electrolytic
LED indicator for power on
100% full load burn-in test
3 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 1%
Overload protection Range 105% ~ 135%
Overload protection Type Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection 115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature -40 ~ + 55°C (refer to output derating curve)
Safety standards IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard EN50155 / IEC60571
Dimension (LxWxH) (mm) 216 x 96.5 x 40mm
Packing 1.19Kg ; 12pcs/15.3Kg/0.97CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RSD Series
  • Power Rating
    201.6 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    5.7 Ampere
  • Input Voltage
    33.6V~62.4V
  • No of Output
    2
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,EMC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    8.5 in
  • Width
    3.8 in
  • Height
    1.57 in
  • Weight
    2.62 lb

File Downloads

::specification::
