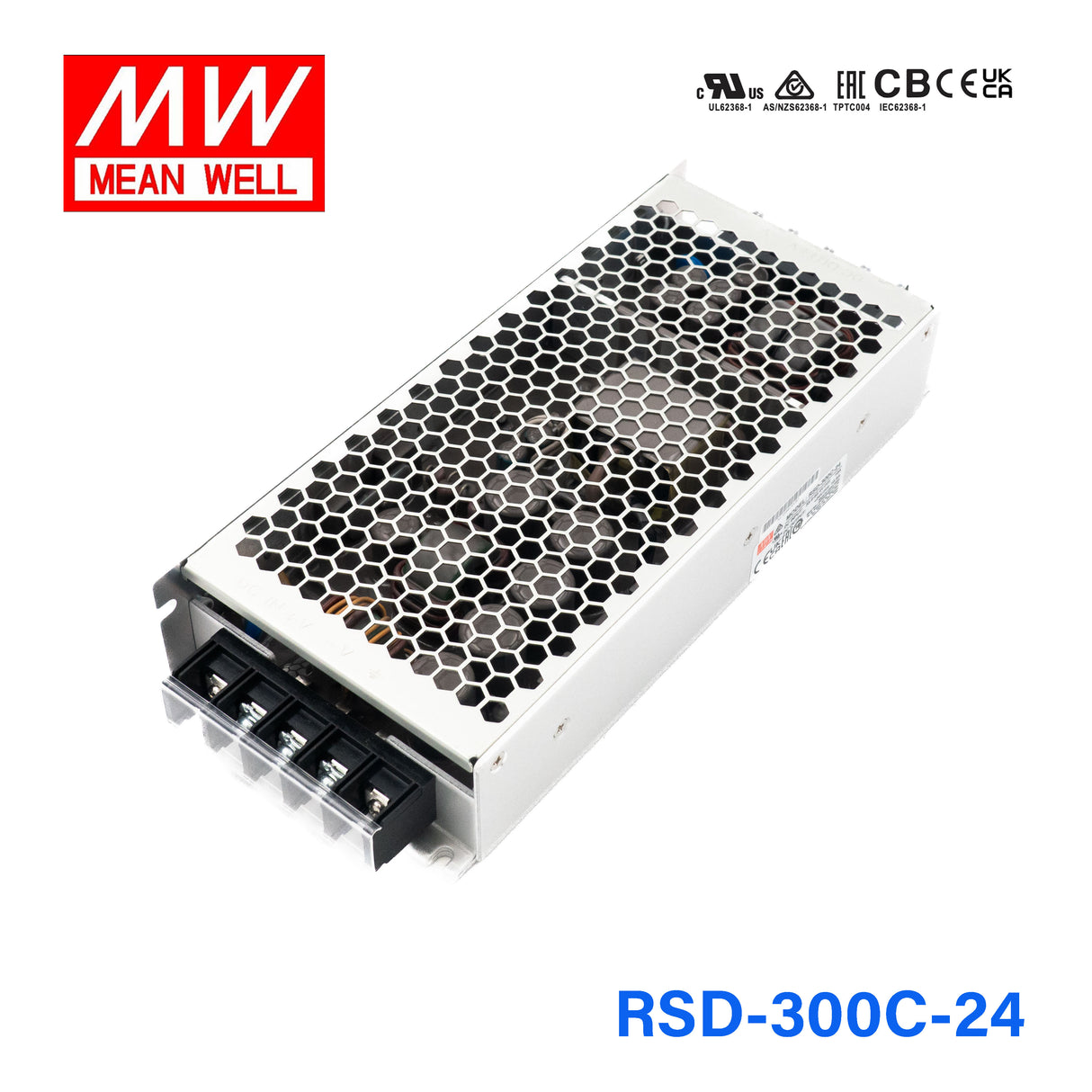

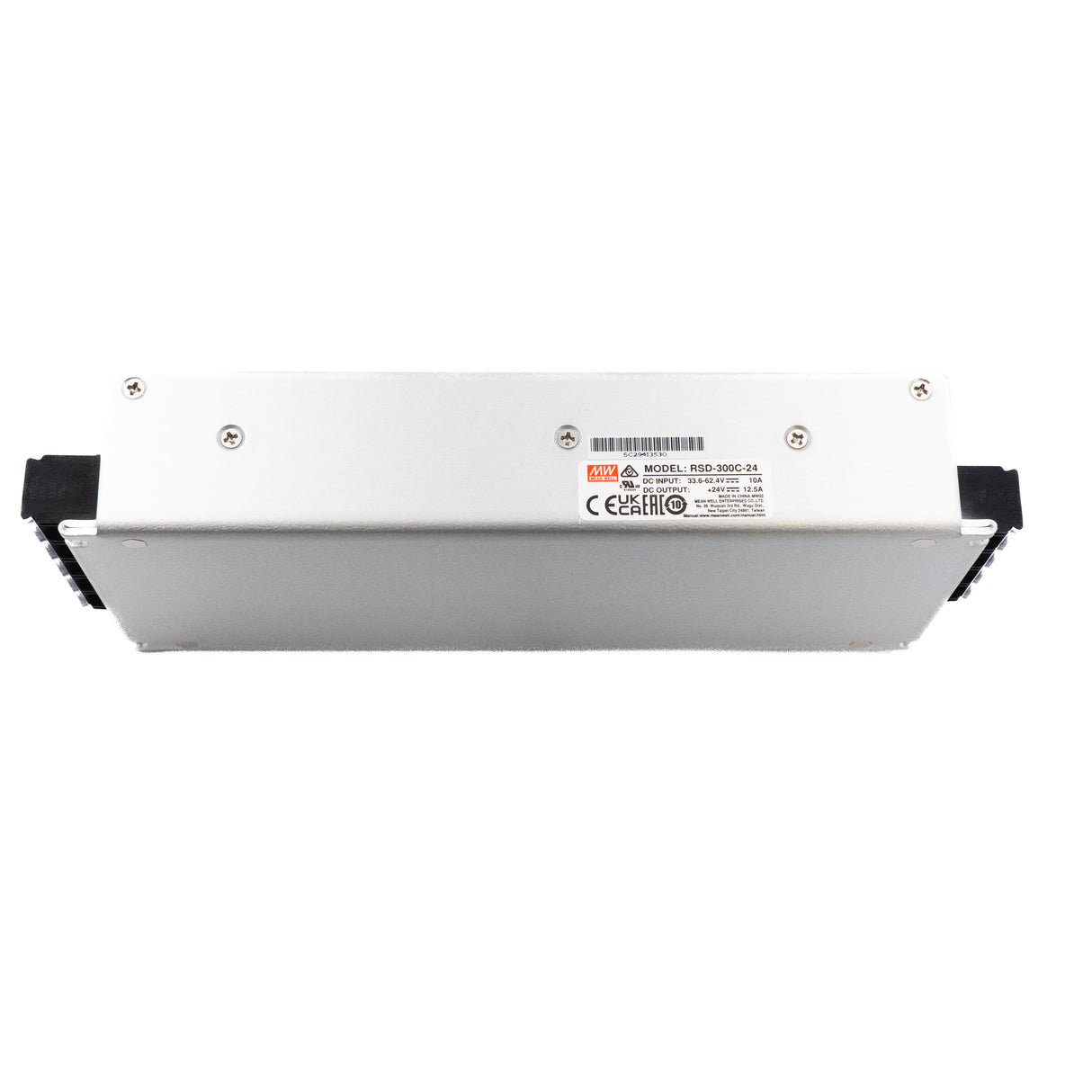

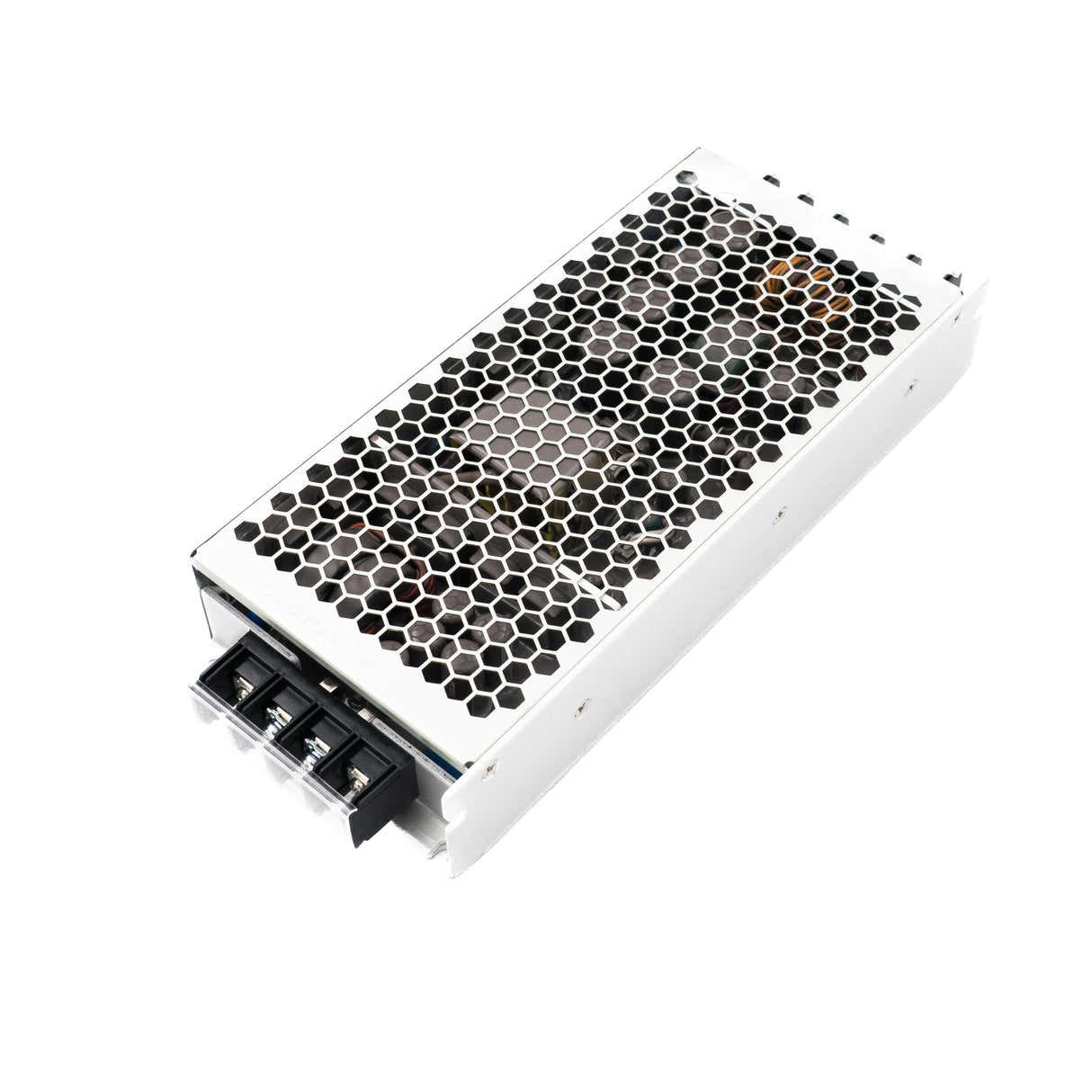

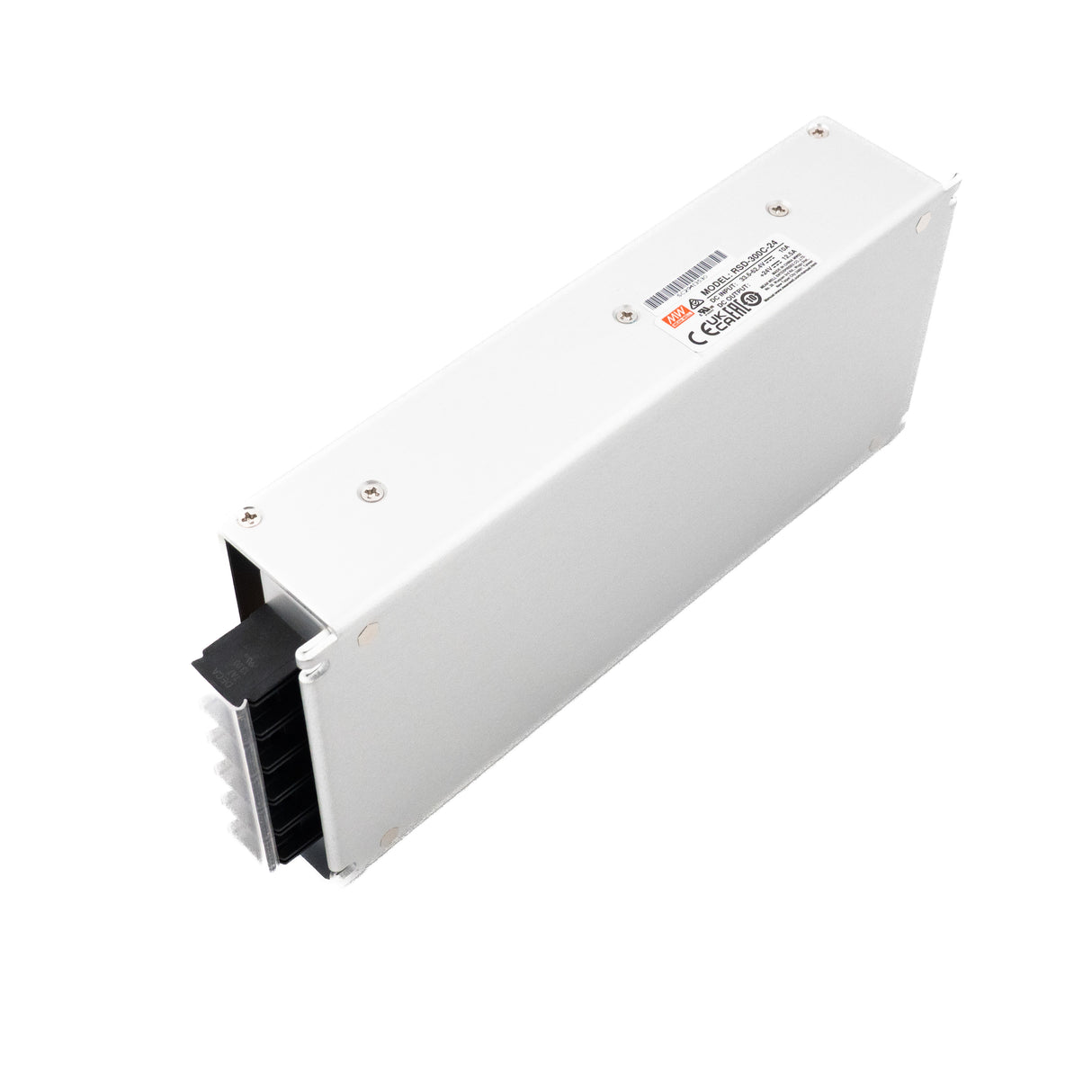

Mean Well RSD-300C-24 DC-DC Converter - 300W - 33.6~62.4V in 24V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-300C-24 DC-DC Converter - 300W - 33.6~62.4V in 24V out
The RSD-300C is a 300W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating300 Watt
-
Output Voltage24 Volt
-
Rated Current12.5 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length8.5 in
-
Width3.8 in
-
Height1.57 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the RSD-300C-24 to power a 24V industrial control panel from a 33.6 to 62.4V DC battery system?
Yes. The RSD-300C-24 is a constant-voltage DC-DC converter that accepts 33.6 to 62.4V input and provides 24V output. Its 300W and 12.5A rating fits 24V control loads that need regulated output within that power range.
Is this converter suitable for 24V embedded computers or industrial IPCs in mobile equipment?
It can be a fit when the equipment needs a regulated 24V output from a 33.6 to 62.4V DC source. The unit delivers up to 12.5A at 24V and is rated for 300W, which suits higher-draw embedded and IPC loads within those limits.
Can the RSD-300C-24 be used in automation systems with vibration, such as vehicles or moving machinery?
Yes. This model is specified to withstand 5G vibration, which makes it more appropriate for mobile or vibration-prone automation environments than units without that stated feature. It also keeps the same 24V constant-voltage output and 300W capacity in that use case.
Would this 24V converter work for industrial communications or networking equipment that runs on 24V DC?
Yes, if the equipment requires 24V constant-voltage power and stays within 12.5A and 300W. Its 33.6 to 62.4V input range is useful where the source bus is higher-voltage DC and the downstream equipment needs regulated 24V.
Is the RSD-300C-24 suitable for outdoor or washdown environments?
The provided specs list an operating temperature range of -40°C to +85°C, so it is suited to wide-temperature environments. No IP rating is provided, so the specs do not establish outdoor exposure or washdown suitability.
How does the RSD-300C-24 compare with the other RSD-300C output versions?
Within the RSD-300C group, the listed siblings are RSD-300C-5 at 201.6W, 5V, 42A, RSD-300C-12 at 201.6W, 12V, 22.5A, RSD-300C-24 at 300W, 24V, 12.5A, and RSD-300C-48 at 201.6W, 48V, 5.7A. The main differences are output voltage, output current, and listed power.
