Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

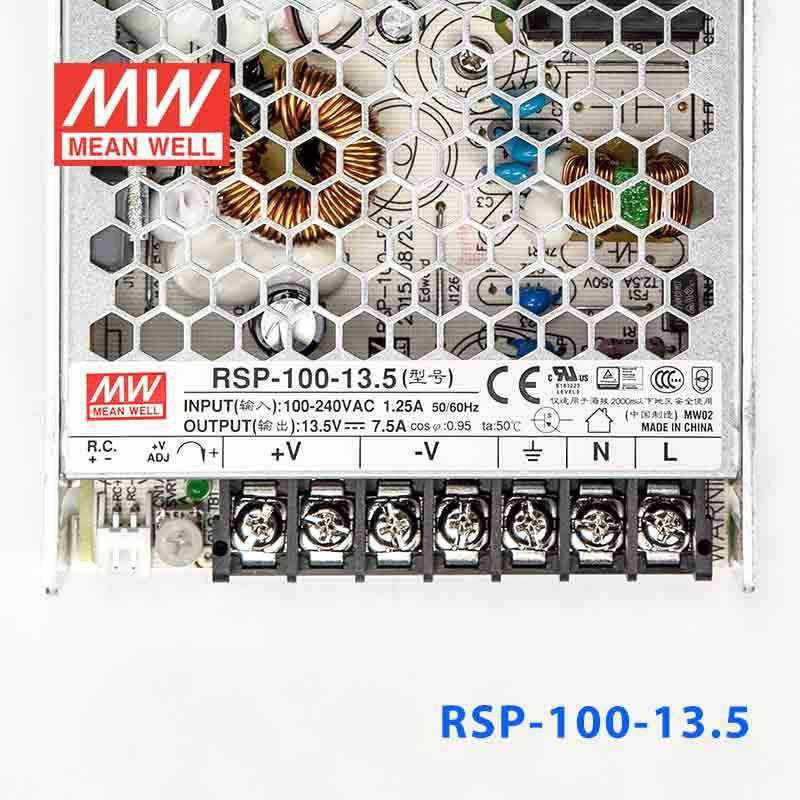

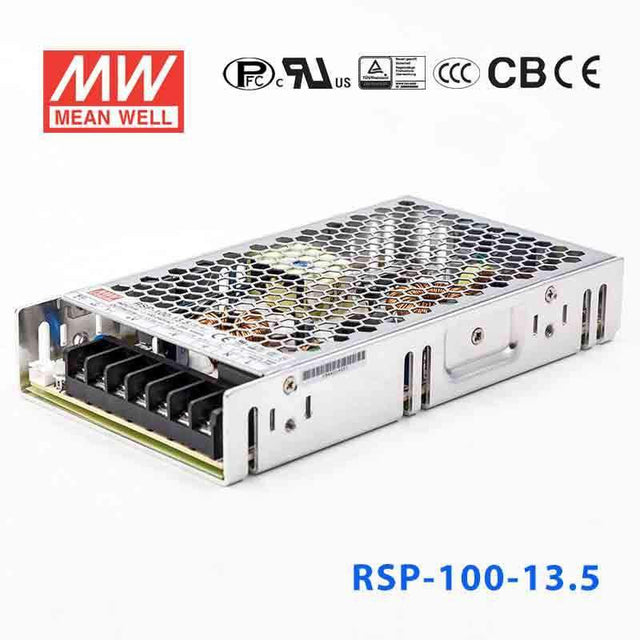

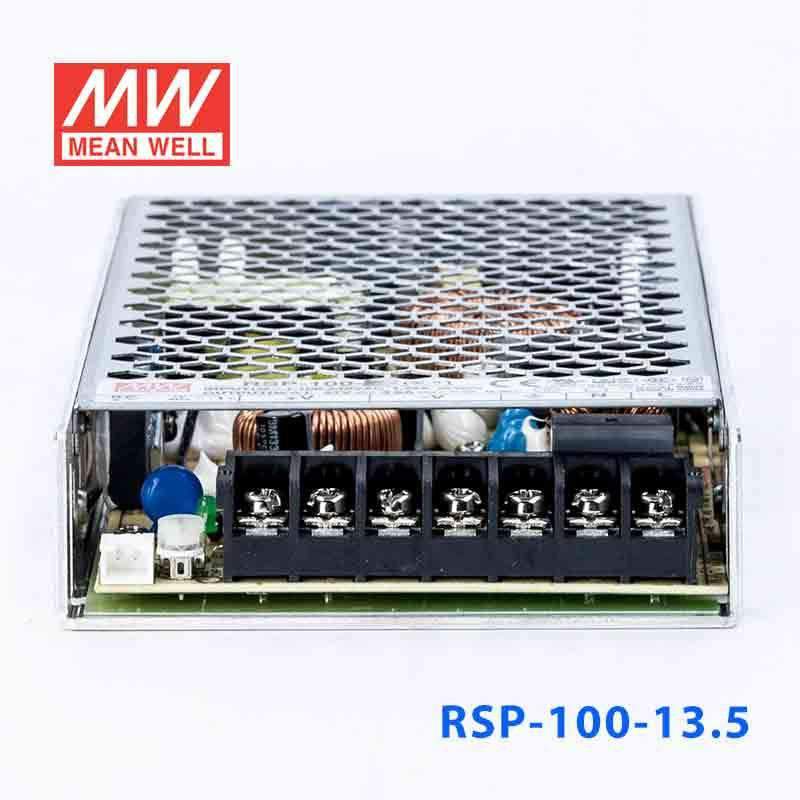

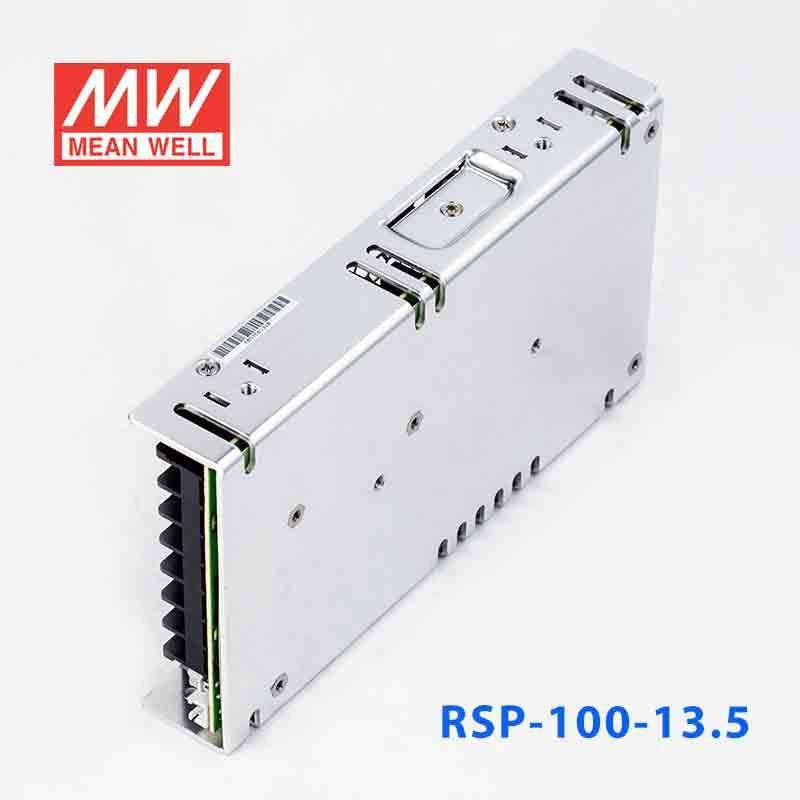

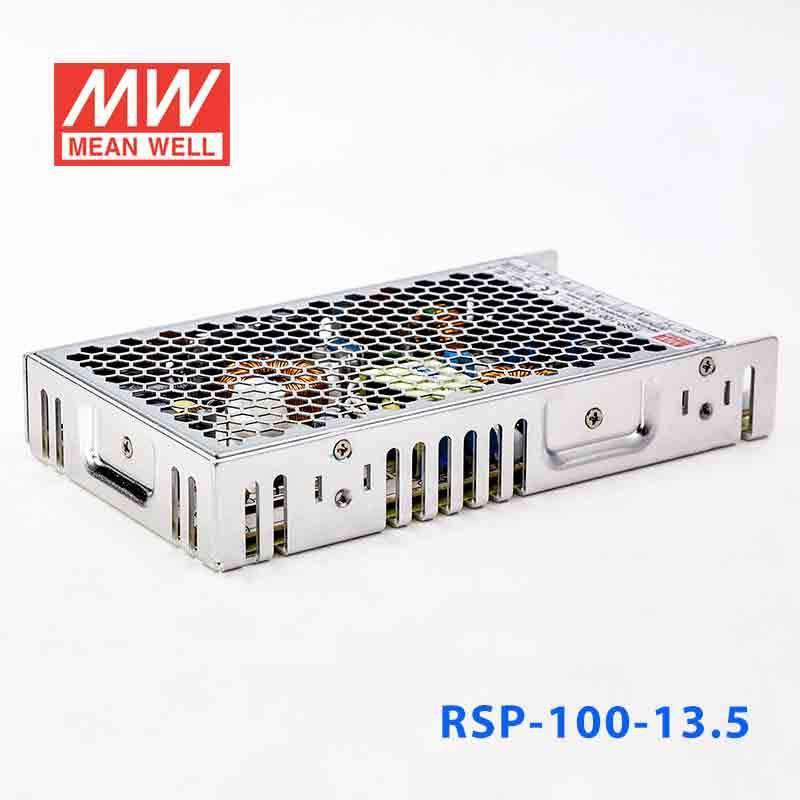

Mean Well RSP-100-13.5 Power Supply 100W 13.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating101.25 Watt
-
Output Voltage13.5 Volt
-
Rated Current7.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What applications is the RSP-100-13.5 designed for?
The RSP-100-13.5 provides 13.5V at 7.5A (101.25W) and is suited for applications that require a nominal 13.5V DC bus, such as battery charger front-ends for 12V lead-acid systems, telecom auxiliary circuits, and certain embedded control boards. Its 85–264VAC input range allows use on any standard AC supply.
How does the RSP-100-13.5 compare to the RSP-100-12 and RSP-100-15?
The RSP-100-12 outputs 12V at 8.5A (102W), the RSP-100-13.5 outputs 13.5V at 7.5A (101.25W), and the RSP-100-15 outputs 15V at 6.7A (100.5W). All three share the same 179.0 × 99.0 × 30.0 mm form factor, 85–264VAC input, and -30°C to +70°C operating range. The RSP-100-13.5 is the only model at 13.5V in this wattage class.
Is the RSP-100-13.5 safe for use in temperature-controlled environments from -30°C?
Yes. The RSP-100-13.5 is rated to operate from -30°C to +70°C, making it suitable for cold-storage control systems, outdoor enclosures with supplemental heating, and northern-climate industrial panels. As the unit has no IP rating, it should be placed in a dust- and moisture-protected enclosure.
Can the RSP-100-13.5 share a rack space with other 1U power supplies?
At 179.0 × 99.0 × 30.0 mm and 0.52 kg, the RSP-100-13.5 occupies a standard 1U rack height. It can be mounted alongside other 1U equipment in standard 19-inch cabinets, provided adequate spacing for cooling airflow is maintained.
Which certifications does the RSP-100-13.5 carry for international deployment?
The RSP-100-13.5 is certified under BSMI, CB, CCC, CE, EAC, TÜV, and UL. These marks cover Taiwan, international CB scheme, China, European Union, Eurasian Economic Union, Germany/TÜV, and North America, supporting global product approvals.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-100 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-100-5 Power Supply 100W 5V | 100W | 5V | 20A | Indoor | $40.18 | View |
| Mean Well RSP-100-7.5 Power Supply 100W 7.5V | 101.25W | 7.5V | 13.5A | Indoor | $40.18 | View |
