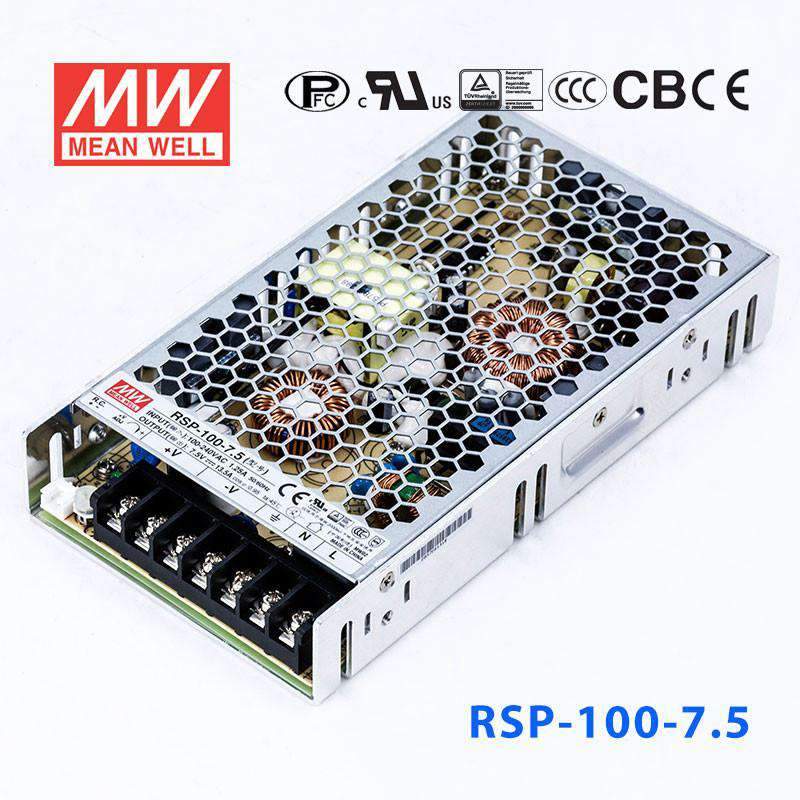

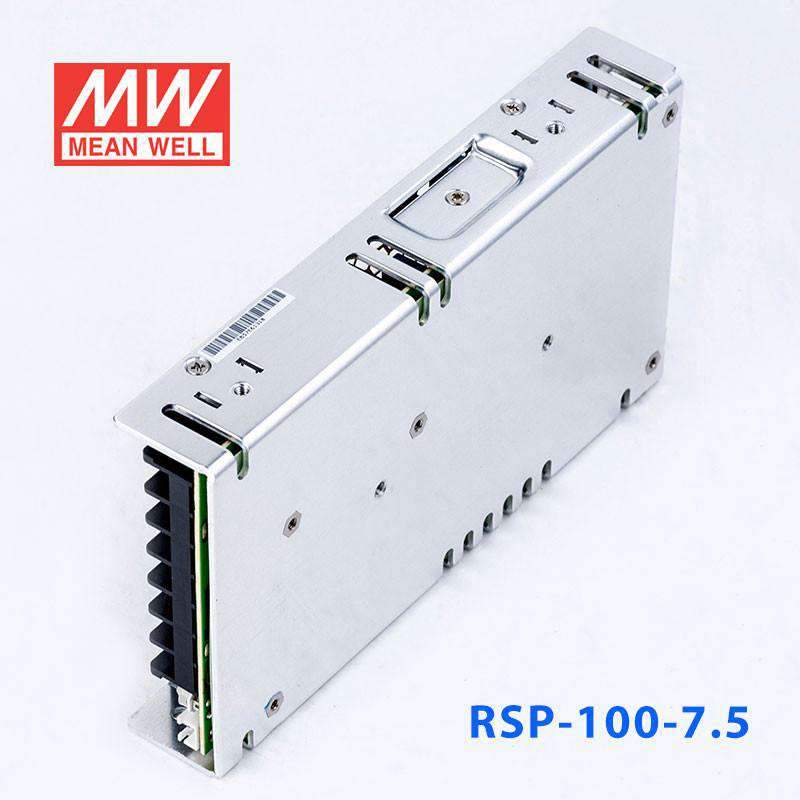

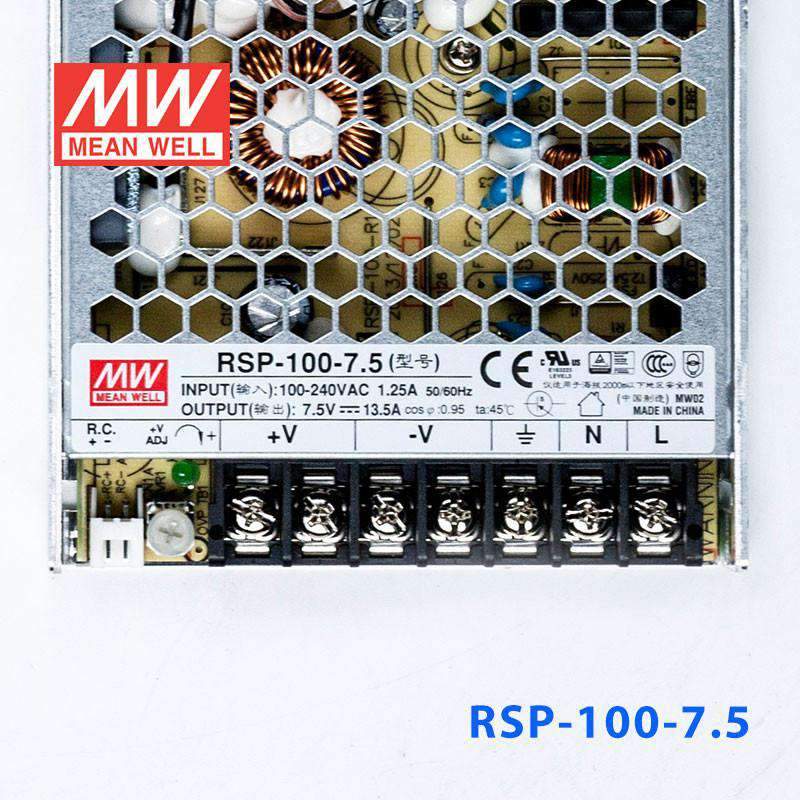

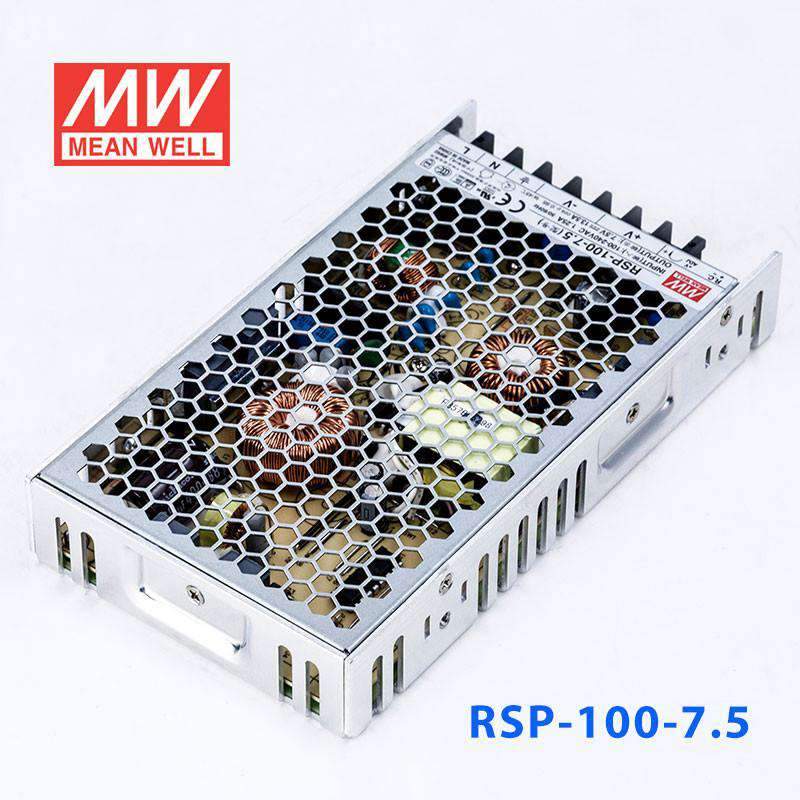

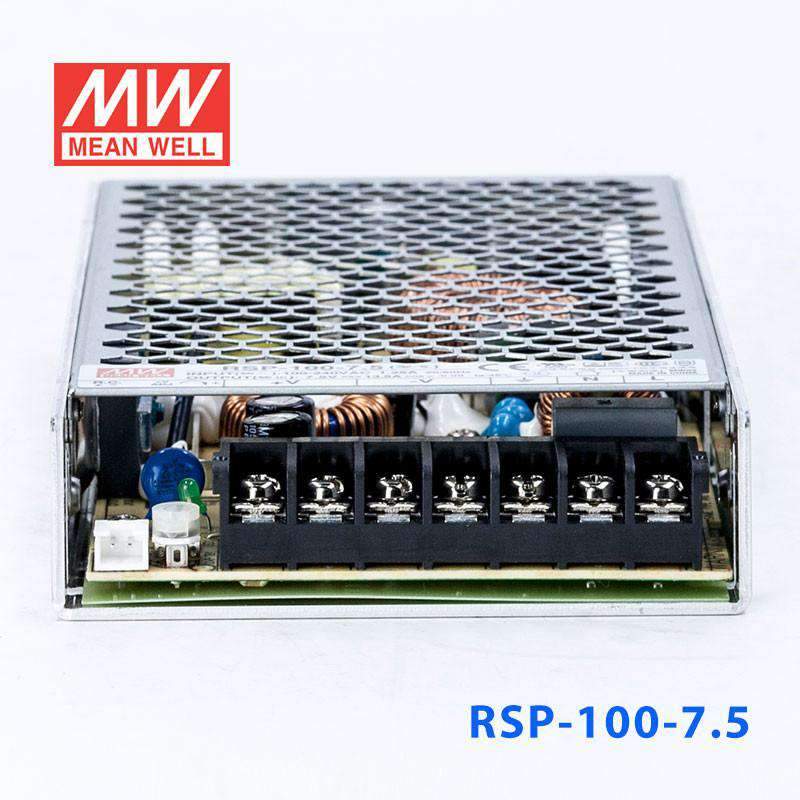

Mean Well RSP-100-7.5 Power Supply 100W 7.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating101.25 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What are typical 7.5V applications for the RSP-100-7.5?
The RSP-100-7.5 provides 7.5V at 13.5A (101.25W) and is suitable for 7.5V logic rails on industrial communication cards, certain CNC controller boards, and custom embedded systems that specify a 7.5V supply bus. The 85–264VAC input accommodates both 110V and 230V mains.
How does the RSP-100-7.5 compare to the RSP-100-5 and RSP-100-12?
The RSP-100-5 delivers 5V at 20A (100W), the RSP-100-7.5 delivers 7.5V at 13.5A (101.25W), and the RSP-100-12 delivers 12V at 8.5A (102W). All use the same 179.0 × 99.0 × 30.0 mm chassis and 85–264VAC input. The 7.5V model occupies the midpoint between the 5V and 12V variants in current output.
Does the RSP-100-7.5 have any IP protection for use in harsh locations?
The RSP-100-7.5 carries no IP ingress rating. For use in dusty factory areas or damp enclosures, the unit must be installed inside an appropriately rated sealed cabinet. Its -30°C to +70°C operating range covers most indoor industrial temperature zones.
What certifications does the RSP-100-7.5 hold?
The RSP-100-7.5 carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. This supports market entry in Taiwan, China, Europe, North America, and Eurasian Economic Union territories.
Can the RSP-100-7.5 be mounted in a 1U rack enclosure?
Yes. At 179.0 × 99.0 × 30.0 mm and 0.52 kg the RSP-100-7.5 is a 1U low-profile unit compatible with standard 19-inch rack mounting. It can be installed alongside other 1U equipment in standard industrial or IT racks.
