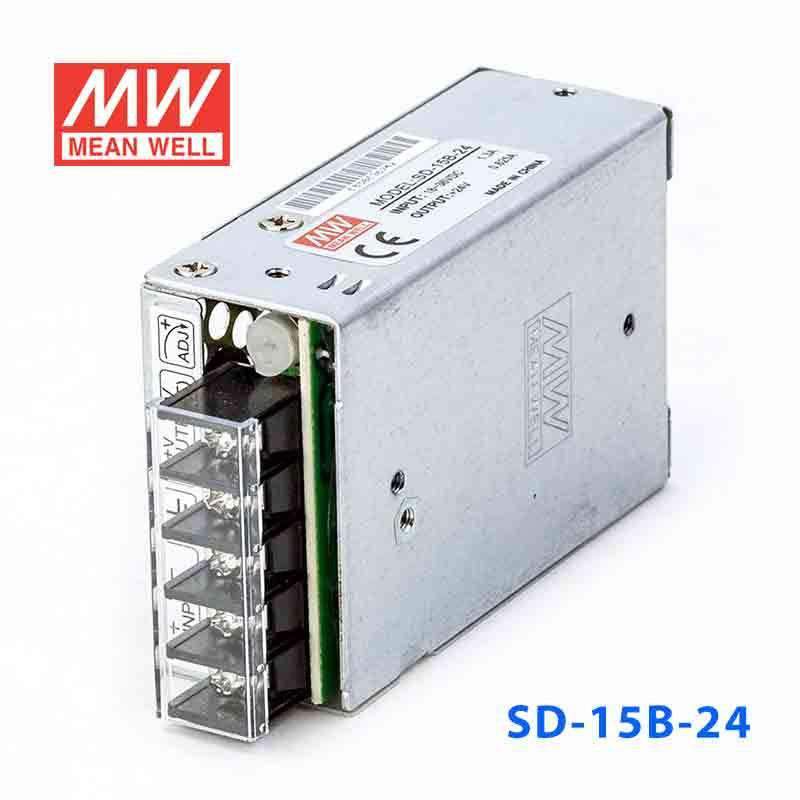

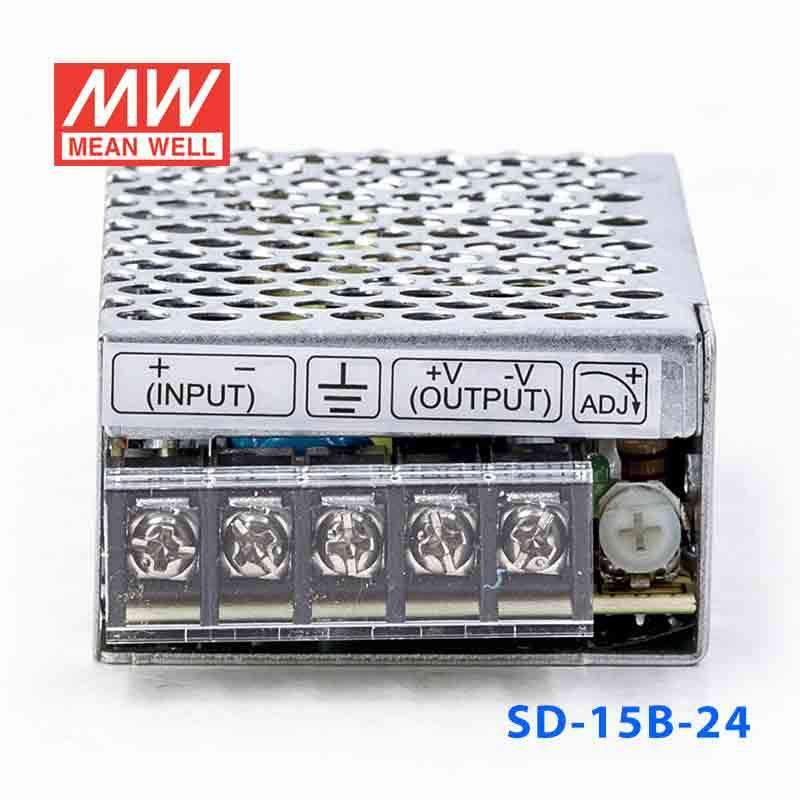

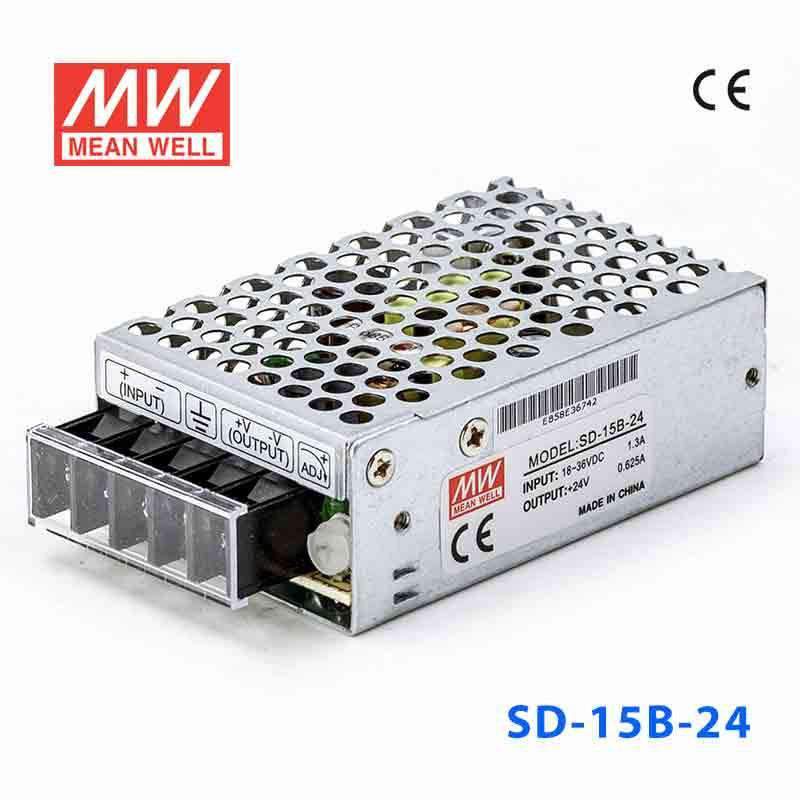

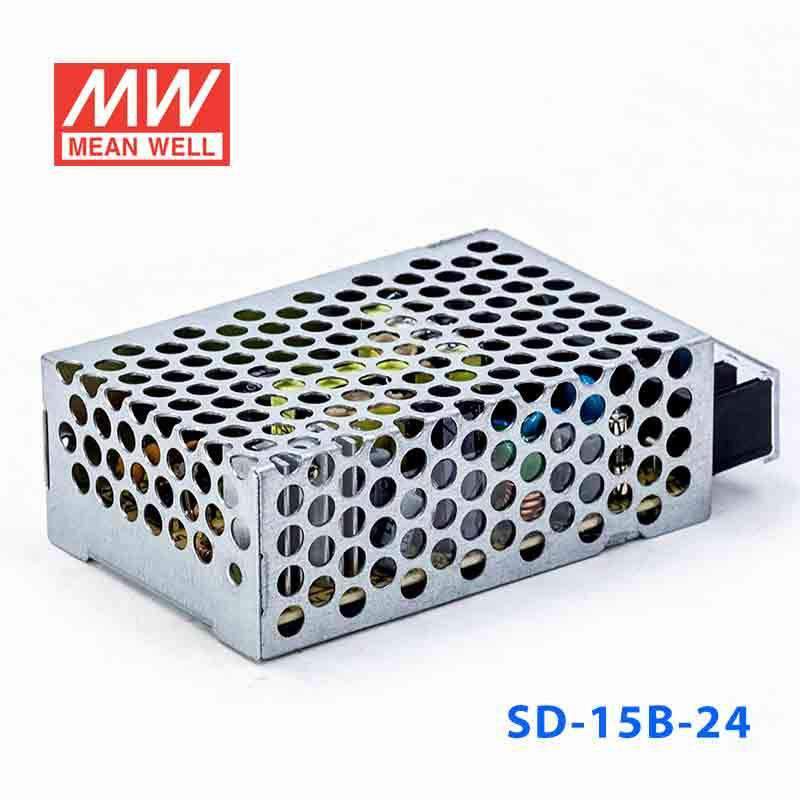

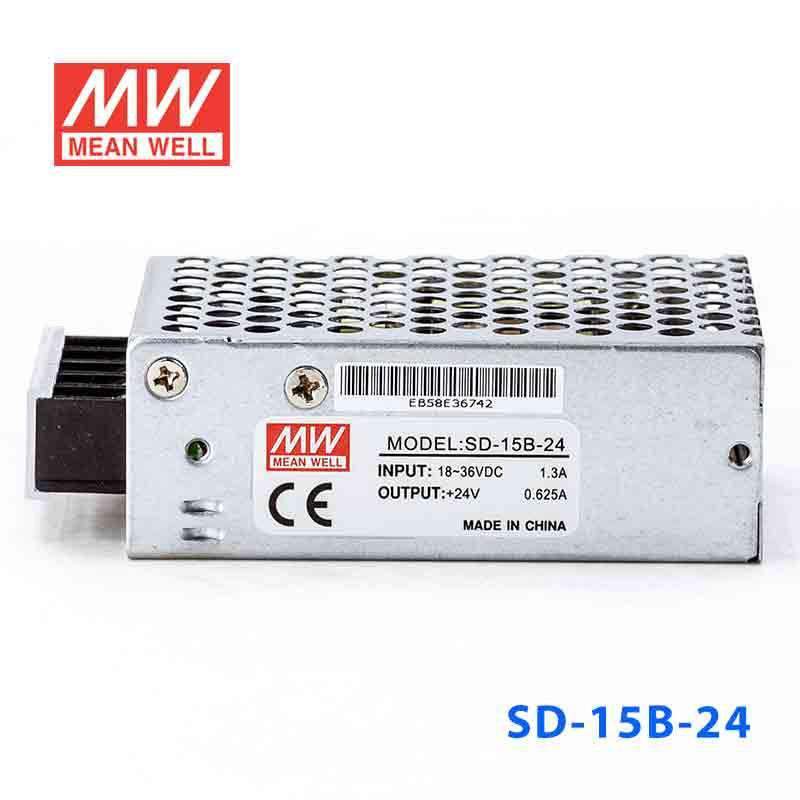

Mean Well SD-15B-24 DC-DC Converter - 15W - 18~36V in 24V out
The SD-15B is a 15W Mean Well power converter.
Key Features
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length3.07 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the SD-15B-24 for a small 24V sensor, controller, or automation accessory from an 18-36 input source?
Yes, if the load needs a regulated 24V output and stays within 0.62A. This unit is rated for 15W total and accepts an 18-36 input range, so it is aimed at low-power 24V industrial or embedded devices.
Is the SD-15B-24 a fit for a compact 24V control circuit inside industrial equipment?
It is suitable for small 24V constant voltage loads that do not exceed 15W. With 24V output at 0.62A, it is intended for light auxiliary electronics rather than larger 24V control hardware.
Can this model step an 18-36 source to 24V for embedded or monitoring electronics?
It can when the source falls within the 18-36 input range and the load requires constant 24V output. The available output is limited to 0.62A, so it fits low-power embedded, monitoring, or signaling devices.
Does the SD-15B-24 support outdoor use or wide industrial temperature conditions?
The listed operating temperature range is -20°C to +85°C. No IP rating appears in the provided specs, so the data does not state outdoor exposure resistance or sealed-enclosure suitability.
What is the difference between the SD-15B-24 and the other SD-15B variants?
In the SD-15B series, SD-15B-5 is 15W, 5V, 3A; SD-15B-12 is 15W, 12V, 1.25A; and SD-15B-24 is 15W, 24V, 0.62A. Each version uses the same 18-36 input range, constant voltage operation, -20°C to +85°C temperature range, 78.0 × 51.0 × 28.0 mm dimensions, 0.18 kg weight, EAC certification, and 3-year warranty.
