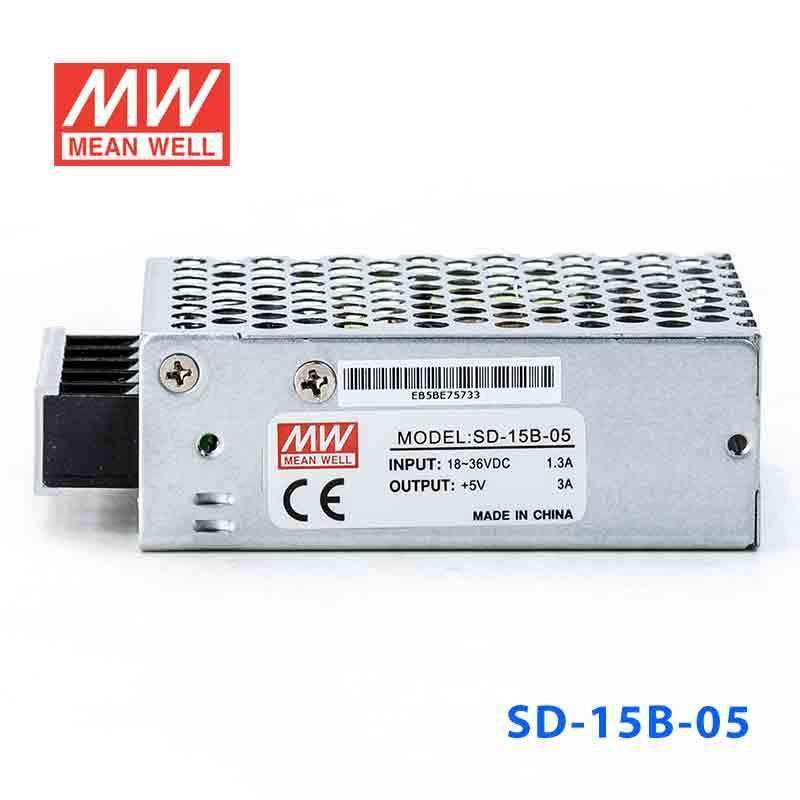

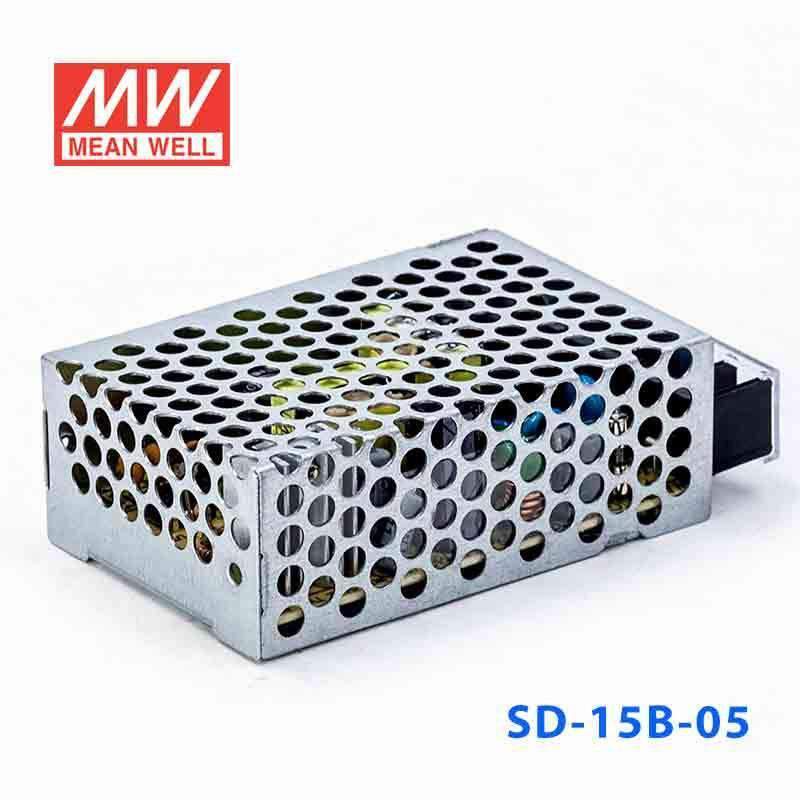

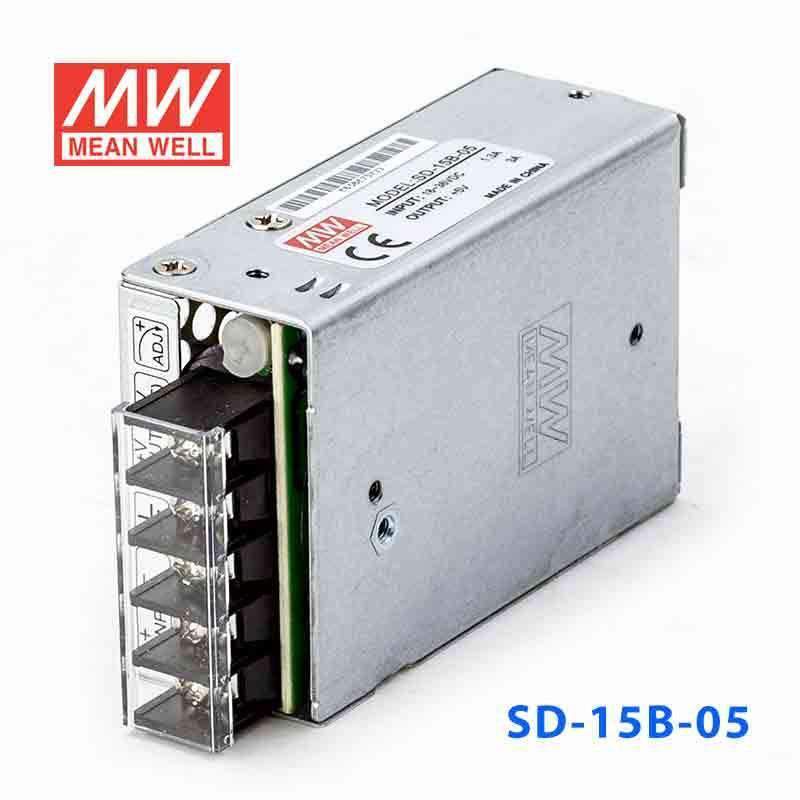

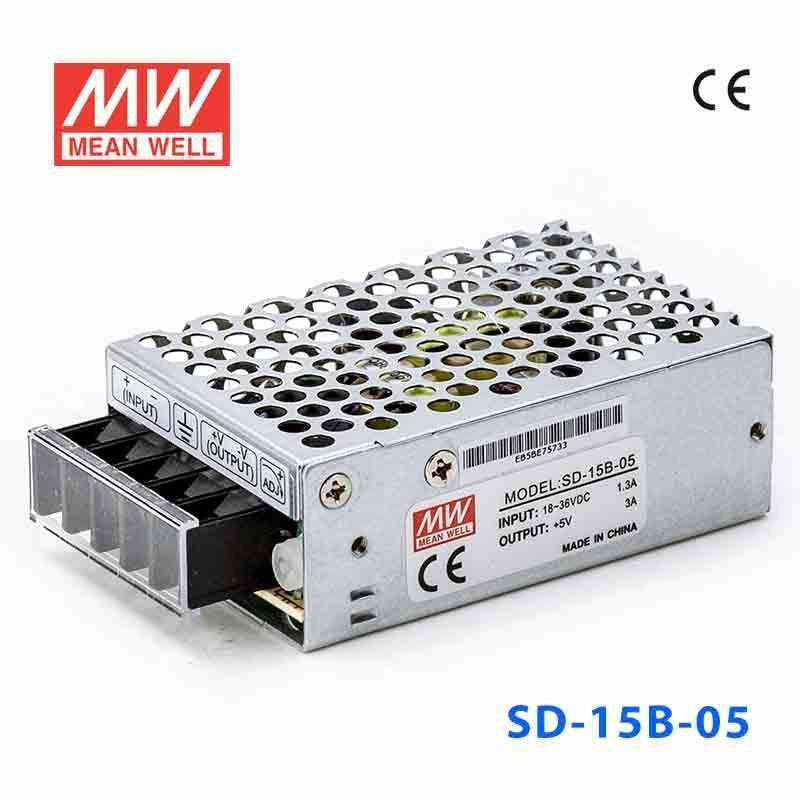

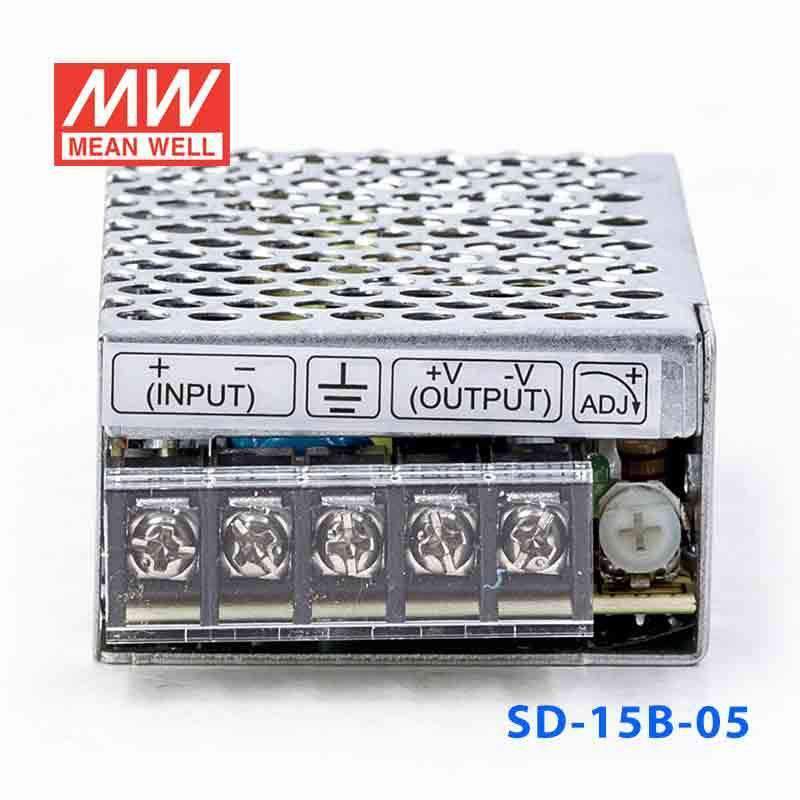

Mean Well SD-15B-5 DC-DC Converter - 15W - 18~36V in 5V out 3A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-15B-5 DC-DC Converter - 15W - 18~36V in 5V out 3A
The SD-15B is a 15W Mean Well power converter.
Key Features
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length3.07 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the SD-15B-5 to power a small embedded controller from a 24V industrial supply?
Yes, this converter is suited to low-power embedded control hardware that needs a regulated 5V output from an 18-36VAC input source. It provides constant-voltage 5V output at up to 3A with a 15W power rating, which fits compact control electronics rather than higher-load devices.
Is the SD-15B-5 a fit for sensor interfaces or industrial communication boards that run on 5V?
It can be a fit when the load needs 5V constant-voltage power and stays within 3A and 15W. The 2:1 wide input range supports 18-36VAC input systems, and the listed 1.5~2KVAC isolation by models is relevant in industrial and embedded environments.
Can this converter be used in automation panels for low-power 5V logic loads?
Yes, it is sized for low-power 5V logic loads in automation equipment when the source is within 18-36VAC. Its compact 78.0 × 51.0 × 28.0 mm housing and 0.18 kg weight also make it practical where panel space is limited.
How does the SD-15B-5 compare with the other SD-15B models?
Within the SD-15B group, SD-15B-5 is 15W, 5V, 3A; SD-15B-12 is 15W, 12V, 1.25A; and SD-15B-24 is 15W, 24V, 0.62A. The main differences are the output voltage and output current, while all three are part of the same 15W family.
Is the SD-15B-5 suitable for outdoor or harsh-environment use?
The listed operating temperature is -20°C to +85°C, so the temperature range is broad for industrial service. The provided specs do not list an IP rating, so dust and water ingress protection are not specified in the product data.
