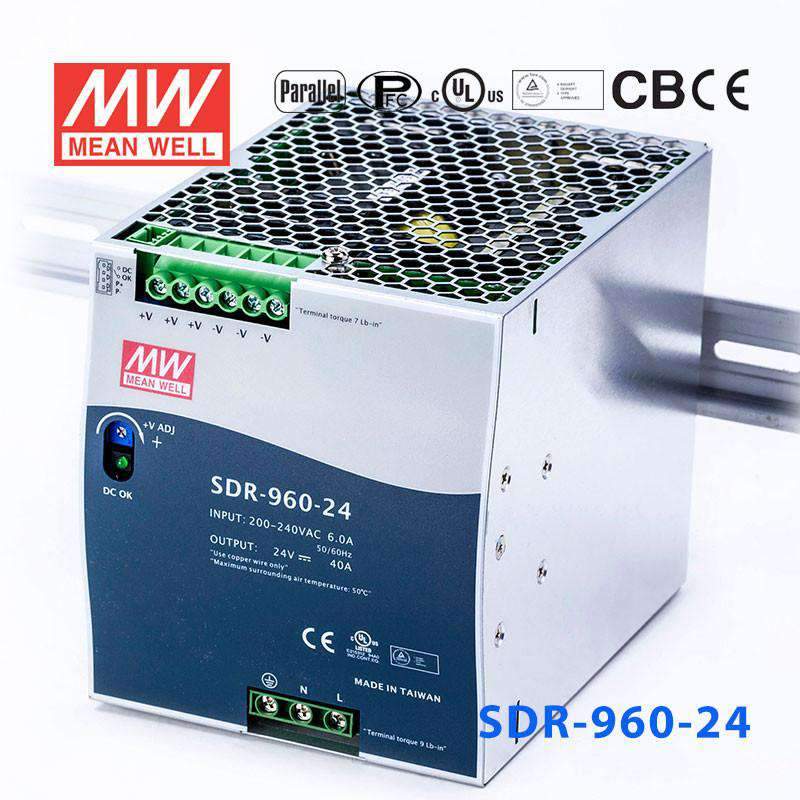

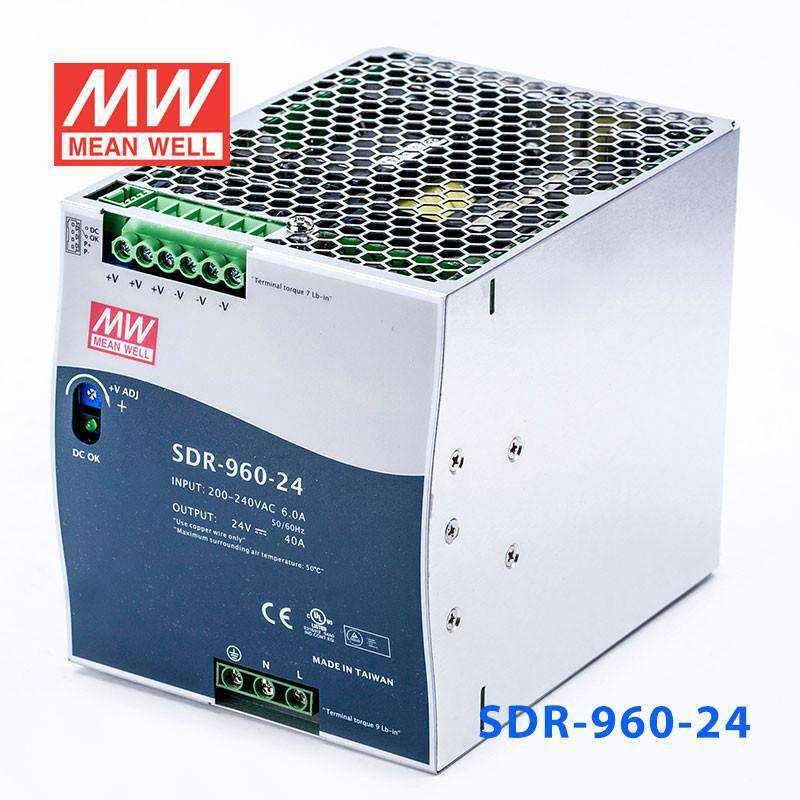

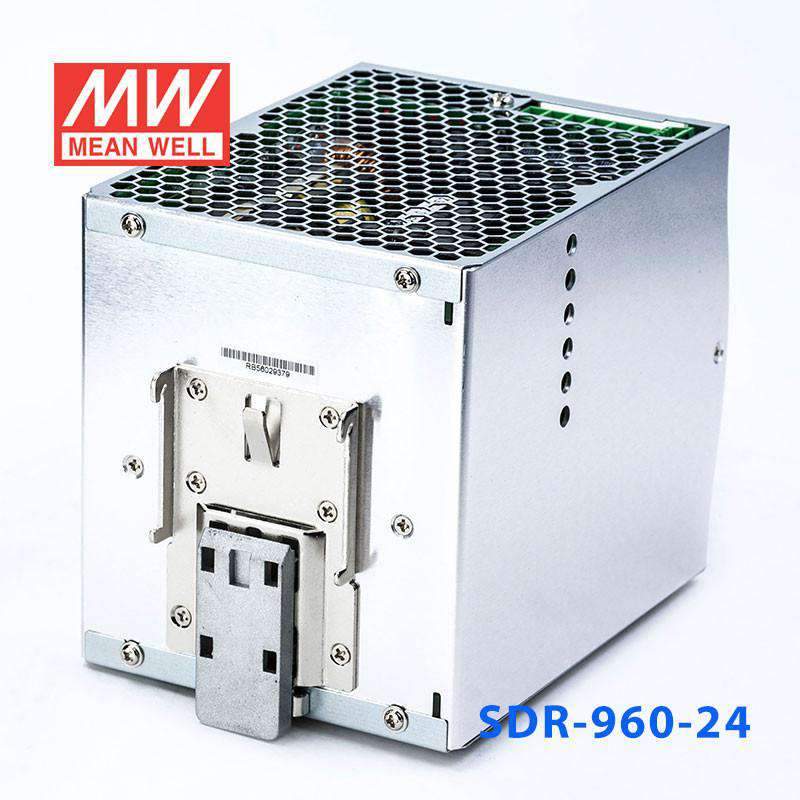

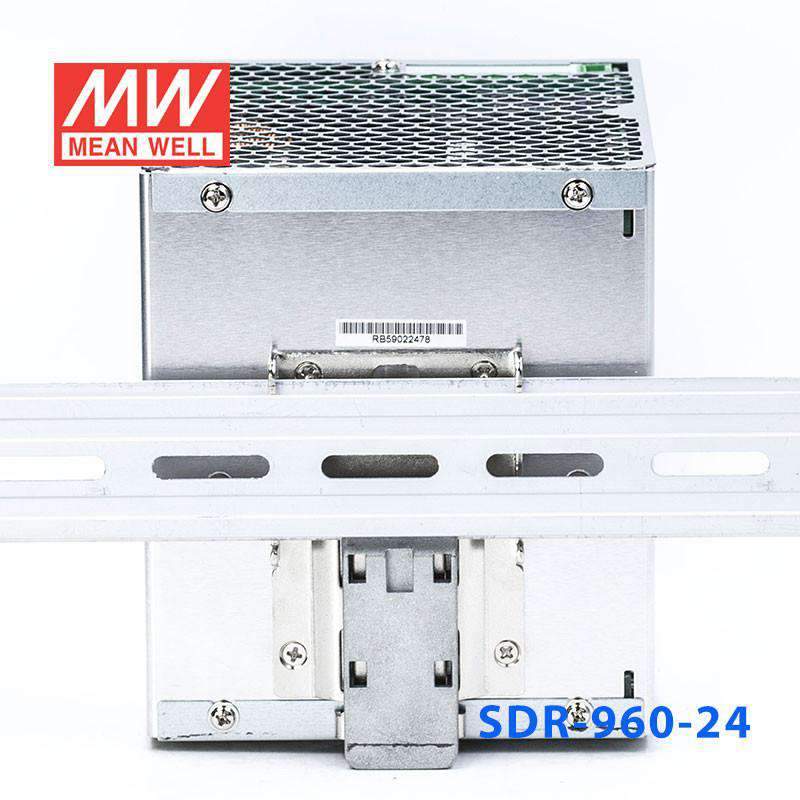

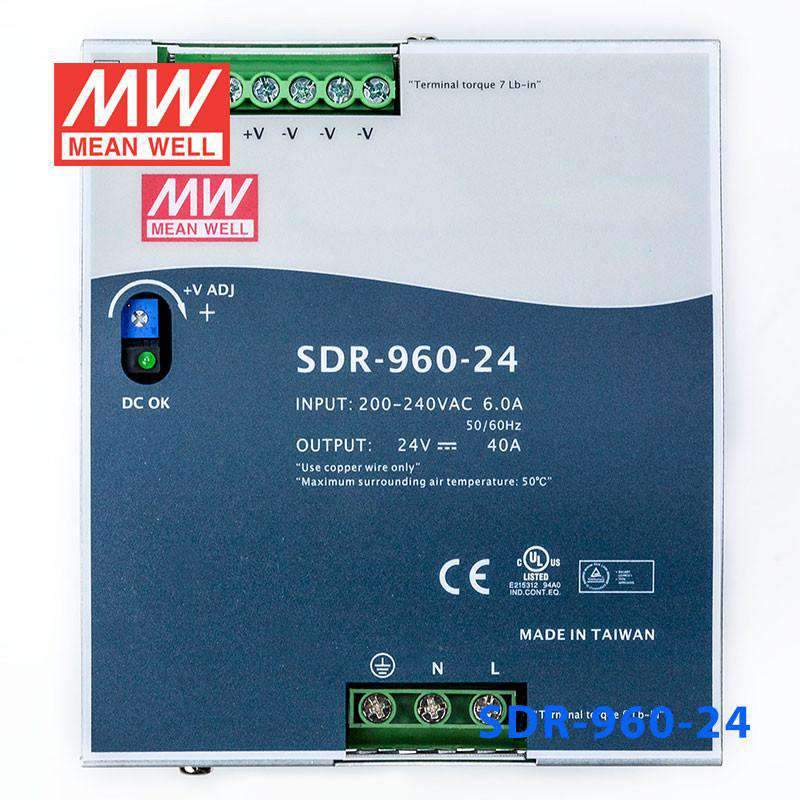

Mean Well SDR-960-24 AC-DC Industrial DIN rail power supply 24Vdc 40A
The SDR-960 is a 960W Mean Well power converter (input range: 180~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: -40 ~ +85 ± 0.03%/ ℃ ℃ , 10 ~ 95% RH (0 ~ 50 ) ℃ Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 UL508, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.91 in
-
Width4.93 in
-
Height4.33 in
-
Weight5.45 lb
::specification::
Frequently Asked Questions
Can I use the SDR-960-24 as a central 24V DC supply in a large PLC control cabinet?
Yes, this model is intended for high-capacity DIN rail applications where a 24V DC bus is needed in one enclosure. It provides 24V at 40A with 960W total output, which makes it suitable for larger PLC and automation cabinets than lower-power SDR models.
Is the SDR-960-24 appropriate for industrial automation panels with many 24V loads?
It is a fit when the total 24V demand across the panel stays within 40A and 960W. Its DIN rail format is designed for cabinet mounting, and the 150.0 x 125.2 x 110.0 mm size should be checked against available panel space.
Can the SDR-960-24 support building management systems with multiple 24V control devices?
It can be used for larger building management enclosures that consolidate many 24V DC devices onto one supply. The key sizing limits are 24V output, 40A current, and 960W total power.
Is this a good choice for a DIN rail cabinet that needs one high-power 24V supply instead of several smaller units?
It can be, especially when the cabinet is already set up for DIN rail hardware and the load is concentrated around one 24V bus. This unit delivers 960W at 24V and 40A, so it covers far more load than the 120W, 240W, or 480W 24V SDR siblings.
Should the SDR-960-24 be used only inside a control enclosure?
Yes, it is best treated as a cabinet-mounted industrial power supply. The product data gives an operating temperature range of -30°C to +70°C, but no IP rating is listed for exposed outdoor or washdown use, so enclosure installation is the safer interpretation.
How does the SDR-960-24 compare with other SDR series models?
Among the 24V siblings, SDR-75-24 is 76.8W and 3.2A, SDR-120-24 is 120W and 5A, SDR-240-24 is 240W and 10A, SDR-480-24 is 480W and 20A, SDR-480P-24 is 480W and 20A, and SDR-960-24 is 960W and 40A. The 48V siblings are SDR-75-48 at 76.8W and 1.6A, SDR-120-48 at 120W and 2.5A, SDR-240-48 at 240W and 5A, SDR-480-48 at 480W and 10A, SDR-480P-48 at 480W and 10A, and SDR-960-48 at 960W and 20A. The 12V siblings listed here are SDR-75-12 at 75.6W and 6.3A and SDR-120-12 at 120W and 10A.
