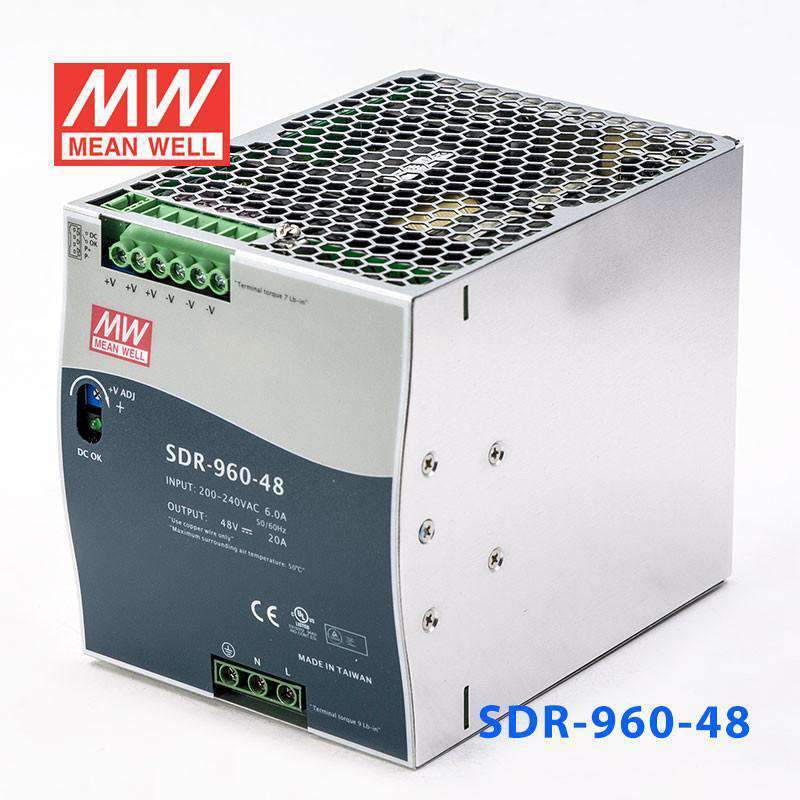

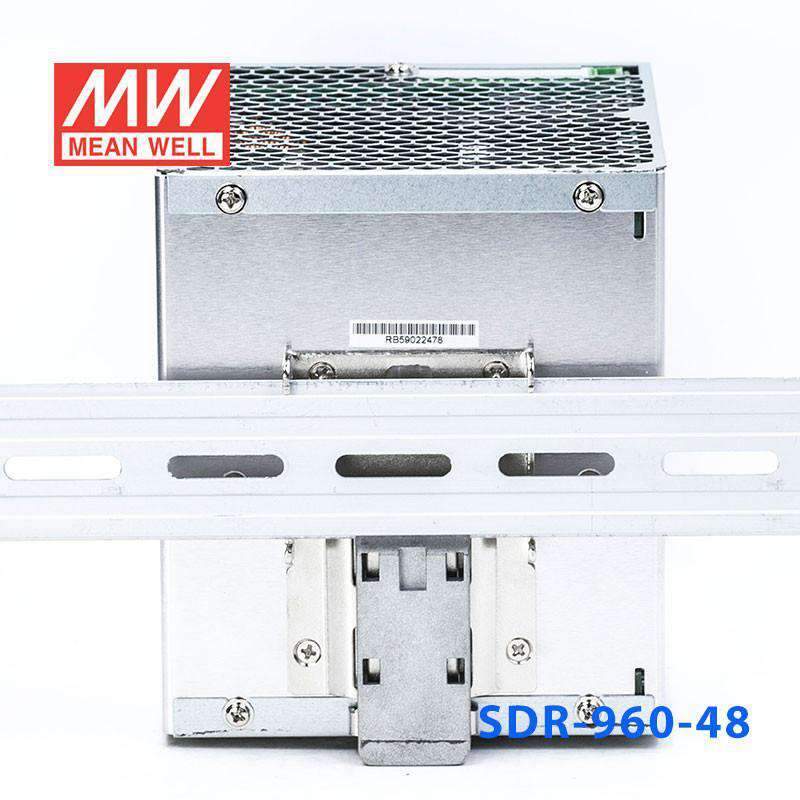

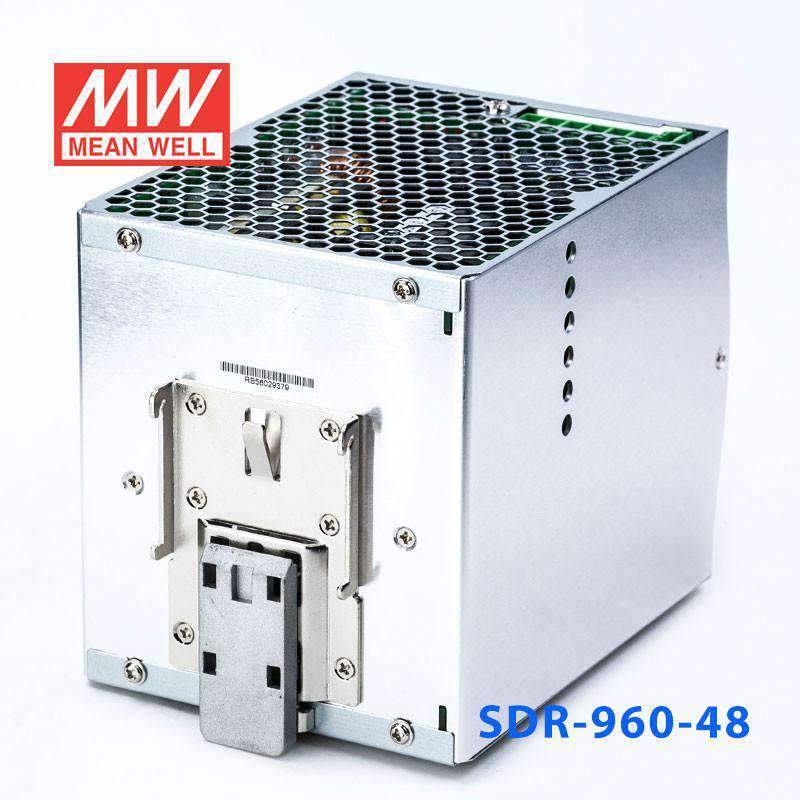

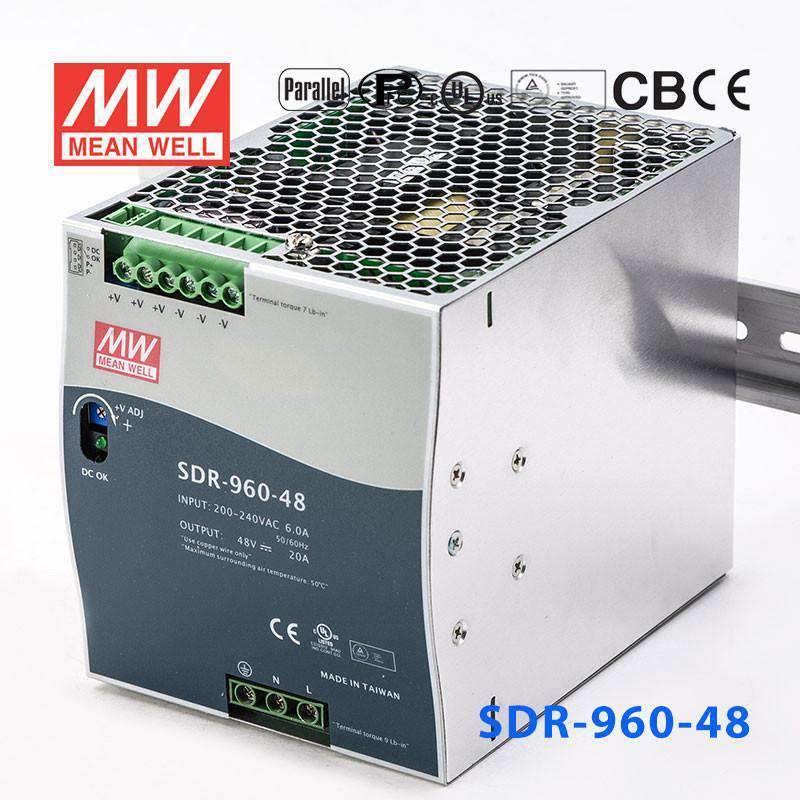

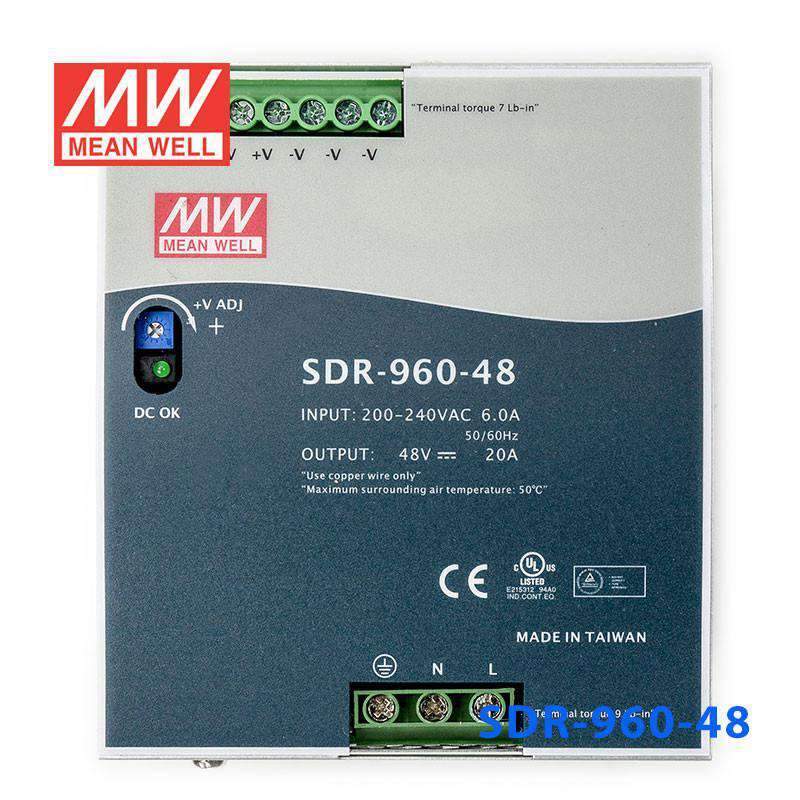

Mean Well SDR-960-48 Single Output Industrial Power Supply 960W 48V...
$284.06 USD
Unit price /
Unavailable
Description
Description
Features
| High efficiency up to 94% |
| AC input 180~264VAC only |
| Built-in active PFC function |
| Built-in DC OK relay contact |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| 130% peak load capability |
| Current sharing up to 3840W (3+1) |
| 3 years warranty |
General Specification
| AC input voltage range | 180~264VAC; 254~370VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| DC adjustment range | 24V: 24~28V, 48V: 48~55V |
| Overload protection | Normally works within 105%~130% rated output power for 3 seconds and then shut down o/p voltage with auto-recovery after 30 seconds if the peak load condition is removed |
| Overload protection | Constant current limiting within 130%~150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover |
| Over voltage protection Range | 29~33V for 24V model, 56~65V for 48V model |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Over temp. protection | Recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC |
| Working temperature | -30~+70°C |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; |
| Connection | I/P:3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (WxHxD)(mm) | 110x125.2x150 |
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating960 Watt
-
Output Voltage48 Volt
-
Rated Current20 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.91 in
-
Width4.93 in
-
Height4.33 in
-
Weight5.45 lb
