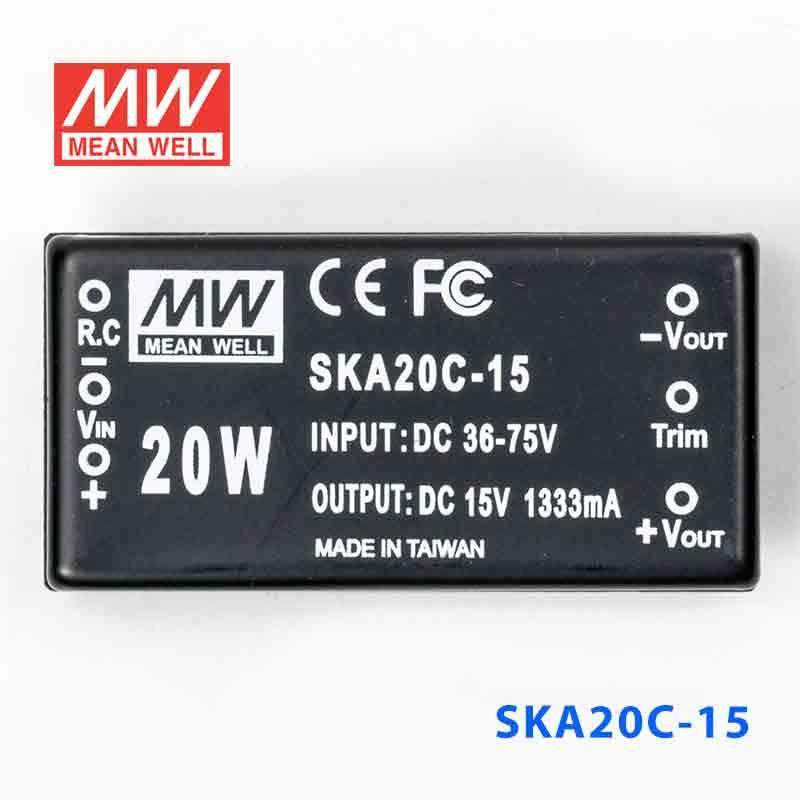

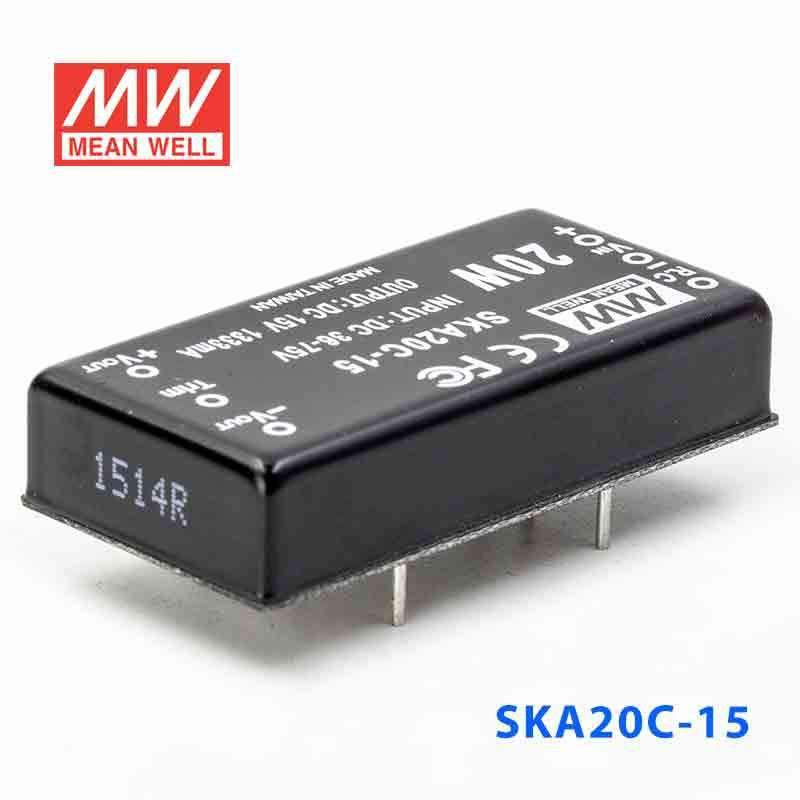

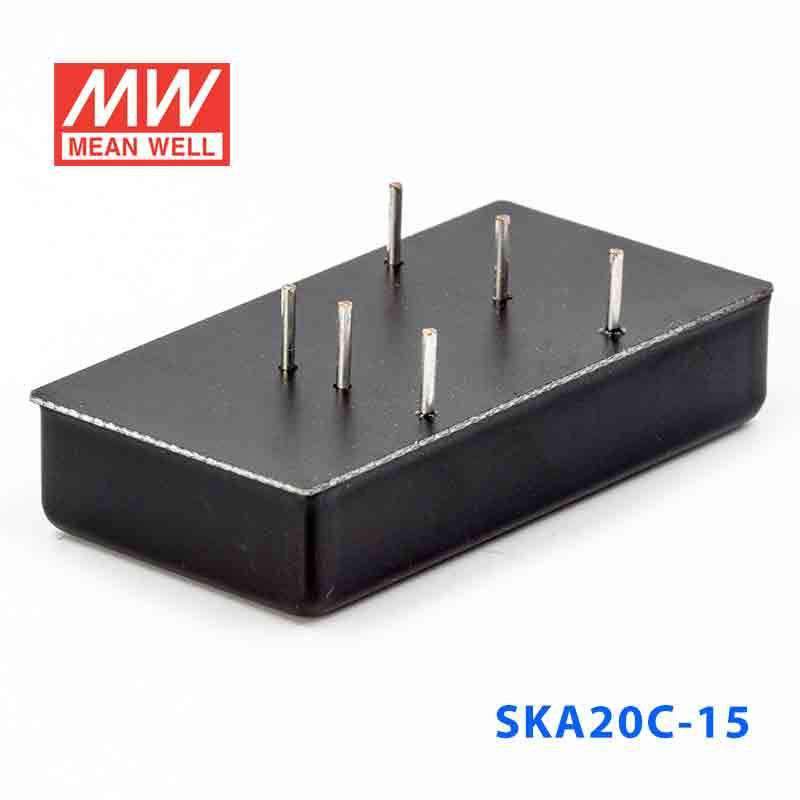

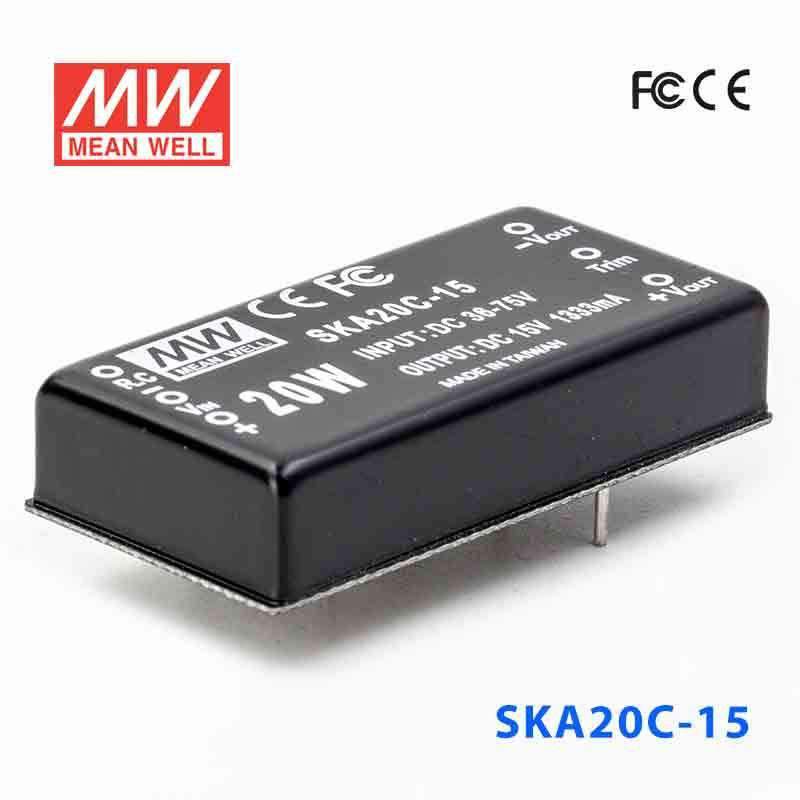

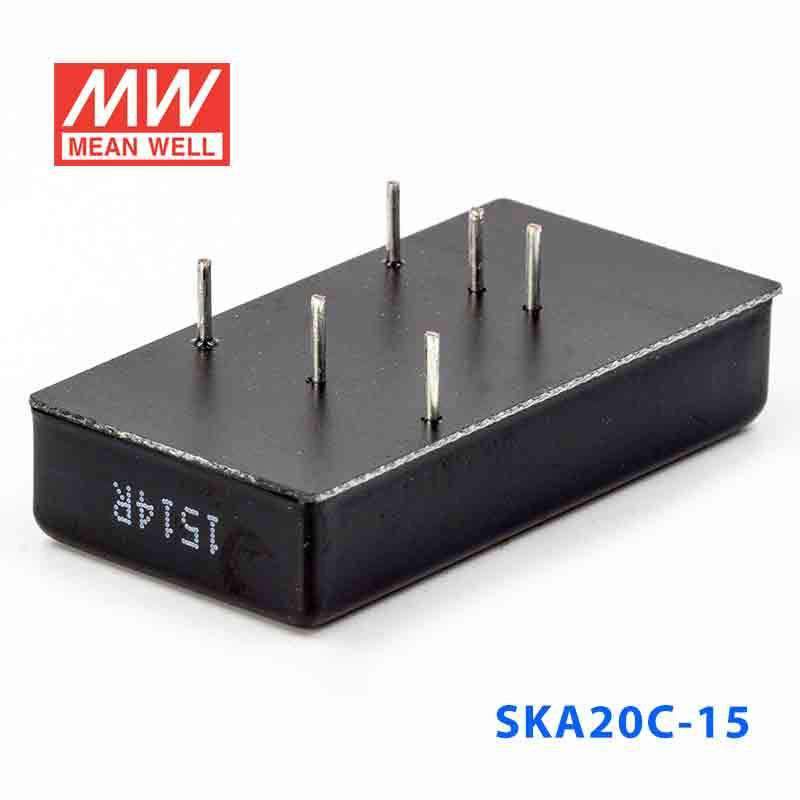

Mean Well SKA20C-15 DC-DC Converter - 20W - 36~75V in 15V out
The SKA20C is a 20W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SKA20C-15 to power a 15V industrial sensor or transmitter from a wide input bus?
This model provides a constant-voltage 15V output at up to 1.33A with 20W capacity. Its listed input range is 36-75VAC, so it fits applications that need 15V output within that input window.
Is the SKA20C-15 suitable for embedded control boards that need regulated 15V power?
It is designed as a constant-voltage converter with 15V output and 20W maximum power. That makes it appropriate for embedded or control assemblies that require a fixed 15V rail and draw no more than 1.33A.
Can this converter be used in automation equipment that runs in hot or cold environments?
The specified operating temperature range is -40°C to +85°C. That wide range supports use in automation or industrial equipment exposed to low and high ambient temperatures within those limits.
Can the SKA20C-15 power a small 15V communications or IT device from a 36-75VAC source?
Yes, the listed specs match a 36-75VAC input range and a regulated 15V output. The output is limited to 20W and 1.33A, so the connected device needs to stay within that capacity.
Is the SKA20C-15 suitable for outdoor or exposed-environment use?
The provided specs include an operating temperature range of -40°C to +85°C, but no IP rating is listed. Based on the listed data alone, temperature capability is defined, while outdoor or exposed-use protection is not confirmed.
How does the SKA20C-15 compare with other SKA20C models?
Within the SKA20C series, the SKA20C-15 is rated for 20W with 15V output at 1.33A. The sibling SKA20C-05 is 20W with 5V output at 4A, and the SKA20C-12 is 20W with 12V output at 1.66A.
