Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

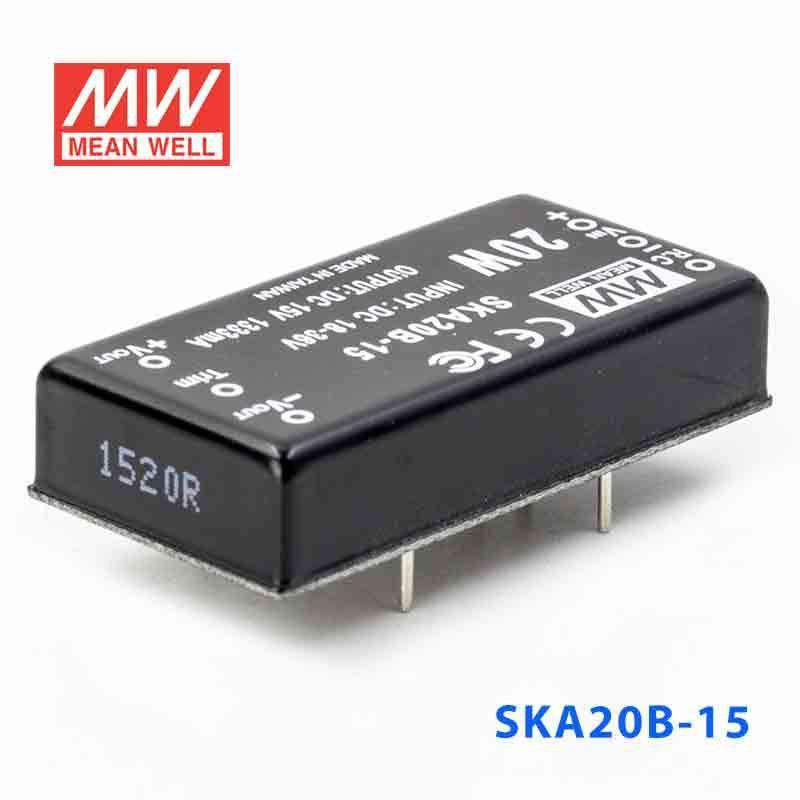

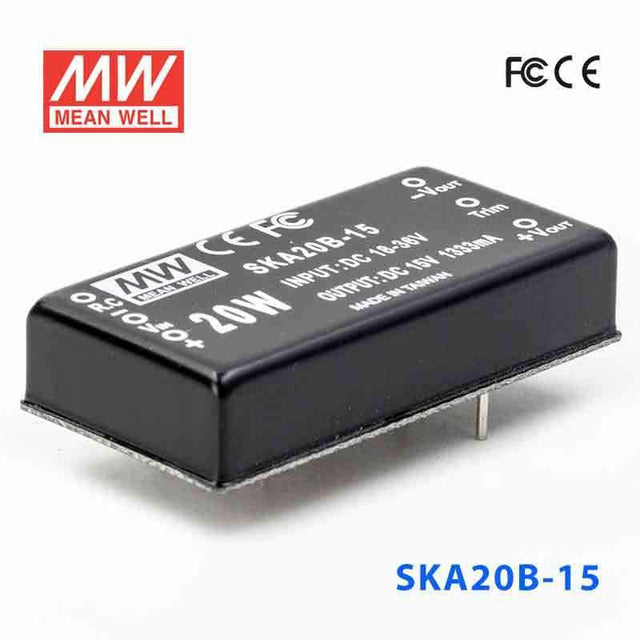

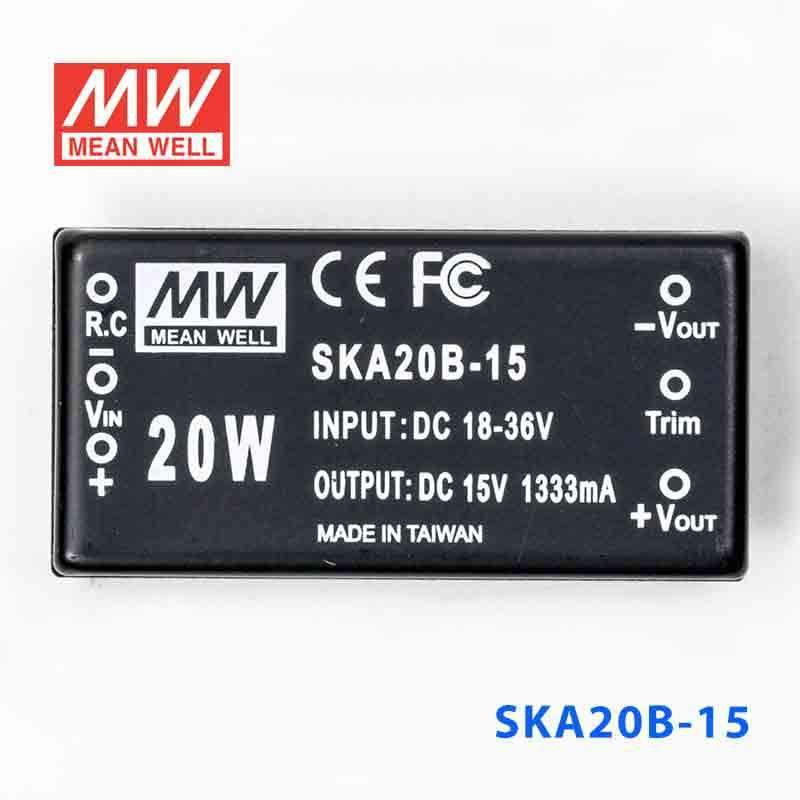

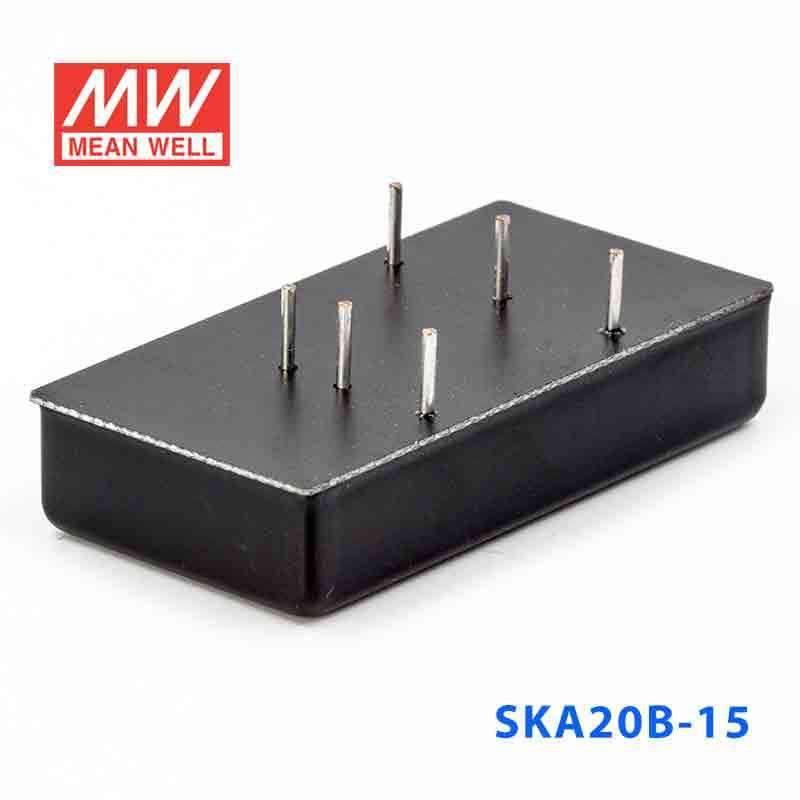

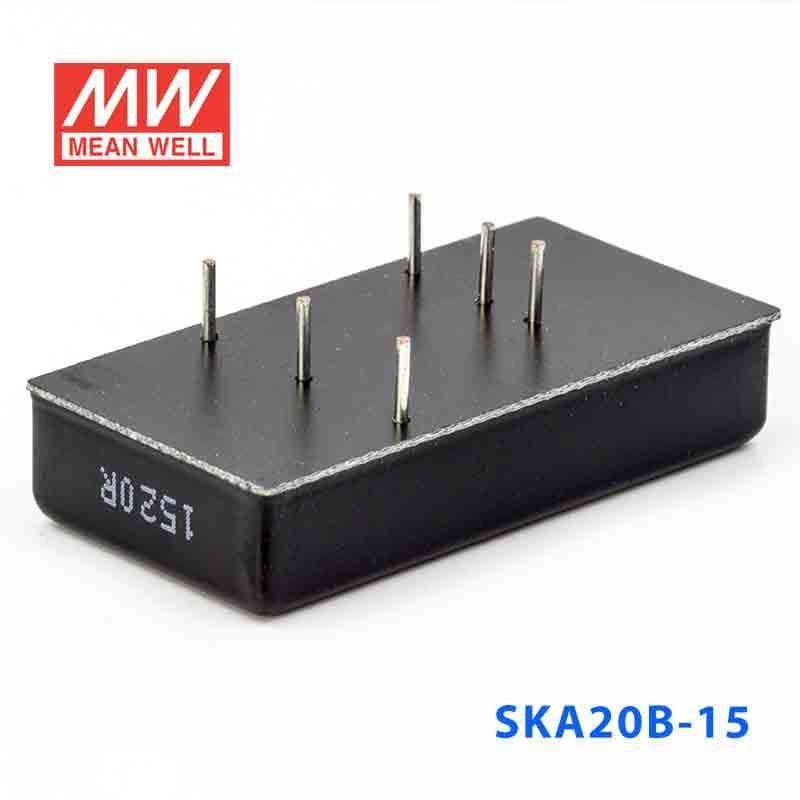

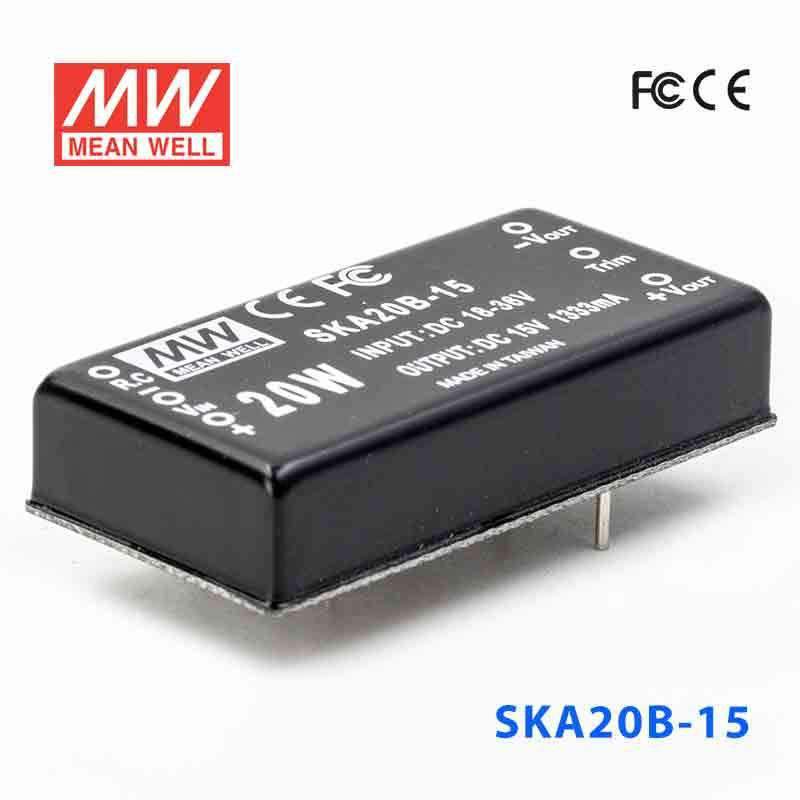

Mean Well SKA20B-15 DC-DC Converter - 20W - 18~36V in 15V out
$27.12 USD
Unit price /
Unavailable
Description
Description
Features
| 2"x1" compact size |
| 2:1 wide input range |
| High efficiency up to 89.5% |
| 1500VDC I/O isolation |
| Built-in remote ON/OFF control |
| Built-in trimming output |
| Built-in EMI filter |
| Protection: Short circuit / Overload / Input and Output Over voltage |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full burn-in test |
| Low cost, high reliability |
| Approvals: FCC / EAC / CE / UKCA |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ±0.2% (max.) |
| Load regulation | ±0.5% |
| Overload protection | 110%~250%, auto-recovery |
| Efficiency | 87.5% ; 88% ; 88.5% | 88% ; 88.5% ; 87.5 | 89% ; 89.5% ; 88% |
| Short circuit protection | Protection type: Hiccup mode, recovers automatically after the fault condition is removed |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -40~+85°C (refer to output derating curve) |
| Storage temperature | -55 ~ +125°C, 10 ~ 95% RH |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.03% /°C (0 ~ 50°C) |
| Dimension (LxWxH) (mm) | 50.8 x 25.4 x 11.2 mm or 2" x 1" x 0.44" inch |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
