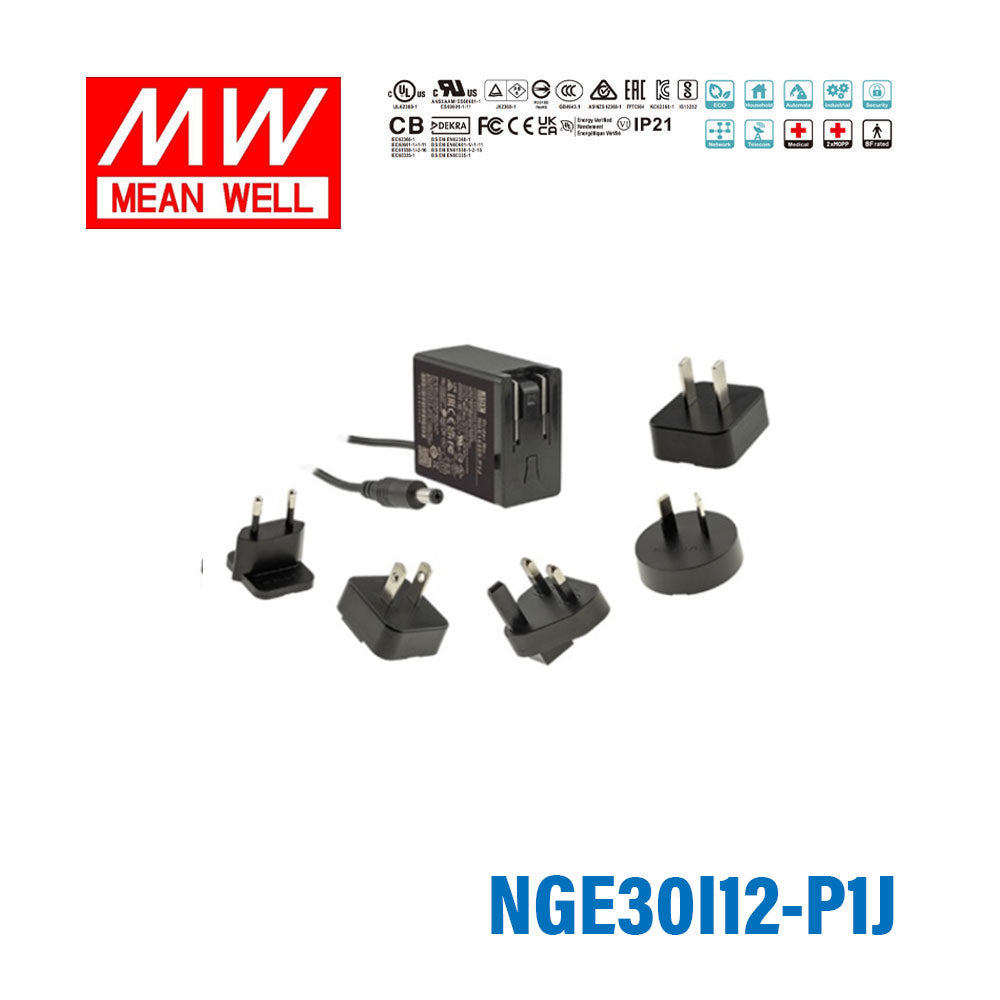

Mean Well NGE30I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 12V 2.5A

The NGE30 is a highly reliable, 30W wall-mounted single-output green adaptor series — compact and convenient for travel. Equipped with 7 types of interchangeable AC plugs (EU, USA, UK, AU, CN, KR, IN), it accepts universal input from 80~264VAC to suit electrical devices worldwide. With working efficiency up to 91.5% and no-load consumption below 0.075W, it meets USA EISA 2007/DoE, Canada NRCan, AU/NZ MEPS, Korea KMEPS, and EU ErP energy standards. Approved for ITE, medical, household and industrial safety regulations with a 94V-0 flame retardant case.

Key Features

• ✓✓Interchangeable AC plugs (EU, US, UK, AU, CN, KR, IN)
• ✓✓Global multi-field certifications — ITE, Medical, Household & Industrial
• ✓✓Universal AC input 80~264VAC / full range
• ✓✓Ultra slim design — only 30mm wide
• ✓✓Energy efficiency Level VI — no-load power consumption <0.075W
• ✓✓Class II power — no earth pin required
• ✓✓Protections: Short circuit / Overload / Over voltage
• ✓✓Extremely low leakage current <100uA
• ✓✓Wide operating temperature: -30℃ ~ +70℃
• ✓✓DC plug quick adapter accessories available (sold separately)
• ✓✓3 years warranty

• Brand
  Mean Well
• Series
  NGE Series
• Power Rating
  30 Watt
• Output Voltage
  12 Volt
• Rated Current
  2.5 Ampere
• Input Voltage
  80V~264V
• No of Output
  1
• Dimming Control
  Non Dimmable
• Standards Met
  CB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -30°C~70°C
• Warranty
  3 Year
• Length
  2.44 in
• Width
  1.18 in
• Height
  2.56 in
• Weight
  0.37 lb
