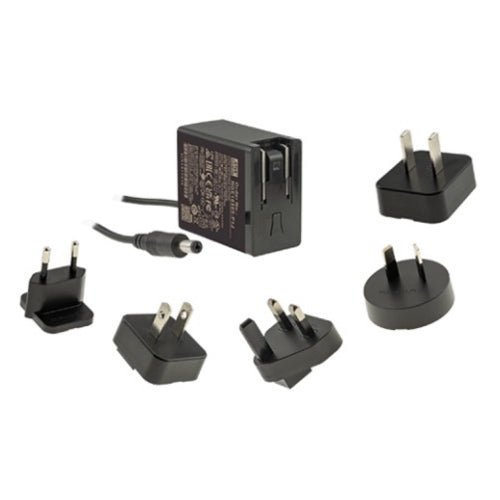

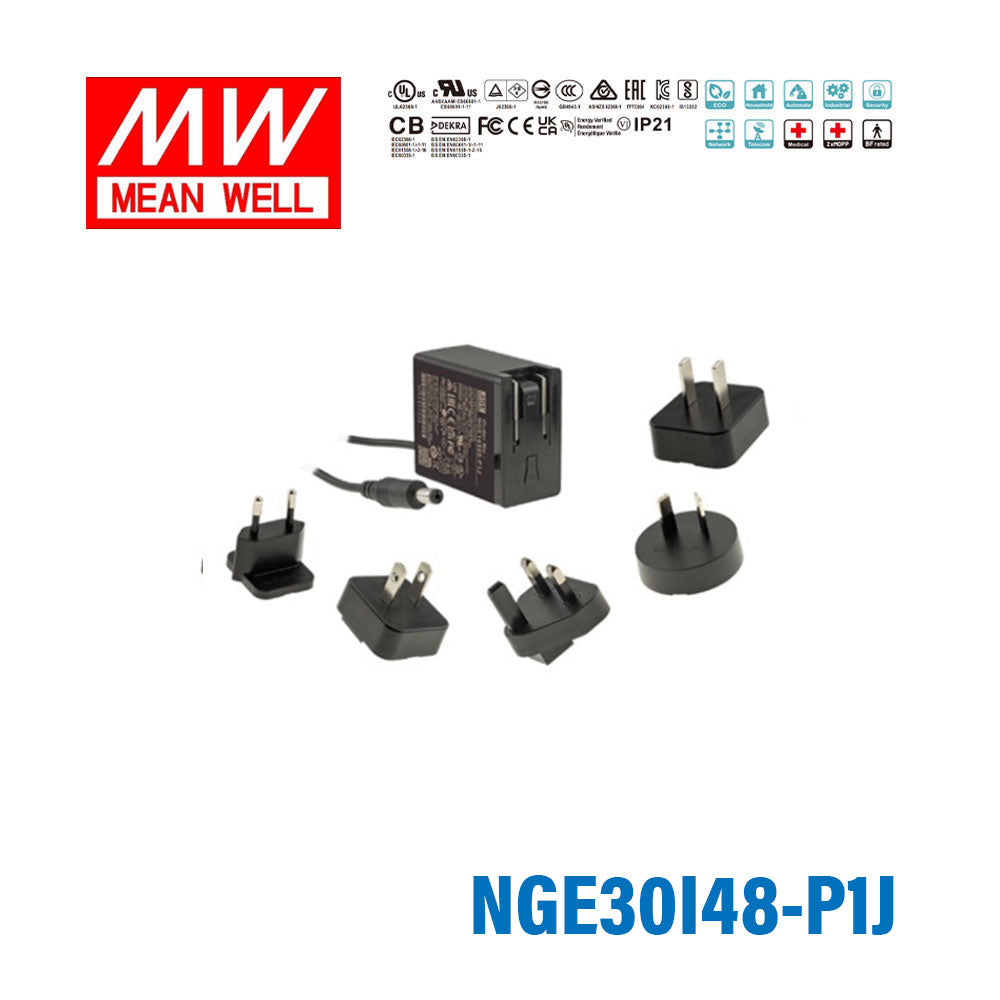

Mean Well NGE30I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 48V 0.63A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE30I48-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE30I48 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating30 Watt
-
Output Voltage48 Volt
-
Rated Current0.63 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE30I48-P1J?
This model is a 30W AC-DC wall-mounted adaptor with a 48V DC output and a rated current of 0.63A. It is designed as a non-dimmable power adaptor and uses an interchangeable plug format. The housing dimensions are 62 x 30 x 65 mm and the unit weighs 0.17 kg.
What types of equipment is the NGE30I48-P1J suited for?
The NGE30I48-P1J is best suited to equipment that specifically requires a 48V DC input and draws up to 0.63A. Its approvals across ITE, medical, household, and industrial standards make it a strong fit for professional OEM and commercial applications. Buyers should confirm that the load voltage and current requirements match this adaptor's rated output.
Does this adaptor support international use or different regional plug formats?
Yes, this model is built with interchangeable AC plugs and a universal input range of 80 to 264VAC. That makes it suitable for use across multiple regions when the correct plug accessory is used. It is positioned for global applications rather than a single-country mains standard.
What protection features are included in the NGE30I48-P1J?
This adaptor includes short circuit, overload, and over-voltage protection. For the 48V version, overload protection uses shut down and latch-off behavior, and recovery requires re-powering after the fault is cleared. It also passes LPS requirements and is designed as a Class II power unit with no earth pin.
Can the NGE30I48-P1J be used in demanding temperature conditions?
Yes, the specified working temperature range is -30°C to +70°C, which is broader than many standard desktop or wall adaptors. That makes it suitable for applications exposed to cold or warm operating environments, provided the rest of the system is rated accordingly. Mean Well also specifies derating guidance within that temperature range.
How does the NGE30I48-P1J compare with a standard fixed-plug wall adaptor?
Compared with a basic fixed-plug adaptor, this model stands out for its interchangeable plug system, ultra-slim 28 mm profile, and broad certification coverage. It also offers very low no-load power consumption below 0.075W and meets Energy Efficiency Level VI. Those features make it better suited to regulated commercial and export-oriented applications.
What certifications and compliance coverage does this model offer?
The NGE30I48-P1J carries approvals across multiple categories including IEC/UL 62368-1, IEC/ANSI/AAMI 60601-1 and 60601-1-11, IEC 61558, and IEC 60335-1, along with regional approvals such as PSE, BSMI, RCM, EAC, and CCC. This broad certification coverage is one of the key differentiators of the NGE series. It is useful for buyers sourcing one adaptor platform for multiple regulated markets.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NGE30 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NGE30I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 12V 2.5A | 30W | 12V | 2.5A | IP21 | $26.20 | View |
| Mean Well NGE30I24-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 24V 1.25A | 30W | 24V | 1.25A | IP21 | $20.36 | View |
| Mean Well NGE30I18-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 18V 1.66A | 30W | 18V | 1.66A | IP21 | $26.20 | View |
| Mean Well NGE30I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 15V 2A | 30W | 15V | 2A | IP21 | $26.20 | View |
| Mean Well NGE30I09-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 9V 3.33A | 30W | 9V | 3.33A | IP21 | $26.20 | View |
| Mean Well NGE30I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 20W 5V 4A | 20W | 5V | 4A | IP21 | $26.20 | View |
