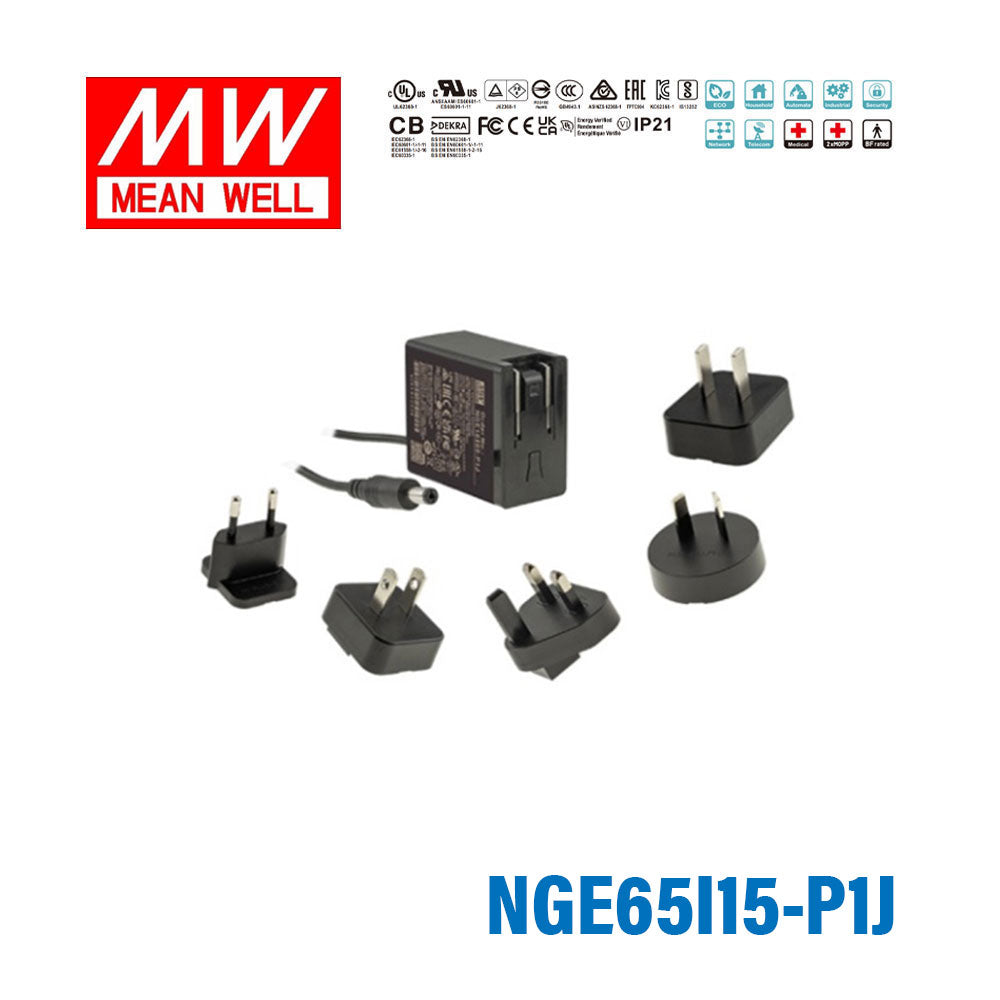

Mean Well NGE65I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 15V 4.34A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE65I15-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE65I15 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating65.1 Watt
-
Output Voltage15 Volt
-
Rated Current4.34 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the output specifications of the Mean Well NGE65I15-P1J?
This model provides a regulated 15V DC output at up to 4.34A. Its maximum rated output power is 65.1W. That makes it suitable for equipment that specifically requires a 15V supply within that current range.
What type of plug format does the NGE65I15-P1J use?
The NGE65I15-P1J is a wall-mounted AC-DC adaptor with an interchangeable AC plug design. This format helps support use across different regions when the appropriate plug option is used. It is also built as a Class II power supply, so it does not use an earth pin.
Is this power adaptor intended for commercial and regulated equipment applications?
Yes. Mean Well lists broad safety approvals for this series, including standards covering ITE, medical, household, and industrial categories. That makes this model a strong fit for B2B buyers who need a certified external power supply for professional equipment.
Can the NGE65I15-P1J operate in demanding temperature conditions?
Yes. This adaptor is rated for operation from -30°C to +70°C, which is a wide working temperature range for an external wall plug power supply. Buyers should still confirm the full system's thermal requirements, but the adaptor itself is designed for challenging environments.
What protection features are included in this adaptor?
The NGE65I15-P1J includes short circuit, overload, and over voltage protection. The overload specification is 110% to 150% of rated output power, with automatic recovery behavior for 5V to 24V models after the fault is removed. These built-in protections help support safer operation in demanding equipment applications.
How does this model compare with lower-power wall adaptors?
This version is designed for higher 15V load demand because it can deliver up to 4.34A and 65.1W. Compared with lower-power adaptors, it is better suited to devices that need more current headroom at 15V. It also maintains a slim wall-mount form factor at 62 x 30 x 65 mm.
Does this adaptor support energy-efficient operation?
Yes. The NGE65I15-P1J meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those characteristics make it a good choice for applications where standby efficiency and reduced wasted power matter.
