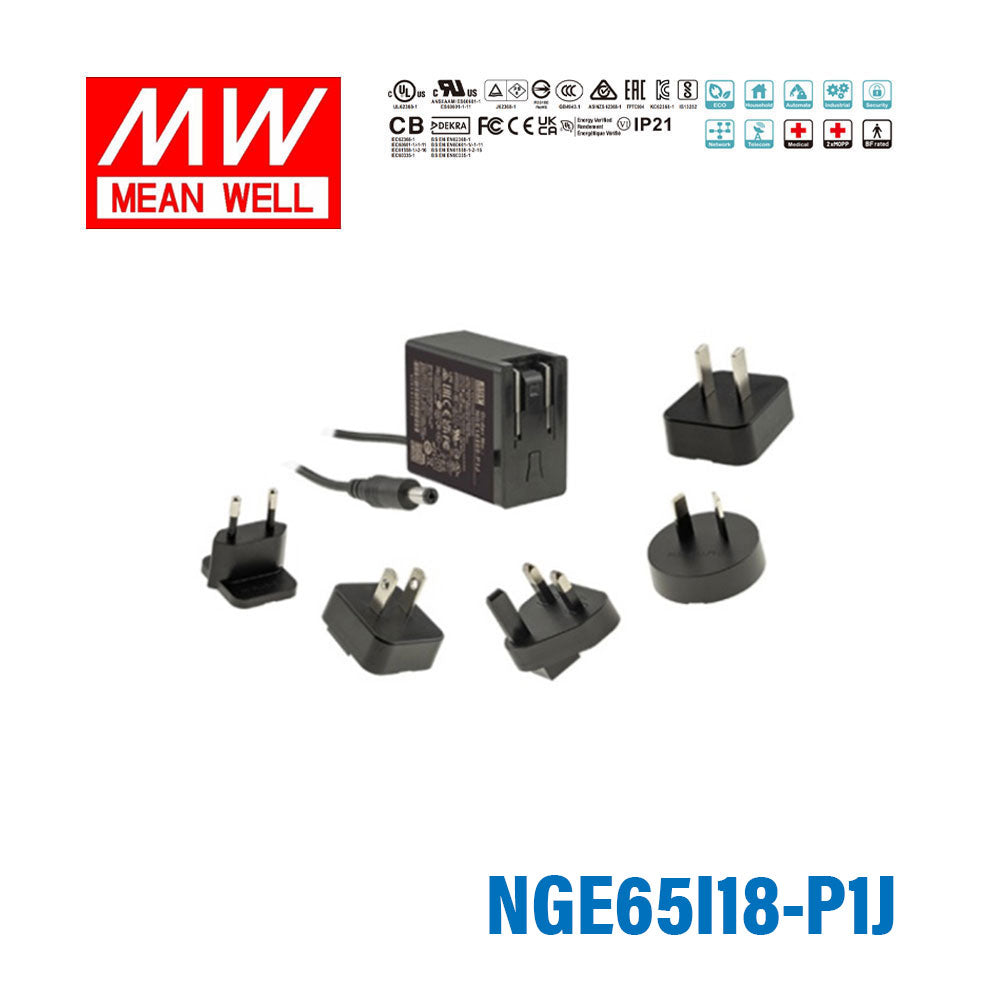

Mean Well NGE65I18-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 18V 3.62A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE65I18-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE65I18 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating65.1 Watt
-
Output Voltage18 Volt
-
Rated Current3.62 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What are the output specifications of the Mean Well NGE65I18-P1J?
The NGE65I18-P1J is rated for 18V DC output at up to 3.62A, with a maximum power rating of 65.1W. This makes it suitable for equipment that specifically requires a regulated 18V supply within that power range.
What types of equipment is this 18V wall adaptor typically used for?
This model is generally suited to business and industrial equipment that needs a compact 18V external AC-DC power adaptor up to 65.1W. Common use cases include electronics, control devices, and other OEM equipment where a wall-mounted adaptor with regulated output is preferred. Final suitability depends on the device matching the 18V DC requirement and current draw.
Does the NGE65I18-P1J support different plug formats for different markets?
Yes. This model is part of Mean Well's interchangeable-plug adaptor range, which is designed for use with different AC plug formats. It also supports a universal 80 to 264VAC input range, making it practical for multi-region deployment where the correct plug accessory is used.
Is this adaptor a good choice for energy-efficient or always-on equipment?
It is designed for high efficiency, with Energy Efficiency Level VI compliance and no-load power consumption below 0.075W. That makes the NGE65I18-P1J a strong option for systems that spend long periods powered but lightly loaded or in standby.
Can this power adaptor operate in demanding temperature conditions?
The specified operating temperature range is -30C to +70C, which is wider than many standard commercial plug-in adaptors. That makes it suitable for a broader range of indoor and sheltered equipment environments, provided the rest of the system is rated for similar conditions.
What safety and protection features does the NGE65I18-P1J include?
This model includes short circuit, overload, and over-voltage protection, and it is a Class II power unit with no earth pin. It also carries broad safety approvals across ITE, medical, household, and industrial standards, including IEC62368-1, IEC60601-1, IEC60335-1, and IEC61558-1/-2-16.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NGE65 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NGE65I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.2W 48V 1.36A | 65.2W | 48V | 1.36A | IP21 | $33.59 | View |
| Mean Well NGE65I24-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65W 24V 2.71A | 65W | 24V | 2.71A | IP21 | $33.59 | View |
| Mean Well NGE65I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 15V 4.34A | 65.1W | 15V | 4.34A | IP21 | $33.59 | View |
| Mean Well NGE65I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 58.5W 12V 4.88A | 58.5W | 12V | 4.88A | IP21 | $33.59 | View |
| Mean Well NGE65I09-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 53.6W 9V 5.96A | 53.6W | 9V | 5.96A | IP21 | $33.59 | View |
| Mean Well NGE65I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 5V 6A | 30W | 5V | 6A | IP21 | $33.59 | View |
