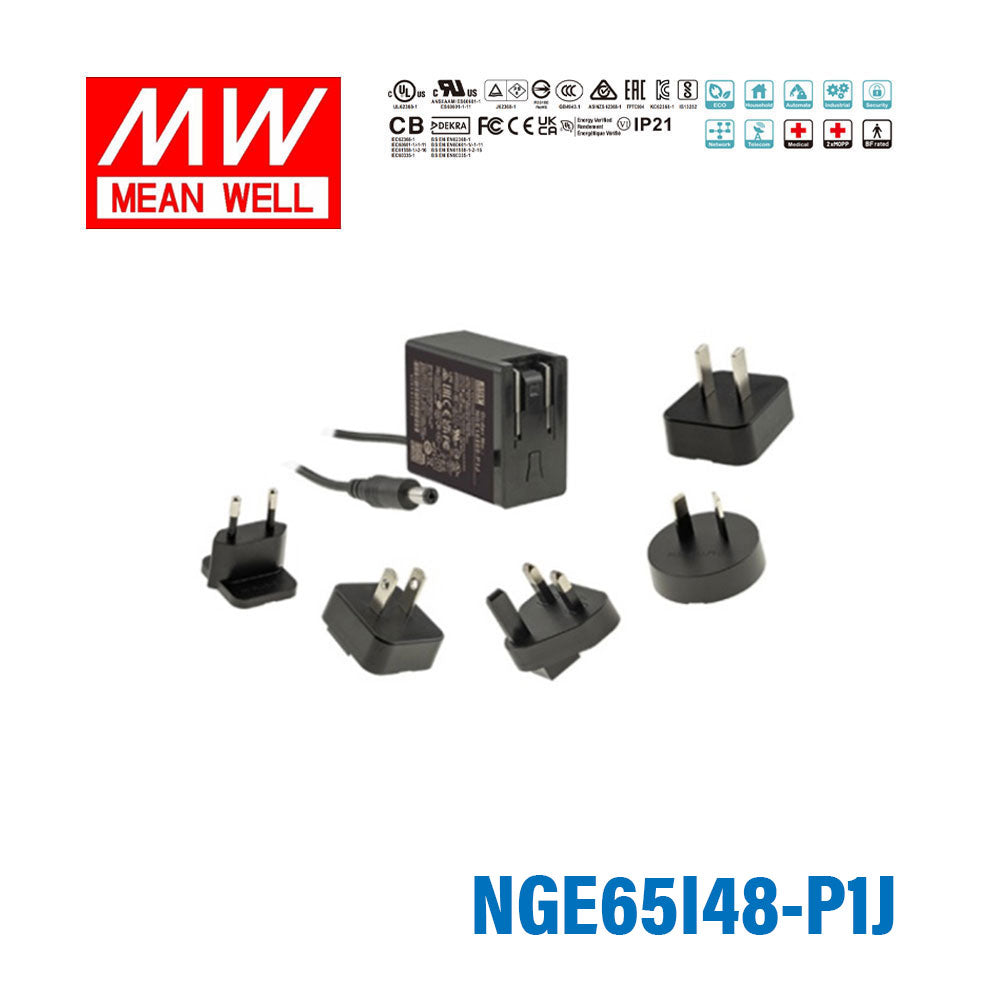

Mean Well NGE65I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.2W 48V 1.36A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE65I48-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE65I48 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating65.2 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height2.56 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well NGE65I48-P1J?
This adaptor provides a regulated 48V DC output at up to 1.36A. Its maximum rated power is 65.2W. That makes it suitable for equipment that specifically requires a 48V DC power source within that current range.
What type of applications is this power adaptor designed for?
The NGE65I48-P1J is intended for professional and commercial equipment that needs a 48V wall-mounted AC-DC adaptor. Mean Well lists broad approvals covering ITE, medical, household, and industrial standard categories. Buyers should still match the exact voltage, current, and compliance needs of their device before purchase.
Does this model support international or regional plug flexibility?
Yes. This model is part of Mean Well's interchangeable-plug adaptor range, which is designed for regional plug flexibility. That can be useful for businesses sourcing for different markets or standardized deployments across multiple locations.
How energy efficient is the Mean Well NGE65I48-P1J?
This adaptor meets Energy Efficiency Level VI requirements. It also has very low no-load power consumption of less than 0.075W. Those characteristics make it a good fit for applications where energy efficiency and standby power reduction matter.
Can this adaptor operate in demanding temperature conditions?
Yes. The specified operating temperature range is -30°C to +70°C, which is wider than many general-purpose plug-in adaptors. That makes it better suited to environments where ambient conditions may be colder or hotter than typical indoor office use.
What protections and safety features does this model include?
The NGE65I48-P1J includes short circuit, overload, and over-voltage protection. It is a Class II power unit with no earth pin, passes LPS, and is specified with extremely low leakage current under 100uA. Mean Well also lists multiple international safety approvals for this series.
What are the physical size and warranty for this adaptor?
The housing dimensions are 62 x 30 x 65 mm, and Mean Well describes the design as ultra slim at 28 mm. The unit weight is 0.22 kg. This model is backed by a 3-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NGE65 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NGE65I24-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65W 24V 2.71A | 65W | 24V | 2.71A | IP21 | $33.59 | View |
| Mean Well NGE65I18-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 18V 3.62A | 65.1W | 18V | 3.62A | IP21 | $33.59 | View |
| Mean Well NGE65I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 15V 4.34A | 65.1W | 15V | 4.34A | IP21 | $33.59 | View |
| Mean Well NGE65I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 58.5W 12V 4.88A | 58.5W | 12V | 4.88A | IP21 | $33.59 | View |
| Mean Well NGE65I09-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 53.6W 9V 5.96A | 53.6W | 9V | 5.96A | IP21 | $33.59 | View |
| Mean Well NGE65I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 5V 6A | 30W | 5V | 6A | IP21 | $33.59 | View |
