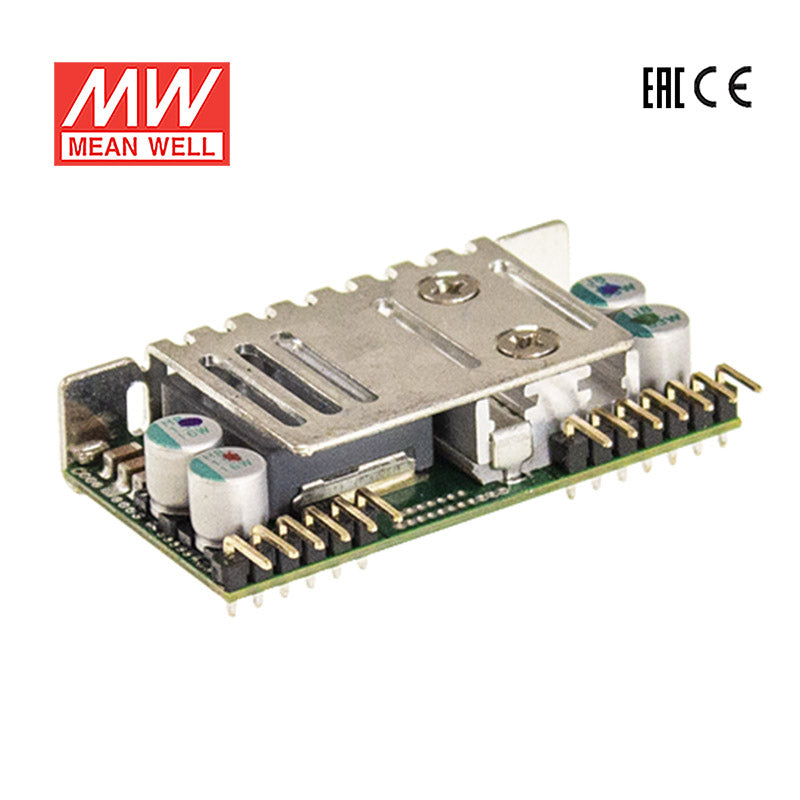

Mean Well NID100-24 DC-DC Converter - 100.8W - 30~53V in 24V out 4.2A
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.082"x0.472"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage30V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.08 in
-
Height0.47 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the NID100-24 to power 24V PLC, sensor, or automation loads from a higher-voltage source?
Yes, it is a constant-voltage 24V converter intended for systems fed from a 30-53V input source. It can support 24V loads up to 4.2A and 100.8W.
Is the NID100-24 suitable for 24V industrial control devices in mobile or battery-based equipment?
It can be a fit when the upstream source is within 30-53V and the equipment requires regulated 24V output. Output capacity is 4.2A, with total output power up to 100.8W.
Can this model run a compact 24V HMI, relay set, or monitoring module in a machine cabinet?
Yes, if the combined load is a constant 24V load and stays within 4.2A and 100.8W. Its compact 50.8 × 27.5 × 12.0 mm size also suits denser equipment layouts.
Would the NID100-24 work for 24V industrial networking or control accessories that need a regulated rail?
It is designed for that type of 24V constant-voltage use when the source is between 30V and 53V. The output limit is 4.2A and 100.8W, so the accessory load has to remain within those ratings.
How does NID100-24 differ from the other NID100 versions?
NID100-24 is the 24V model, rated at 4.2A and 100.8W, and it has the narrowest listed input range at 30-53V. The other versions are NID100-12 at 12V, 7.5A, and 90W with 20-53V input, NID100-15 at 15V, 6.5A, and 97.5W with 20-53V input, and NID100-5 at 5V, 11A, and 55W.
Can the NID100-24 handle outdoor or high-temperature conditions?
The operating temperature range is -30°C to +85°C, so the thermal specification is broad. No IP rating is listed, so outdoor exposure or water-resistant use is not confirmed by the provided specs.
