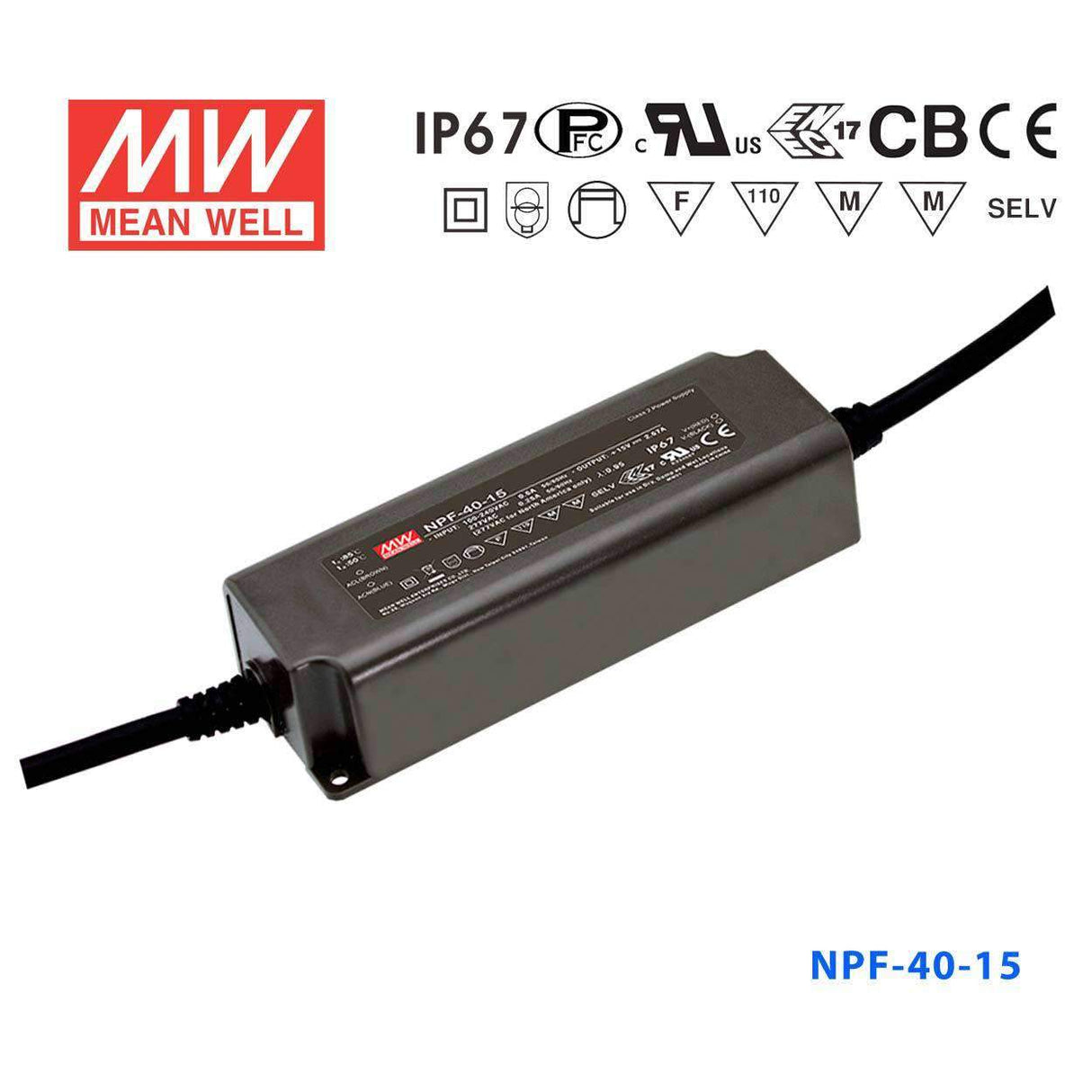

Mean Well NPF-40-15 Power Supply 40W 15V
The NPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating40.08 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Is the NPF-40-15 suitable for installation in damp or outdoor environments?
Yes. The NPF-40-15 is IP67 rated and operates from -40°C to +85°C. Its compact sealed housing can be placed inside outdoor low-voltage lighting fixtures, horticultural enclosures, or damp industrial cabinets without additional waterproofing.
What types of 15V LED systems match the NPF-40-15?
The NPF-40-15 provides 15V DC at 2.67A (40.08W) in constant-current mode with a CC range of 9–15V. It suits low-power 15V LED modules in small signage, accent lighting, embedded automotive-format displays, and sensors that require a 15V constant-current source of around 40W.
How does the NPF-40-15 compare to the NPF-40-12 and NPF-40-20?
All three are in the ~40W family with IP67, the same 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40-12 outputs 12V/3.34A (40.08W, CC 7–12V); NPF-40-15 outputs 15V/2.67A (40.08W, CC 9–15V); NPF-40-20 outputs 20V/2A (40W, CC 12–20V). Choose the voltage that matches your LED load's rated voltage.
Does the NPF-40-15 require a protective earth connection?
No. The NPF-40-15 is a Class II device with a fully isolated plastic case and no FG terminal. Double insulation eliminates the need for a chassis ground, which is useful in compact plastic luminaire housings where grounding is impractical.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-40 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-40-54 Power Supply 40W 54V | 41.04W | 54V | 0.76A | IP67 | $28.04 | View |
| Mean Well NPF-40-48 Power Supply 40W 48V | 40.32W | 48V | 0.84A | IP67 | $27.13 | View |
| Mean Well NPF-40-42 Power Supply 40W 42V | 40.32W | 42V | 0.96A | IP67 | $28.04 | View |
| Mean Well NPF-40-36 Power Supply 40W 36V | 40.32W | 36V | 1.12A | IP67 | $28.04 | View |
| Mean Well NPF-40-30 Power Supply 40W 30V | 40.2W | 30V | 1.34A | IP67 | $28.04 | View |
