Is the NPF-40-24 rated for outdoor or wet-location use?

Yes. The NPF-40-24 is IP67 rated and operates from -40°C to +85°C. It can be installed inside outdoor landscape lights, damp ceiling voids, and humid industrial enclosures without a secondary waterproof housing.

What 24V LED applications work with the NPF-40-24's 40W output?

The NPF-40-24 delivers 24V DC at 1.67A (40.08W) in constant-current mode with a CC range of 14–24V. It suits compact 24V LED systems such as short strip runs for accent or undercabinet lighting, small retail display modules, and low-power 24V embedded indicator lighting in control panels.

How does the NPF-40-24 compare to the NPF-40D-24?

Both output 24V at 1.67A (40.08W) with IP67, the same 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. The NPF-40D-24 adds built-in 3-in-1 dimming (PWM, 1–10V, resistance); the NPF-40-24 provides a fixed constant-current output with no dimming input. Choose the NPF-40D-24 when brightness control is required.

What is the CC voltage range of the NPF-40-24?

The NPF-40-24 regulates output current at 1.67A for any load voltage between 14V and 24V. Below 14V the driver exits CC mode; above 24V is beyond the rated output. This range is important for confirming compatibility with the forward voltage of your LED string at operating temperature.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

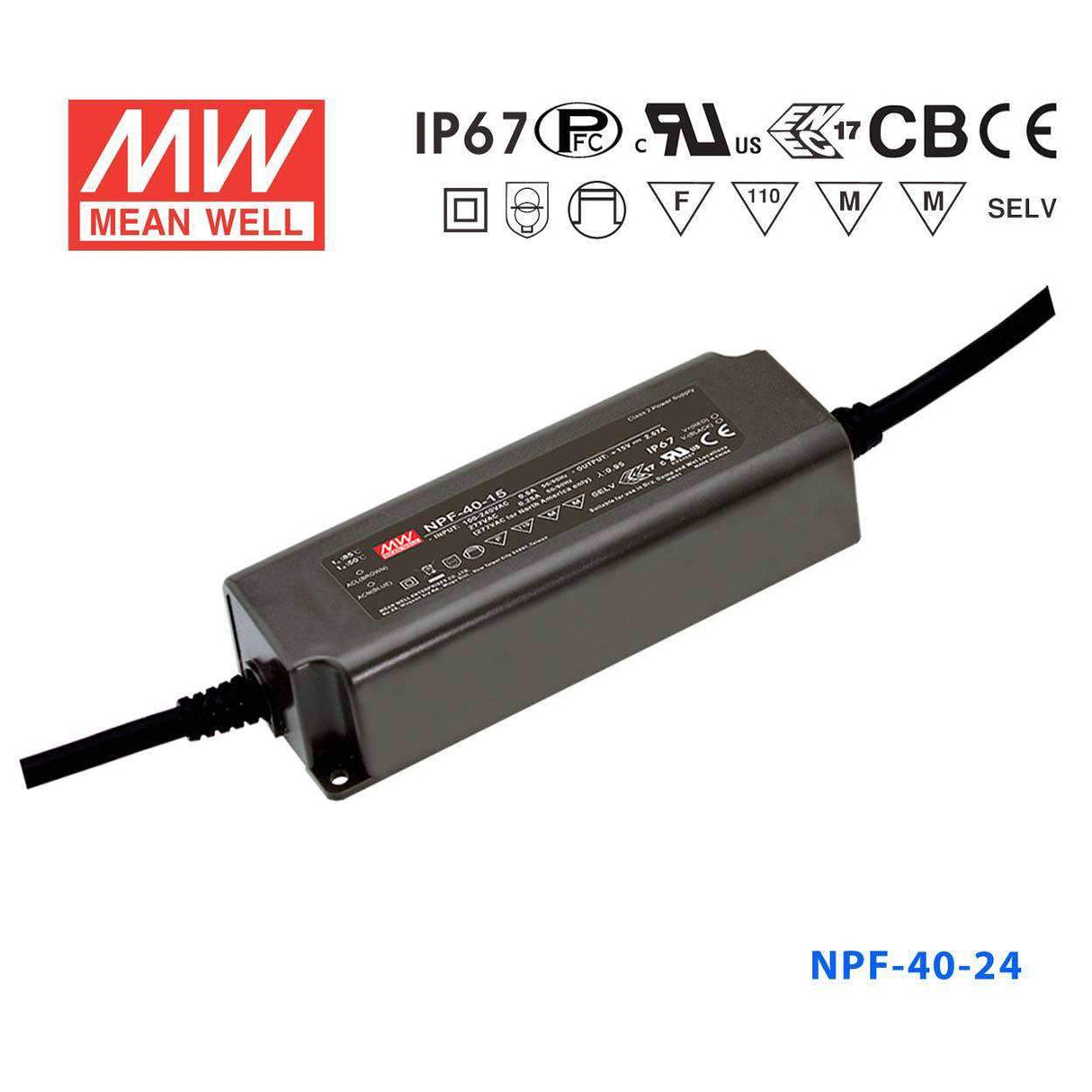

Mean Well NPF-40-24 Power Supply 40W 24V

Name: Mean Well NPF-40-24 Power Supply 40W 24V
Brand: Mean Well
SKU: NPF-40-24
Price: 28.04 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU:

NPF-40-24

$28.04 USD ~~$96.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The NPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

NPF Series
Power Rating

40.08 Watt
Output Voltage

24 Volt
Rated Current

1.67 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

5.91 in
Width

2.09 in
Height

1.38 in
Weight

1.08 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NPF-40-54 Power Supply 40W 54V	41.04W	54V	0.76A	IP67	$28.04	View
Mean Well NPF-40-48 Power Supply 40W 48V	40.32W	48V	0.84A	IP67	$27.13	View
Mean Well NPF-40-42 Power Supply 40W 42V	40.32W	42V	0.96A	IP67	$28.04	View
Mean Well NPF-40-36 Power Supply 40W 36V	40.32W	36V	1.12A	IP67	$28.04	View
Mean Well NPF-40-30 Power Supply 40W 30V	40.2W	30V	1.34A	IP67	$28.04	View
