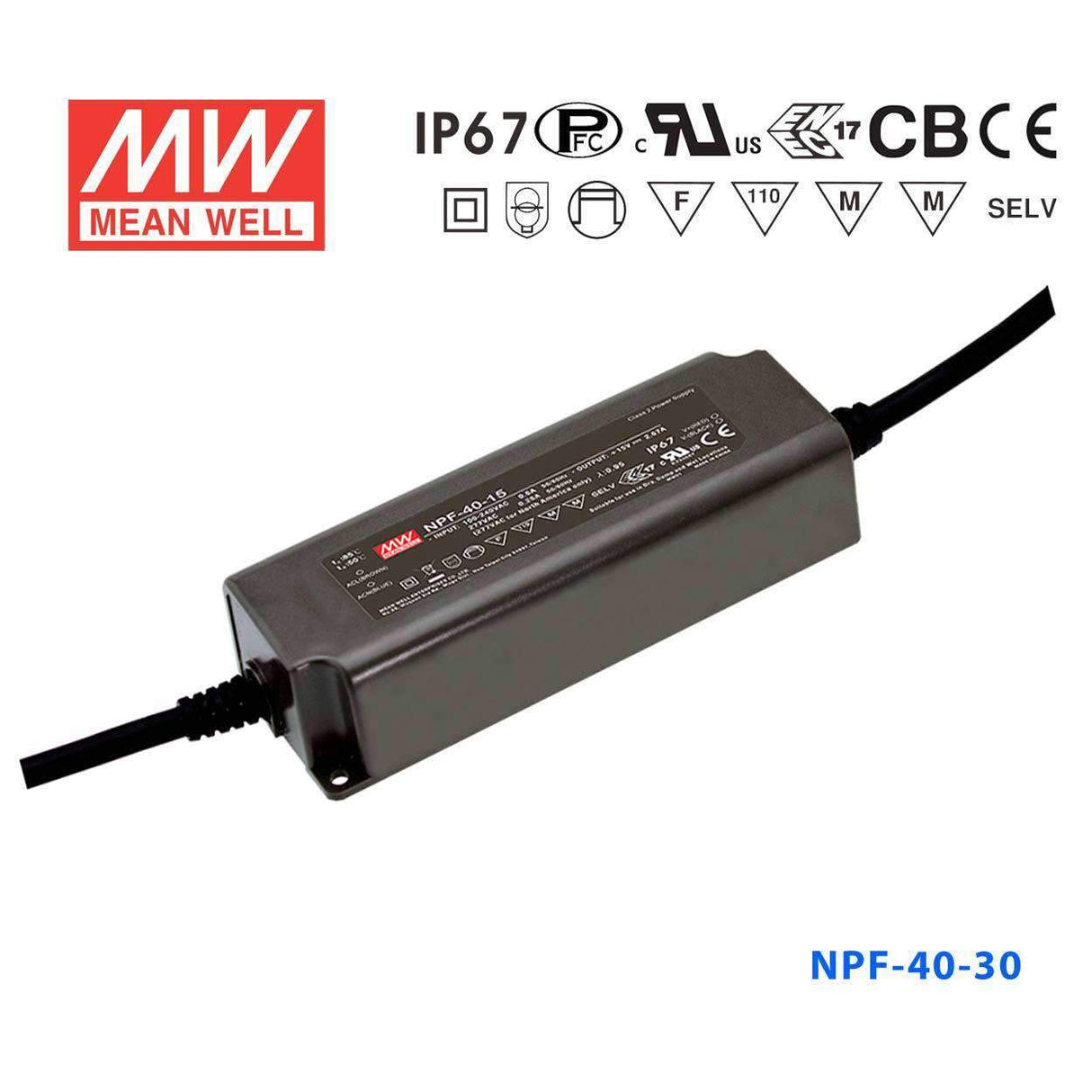

Mean Well NPF-40-30 Power Supply 40W 30V
The NPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating40.2 Watt
-
Output Voltage30 Volt
-
Rated Current1.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Is the NPF-40-30 appropriate for outdoor or wet-location installations?
Yes. The NPF-40-30 carries an IP67 rating and operates from -40°C to +85°C. Its compact sealed housing (150.0 × 53.0 × 35.0 mm) allows direct installation inside outdoor landscape fixtures, architectural lighting channels, and damp industrial enclosures.
What 30V LED applications suit the NPF-40-30?
The NPF-40-30 outputs 30V DC at 1.34A (40.2W) in constant-current mode with a CC range of 18–30V. It suits low-to-medium-length 30V LED strings in compact commercial fixtures, small architectural accent lights, and automation equipment with 30V LED indicator arrays.
How does the NPF-40-30 compare to the NPF-40-24 and NPF-40-36?
All three are in the ~40W class with IP67, the same 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40-24 is 24V/1.67A (40.08W, CC 14–24V); NPF-40-30 is 30V/1.34A (40.2W, CC 18–30V); NPF-40-36 is 36V/1.12A (40.32W, CC 21–36V). Select the voltage matching your LED module.
Does the NPF-40-30 need a ground connection?
No. The NPF-40-30 is a Class II device with a fully isolated plastic case and no FG (functional ground) terminal. Double insulation means no chassis earth is required, which simplifies installation in compact plastic fixtures without a ground conductor.
