Can the NPF-40-36 be used in outdoor or damp environments?

Yes. The NPF-40-36 is IP67 rated and operates from -40°C to +85°C. Its 150.0 × 53.0 × 35.0 mm sealed case allows installation in outdoor low-power fixtures, humid agricultural settings, and damp industrial enclosures without supplemental weatherproof housing.

What 36V LED applications is the NPF-40-36 designed for?

The NPF-40-36 provides 36V DC at 1.12A (40.32W) in constant-current mode with a CC range of 21–36V. It suits compact 36V LED modules in small architectural fixtures, point-of-sale display lighting, and automation equipment incorporating 36V LED strings where a low-wattage constant-current source is needed.

How does the NPF-40-36 compare to the NPF-40-42?

Both share IP67, the 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40-36 outputs 36V at 1.12A (40.32W, CC range 21–36V); NPF-40-42 outputs 42V at 0.96A (40.32W, CC range 25–42V). The only difference is the output voltage and corresponding current; select the model matching your LED module's rated voltage.

What is the actual rated output power of the NPF-40-36?

The NPF-40-36 is rated at 40.32W — slightly above 40W — because 36V × 1.12A = 40.32W. This is the maximum continuous output under normal operating conditions.

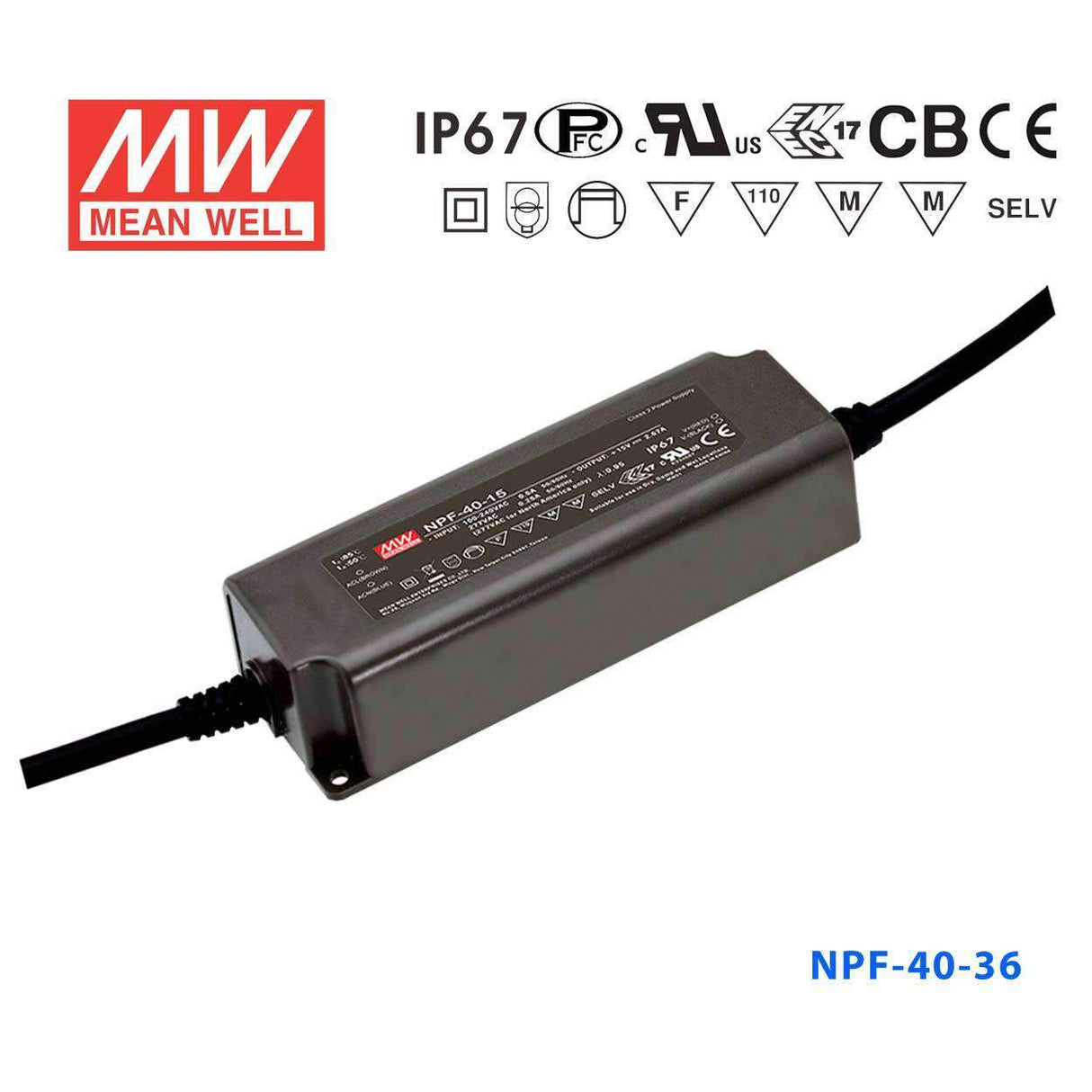

Mean Well NPF-40-36 Power Supply | 40W 36V LED Driver

Name: Mean Well NPF-40-36 Power Supply 40W 36V
Brand: Mean Well
SKU: NPF-40-36
Price: 28.04 USD
Availability: InStock

The NPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

NPF Series
Power Rating

40.32 Watt
Output Voltage

36 Volt
Rated Current

1.12 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

5.91 in
Width

2.09 in
Height

1.38 in
Weight

1.08 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NPF-40-54 Power Supply 40W 54V	41.04W	54V	0.76A	IP67	$28.04	View
Mean Well NPF-40-48 Power Supply 40W 48V	40.32W	48V	0.84A	IP67	$27.13	View
Mean Well NPF-40-42 Power Supply 40W 42V	40.32W	42V	0.96A	IP67	$28.04	View
Mean Well NPF-40-30 Power Supply 40W 30V	40.2W	30V	1.34A	IP67	$28.04	View
