Is the NPF-40-48 suitable for outdoor or wet-location LED use?

Yes. The NPF-40-48 is IP67 rated and operates from -40°C to +85°C. Its 150.0 × 53.0 × 35.0 mm sealed housing can be mounted inside outdoor small-format luminaires and damp industrial enclosures without supplemental weatherproofing.

What LED systems match the NPF-40-48's 48V output at 40W?

The NPF-40-48 delivers 48V DC at 0.84A (40.32W) in constant-current mode with a CC range of 28–48V. It suits compact 48V LED modules in low-power commercial downlights, architectural niche lighting, and automation panel displays that specify 48V constant-current drive at around 40W.

How does the NPF-40-48 compare to the NPF-40-54?

Both share IP67, the 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40-48 outputs 48V at 0.84A (40.32W, CC range 28–48V); NPF-40-54 outputs 54V at 0.76A (41.04W, CC range 32–54V). Select based on whether your LED string is rated for 48V or 54V.

What is the warranty period on the NPF-40-48?

Mean Well provides a 5-year warranty on the NPF-40-48. The driver is also certified to CB, CCC, CE, EAC, ENEC, and UL, supporting use in commercial and industrial projects across North America, Europe, Russia/Eurasia, and China.

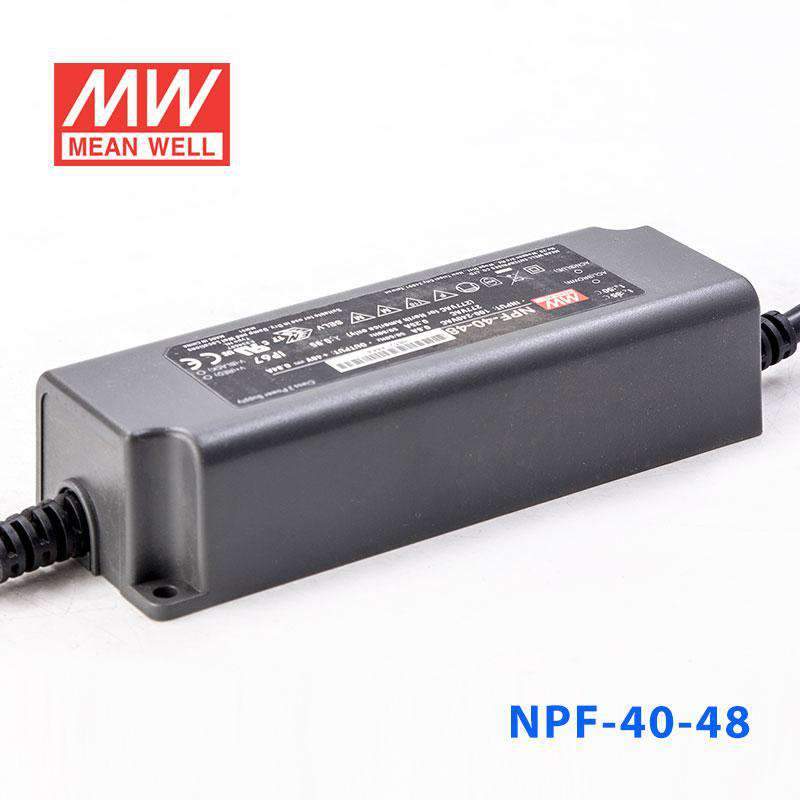

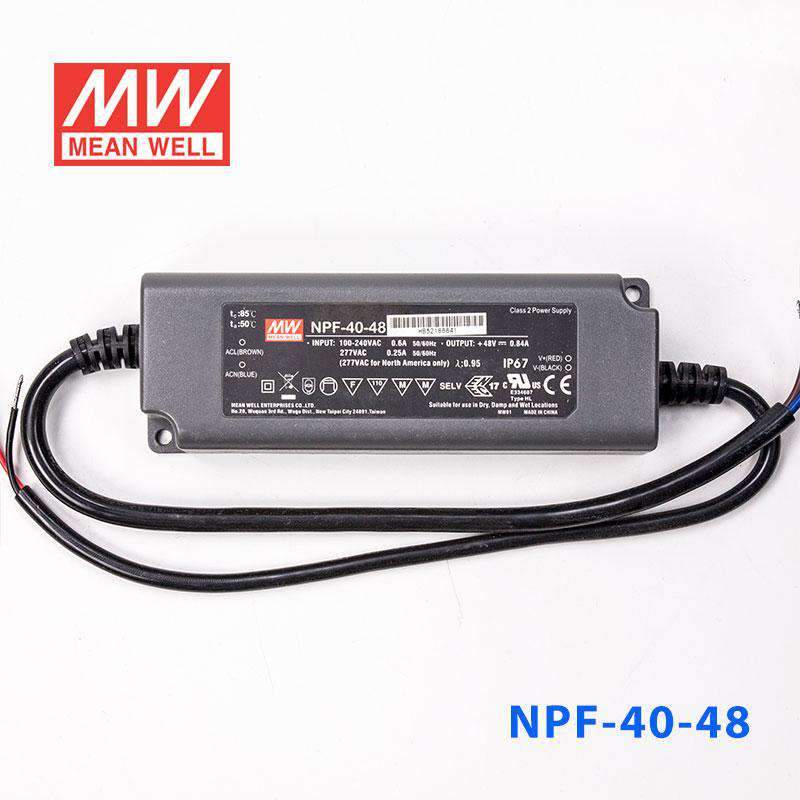

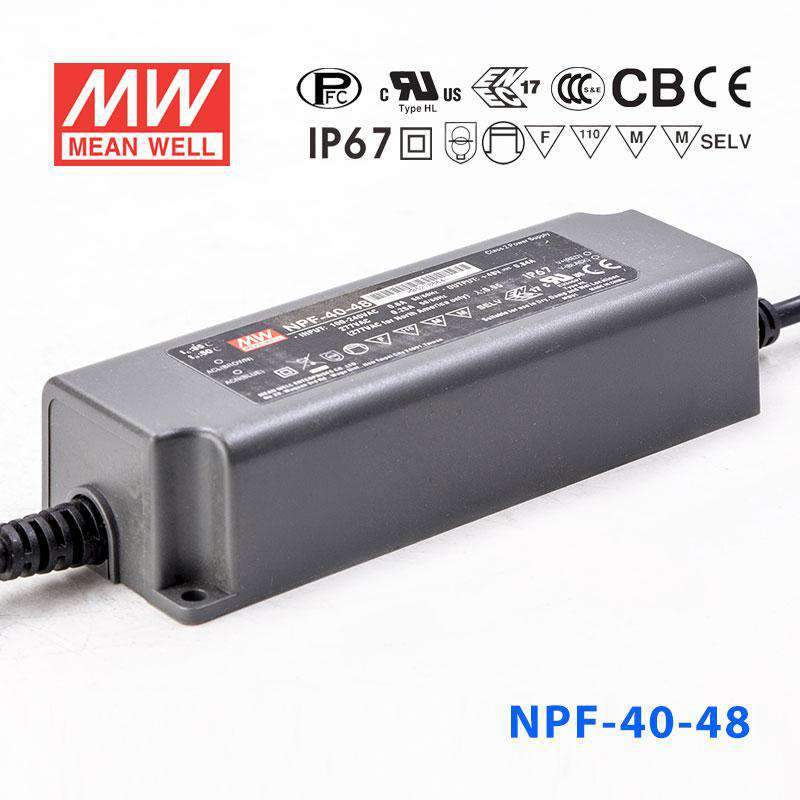

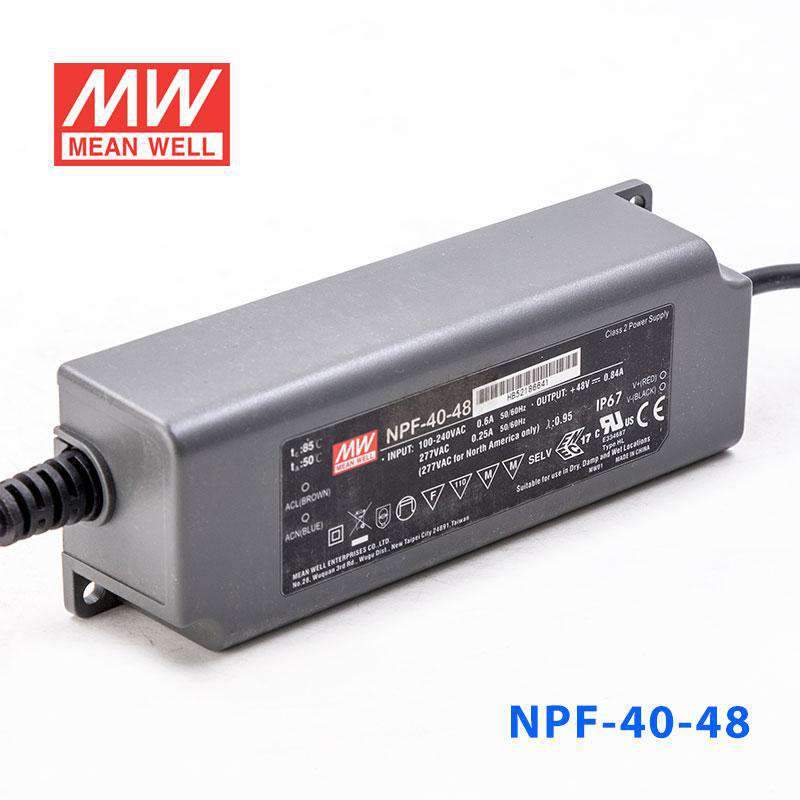

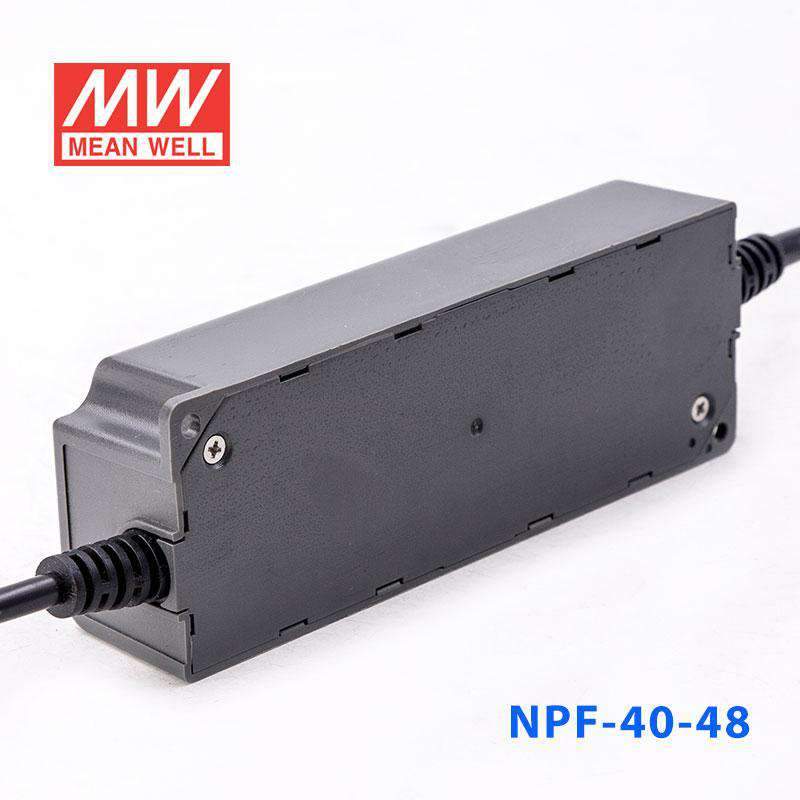

Mean Well NPF-40-48 Power Supply 40W 48V | Constant Voltage + Constant Current LED Driver

Name: Mean Well NPF-40-48 Power Supply 40W 48V
Brand: Mean Well
SKU: NPF-40-48
Price: 27.13 USD
Availability: InStock

The NPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

NPF Series
Power Rating

40.32 Watt
Output Voltage

48 Volt
Rated Current

0.84 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

5.91 in
Width

2.09 in
Height

1.38 in
Weight

1.08 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NPF-40-54 Power Supply 40W 54V	41.04W	54V	0.76A	IP67	$28.04	View
Mean Well NPF-40-42 Power Supply 40W 42V	40.32W	42V	0.96A	IP67	$28.04	View
Mean Well NPF-40-36 Power Supply 40W 36V	40.32W	36V	1.12A	IP67	$28.04	View
Mean Well NPF-40-30 Power Supply 40W 30V	40.2W	30V	1.34A	IP67	$28.04	View
