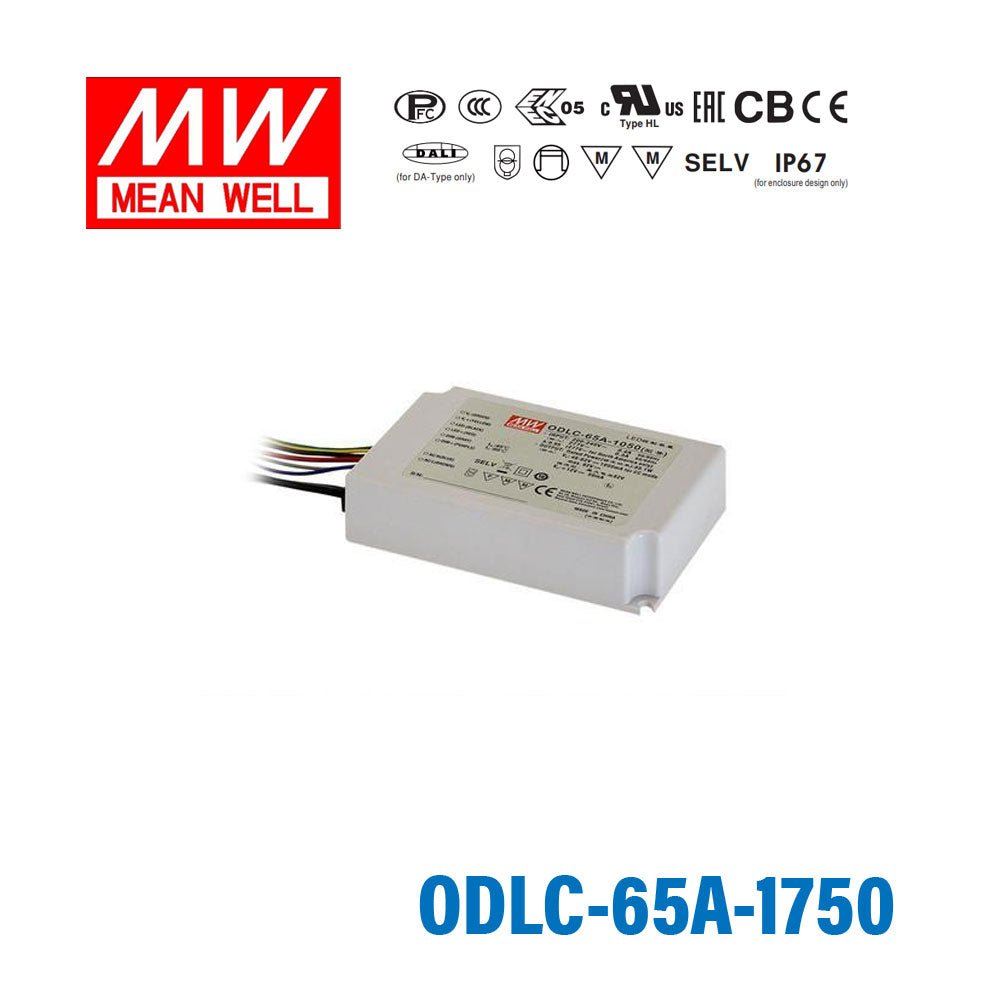

Mean Well ODLC-65A-1750 Power Supply 65W 1750mA(Auxiliary DC output)
The ODLC-65A is a 65W Mean Well power converter (input range: 180~295VAC, operating temperature: -20~+85℃).
Key Features
- ✓ Input voltage range: 180~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+85℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14; EAC TP TC 004, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating63 Watt
-
Output Voltage36 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
Can I use the ODLC-65A-1750 for LED downlights that require higher drive current?
Yes, this model is intended for constant current LED loads at 1750mA. It fits LED downlights when the fixture is specified for 1750mA and the total LED forward voltage stays within the 27-36V constant current range. It should not be used in place of a constant voltage power supply.
Is the ODLC-65A-1750 suitable for signage modules with a lower forward-voltage LED string?
It can be suitable for signage modules when the LED assembly is designed for 1750mA constant current and the total forward voltage is within 27-36V. This lower voltage window makes it better matched to lower-forward-voltage LED assemblies than higher-voltage constant current models in the same series. The actual number of LEDs depends on the forward voltage of each LED.
Can this driver run a dense small LED array at 1750mA?
Yes, if the small LED array is specified for 1750mA constant current and its total forward voltage falls inside the 27-36V range. With 63W output power, it is aimed at higher-current constant current LED loads rather than constant voltage strips or modules. Load matching should be based on current and total forward voltage together.
What should I check before pairing LEDs with the ODLC-65A-1750?
Make sure the LED load is a constant current load rated for 1750mA. Its total forward voltage must remain within the driver's 27-36V CC output range, and the number of LEDs will vary based on each LED's forward voltage. If the product expects constant voltage output, this is the wrong type of driver.
Is the ODLC-65A-1750 suitable for outdoor or high-temperature LED applications?
The IP67 waterproof rating supports use in exposed environments where dust and water resistance matter. Its operating temperature range is -20°C to +85°C, which gives it a broad working window for demanding LED applications. Final suitability still depends on the LED load matching the 1750mA, 27-36V constant current output.
