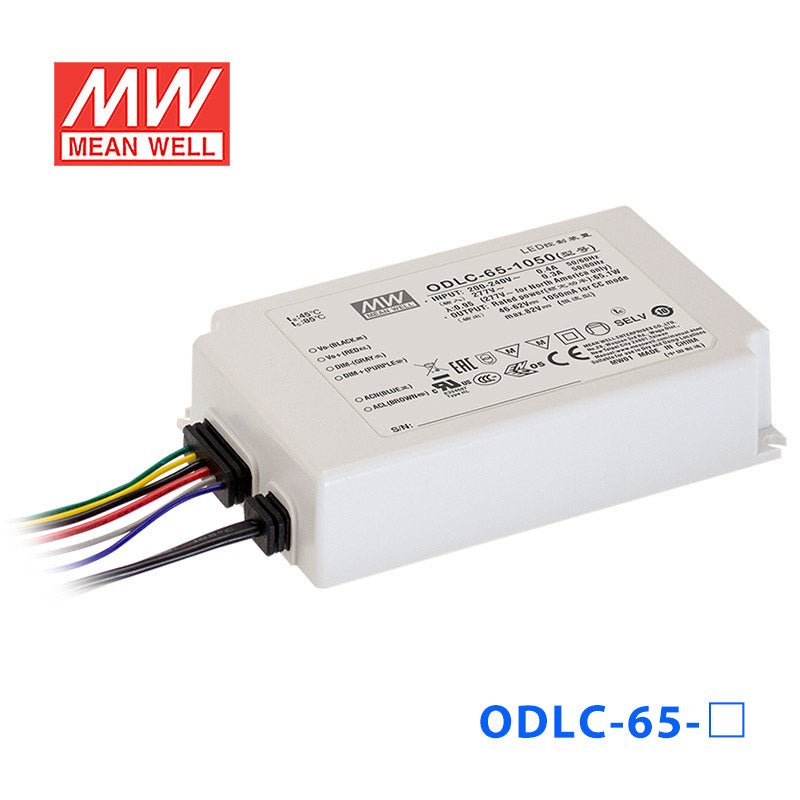

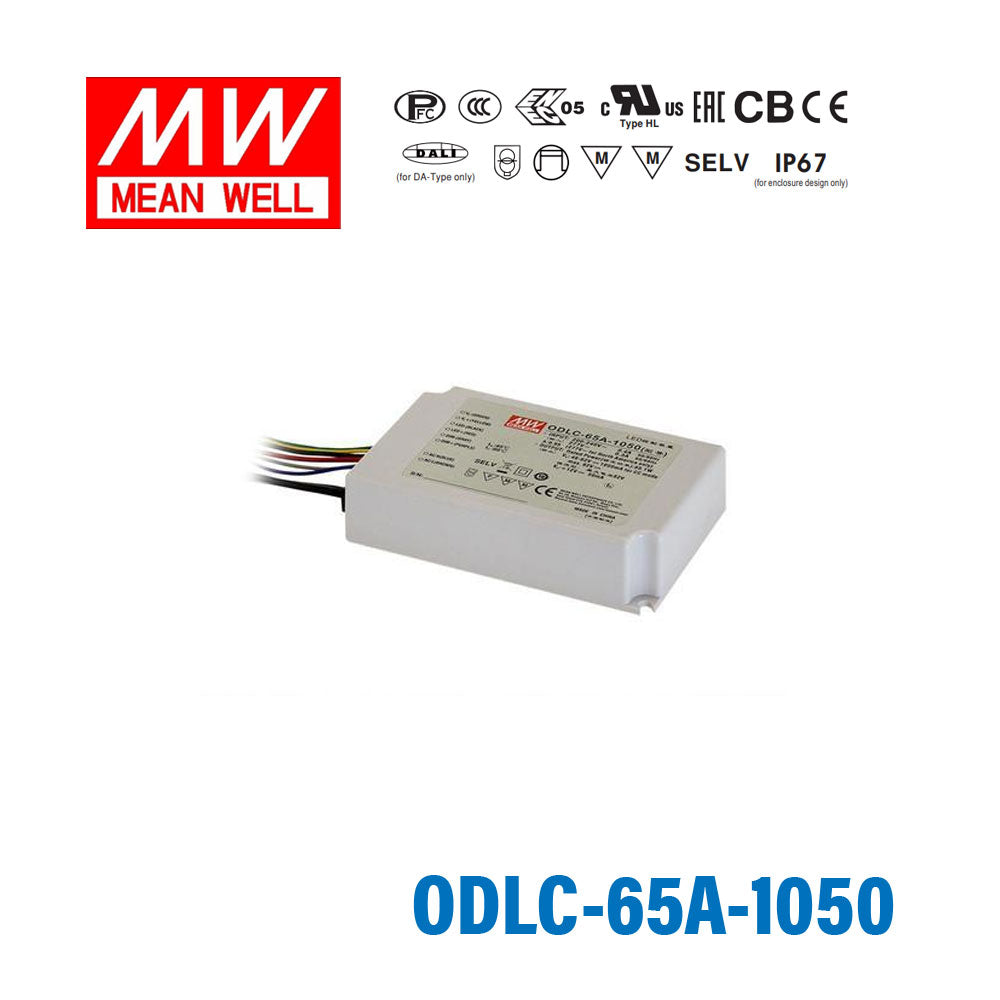

Mean Well ODLC-65A-1050 Power Supply 65W 1050mA (Auxiliary DC output)
The ODLC-65A is a 65W Mean Well power converter (input range: 180~295VAC, operating temperature: -20~+85℃).
Key Features
- ✓ Input voltage range: 180~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+85℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14; EAC TP TC 004, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating65.1 Watt
-
Output Voltage62 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
Can I use the ODLC-65A-1050 for 1050mA LED downlights?
Yes, this driver is intended for constant current LED loads at 1050mA with a CC output range of 46-62V. It is suitable for LED downlights when the LED module requires 1050mA and the total forward voltage stays within that range.
Will the ODLC-65A-1050 work with signage modules or small LED arrays?
It can work with signage modules or small LED arrays that are designed for 1050mA constant current and have a combined forward voltage between 46V and 62V. The driver is rated for 65.1W, so the LED load must stay within that output power.
Is the ODLC-65A-1050 intended for constant current LEDs or constant voltage LED products?
This is a constant current LED driver, not a constant voltage power supply. That means it is intended for LED loads specified at 1050mA, with the output voltage adjusting within the 46-62V CC range to match the load.
How do I determine whether my LED load is compatible with the ODLC-65A-1050?
Your LED load must be rated for 1050mA constant current, and the combined LED forward voltage must stay within the 46-62V CC output range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be based on total forward voltage rather than a fixed LED quantity.
Can the ODLC-65A-1050 be used in wet or exposed environments?
Yes, it has an IP67 waterproof rating for sealed applications where water and dust resistance are needed. The operating temperature range is -20°C to +85°C, supporting use in a broad range of ambient conditions.
How does the ODLC-65A-1050 compare with the other 65A series current options?
In the 65A family, the ODLC-65A-700 is 700mA with a 69-93V CC range and 65.1W, the ODLC-65A-1050 is 1050mA with a 46-62V CC range and 65.1W, the ODLC-65A-1400 is 1400mA with a 34-46V CC range and 64.4W, and the ODLC-65A-1750 is 1750mA with a 27-36V CC range and 63W. The ODLC-65A-1050 is the 1050mA option positioned between the 700mA and 1400mA versions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ODLC-65A Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLC-65A-700 Power Supply 65W 700mA (Auxiliary DC output) | 65.1W | 93V | 0.7A | IP67 | $27.07 | View |
| Mean Well ODLC-65A-1750 Power Supply 65W 1750mA(Auxiliary DC output) | 63W | 36V | 1.75A | IP67 | $27.07 | View |
| Mean Well ODLC-65A-1400 Power Supply 65W 1400mA (Auxiliary DC output) | 64.4W | 46V | 1.4A | IP67 | $27.07 | View |
