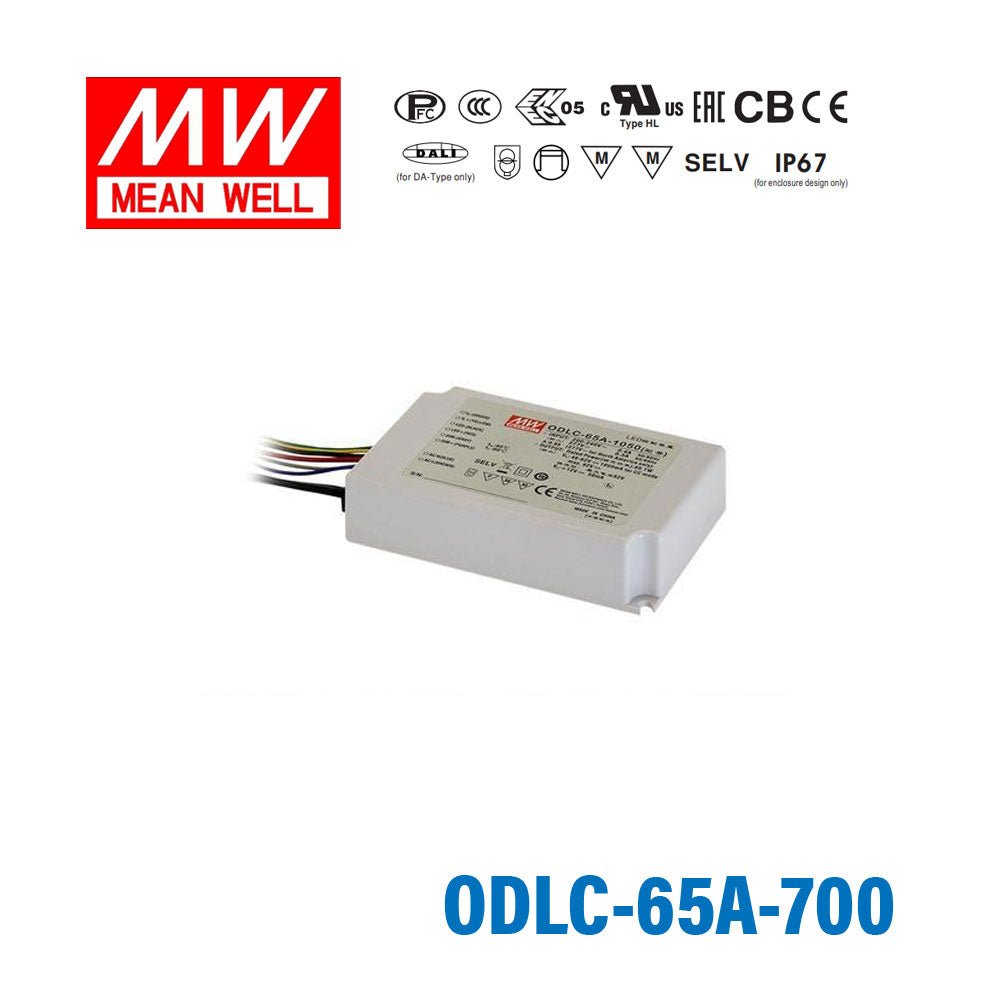

Mean Well ODLC-65A-700 Power Supply 65W 700mA (Auxiliary DC output)
The ODLC-65A is a 65W Mean Well power converter (input range: 180~295VAC, operating temperature: -20~+85℃).
Key Features
- ✓ Input voltage range: 180~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+85℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14; EAC TP TC 004, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating65.1 Watt
-
Output Voltage93 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
Can I use the ODLC-65A-700 for LED downlights with a long series string?
Yes, this driver is suited to constant current LED downlights that require 700mA and a higher total forward voltage. Its constant current range is 69-93V, so it is intended for longer series LED strings than the lower-voltage 65W versions. It is for constant current loads, not constant voltage LED products.
Is the ODLC-65A-700 appropriate for signage modules or slim linear LED arrays?
It can be used for signage modules or slim linear LED arrays when the LED assembly is built for 700mA constant current operation. The total forward voltage must fit inside the 69-93V CC range during operation. The number of LEDs depends on the forward voltage of each LED rather than a fixed quantity.
Can this model drive a high-voltage small LED array where 700mA is required?
Yes, this model is designed for 700mA constant current LED loads up to 65.1W with a high output voltage window of 69-93V. That makes it suitable for compact LED arrays that need moderate current but a relatively high total forward voltage. It should be matched to LED arrays specified for constant current operation.
How do I confirm compatibility for the ODLC-65A-700?
Your LED load should require 700mA constant current and have a combined forward voltage within 69-93V. Because this is a constant current driver, the LED count is determined by the forward voltage of each LED, not by a preset maximum count. It is not a substitute for a constant voltage LED power supply.
How does the ODLC-65A-700 compare with the other 65W ODLC current options?
In the 65W group, the ODLC-65A-700 is 700mA with a 69-93V CC range and 65.1W, the ODLC-65A-1050 is 1050mA with a 46-62V CC range and 65.1W, the ODLC-65A-1400 is 1400mA with a 34-46V CC range and 64.4W, and the ODLC-65A-1750 is 1750mA with a 27-36V CC range and 63W. The non-A and DA counterparts listed in the series follow the same electrical groupings by model. The main differences are output current and the corresponding constant current voltage window.
