Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

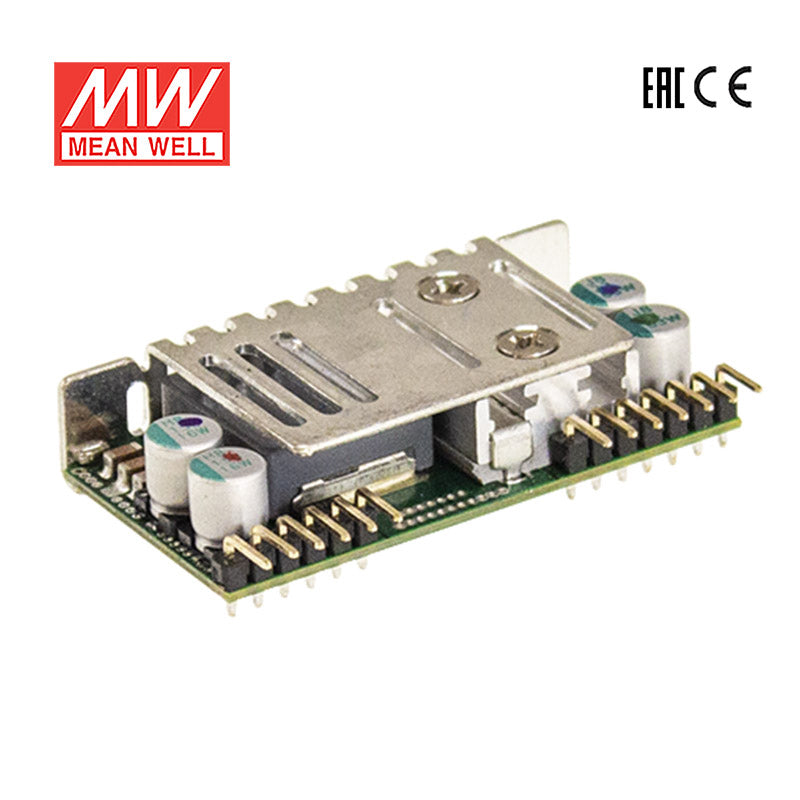

Mean Well NID100-15 DC-DC Converter - 97.5W - 20~53V in 15V out 6.5A
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.082"x0.472"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating97.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.5 Ampere
-
Input Voltage20V~53V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.08 in
-
Height0.47 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the NID100-15 for 15V industrial instrumentation or control electronics?
Yes, if the application needs constant 15V and the load stays within 6.5A and 97.5W. Its 20-53V input range makes it suitable where the source voltage is higher than the 15V output rail.
Is the NID100-15 appropriate for 15V embedded or communications hardware in a vehicle or machine system?
It can be, as long as the source is within 20-53V and the load requires regulated 15V output. The converter can provide up to 6.5A, with total output power capped at 97.5W.
Can this converter support 15V sensor, relay, or accessory loads in automation equipment?
It is designed for constant-voltage 15V output, so it fits grouped 15V loads that remain under 6.5A and 97.5W. The 50.8 × 27.5 × 12.0 mm form factor also helps in compact assemblies.
Would the NID100-15 be a fit for specialized 15V control boards where 12V or 24V would be wrong?
Yes, that is the main role of this model: converting a 20-53V source to a regulated 15V output. It is intended for loads that need 15V specifically and do not exceed 6.5A or 97.5W.
How does NID100-15 compare with the other NID100 converters?
NID100-15 provides 15V at 6.5A with 97.5W total output and accepts 20-53V input. The series also includes NID100-12 at 12V and 7.5A for 90W, NID100-24 at 24V and 4.2A for 100.8W with 30-53V input, and NID100-5 at 5V and 11A for 55W.
Is the NID100-15 suitable for wide-temperature industrial environments?
The specified operating range is -30°C to +85°C, so the temperature capability is broad. No IP rating is given in the product data, so environmental sealing for outdoor or exposed use is not defined here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NID100 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NID100-5 DC-DC Converter - 55W - 10.5~53V in 5V out 11A | 55W | 5V | 11A | Indoor | $16.74 | View |
| Mean Well NID100-24 DC-DC Converter - 100.8W - 30~53V in 24V out 4.2A | 100.8W | 24V | 4.2A | Indoor | $16.73 | View |
| Mean Well NID100-12 DC-DC Converter - 90W - 20~53V in 12V out 7.5A | 90W | 12V | 7.5A | Indoor | $16.74 | View |
