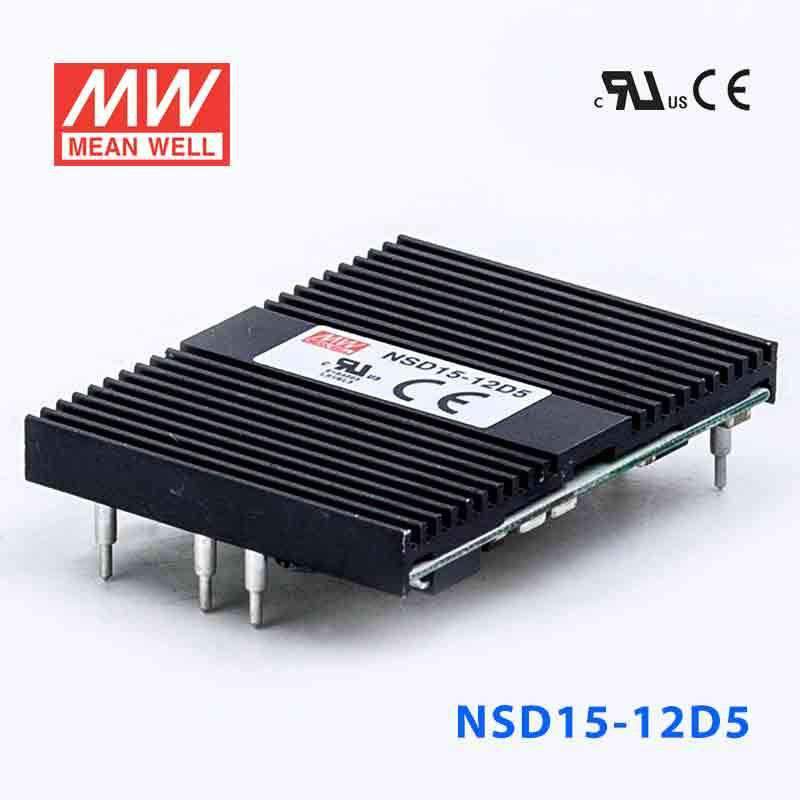

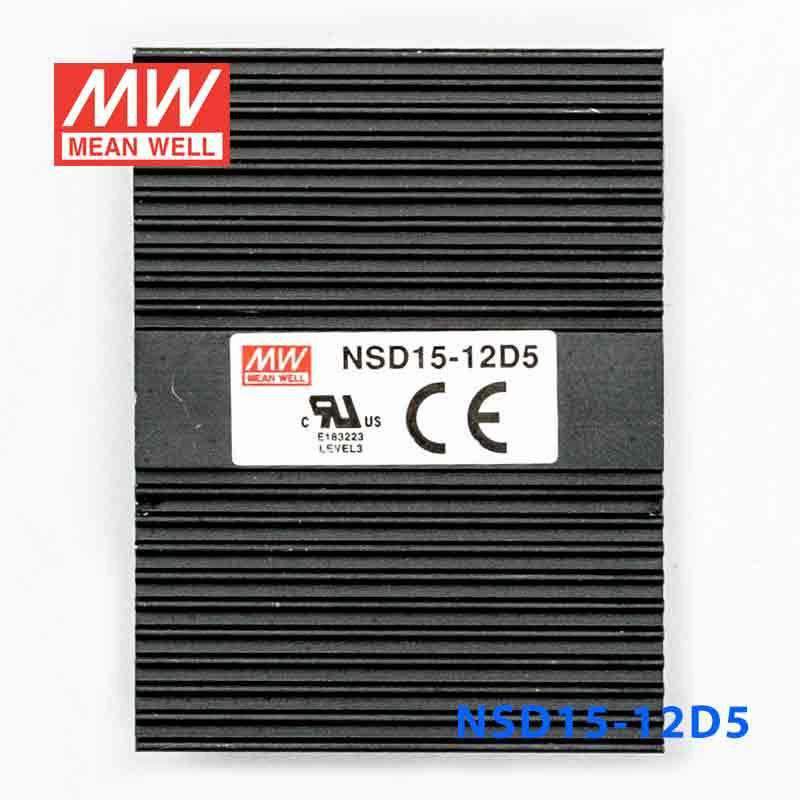

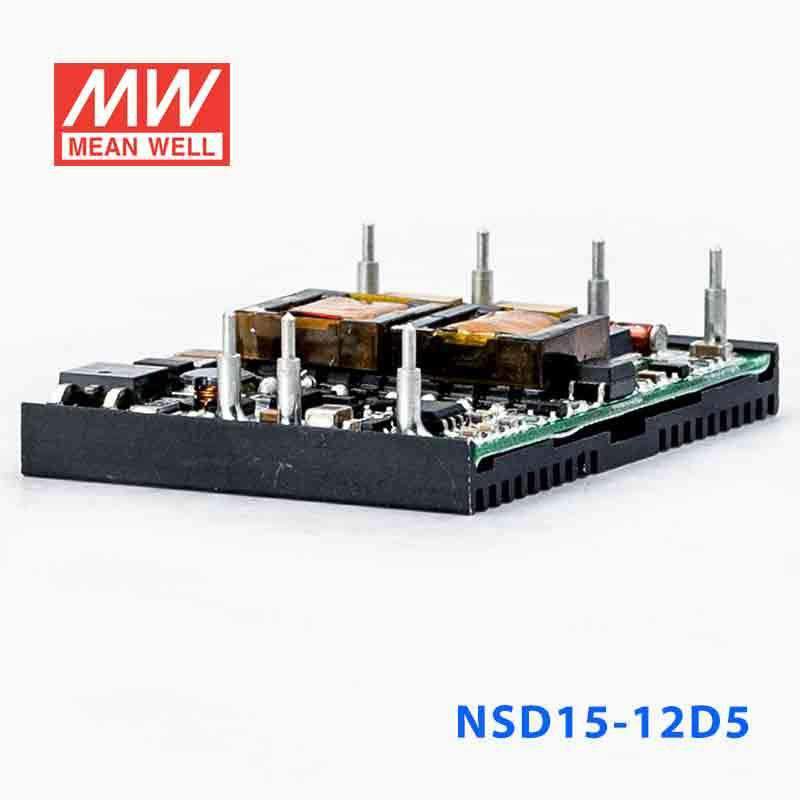

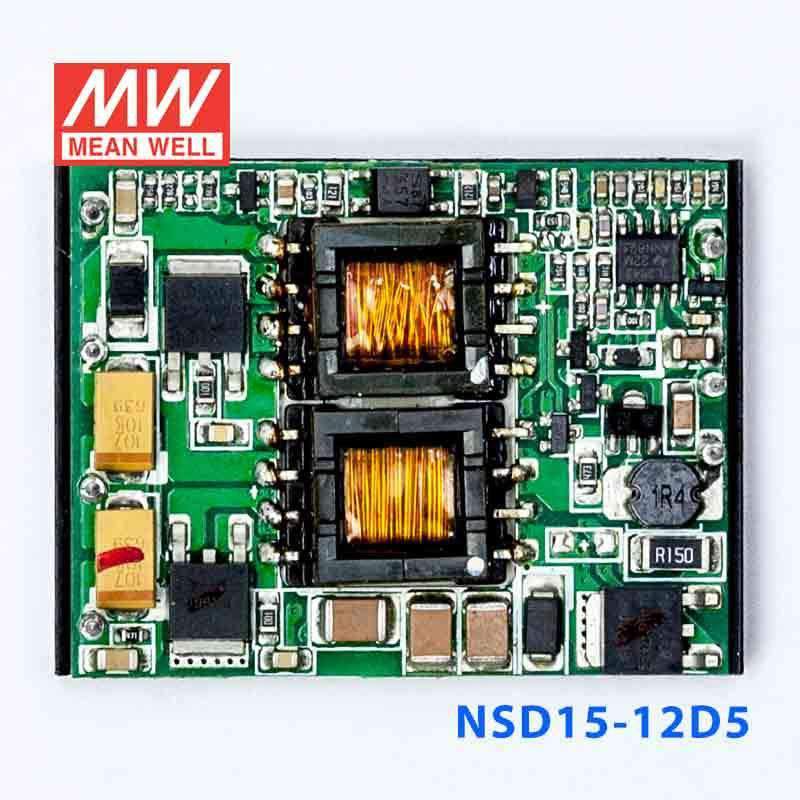

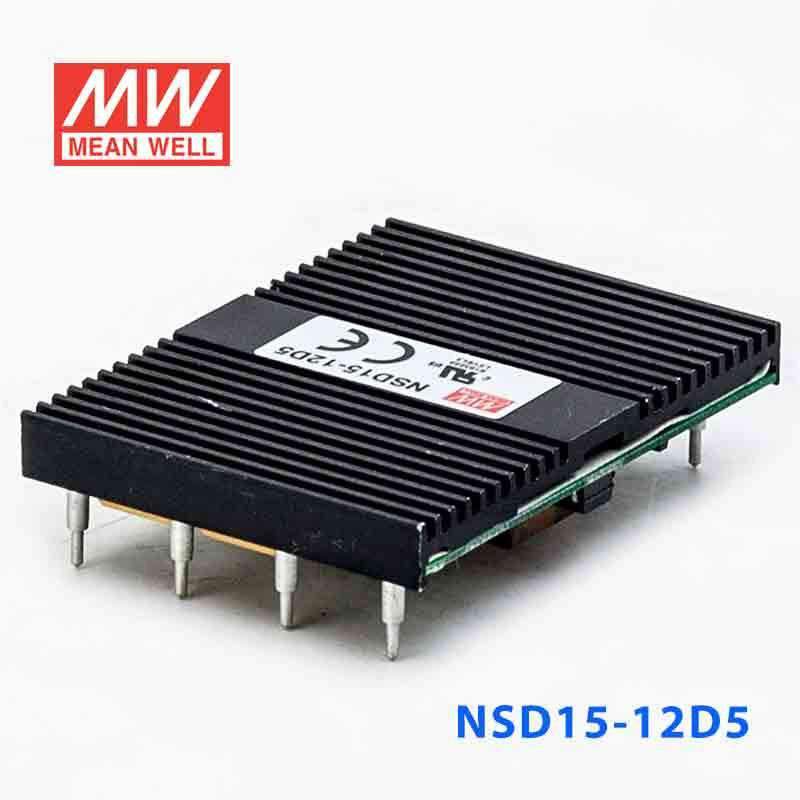

Mean Well NSD15-12D5 DC-DC Converter - 15W - 9.4~36V in ±5V out 1.5A
The NSD15 is a 15W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current1.5 Ampere
-
Input Voltage9.4V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length2 in
-
Width1.5 in
-
Height0.39 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the NSD15-12D5 for logic and analog circuits that need ±5V rails?
Yes, this converter fits low-power electronics that need a dual ±5V constant-voltage supply from a 9.4-36V input range. Its 15W rating and 1.5A output current suit compact embedded, control, and interface circuits rather than larger loads.
Is the NSD15-12D5 a good fit for industrial data and communication boards using split 5V rails?
It can be used where a board or subsystem needs both positive and negative 5V rails and the available source is within 9.4-36V. That makes it relevant for low-power industrial communication, interface, and processing electronics built around ±5V operation.
Can this converter power a bipolar 5V rail for embedded test equipment?
Yes, the ±5V output is suited to embedded test or measurement electronics that need a split low-voltage supply. With 15W available, it is sized for auxiliary electronics and signal sections, not for high-draw devices.
Is the NSD15-12D5 intended for outdoor use?
The specified operating range is -25°C to +70°C, which supports many protected industrial environments. No IP rating is listed, so the provided specs do not establish suitability for direct outdoor exposure or wet locations.
How does the NSD15-12D5 compare with the other NSD15 converters?
Other listed NSD15 models are NSD15-12D12 at 14.88W, 12V, 620A; NSD15-12D15 at 15W, 15V, 500A; NSD15-12S12 at 15W, 12V, 1.25A; NSD15-12S15 at 15W, 15V, 1A; NSD15-12S3 at 12.375W, 3.3V, 3.75A; NSD15-12S5 at 15W, 5V, 3A; NSD15-48D12 at 14.88W, 12V, 620A; NSD15-48D15 at 15W, 15V, 500A; NSD15-48D5 at 15W, 5V, 1.5A; NSD15-48S12 at 15W, 12V, 1.25A; NSD15-48S15 at 15W, 15V, 1A; NSD15-48S3 at 12.375W, 3.3V, 3.75A; and NSD15-48S5 at 15W, 5V, 3A. The NSD15-12D5 is the dual 5V model with 15W output and 1.5A listed output current.
