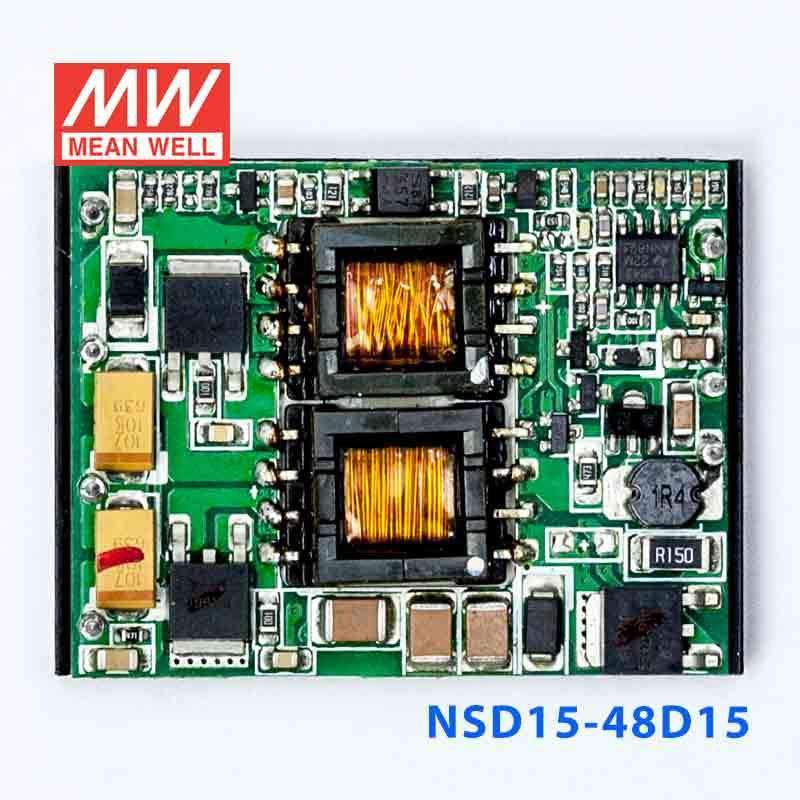

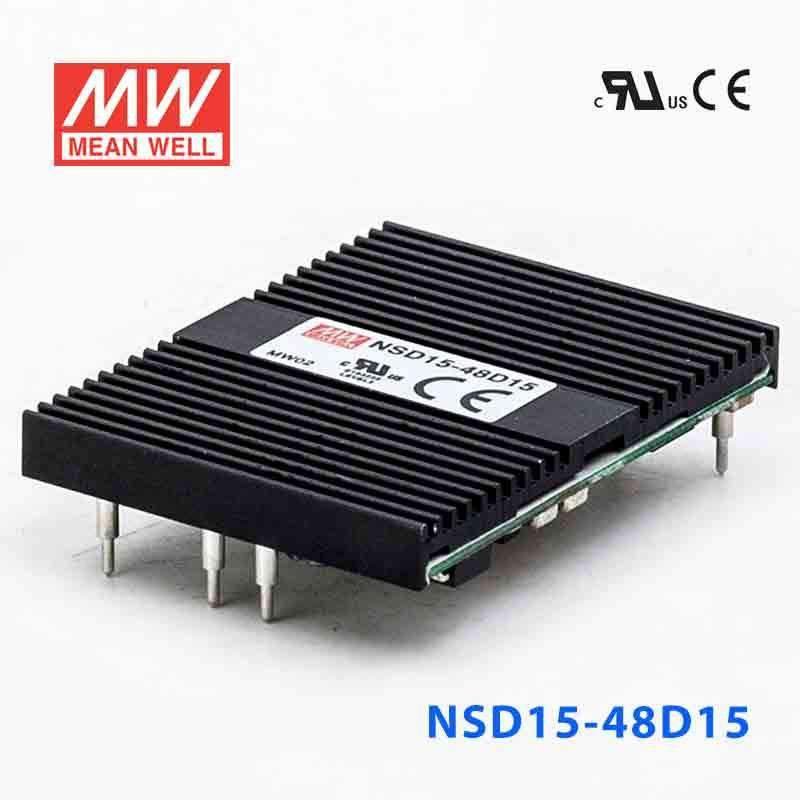

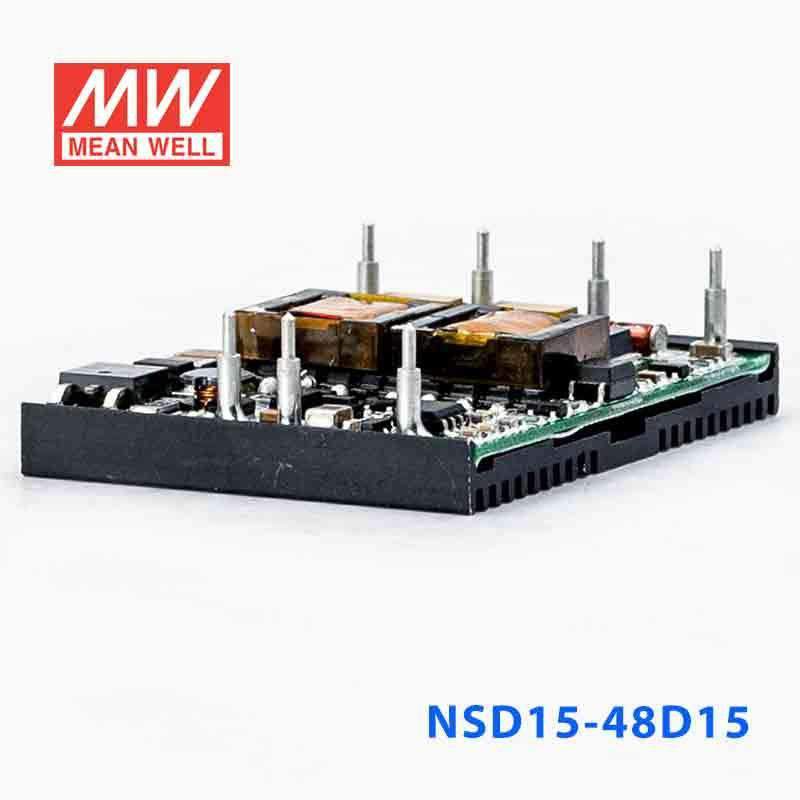

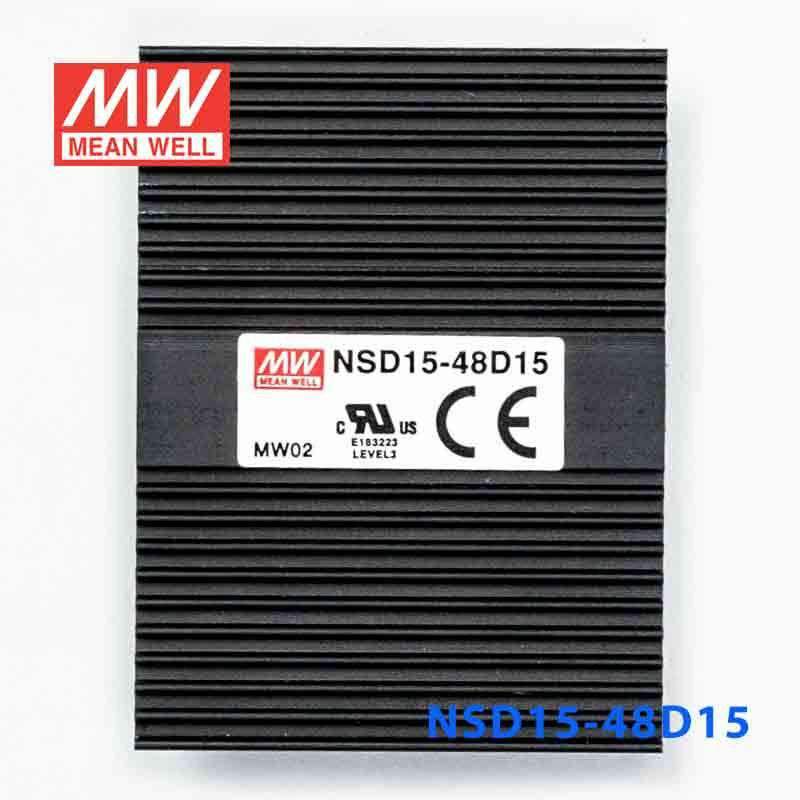

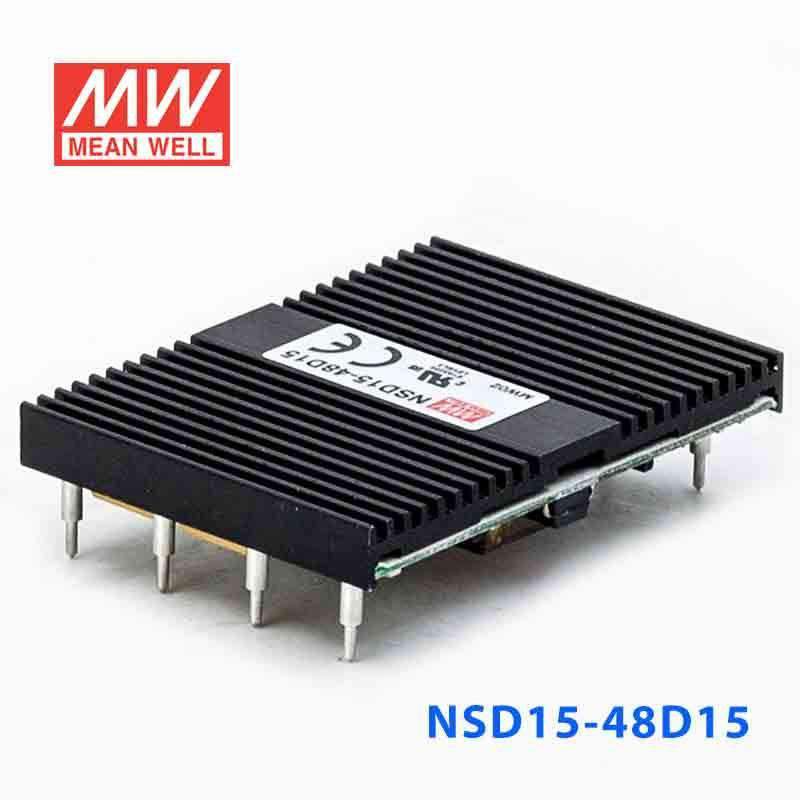

Mean Well NSD15-48D15 DC-DC Converter - 15W - 18~72V in ±15V out 500mA
Overview
NSD15-48D15 is the 15V -15V output model of this series: rated current 0.5A 0.5A, rated power 15W, typical efficiency 84%.
Features
- Wide 4:1 DC input range
- Protections: Short circuit / Overload / Over voltage
- 1500VDC I/O isolation
- Built-in EMI filter
- Cooling by free air convection
- Output voltage trimming function
- Built-in remote ON-OFF control
- 100% full load burn-in test
- Lost cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V -15V
- RATED CURRENT
- 0.5A 0.5A
- CURRENT RANGE
- 0.02 ~ 0.5A 0.02 ~ 0.5A
- RATED POWER
- 15W
- CAPACITIVE LOAD (max.)
- ±1000uF
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p(25% ~ 100% load)
- VOLTAGE TOLERANCENote.3
- ±2.5%
- LINE REGULATION
- ±1.0% at 10% ~ 100% load
- LOAD REGULATION
- ±1.0%
- TRIM OUTPUT (Typ.)
- ±3.0%
- SETUP TIME
- 100ms/RATED DC INPUT at full Load
INPUT
- RATED DC INPUT
- 48VDC
- VOLTAGE RANGENote.6
- 18 ~ 72VDC
- EFFICIENCY (Typ.)
- 84%
- DC CURRENT
- 0.4A/48VDC
- SHUTDOWN IDLE CURRENT
- 20mA
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE(CLAMP)
- 17.3 ~ 22.5V -17.3 ~ -22.5V
- SHORT CIRCUITNote.4
- Recovers automatically after fault condition is removed
FUNCTION
- ON/OFF CONTROL
- Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~50℃)
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- ISOLATION VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 9469.6K hrs min. Telcordia SR-332 (Bellcore) ; 1673.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*38.1*9.82mm (2"*1.5"*0.387") (L*W*H)
- PACKING
- 0.03Kg; 180pcs/6.4Kg/0.94CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Short circuit no more than 60 seconds.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. Derating to 80% load is needed for NSD15-48D series at 18Vdc input voltage. Full output wattage can be acquired when the input voltage is higher than 20Vdc.
- 7. EMC filter suggestion:
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the NSD15-48D15 for equipment that requires a ±15V output from a high-input-voltage source?
Yes, if the equipment requires constant-voltage ±15V output and the load stays within 15W. This converter is specified for 18~72V input, so it is suited to systems already operating in that higher input range.
Is this converter suitable for industrial analog electronics that need ±15V power?
It can fit industrial analog electronics that are designed for constant ±15V supply and remain within the 15W power rating. The 18~72V input range also distinguishes it from lower-input models in the same series.
Can the NSD15-48D15 be used in automation or embedded systems with an 18~72V source?
Yes, when the downstream electronics require a constant ±15V output and do not exceed the 15W limit. Full output is available above 20V input; at 18V input the load must be derated to 80%.
Will the NSD15-48D15 handle harsh temperature conditions or outdoor placement?
Its operating temperature range is -25°C to +70°C, with storage rated at -40°C to +85°C. No IP rating is published, so the specifications do not verify outdoor-exposed use.
What are the sibling options in the NSD15 series compared with the NSD15-48D15?
The NSD15-D sheet offers ±5V at 1.5A and 15W, ±12V at 0.62A and 14.88W, and ±15V at 0.5A and 15W, each in a 9.4~36V input and an 18~72V input version. The NSD15-48D15 is the 18~72V input, ±15V, 15W model. That makes it the higher-input counterpart to the 9.4~36V NSD15-12D15 (±15V, 0.5A).
