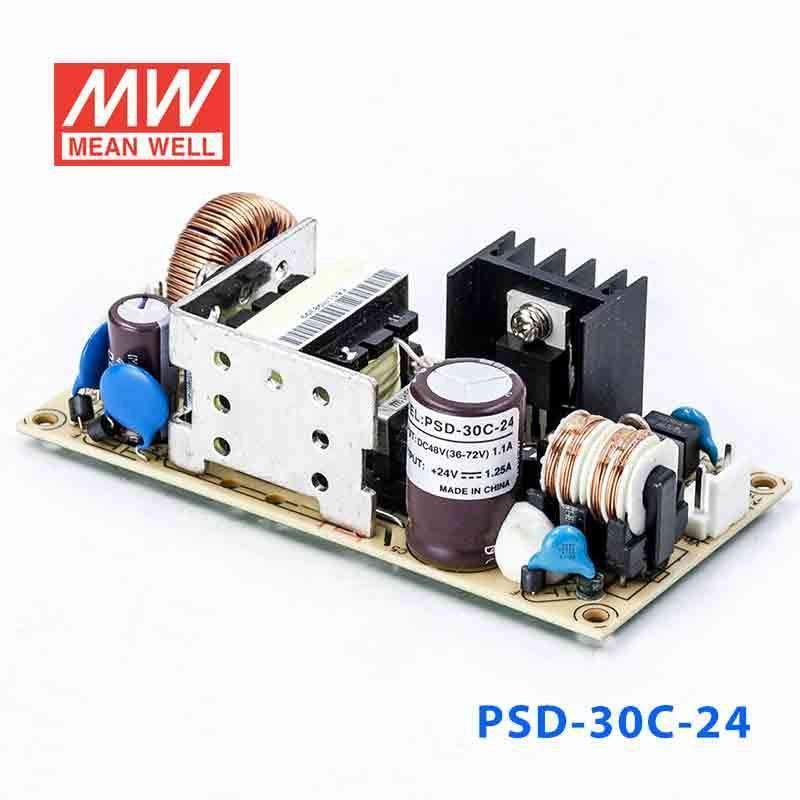

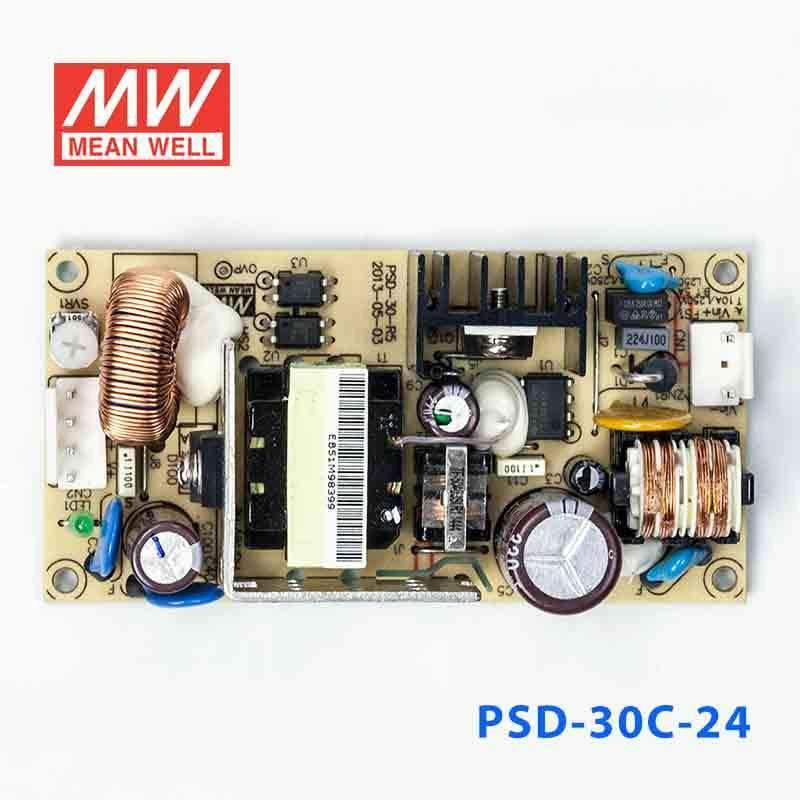

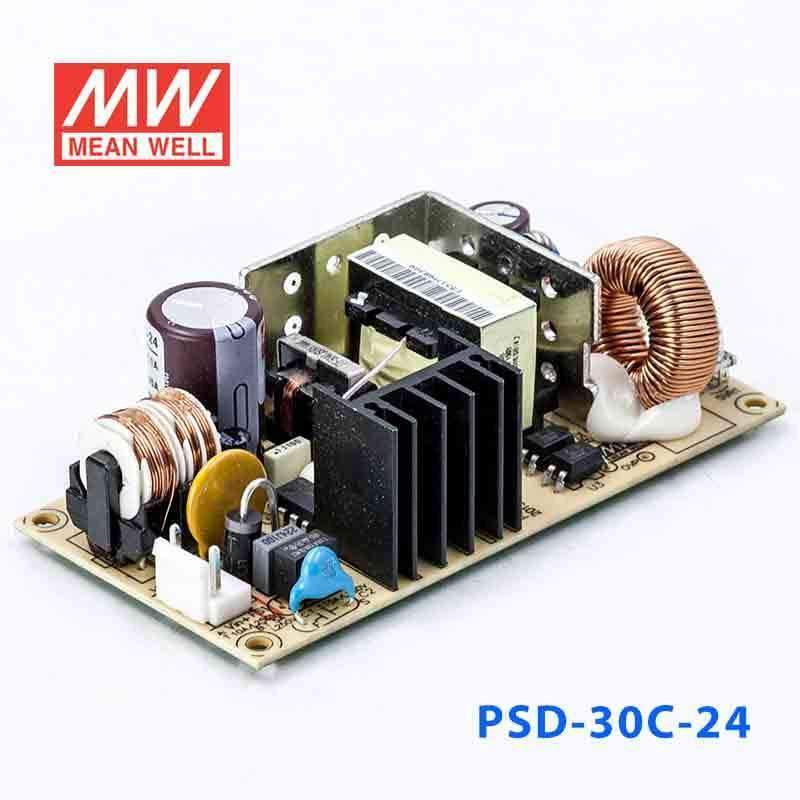

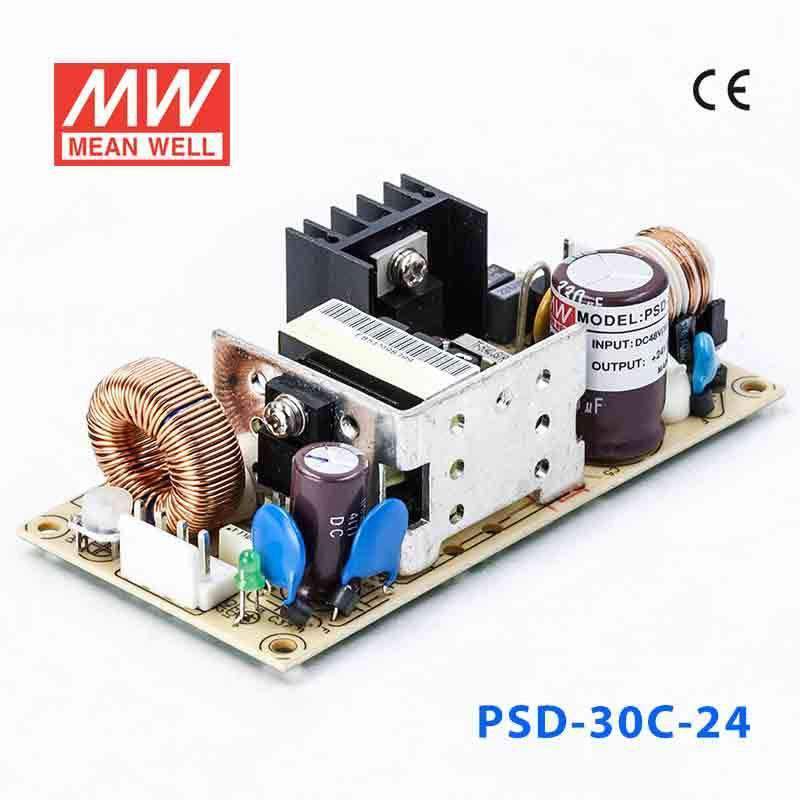

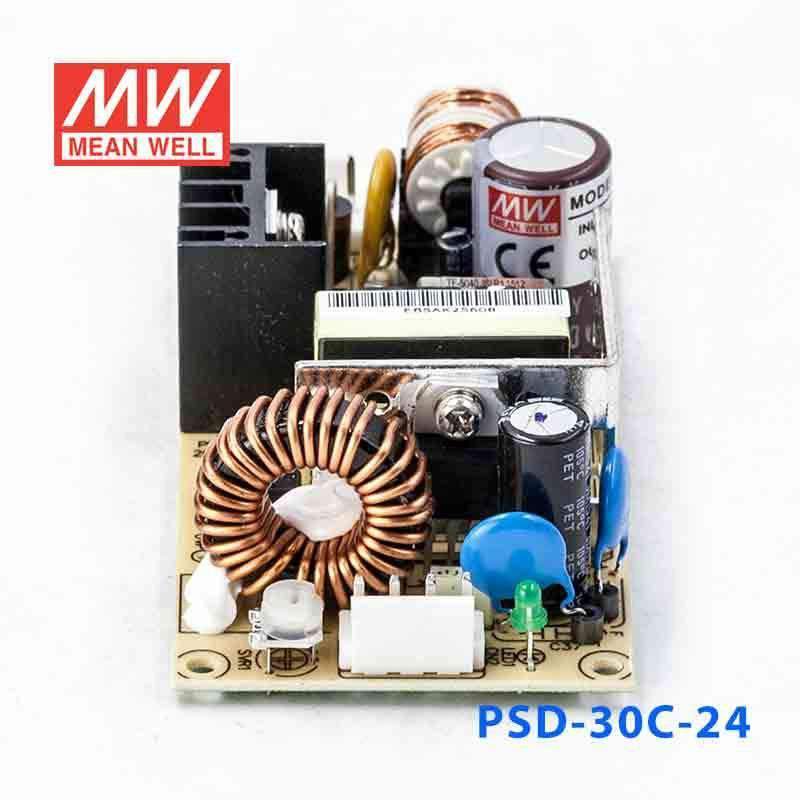

Mean Well PSD-30C-24 DC-DC Converter - 30W - 36~72V in 24V out
The PSD-30C is a 30W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Reverse polarity
- ✓ Safety approvals: IEC 62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the PSD-30C-24 to derive 24V for PLC I/O or instrumentation from a 36-72 input source?
Yes, if the 24V load stays within 1.25A and needs constant-voltage output. The converter is rated for 30W, outputs 24V, and accepts a 36-72 input range.
Is the PSD-30C-24 suitable for 24V sensors, relays, and industrial interface modules?
It is a fit for lower-power 24V devices when total demand does not exceed 30W. With 24V output at up to 1.25A, it is aimed at compact control and interface loads rather than higher-current 24V equipment.
Can this model support a small 24V automation accessory in a 48V-class cabinet?
Yes, when the source stays inside the 36-72 input range and the accessory needs 24V constant voltage. The available output is 1.25A, so load size has to stay within that current limit.
What other PSD family outputs are available compared with the PSD-30C-24?
Other PSD siblings span 5W 5V 1A, 15W versions in 5V 3A and 12V 1.25A, 14.4W 24V versions, 25W 5V 5A, 30W versions in 12V 2.5A and 24V 1.25A, 30W 5V 6A, and 45W versions in 12V 3.75A, 24V 1.88A, and 5V 9A. The PSD-30C-24 is the 30W, 24V, 1.25A model matched to a 36-72 input range.
Is the PSD-30C-24 rated for outdoor use?
The published temperature range is -20°C to +60°C. The specs provided do not state an IP rating, so exposed outdoor suitability is not established by this product data.
