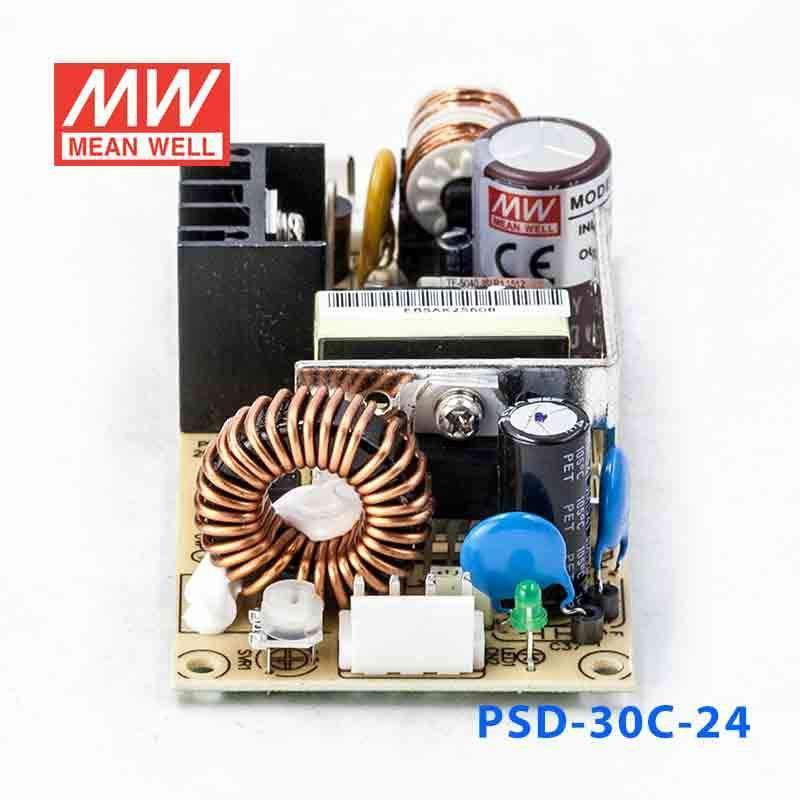

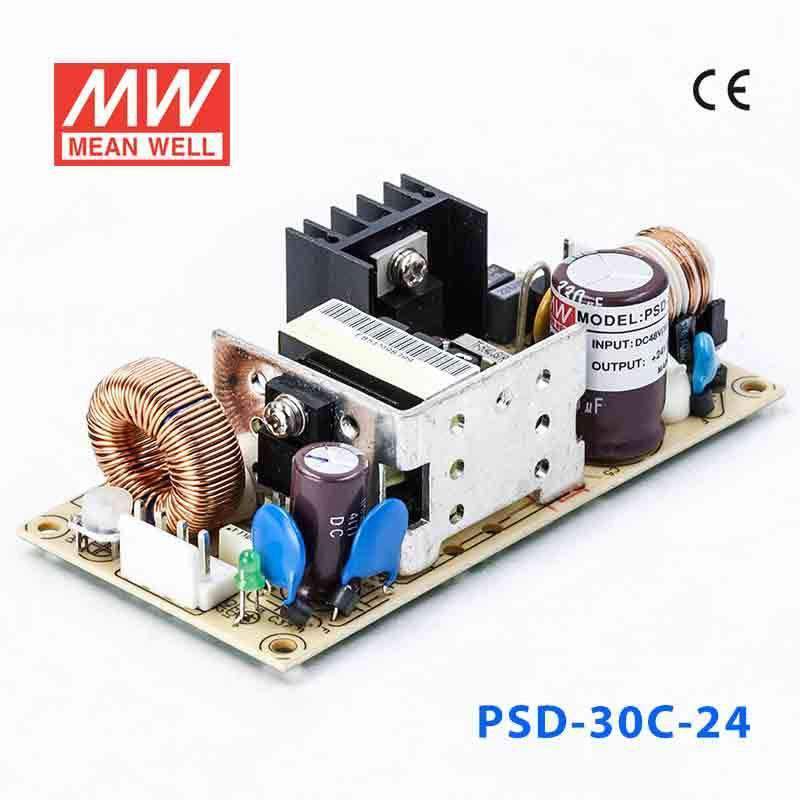

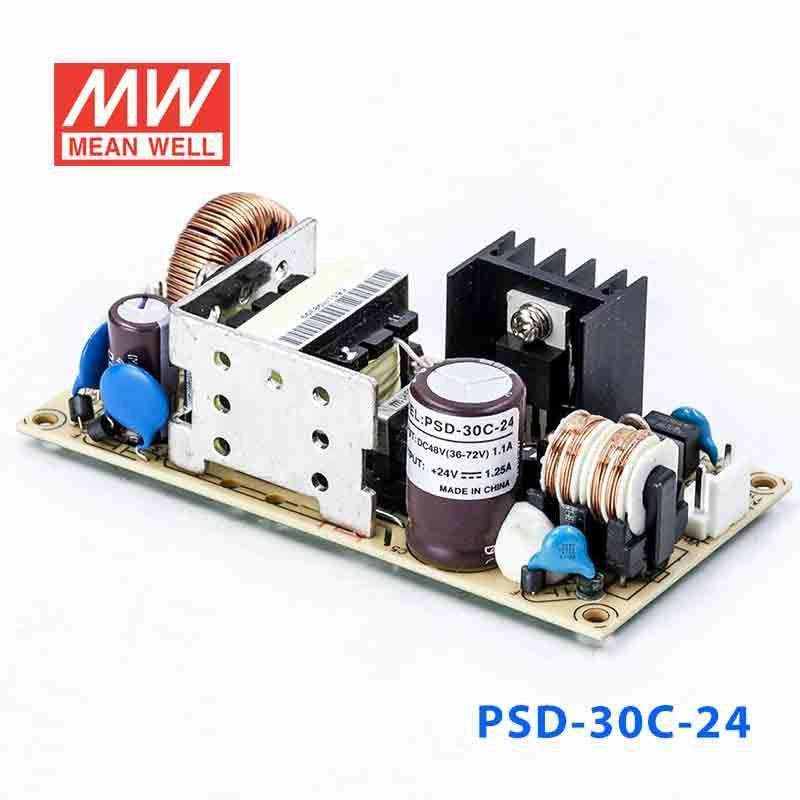

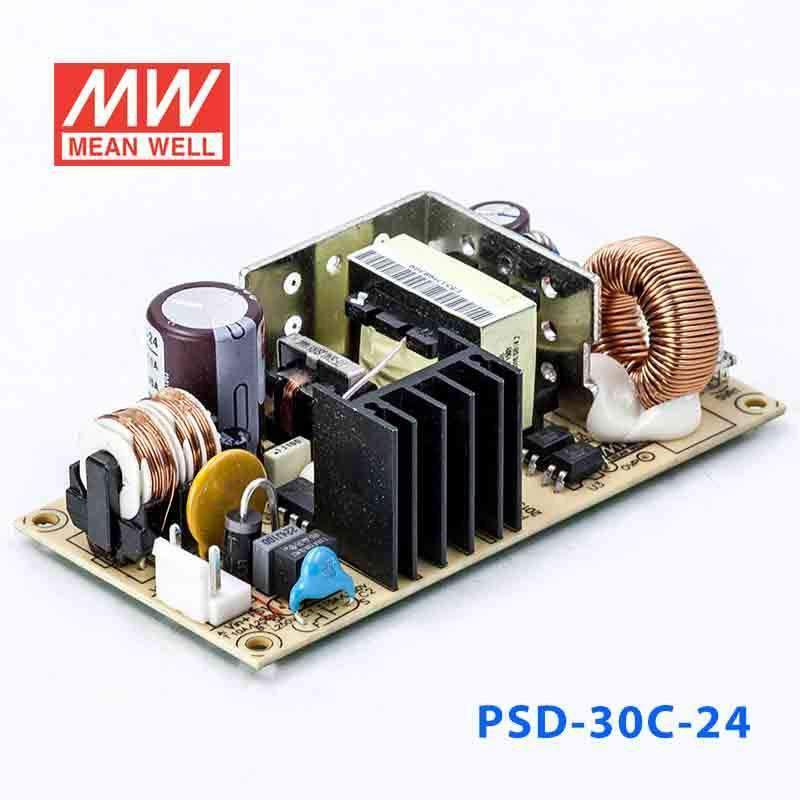

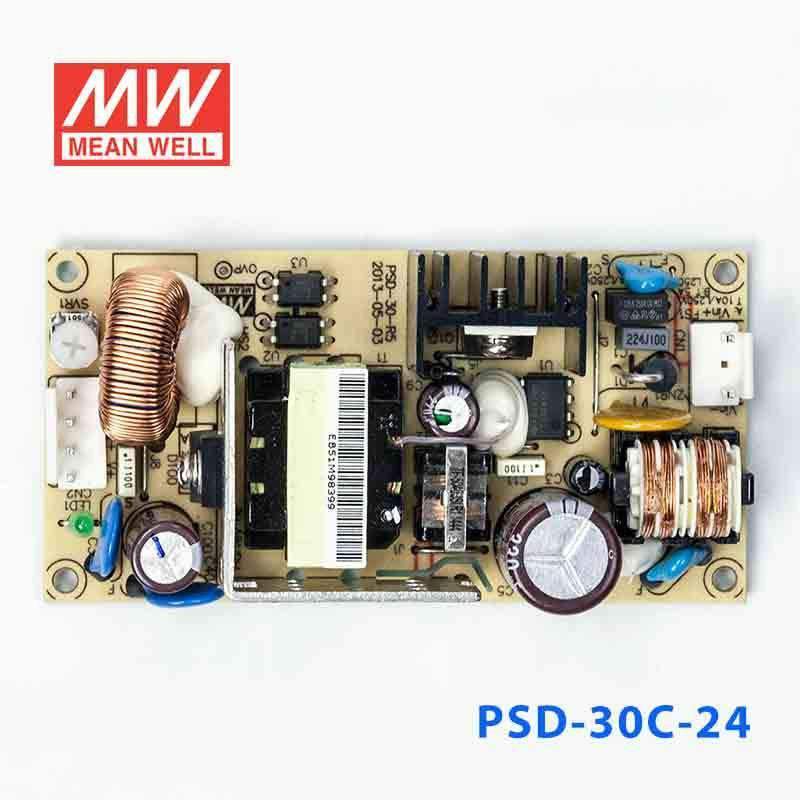

Mean Well PSD-30C-24 DC-DC Converter - 30W - 36~72V in 24V out 1.25A
Overview
PSD-30C-24 is the 24V output model of this series: rated current 1.25A, rated power 30W, typical efficiency 83%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage/ Reverse polarity
- 1500VAC I/O isolation
- Cooling by free air convection
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Low cost
- High reliability
- 2 year warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 1.25A
- CURRENT RANGE
- 0 ~ 1.25A
- RATED POWER
- 30W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 22 ~ 26VDC
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE, HOLD UP TIME
- 2s, 50ms, ------ at full load
INPUT
- VOLTAGE RANGE
- C:36 ~ 72VDC
- EFFICIENCY (Typ.)
- 83%
- DC CURRENT
- 1.1A/48V
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27 ~ 32.5V Protection type : Hiccup mode, recovers automatically after fault condition is removed
- REVERSE POLARITY
- By internal fuse open
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- EAC TP TC 004 approved, IEC 62368-1 CB approved by Dekra, Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
- EMI CONDUCTION & RADIATION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/ENV50204, BS EN/EN 55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3871.7K hrs min. Telcordia SR-332 (Bellcore) ; 639.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 101.6*50.8*30mm (L*W*H)
- PACKING
- 0.15kg；72pcs/10.8kg/0.82CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PSD-30C-24 to derive 24V for PLC I/O or instrumentation from a 36-72 input source?
Yes, if the 24V load stays within 1.25A and needs constant-voltage output. The converter is rated for 30W, outputs 24V, and accepts a 36-72 input range.
Is the PSD-30C-24 suitable for 24V sensors, relays, and industrial interface modules?
It is a fit for lower-power 24V devices when total demand does not exceed 30W. With 24V output at up to 1.25A, it is aimed at compact control and interface loads rather than higher-current 24V equipment.
Can this model support a small 24V automation accessory in a 48V-class cabinet?
Yes, when the source stays inside the 36-72 input range and the accessory needs 24V constant voltage. The available output is 1.25A, so load size has to stay within that current limit.
What other PSD family outputs are available compared with the PSD-30C-24?
Other PSD-30 models offer 5V 5A (25W) and 12V 2.5A (30W) outputs, and each output comes with a 9-18VDC (A), 18-36VDC (B) or 36-72VDC (C) input range. The PSD-30C-24 is the 30W, 24V, 1.25A model matched to a 36-72VDC input range.
Is the PSD-30C-24 rated for outdoor use?
The published temperature range is -20°C to +60°C. The specs provided do not state an IP rating, so exposed outdoor suitability is not established by this product data.
