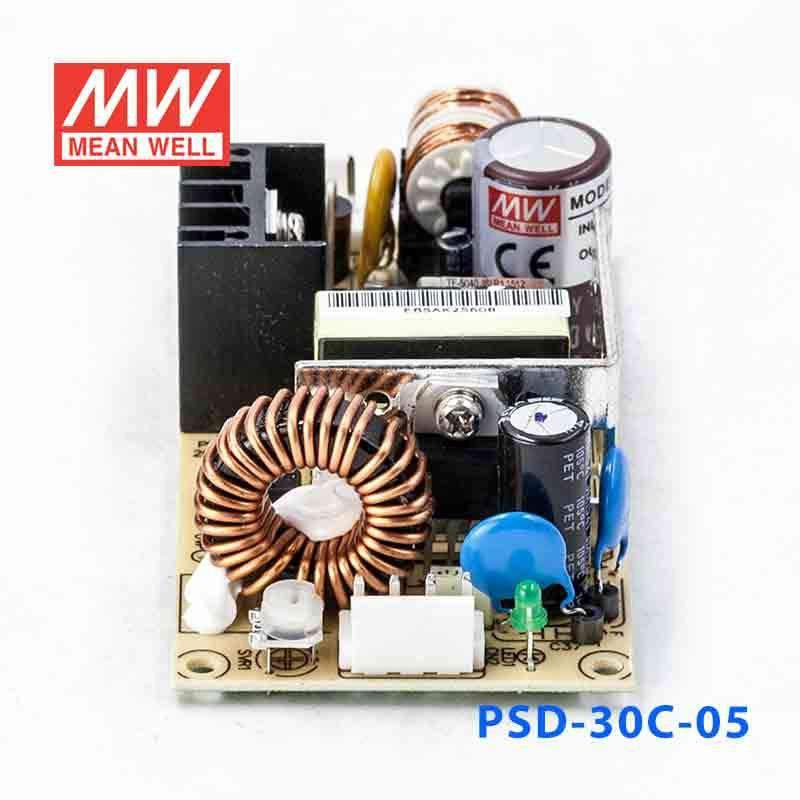

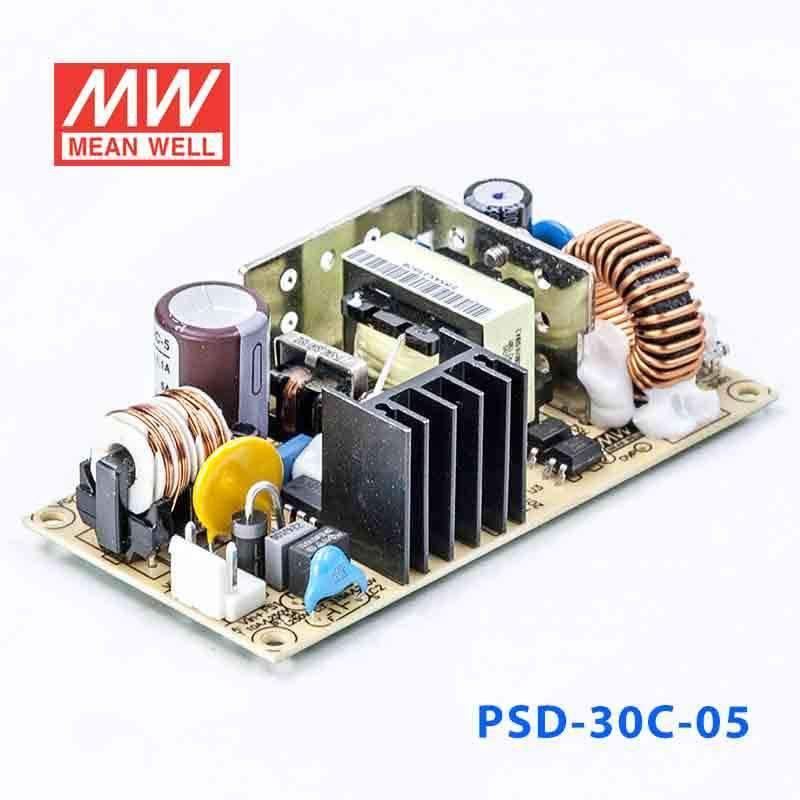

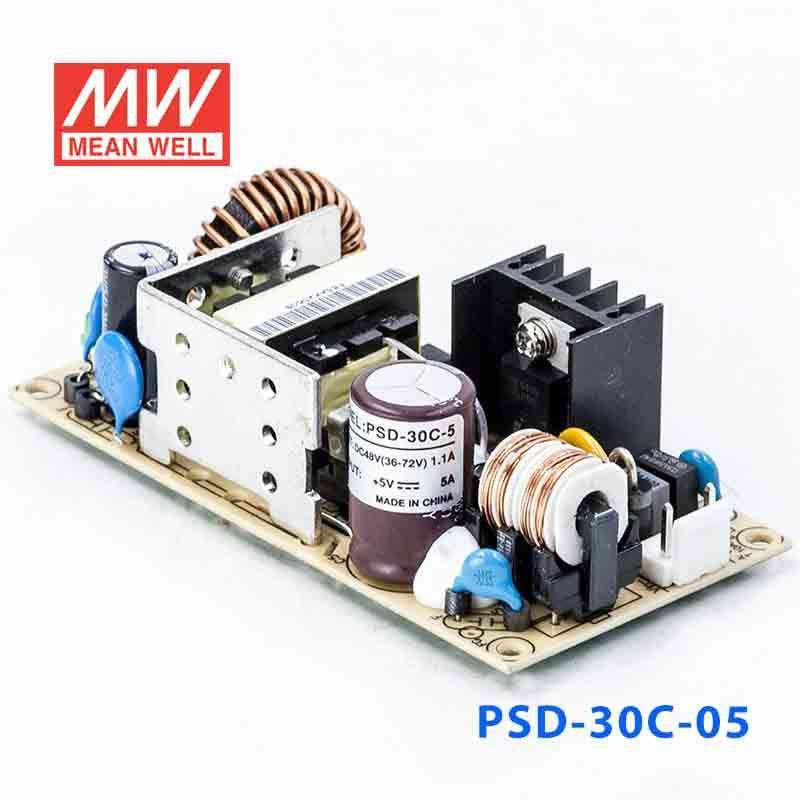

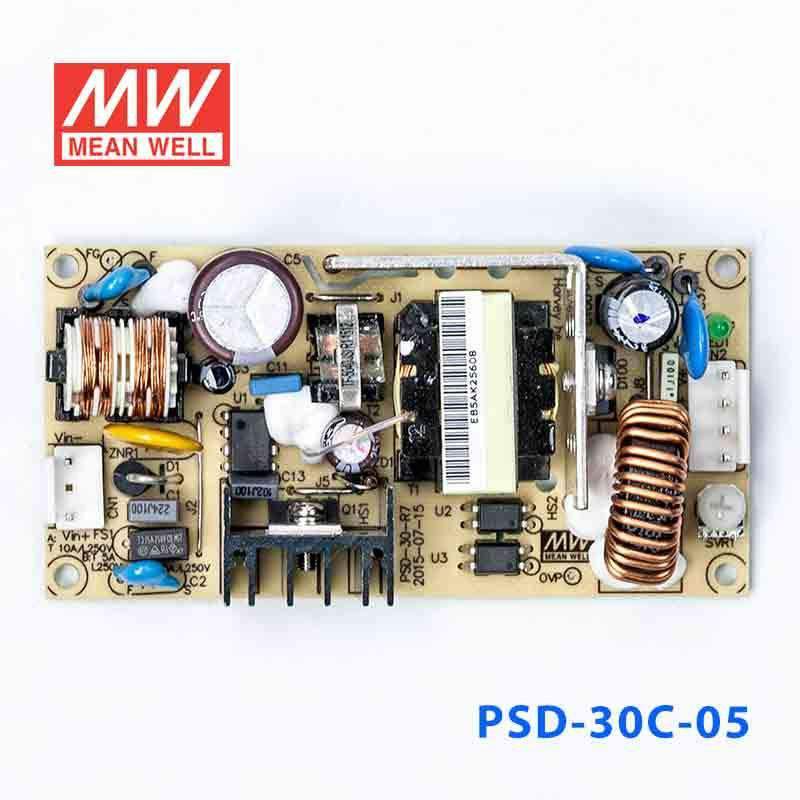

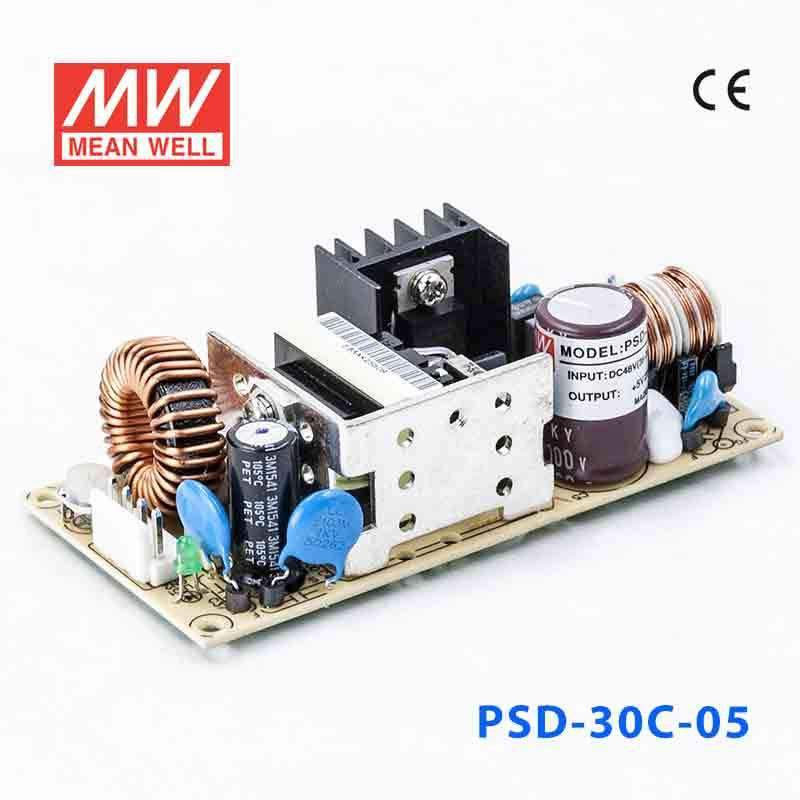

Mean Well PSD-30C-5 DC-DC Converter - 25W - 36~72V in 5V out
The PSD-30C is a 30W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Reverse polarity
- ✓ Safety approvals: IEC 62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can the PSD-30C-5 power a 5V embedded controller from a 36-72 input system?
Yes, if the controller requires constant 5V and the total load remains within 5A. This model is rated for 25W, outputs 5V, and is specified for a 36-72 input range.
Is this converter suitable for 5V logic boards, communication modules, and sensors in industrial equipment?
It is suitable for lower-power 5V electronics when combined demand stays at or below 25W. The fixed 5V output and 5A current rating fit many embedded and control-side loads.
Can I use the PSD-30C-5 for a compact 5V gateway or interface device in a 48V-class cabinet?
Yes, provided the input remains within 36-72 and the device needs 5V constant voltage. The output limit is 5A, so the connected 5V equipment must stay within that rating.
How does the PSD-30C-5 compare to the rest of the PSD series?
The PSD series includes 5W 5V 1A models, 15W options in 5V 3A and 12V 1.25A, 14.4W 24V options, 25W 5V 5A models, 30W options in 12V 2.5A and 24V 1.25A, 30W 5V 6A models, and 45W options in 12V 3.75A, 24V 1.88A, and 5V 9A. The PSD-30C-5 is the 25W, 5V, 5A version designed for a 36-72 input range.
Can the PSD-30C-5 be used in outdoor or dirty environments?
Its operating temperature is specified from -20°C to +60°C. The provided specs do not list an IP rating, so these specifications do not confirm exposed outdoor use or enclosure sealing.
