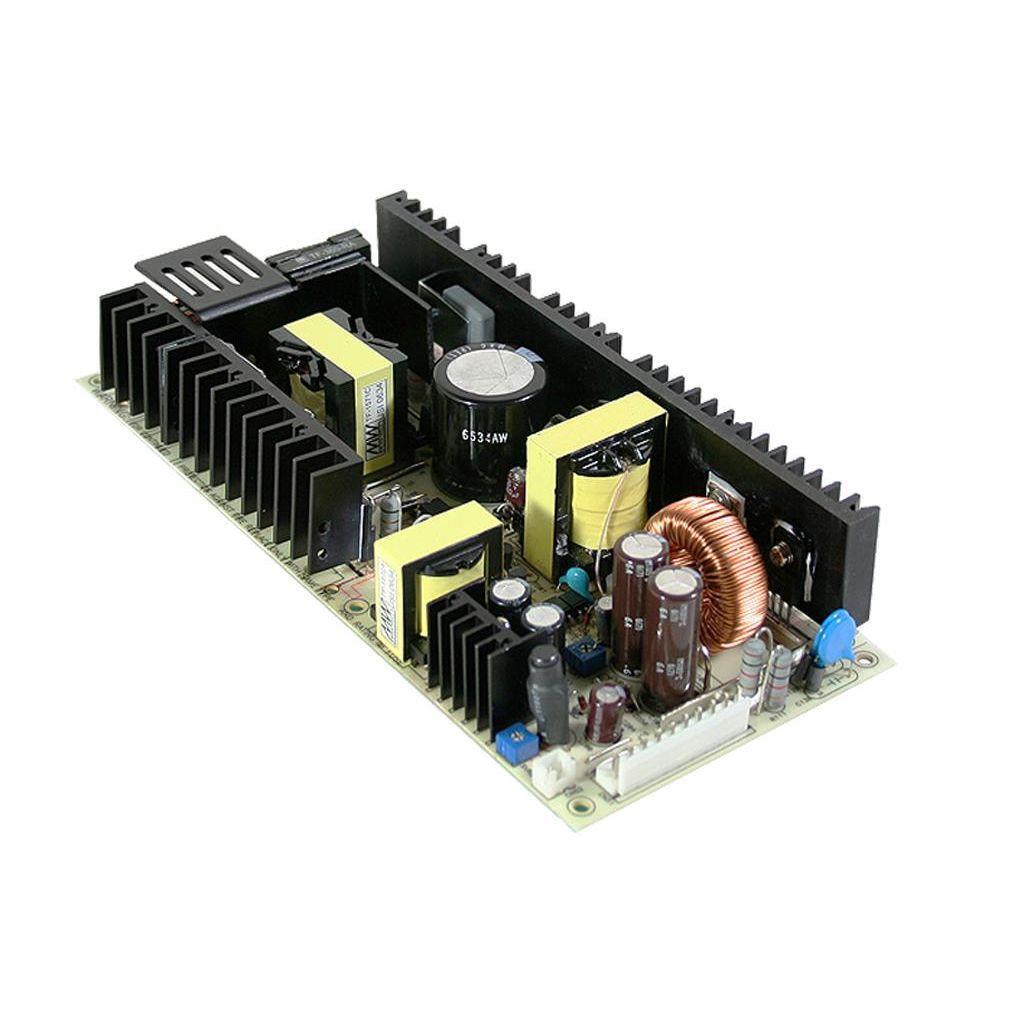

Mean Well PID-250B Open Frame Power Supply 250W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PID-250B Open Frame Power Supply 250W
<3.5mA/264VAC
Key Features
- ✓Universal AC input / Full range
- ✓Isolated output & GND for CH1, CH2
- ✓Built-in active PFC function, PF>0.92
- ✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓Remote control for CH1
- ✓Peak load 170% for CH1 within 10 sec
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesPID Series
-
Power Rating250 Watt
-
Output Voltage24 Volt
-
Rated Current9.4 Ampere
-
No of Output2
-
Dimming ControlNon Dimmable
-
Standards MetCB,CE,EAC,EN,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length8.74 in
-
Width3.74 in
-
Height1.57 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the PID-250B for a 24V PLC, HMI, and I/O control cabinet?
Yes, this model is aligned to 24V constant-voltage automation loads. It provides 250W at 24V with 9.4A output current and accepts 90-264VAC input, which fits many control-panel applications built around a 24V DC bus.
Is the PID-250B suitable for industrial systems that have short startup surges?
It can be a good fit where the load briefly rises above the steady-state level. The supplied features list a peak load of 170% for CH1 within 10 sec, which is useful for automation or embedded equipment with temporary inrush or startup demand.
Can the PID-250B be used in equipment that needs a remotely controlled main output?
Yes, the features include remote control for CH1. That makes it relevant for machine or embedded systems where the 24V output needs to be managed by higher-level control logic rather than always running continuously.
Is the PID-250B appropriate for applications that may need controlled current behavior across different voltage levels?
It can be, because the listed CC voltage range is 5-24V. Along with its 24V, 9.4A, 250W constant-voltage rating, that makes it more flexible for industrial loads that need controlled behavior within that range.
Can the PID-250B be used outdoors or in exposed environments?
The provided specs do not list an IP rating, and this is described as an open frame power supply, so exposed outdoor use is not supported by the supplied data. Its operating temperature range is -20°C to +70°C, so it is better suited to protected equipment or an enclosure that keeps conditions within that range.
How does the PID-250B compare with the other PID-250 variants listed here?
Compared with the other listed PID-250 models, PID-250B is the higher-power option at 250W. The listed siblings PID-250A, PID-250A-C, PID-250B-C, PID-250C, PID-250C-C, PID-250D, and PID-250D-C are each shown at 205W.
