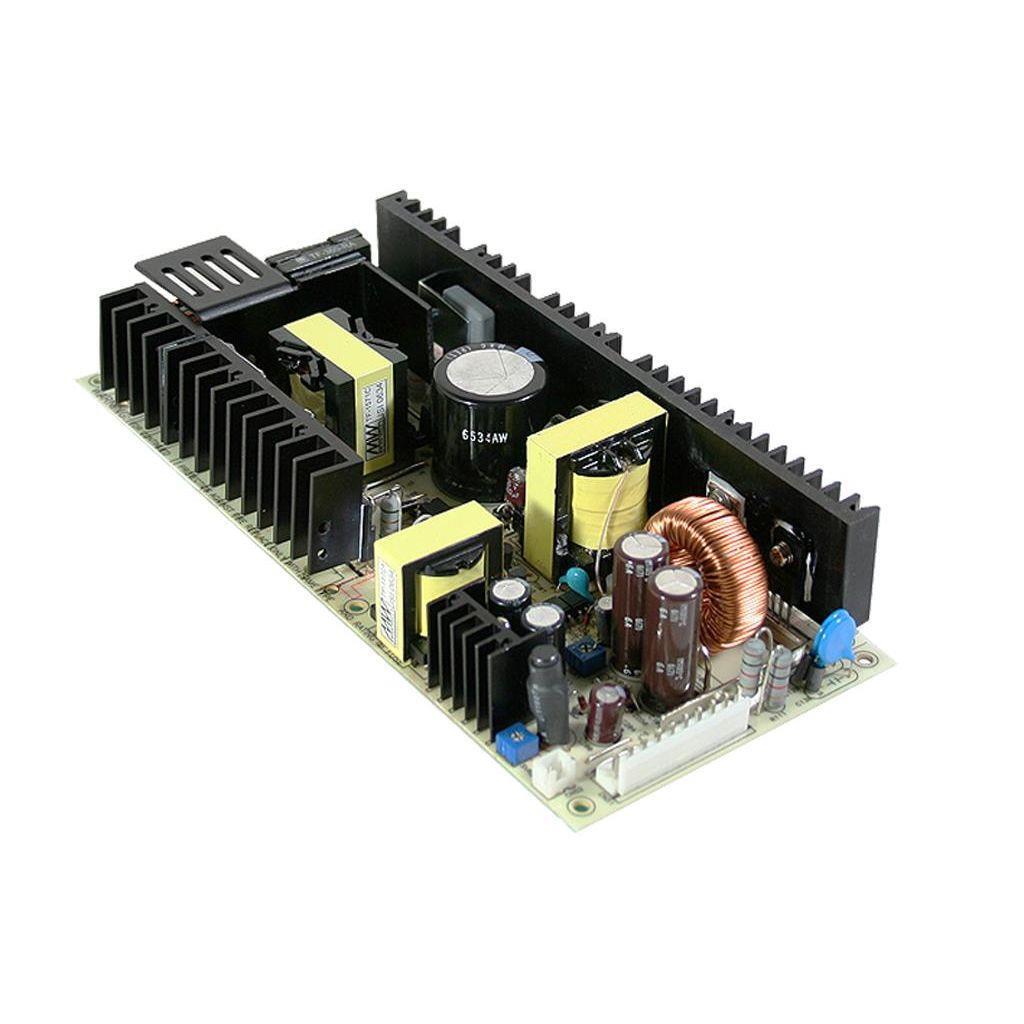

Mean Well PID-250B Open Frame Power Supply 250W 9.4A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PID-250B Open Frame Power Supply 250W 9.4A
Overview
PID-250B is the model of this series: rated power 250.6W, typical efficiency 86%.
Features
- Universal AC input / Full range
- Isolated output & GND for CH1,CH2
- Built-in active PFC function, PF>0.92
- Protections:Short circuit / Overload / Over voltage / Over temperature
- Remote control for CH1
- Peak load 170% for CH1 within 10 sec.
- Cooling by free air convection
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE CH1
- 24V
- DC VOLTAGE CH2
- 5V
- RATED CURRENT CH1
- 9.4A(Peak 16.7A)
- RATED CURRENT CH2
- 5A
- CURRENT RANGE CH1Note.6
- 0 ~ 9.4A (Peak 16.7A)
- CURRENT RANGE CH2Note.6
- 0 ~ 5A
- RATED POWER
- 250.6W
- RIPPLE & NOISE (max.) CH1Note.2
- 150mVp-p
- RIPPLE & NOISE (max.) CH2Note.2
- 50mVp-p
- VOLTAGE ADJ. RANGE CH1
- 21.6 ~ 26.4V
- VOLTAGE ADJ. RANGE CH2
- 4.75 ~ 5.25V
- VOLTAGE TOLERANCE CH1Note.3
- ±2.0%
- VOLTAGE TOLERANCE CH2Note.3
- ±2.0%
- LINE REGULATION CH1
- ±0.5%
- LINE REGULATION CH2
- ±0.5%
- LOAD REGULATION CH1
- ±1.0%
- LOAD REGULATION CH2
- ±2.0%
- SETUP, RISE TIME
- 2500ms, 60ms/115VAC 1200ms, 60ms/230VAC
- HOLD UP TIME (Typ.)
- 30ms at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.92/230VAC PF≧0.97/115VAC at full load
- EFFICIENCY(Typ.)
- 86%
- AC CURRENT (Typ.)
- 3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 58A/230VAC
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- CH1: 105 ~ 170% rated output power Normally work within 10 sec and then shut down, re-power on to recover Over 180% rated power or short circuit, constant current limiting within 10 sec and then shut down, re-power on to recover CH2: 101 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE CH1
- 27.6 ~ 32.4V
- OVER VOLTAGE CH2
- 5.5 ~ 6.75V
- OVER VOLTAGE PROTECTION TYPE
- Protection type : Shut down o/p voltage, re-power on to recover for CH1 ; Hiccup mode, recovers automatically afer fault condition is removed for CH2(by zener diode clamp)
- OVER TEMPERATURE
- Shut down o/p voltage(CH1), recovers automatically after temperature goes down
FUNCTION
- REMOTE CONTROL
- CN52 : Open=CH1 & CH2 power on ; Short = CH1 power off, CH2 power on; when CH2 is malfunction, CH1 will be shut down
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2091.7K hrs min. Telcordia SR-332 (Bellcore) ; 150.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*95*40mm (L*W*H)
- PACKING
- 0.74Kg; 18pcs/14.3Kg/0.98CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

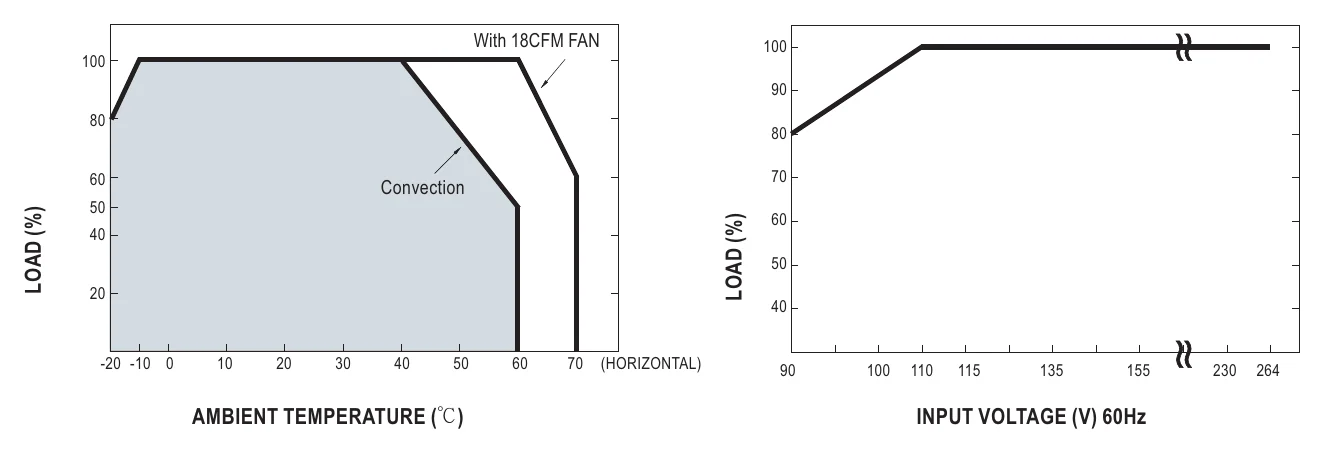

- 5. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 6. Peak current should reduce to 150% of rated value if the input voltage <110VAC.
- 7. Heat Sink HS1,HS2,HS3 can not be shorted.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

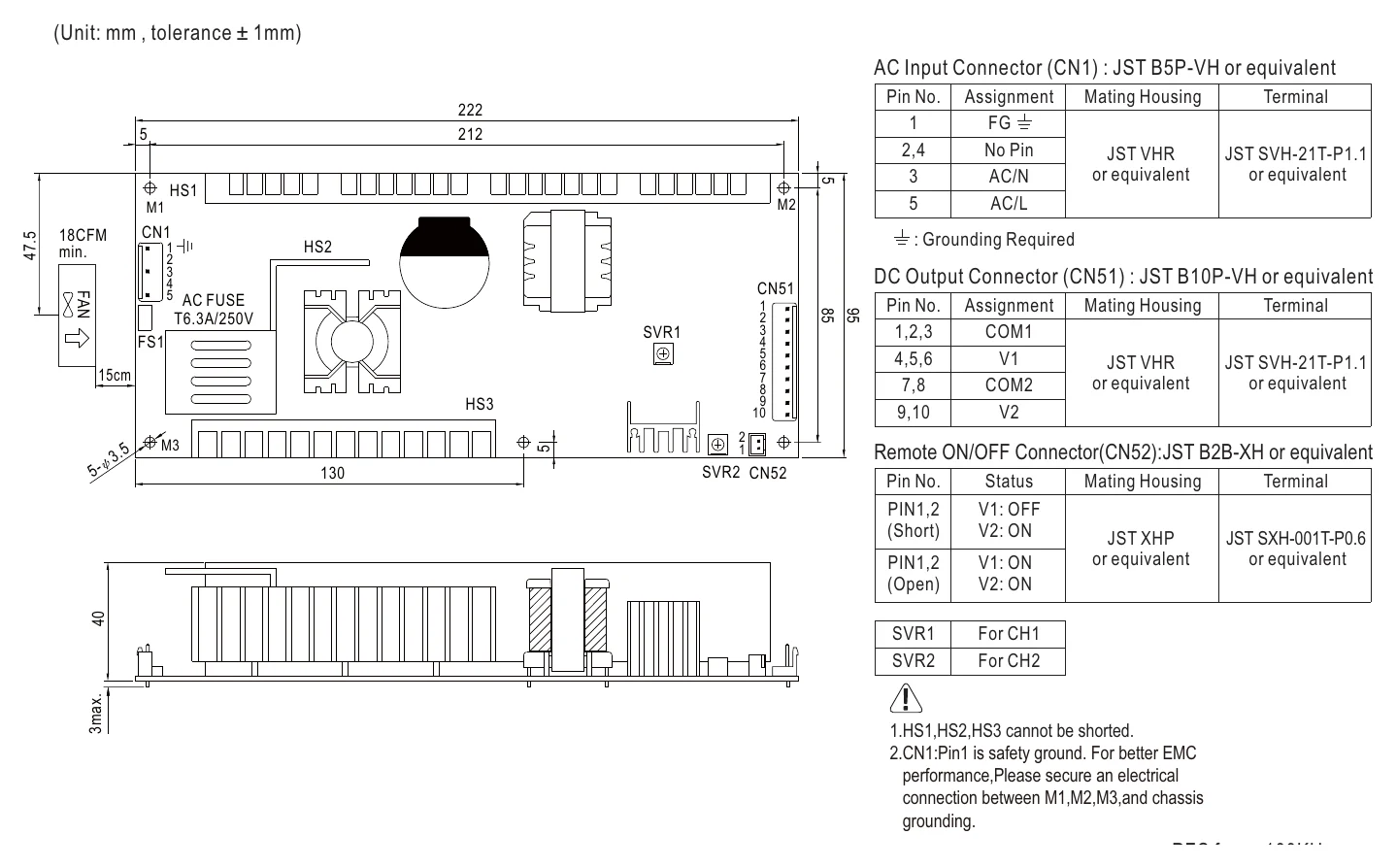

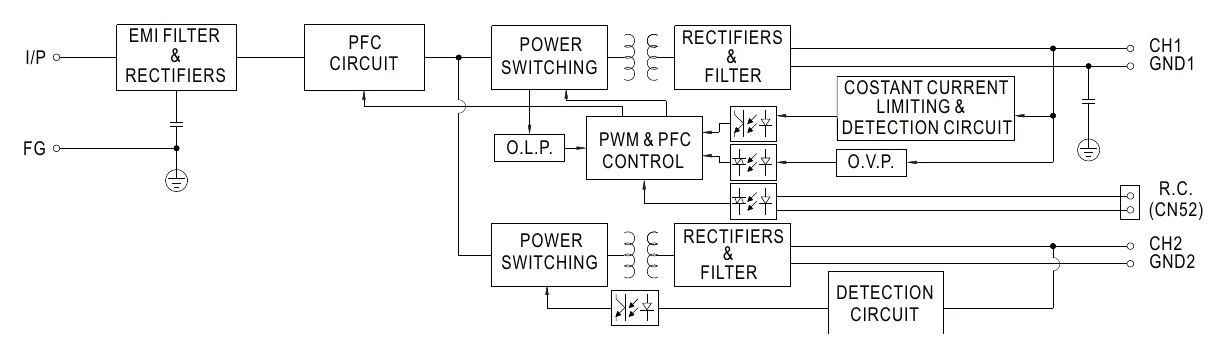

Technical drawings
Downloads
Certificates8
Test reports1
FAQ
Can I use the PID-250B for a 24V PLC, HMI, and I/O control cabinet?
Yes, this model is aligned to 24V constant-voltage automation loads. It provides 250W at 24V with 9.4A output current and accepts 90-264VAC input, which fits many control-panel applications built around a 24V DC bus.
Is the PID-250B suitable for industrial systems that have short startup surges?
It can be a good fit where the load briefly rises above the steady-state level. The features list a peak load of 170% for CH1 within 10 sec, which is useful for automation or embedded equipment with temporary inrush or startup demand.
Can the PID-250B be used in equipment that needs a remotely controlled main output?
Yes, the features include remote control for CH1. That makes it relevant for machine or embedded systems where the 24V output needs to be managed by higher-level control logic rather than always running continuously.
Is the PID-250B appropriate for applications that may need controlled current behavior across different voltage levels?
No, the PID-250B is a constant-voltage power supply with fixed outputs of 24V (CH1) and 5V (CH2). It does not support a constant-current mode or a variable voltage range across different levels; the voltage adjustment range is limited to ±10% of the nominal output.
Can the PID-250B be used outdoors or in exposed environments?
The provided specs do not list an IP rating, and this is described as an open frame power supply, so exposed outdoor use is not supported by the supplied data. Its operating temperature range is -20°C to +70°C, so it is better suited to protected equipment or an enclosure that keeps conditions within that range.
