Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well PLC-100-24 Power Supply 100W 24V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours

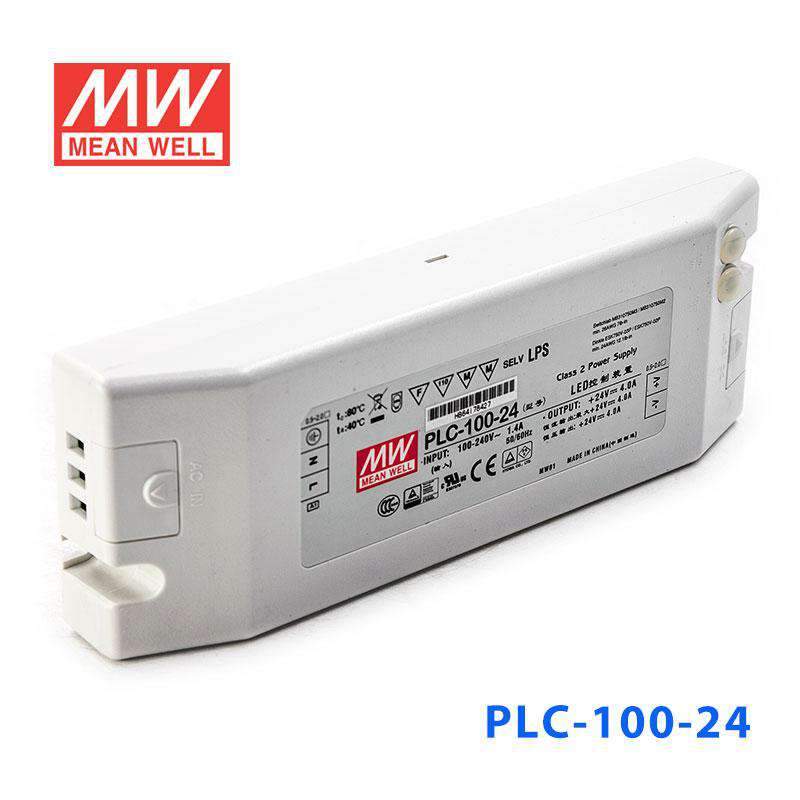

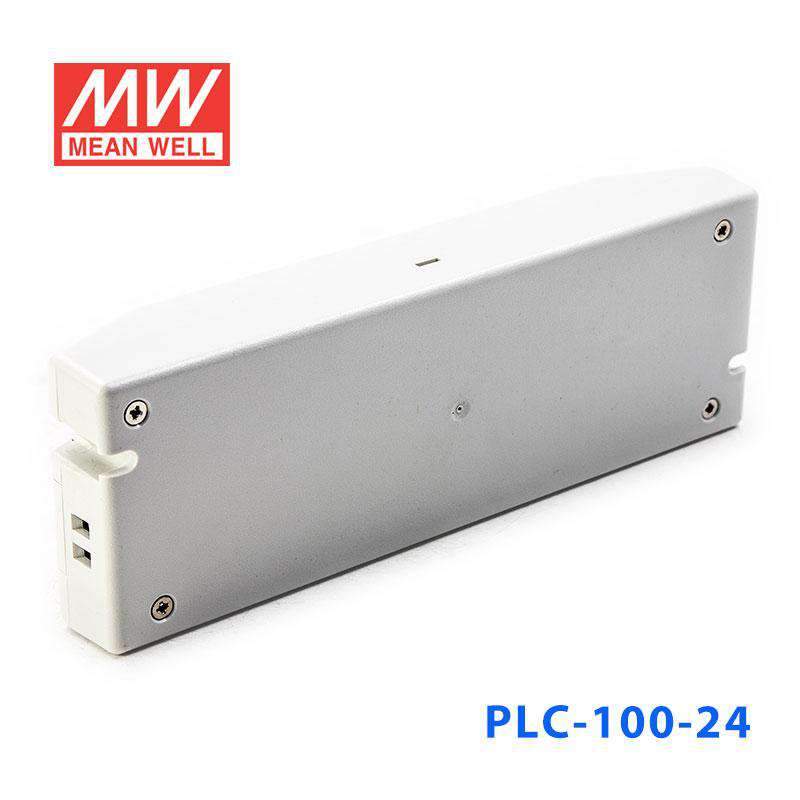

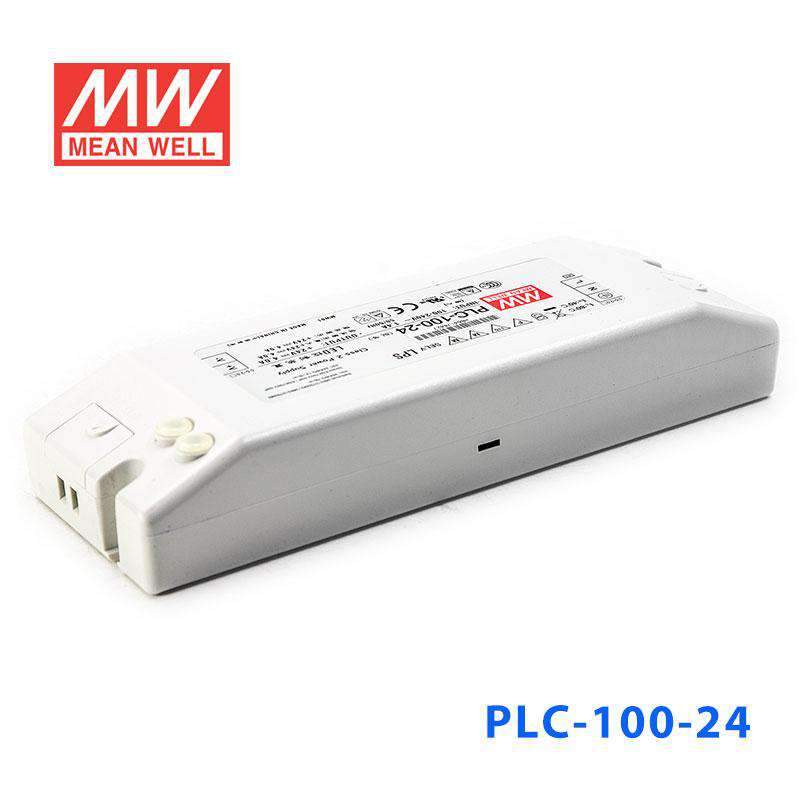

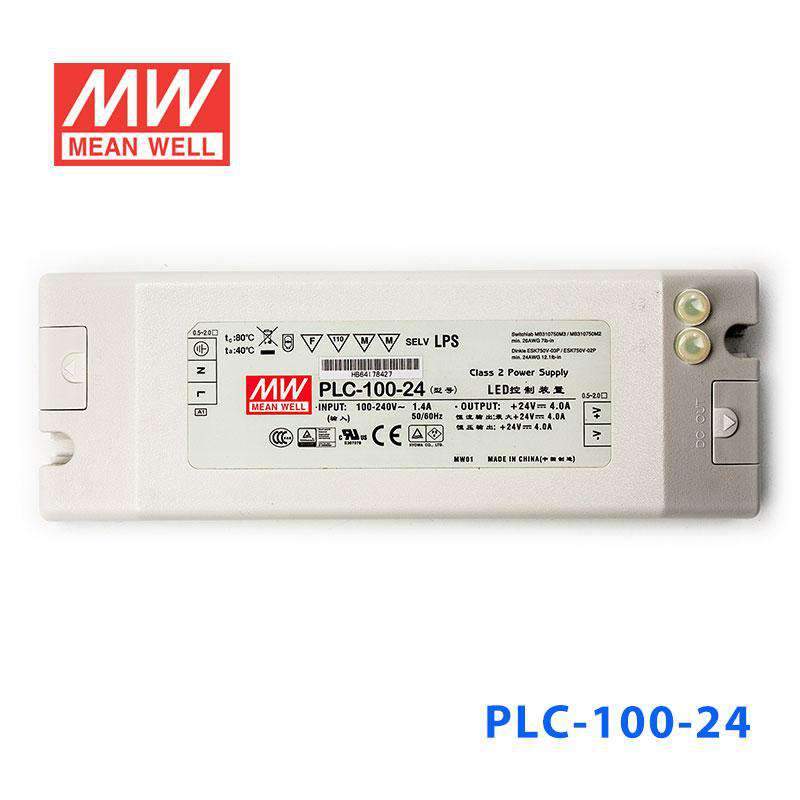

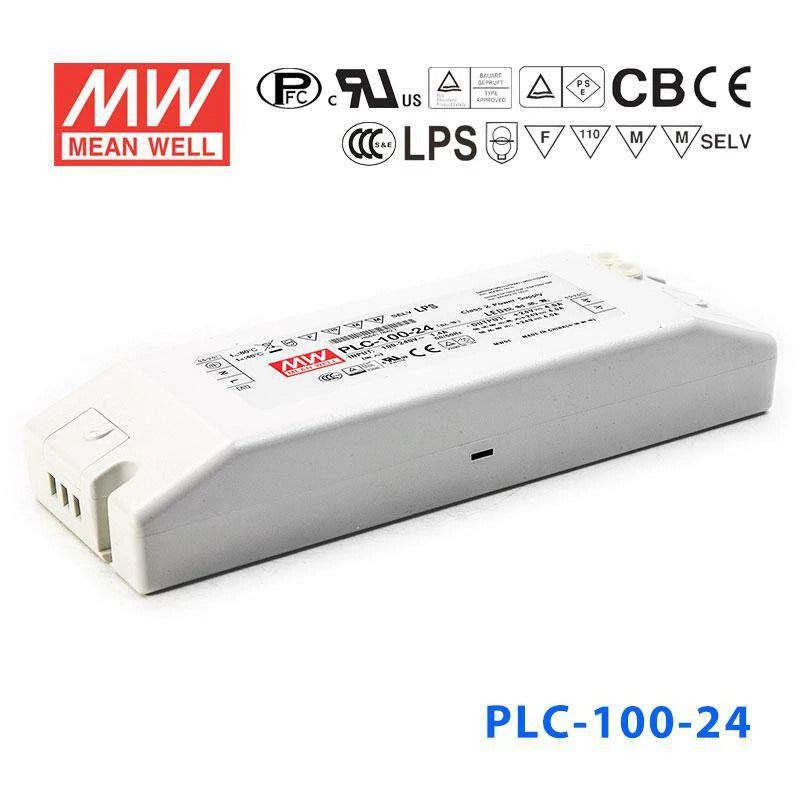

Mean Well PLC-100-24 Power Supply 100W 24V - PFC
The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.89 in
-
Width2.74 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well PLC-100-24?
The PLC-100-24 is rated for 24V DC output and 4.0A rated current. Its listed power rating is 96W, and it is commonly described as a 100W class power supply. This model is designed for applications that need a stable 24V supply with active PFC.
What types of applications is the PLC-100-24 suitable for?
Mean Well specifies this model as suitable for LED lighting and moving sign applications. Its constant voltage design with built-in constant current limiting circuit makes it relevant for systems that require a regulated 24V output. It is intended for commercial and industrial-style power supply use rather than consumer plug-and-play applications.
Does the PLC-100-24 include power factor correction?
Yes, this model includes built-in active PFC. The product description states PF>0.9 at 75% load or higher, which is a useful feature for higher-load operation. That helps distinguish it from simpler non-PFC power supplies.
What protection features are included in the PLC-100-24?
The PLC-100-24 includes protection for short circuit, over current, over voltage, and over temperature. Mean Well also states that the unit receives a 100% full load burn-in test. These features support reliability in demanding power supply applications.
What operating temperature range is specified for this power supply?
This model is specified for operation from -30°C to 50°C. That range makes it suitable for a broad range of indoor and protected equipment environments, provided the overall application stays within the product's rated conditions. Buyers should confirm their enclosure and ambient conditions match this range.
Does the PLC-100-24 support dimming control?
No, the provided product data lists dimming control as none. If your application requires built-in dimming functionality, this is not the right choice based on the stated specifications. It is better suited where a fixed 24V output supply is needed.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLC-100-12 Power Supply 100W 12V - PFC | 60W | 12V | 5A | Indoor | $43.63 | View |
| Mean Well PLC-100-48 Power Supply 100W 48V - PFC | 96W | 48V | 2A | Indoor | $48.14 | View |
| Mean Well PLC-100-36 Power Supply 100W 36V - PFC | 95.4W | 36V | 2.65A | Indoor | $48.14 | View |
| Mean Well PLC-100-27 Power Supply 100W 27V - PFC | 95.85W | 27V | 3.55A | Indoor | $48.14 | View |
| Mean Well PLC-100-20 Power Supply 100W 20V - PFC | 96W | 20V | 4.8A | Indoor | $48.14 | View |
| Mean Well PLC-100-15 Power Supply 100W 15V - PFC | 75W | 15V | 5A | Indoor | $48.14 | View |
