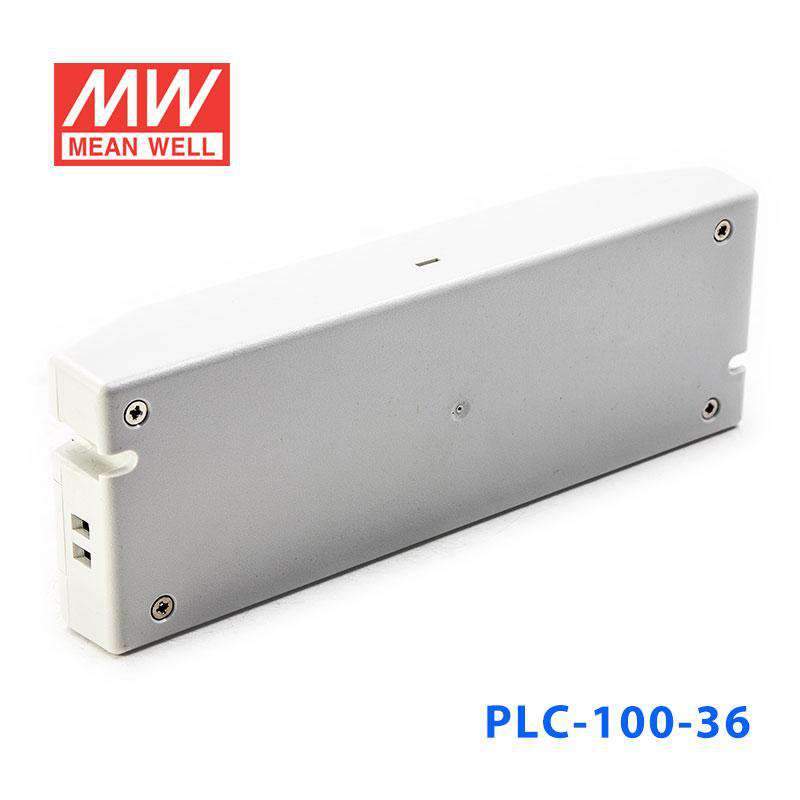

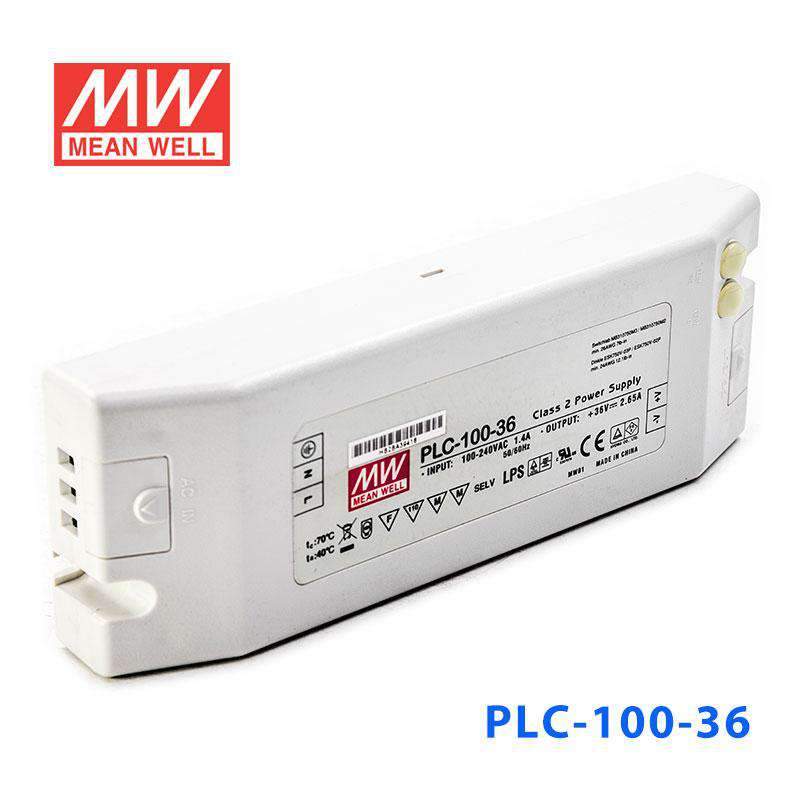

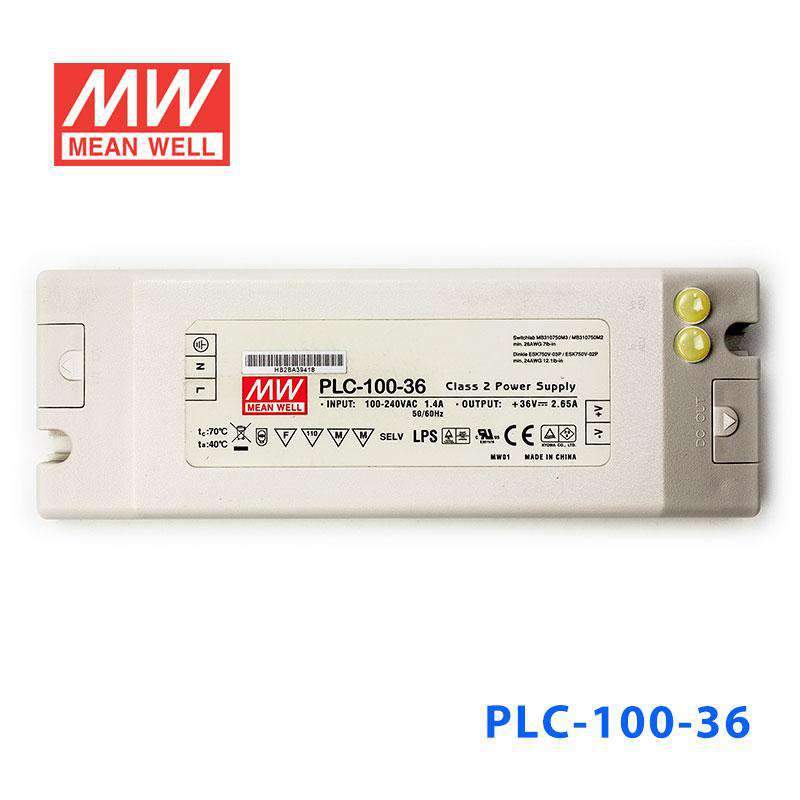

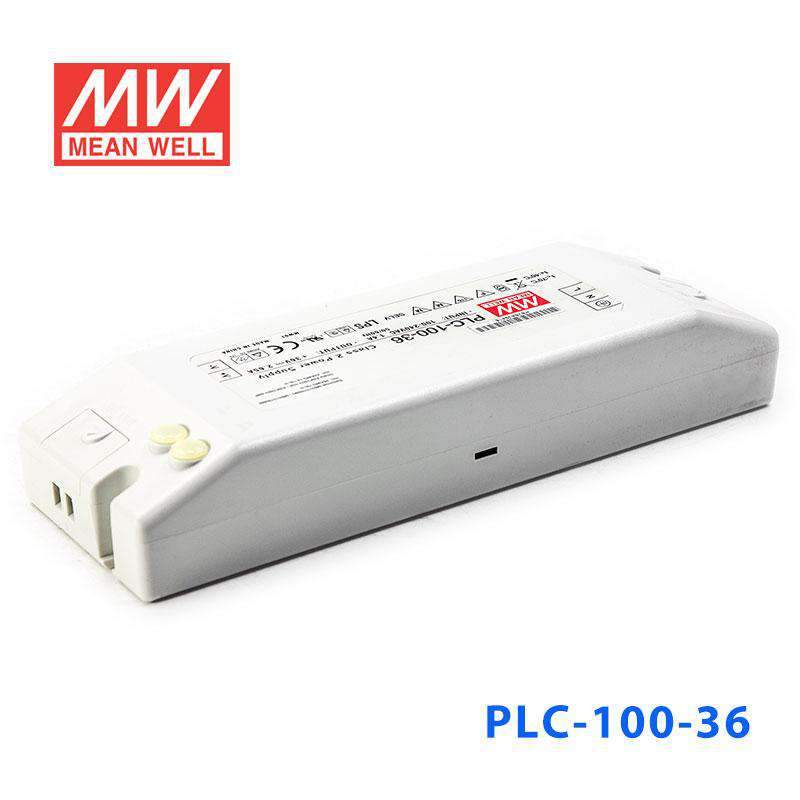

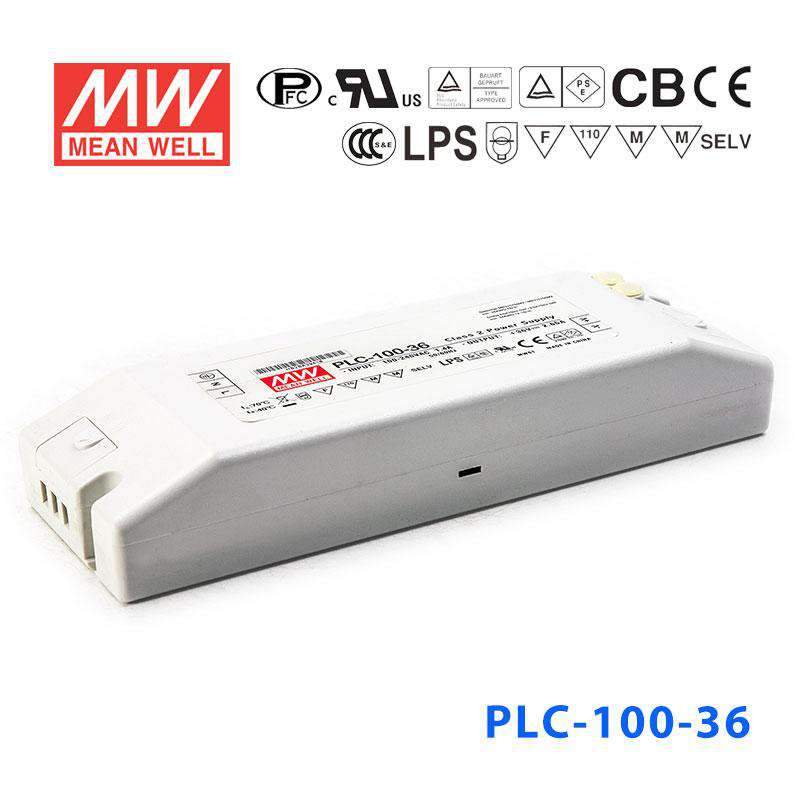

Mean Well PLC-100-36 Power Supply 100W 36V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-100-36 Power Supply 100W 36V - PFC
The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating95.4 Watt
-
Output Voltage36 Volt
-
Rated Current2.65 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.89 in
-
Width2.74 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well PLC-100-36?
The PLC-100-36 is a 36V power supply rated at 100W, with a listed power rating of 95.4W and rated current of 2.65A. It is designed for applications that need a stable 36V DC output from a universal AC input range.
What types of applications is the PLC-100-36 suitable for?
This model is intended for LED lighting and moving sign applications, which matches the product family and manufacturer description. Its built-in constant current limiting circuit in C.V.+C.C. mode also makes it relevant for loads that benefit from controlled current behavior.
Does the Mean Well PLC-100-36 include power factor correction?
Yes, the PLC-100-36 includes an active PFC function. The product description states PF is greater than 0.9 at 75% load or higher, which is useful in commercial and industrial environments where power quality matters.
Is the PLC-100-36 a dimmable LED driver?
No, this model does not include dimming control. The product data lists dimming_control as none, so buyers needing integrated dimming should compare it with other driver models that specifically support that feature.
What operating temperature range is specified for this power supply?
The listed operating temperature range is -30°C to 50°C. That makes the PLC-100-36 suitable for a wide range of indoor and protected-environment applications, provided the surrounding conditions stay within that specified range.
What protections are built into the Mean Well PLC-100-36?
This model includes protection for short circuit, over current, over voltage, and over temperature. Those built-in safeguards help support reliability in demanding LED power applications.
Is the PLC-100-36 compatible with applications that require a Class 2 power unit?
Yes, the product description identifies it as a Class 2 power unit and states it passes LPS. That can make it a fit for projects or equipment specifications that call for those classifications, subject to the rest of the system requirements.
