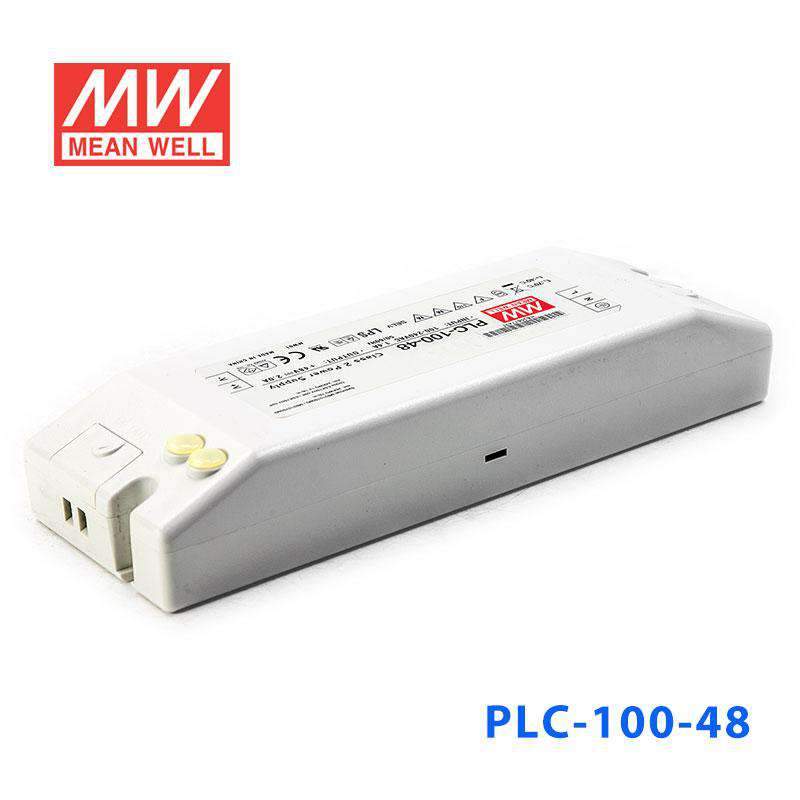

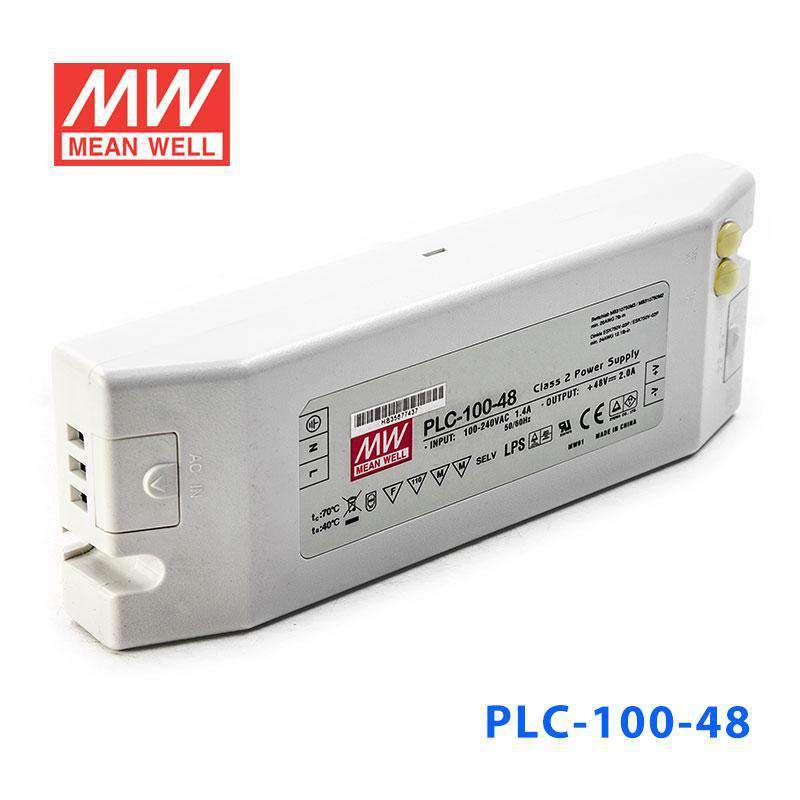

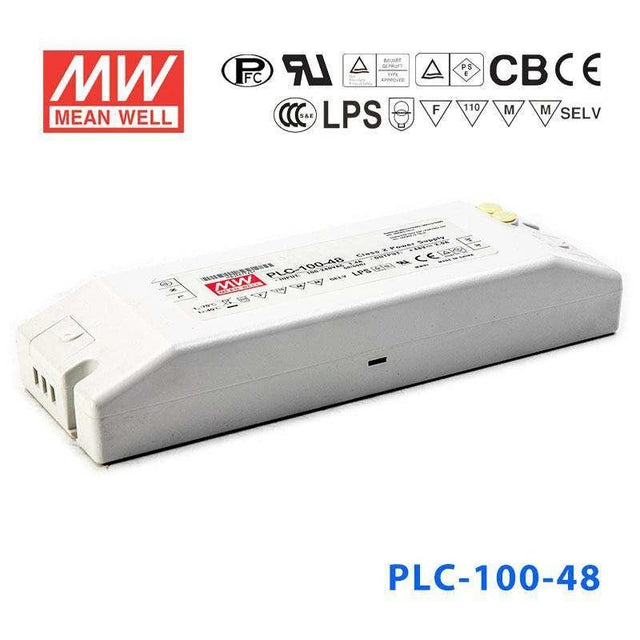

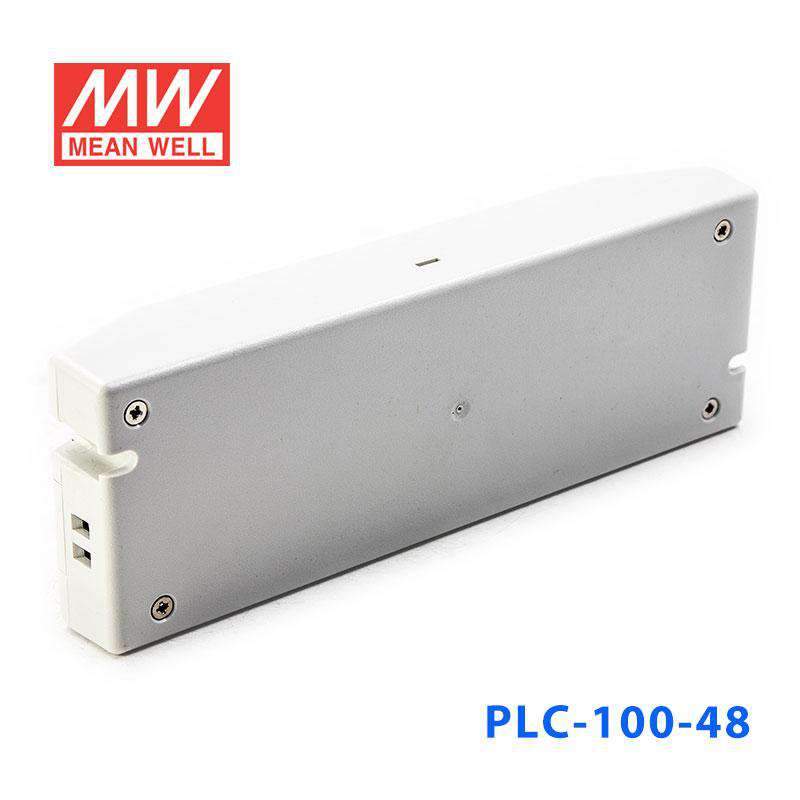

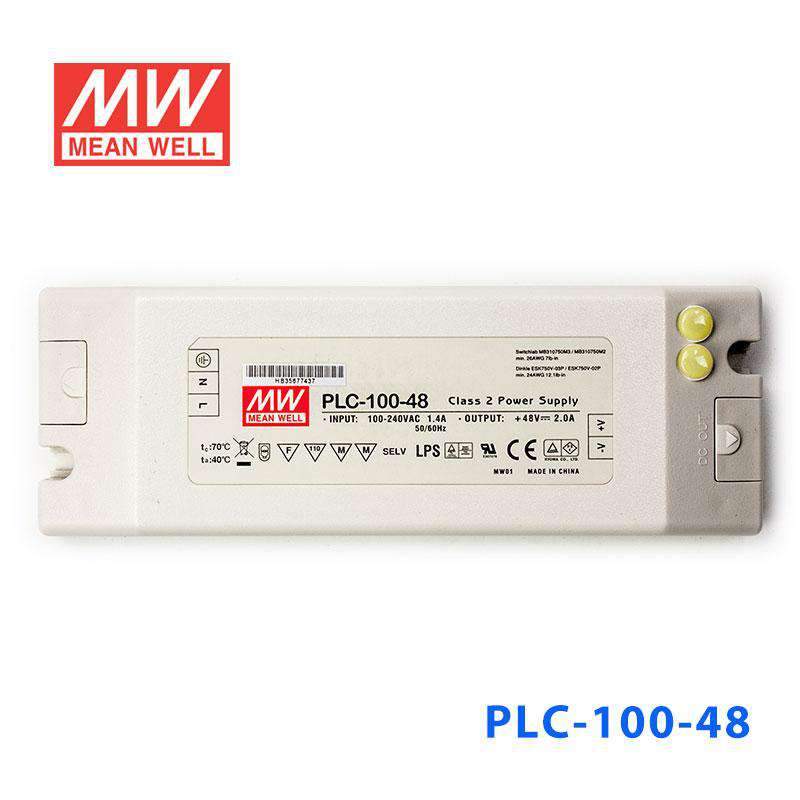

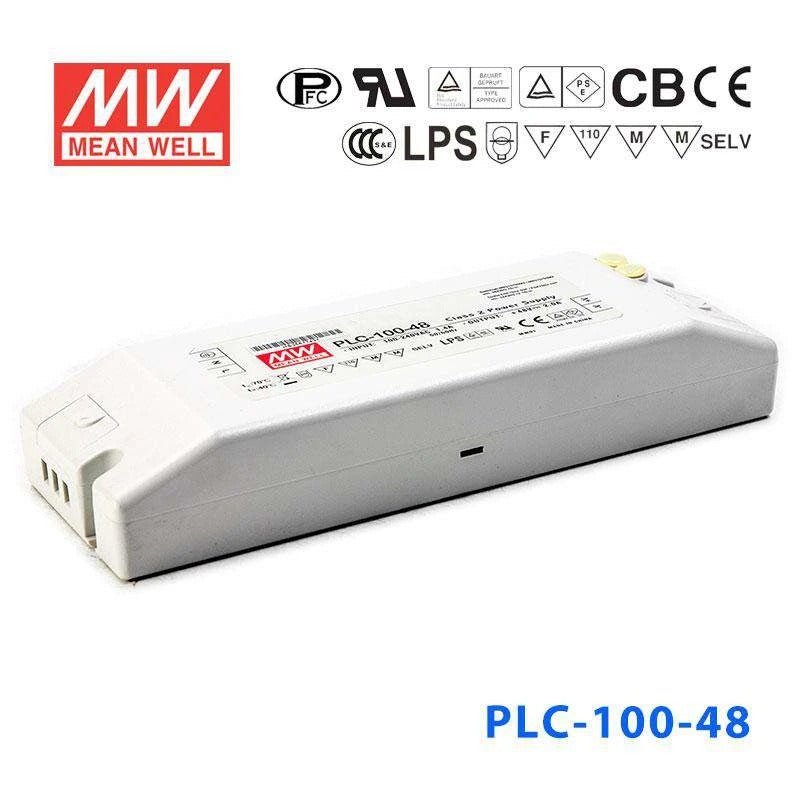

Mean Well PLC-100-48 Power Supply 100W 48V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-100-48 Power Supply 100W 48V - PFC
The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating96 Watt
-
Output Voltage48 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.89 in
-
Width2.74 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What is the output of the Mean Well PLC-100-48?
The PLC-100-48 provides a 48V DC output with a rated current of 2.0A. Based on the supplied product data, its rated output power is 96W.
What types of applications is the PLC-100-48 designed for?
This model is described as suitable for LED lighting and moving sign applications. Its constant voltage output with built-in constant current limiting also makes it relevant for buyers looking for a regulated 48V LED power supply.
Does the Mean Well PLC-100-48 support dimming?
No. The product data for this model lists dimming control as none, so it is not presented as a dimmable power supply.
What protections are included in the PLC-100-48?
According to the product description, the PLC-100-48 includes protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliable operation in demanding commercial lighting applications.
Can the PLC-100-48 be used in a wide range of ambient temperatures?
The specified operating temperature range in the provided data is -30°C to 50°C. That makes it suitable for applications where the power supply may be exposed to both low and moderately high ambient temperatures.
What distinguishes the PLC-100-48 from lower-voltage LED power supplies?
The PLC-100-48 is a 48V model, so it is intended for equipment that specifically requires a 48V DC supply rather than lower-voltage alternatives. Buyers should match the output voltage and current rating to the requirements of the load before selecting this model.
