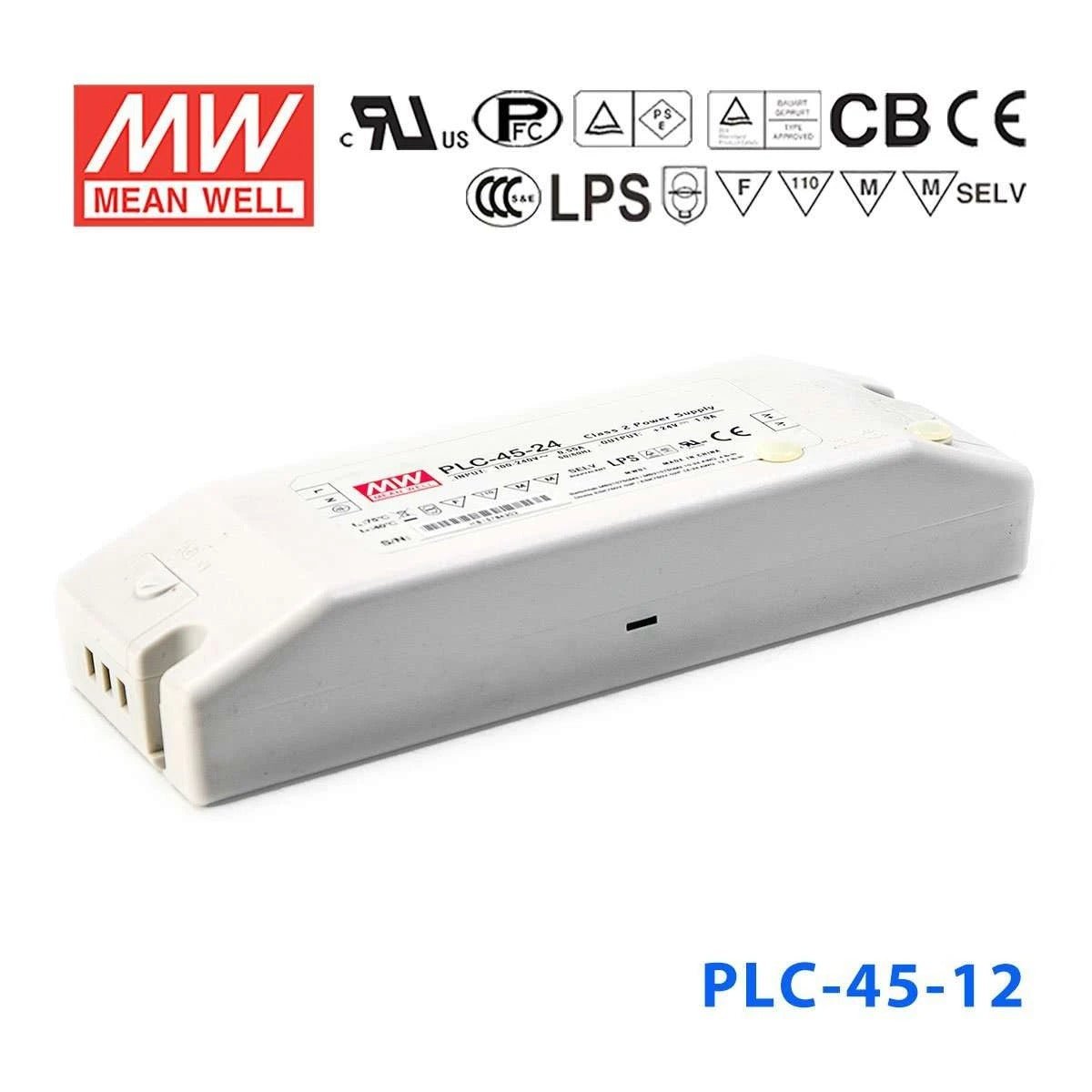

Mean Well PLC-45-12 Power Supply 45W 12V - PFC
The PLC-45 is a 45W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Ul1310, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating45.6 Watt
-
Output Voltage12 Volt
-
Rated Current3.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What is the Mean Well PLC-45-12 designed for?
The PLC-45-12 is a 45W 12V power supply intended for LED lighting and moving sign applications. It is a constant-voltage model with built-in constant current limiting, which makes it suitable for applications that need a regulated 12V DC output.
What output does this power supply provide?
This model provides a 12V DC output and is rated for 3.8A current. Its listed power rating is 45.6W, which matches applications that need a 12V supply within that output range.
Does the PLC-45-12 support dimming control?
No. The specified dimming control for this model is none, so it should be selected for applications that do not require built-in dimming functionality from the power supply itself.
What does built-in active PFC mean for this model?
The PLC-45-12 includes an active power factor correction function. Mean Well specifies PF greater than 0.9 at 75% load or higher, which can be relevant for commercial and professional installations where power quality matters.
What protection features are included in the PLC-45-12?
This model includes protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliability in demanding LED power applications.
What operating environment is this power supply rated for?
The listed operating temperature range is -30°C to 50°C. Buyers should confirm the final enclosure and application conditions stay within that range, since no additional ingress or outdoor rating is provided here.
What warranty is provided for the PLC-45-12?
The stated warranty period for this model is 2 years. That makes it a practical option for buyers who want a branded 12V LED power supply with clearly defined coverage.
