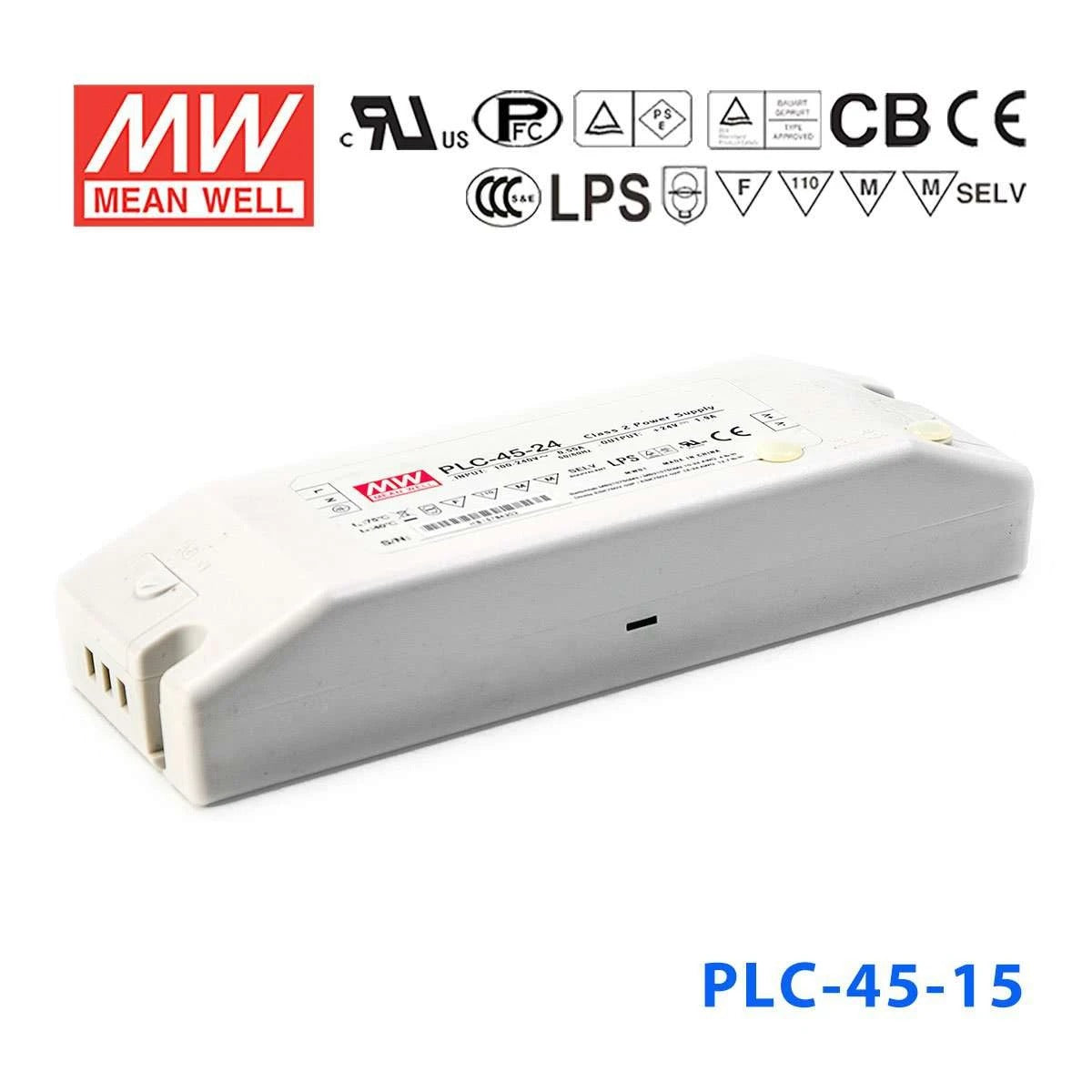

Mean Well PLC-45-15 Power Supply 45W 15V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-45-15 Power Supply 45W 15V - PFC
The PLC-45 is a 45W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Ul1310, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What type of power supply is the Mean Well PLC-45-15?
The PLC-45-15 is a 45W AC/DC power supply with a 15V DC output. It is designed as a constant-voltage unit with built-in constant current limiting (C.V.+C.C. mode). This model also includes active power factor correction.
What are the main electrical ratings of the PLC-45-15?
This model is rated for 45W total output power, 15V DC output voltage, and 3.0A rated current. It supports universal AC input over a full range. Mean Well also specifies high efficiency of up to 89% for this unit.
Is the PLC-45-15 suitable for LED lighting applications?
Yes, the PLC-45-15 is described as suitable for LED lighting and moving sign applications. Its constant-voltage output with built-in constant current limiting makes it relevant for lighting-related use cases that require a regulated 15V supply. Buyers should still confirm that the application matches the 15V, 3.0A output rating.
Does the Mean Well PLC-45-15 support dimming control?
No, this model does not include dimming control. If your project requires integrated dimming functionality, you would need to evaluate a different driver or power supply model. The PLC-45-15 is intended for applications needing a fixed regulated output.
What protection features are included in the PLC-45-15?
Mean Well lists protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliability in demanding operating conditions. The unit is also described as a Class 2 power unit and Pass LPS.
What operating temperature range is specified for the PLC-45-15?
The specified operating temperature range is -30°C to 50°C. That makes this model suitable for environments that experience both low and moderately elevated ambient temperatures. Temperature suitability should still be reviewed against the conditions of the final enclosure or installation environment.
What physical and durability details are available for this model?
The PLC-45-15 uses a fully isolated plastic case and has a listed weight of 0.41 kg. Mean Well also states that the unit receives a 100% full load burn-in test. The listed warranty period for this model is 2 years.
